Junction Box Mounting Bracket for IP Turrets and Varifocal Cameras

Camera BracketsSKU: SCD-JB03H-BK

Color: Black
Sale price$11.80 CAD
In stock

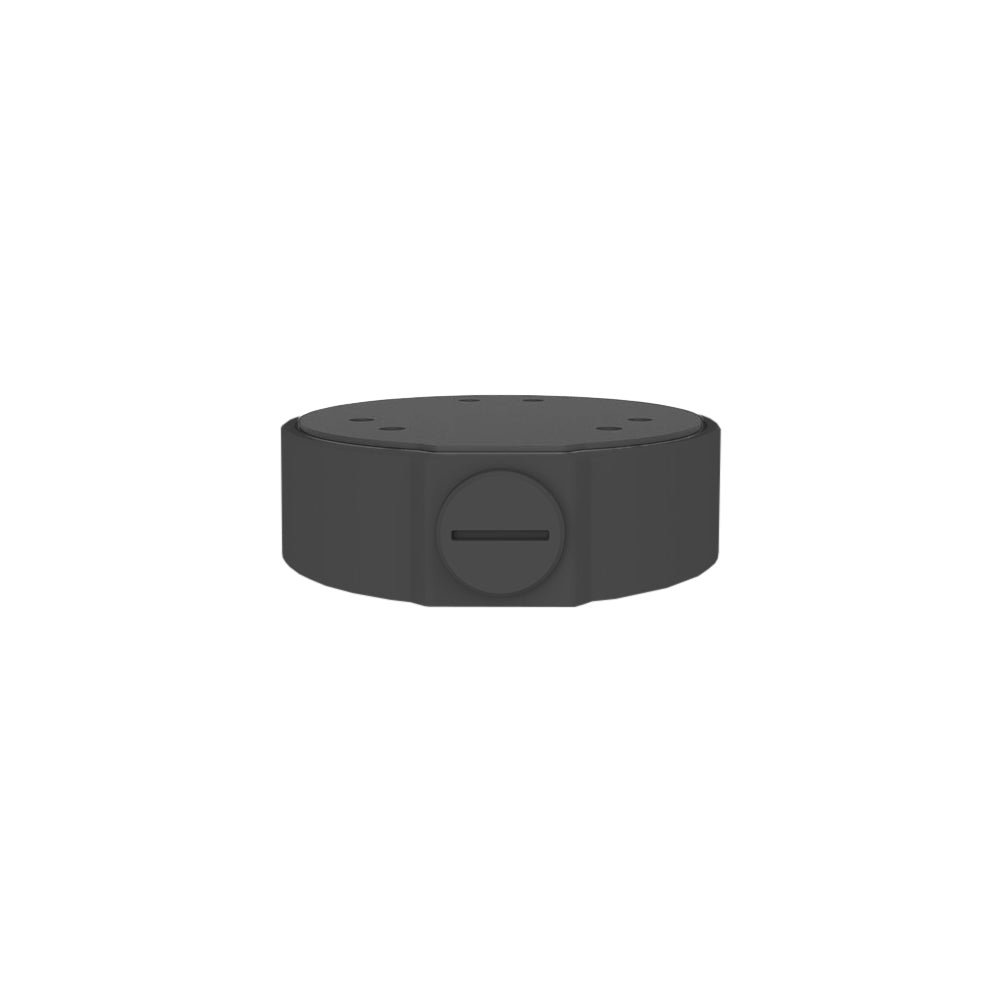

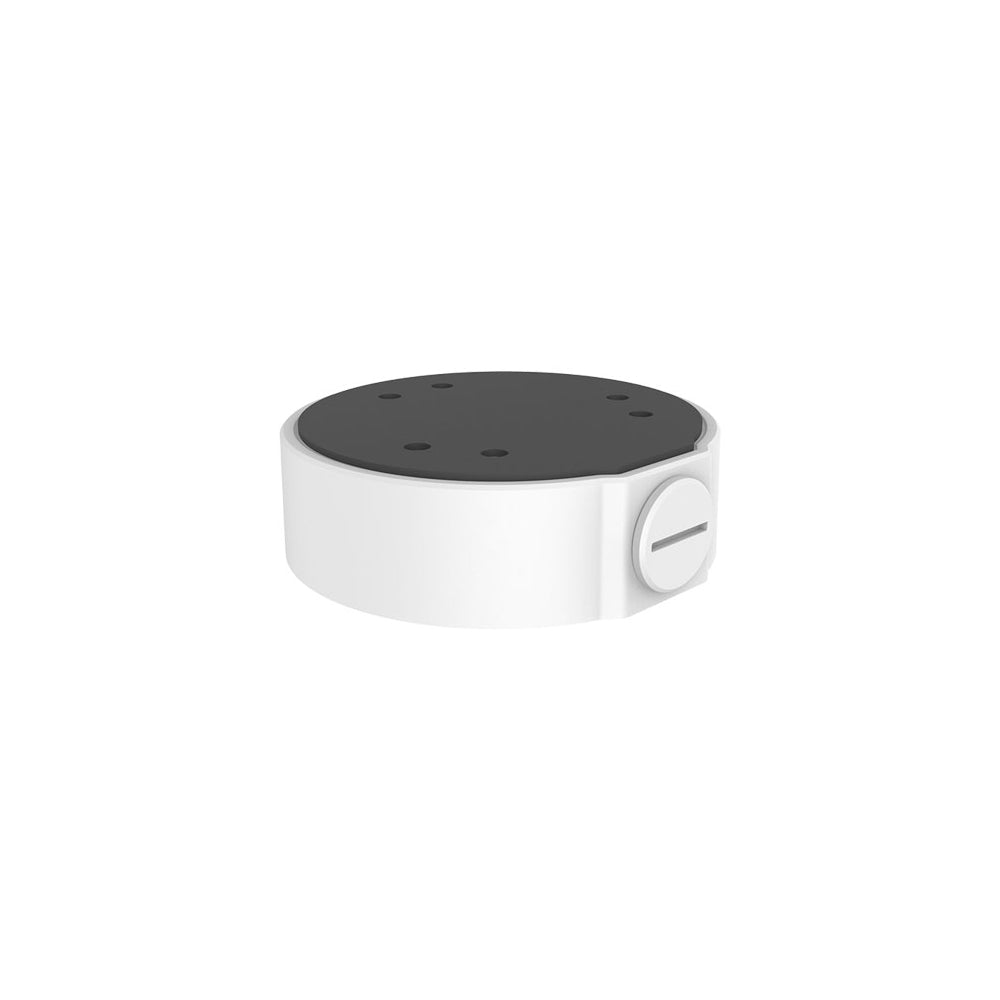

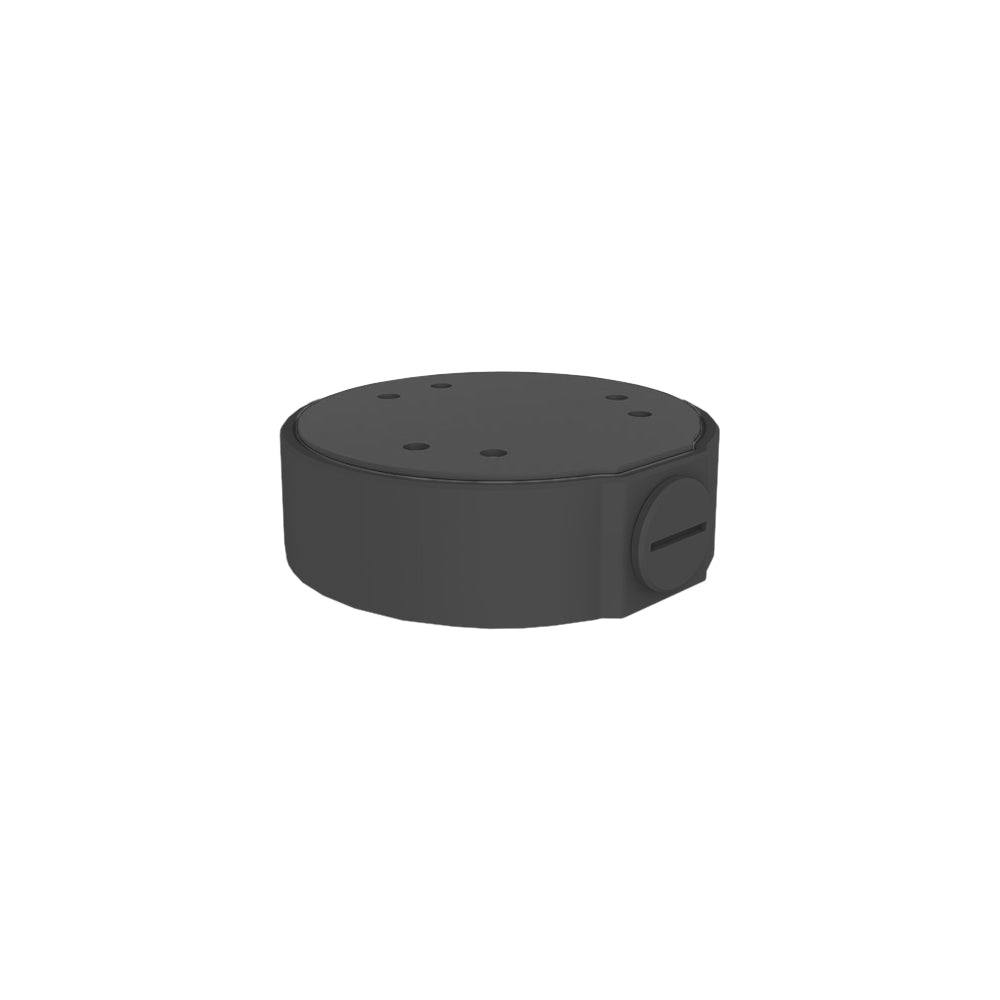

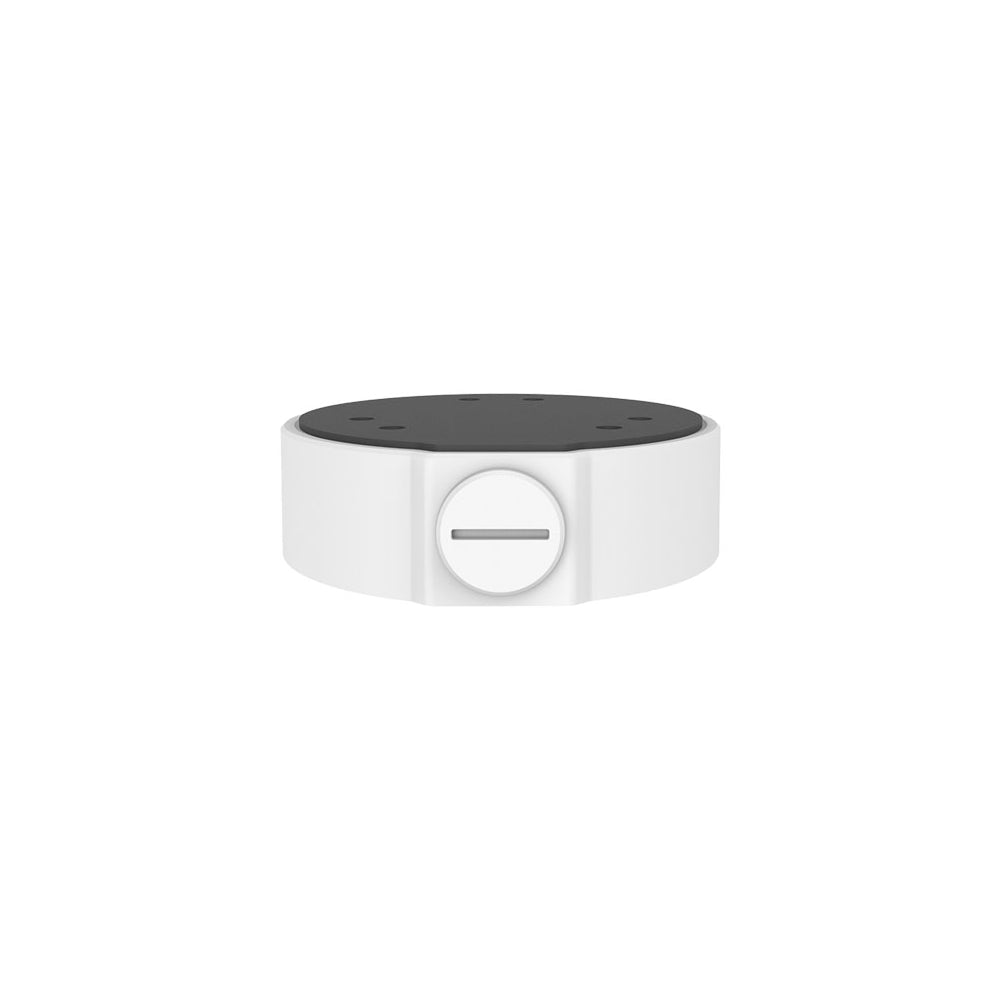

This junction box mounting bracket is designed to mount a turret IP camera or varifocal camera. It has side and bottom inlets for easier installation. It is constructed of treated aluminum alloy material for better protection against the elements in outdoor applications.


Physical Characteristics
Color Black / White
Material Aluminum alloy

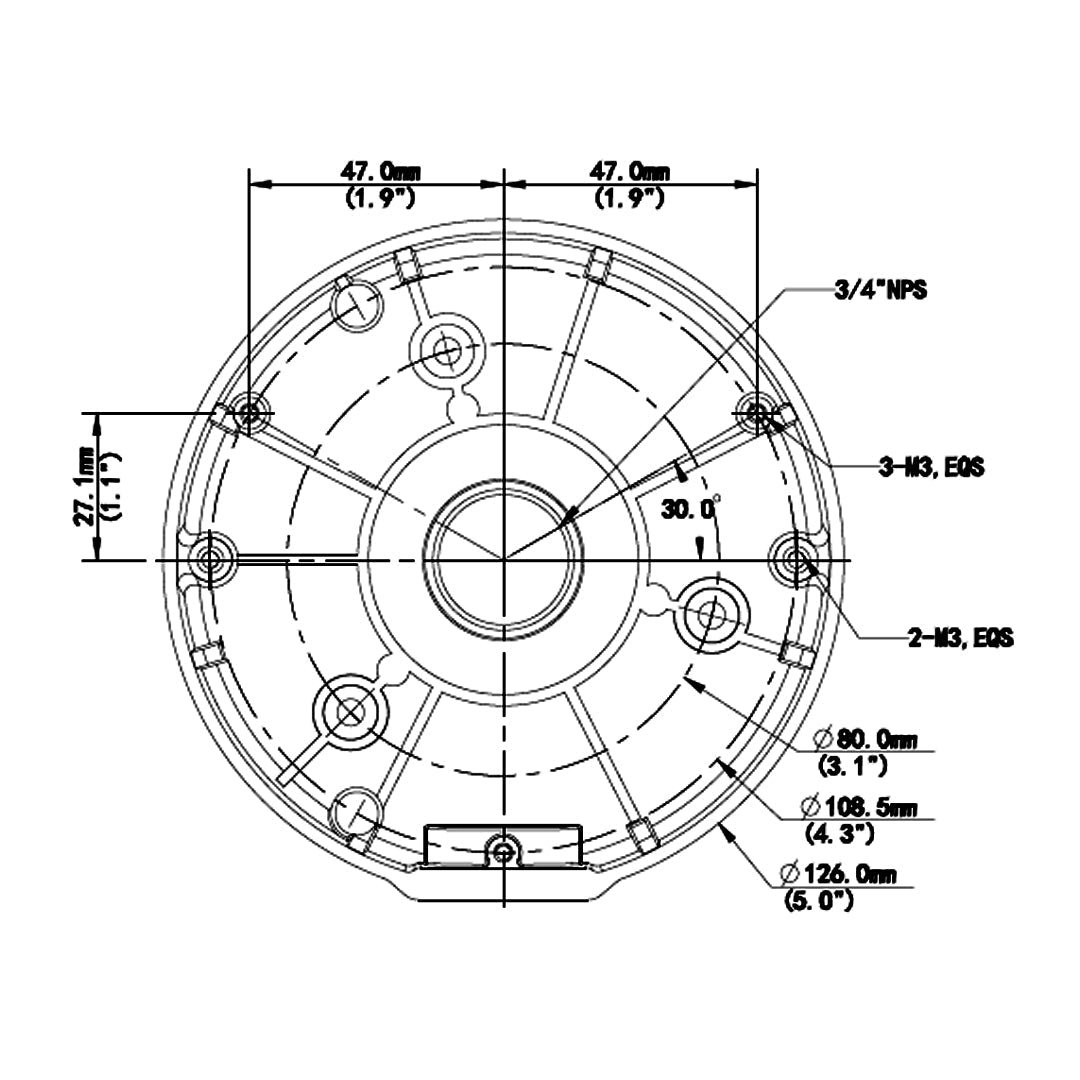

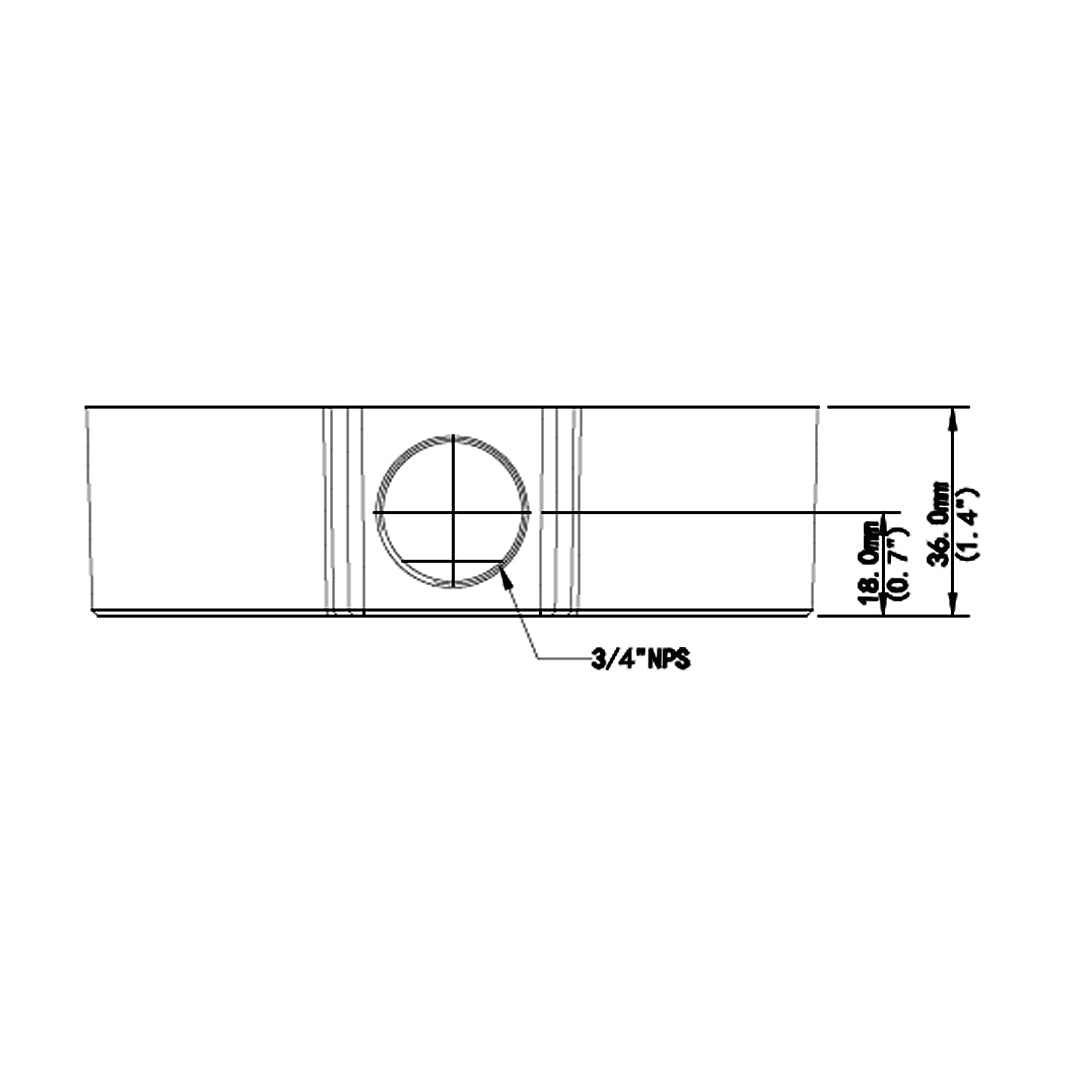

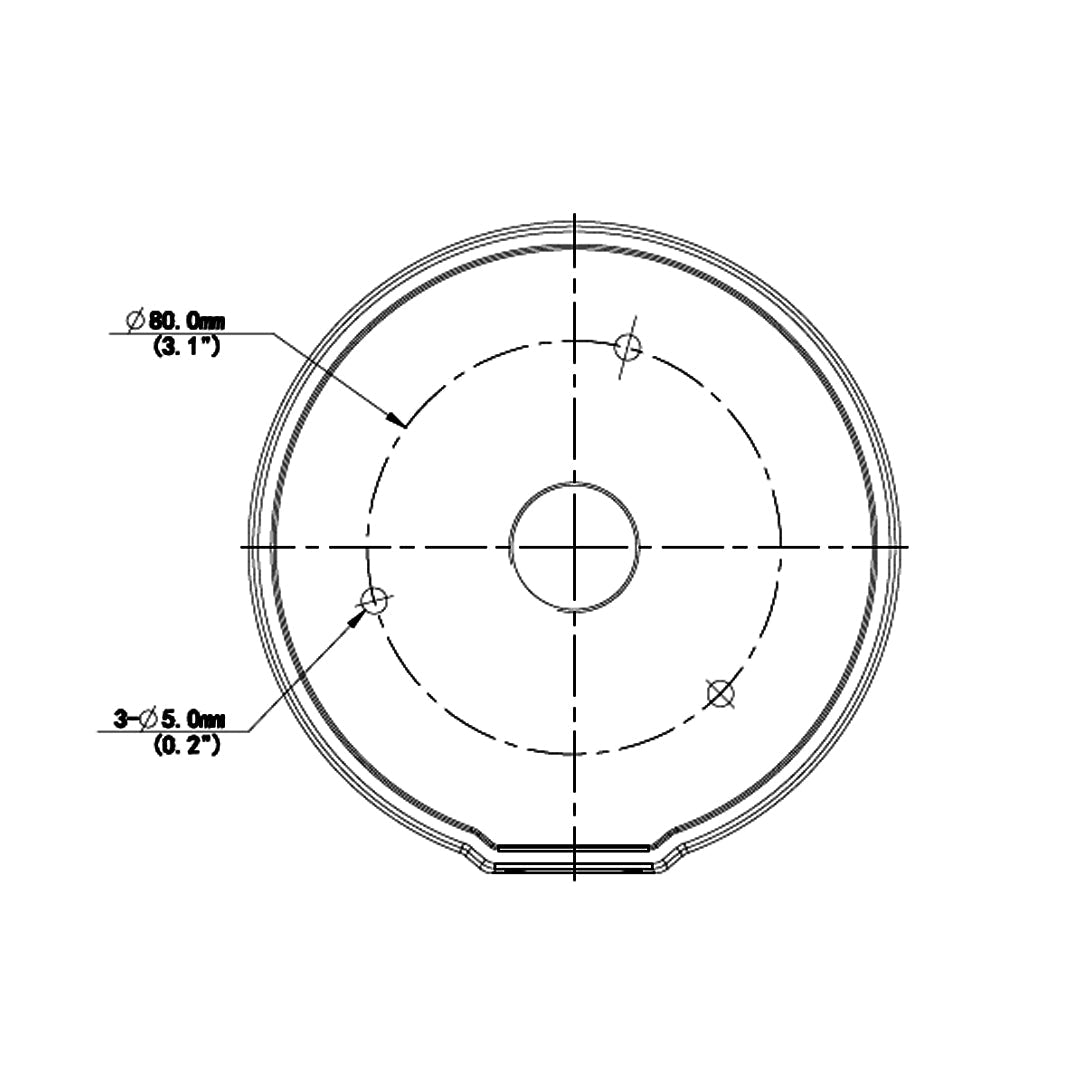

Dimensions ‚¬ 126 mm x 36 mm (4.96" x 1.42")
SCD-4TR100-xx 4MP Turret IP Camera - Fixed Lens - Smart IR - HLC - IP67 Rated
SCD-4TR200-xx 4MP Turret IP Camera - Fixed Lens - Smart IR - WDR - HLC - Microphone - IP67 Rated
SCD-8TR100-xx 8MP Turret IP Camera - Fixed Lens - IR - Microphone - IP67 Rated
SC-3H43F-IGZ 4MP Varifocal Turret IP Camera - 2.8~12mm - Smart IR - IP67 Rated - White
SC-8153FW-I-F14 5MP Fisheye IP Camera - 1.4mm Fixed Lens - WDR - Microphone - IP66 IK10 Rated - White
CG-NPT075-xx Cable Gland 3/4 inch NPT Thread - Cable OD 13~18mm - IP68
Packaging Information
Package Quantity 1
Product Weight 0.53 lbs [0.24 kg]
