Description
Overview

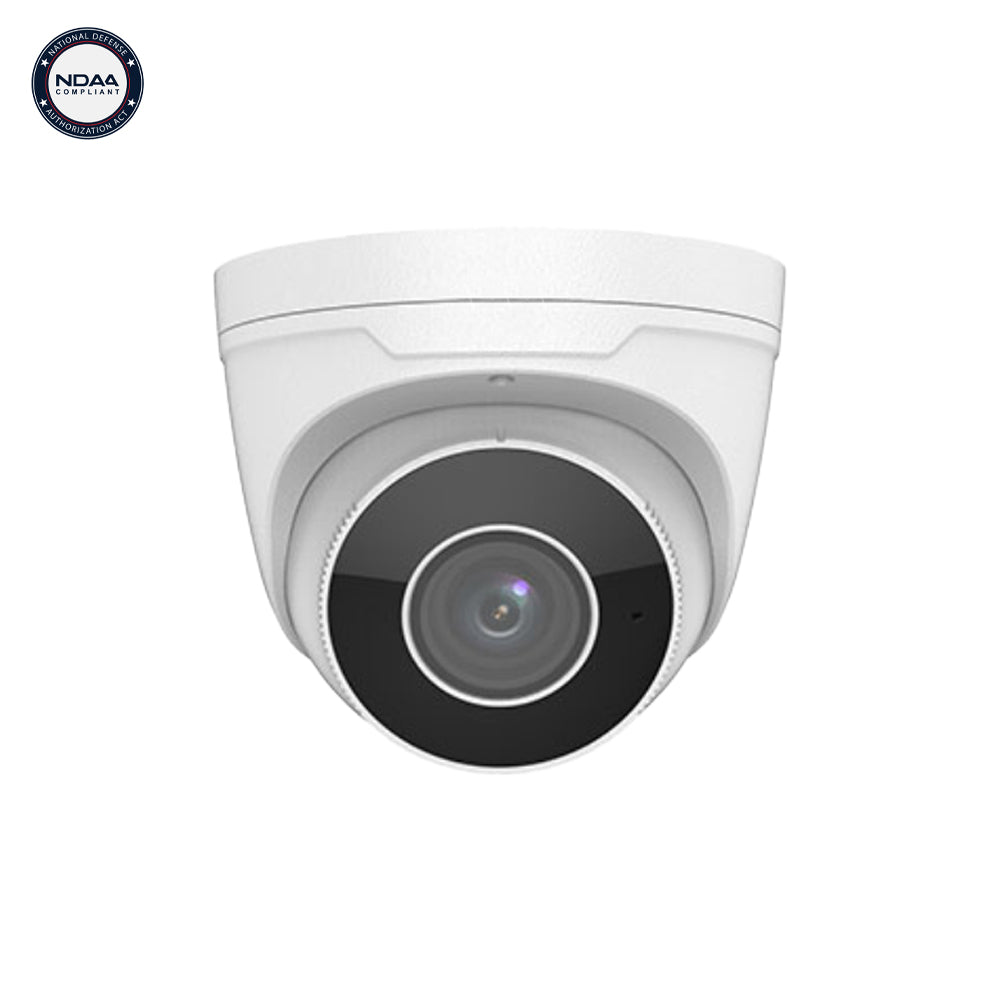

This 4MP indoor/outdoor, IP based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8 to 12 mm motorized varifocal lens which delivers 91 ° to 27 ° horizontal field of view. Its maximum resolution is 2592 x 1520 at 20 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 98 feet of night vision using an IR cut filter and IR LEDs.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/3" (4 MP) progressive scan CMOS |
| Minimum Illumination | Color: 0.005 lux @ (f/1.4, AGC on) 0Lux with IR |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000s |
| Slow Shutter | Yes |
| Day /Night | IR cut filter with auto switch (ICR) |
| S/N | >52dB |
| WDR | 120dB |
| Adjustment Angle | Pan: 0° ~ 360° , Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
|
Lens
|
|
| Lens Type | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
| Angle of View (H) | 91.0° ~ 27.0° |
| Angle of View (V) | 54.4° ~ 13.7° |
| Angle of View (O) | 118.3° ~ 33.2° |
|
DORI
|
|
| DORI Distance | 2.8mm Lens, 63.0m Detect, 25.2m Observe, 12.6m Recognize, 6.3m Identify 12.0mm Lens, 270.0m Detect, 108.0m Observe, 54.0m Recognize, 27.0m Identify |
|
IR
|
|
| IR Range | Up to 30m (98ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
|
Video
|
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
|
|
|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | Supported |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
|
Smart
|
|
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|
Audio
|
|
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHz |
|
Storage
|
|
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
|
Network
|
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|
Interface
|
|
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
|
Certification
|
|
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| NDAA Compliant | Yes |
|
General
|
|
| Power | DC 12V±25%, PoE (IEEE 802.3af, Mode B – Pins 4, 5, 7 and 8) Power consumption: Max 8.16W |

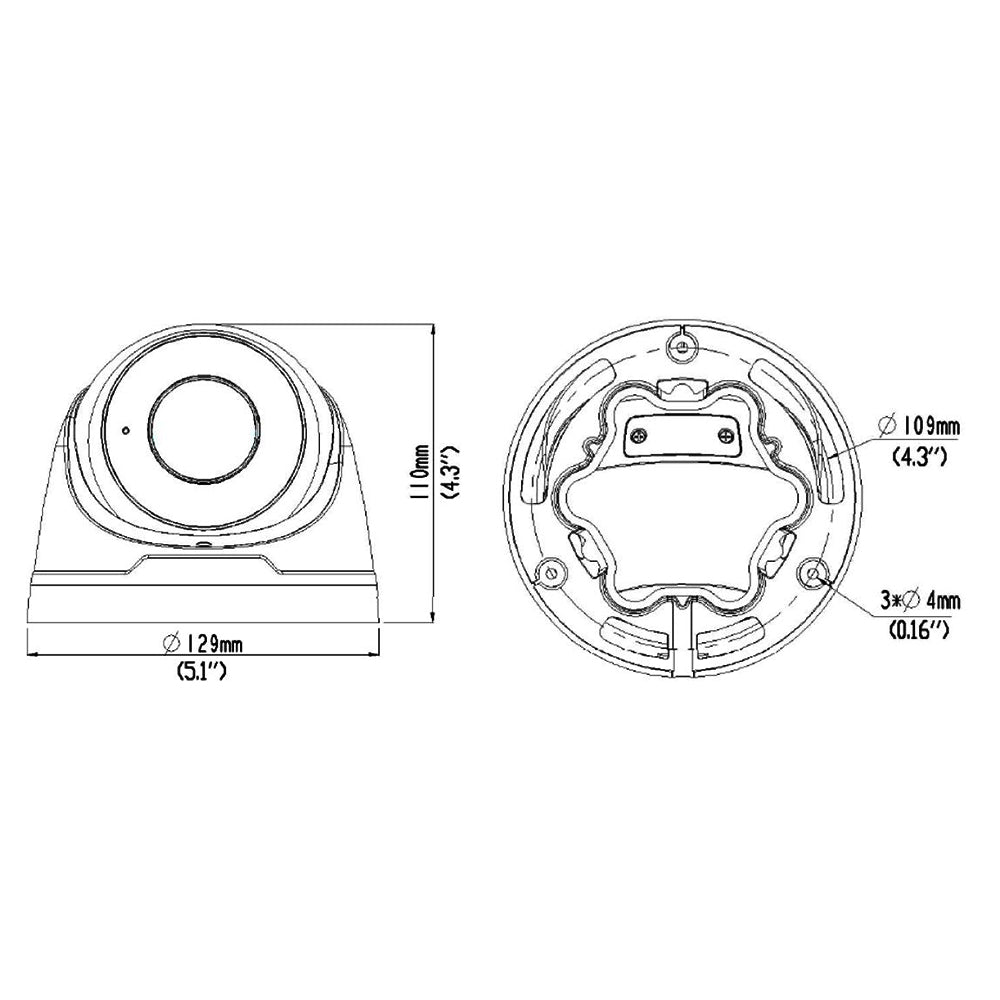

| Dimensions (Ø x H) |
Φ129 x 110mm (Ø5.08€� x 4.3€�) |
| Weight | 0.82kg (1.8lb) |
| Material | Metal |
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ‰¤95% RH (non-condensing) |
| Storage Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ‰¤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Supported |
| Ingress Protection | IP67 |
