Description
Overview

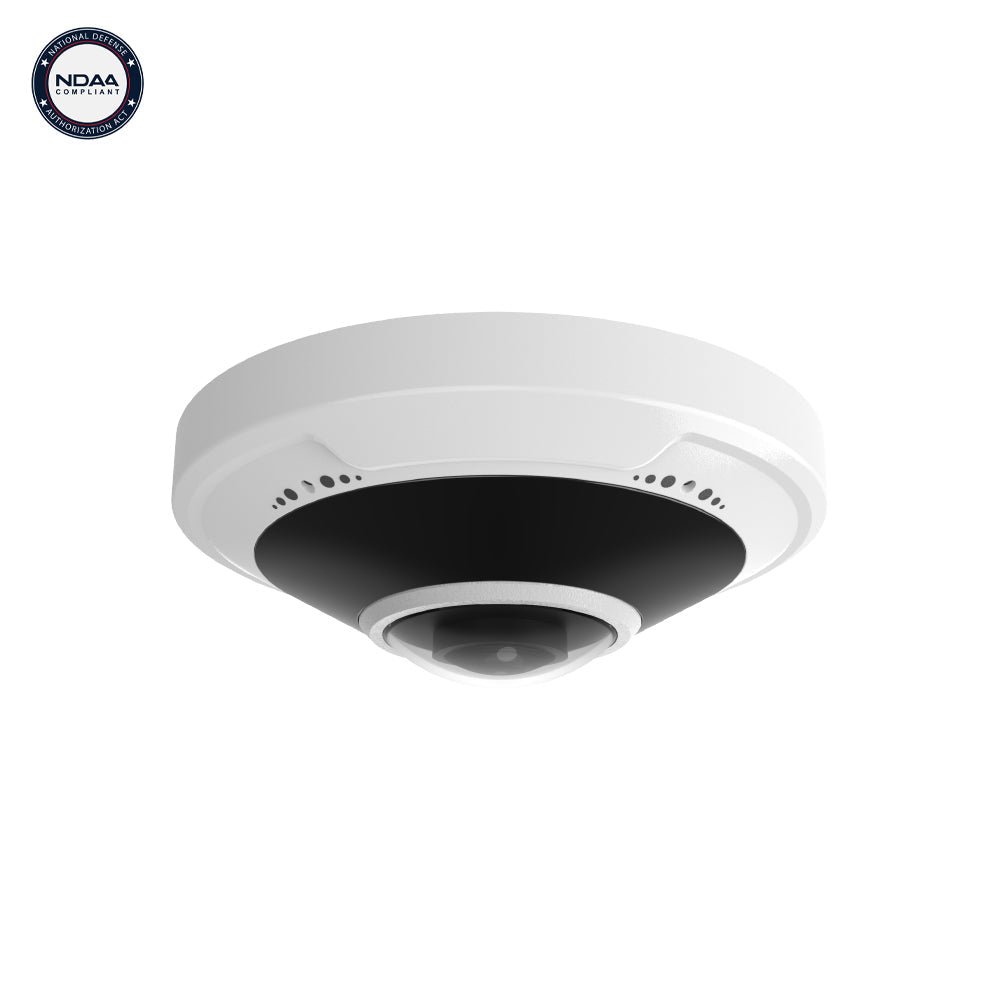

This 5MP fisheye IP based camera provides sharp, high definition images in daylight or nighttime settings. The camera has a 1.4mm fixed lens. Its maximum resolution is 2592 x 1944 at 30 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. It offers a 33ft (10m) IR range which provides well lit images in low light conditions. It also features motion detection, audio detection and a tampering alarm.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/2.8" (5 MP) progressive scan CMOS |
| Minimum Illumination | Color: 0.01 lux @ (F2.0, AGC on) 0 Lux with IR |
| Day/Night | IR-cut filter for day & night function |
| Shutter | Auto/Manual, Shutter Time 1 ~ 1/100000s |
| S/N | >55dB |
| WDR | 120dB |
|
Lens
|
|
| Lens Type | 1.4mm @ F2.0 |
| Angle of View | 360° |
|
DORI
|
|
| DORI Distance | 1.4mm Lens, 31.5m Detect, 12.6m Observe, 6.3m Recognize, 3.2m Identify |
|
Illuminator
|
|
| IR Range | Up to 10m (33ft) IR Range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
|
Video
|
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 5MP (2592*1944): Max.30fps; Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Triple streams |
|
|
|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Settings | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browse |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | Supported |
| Defog | Digital Defog |
|
Events
|
|
| Statistical Analysis | Heat Map |
| Basic Detection | Motion detection, Tampering alarm, Audio Detection |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|
Audio
|
|
| Audio Compression | G.711 |
| Audio Bitrate | 64 Kbps |
| Two-Way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHz |
|
Storage
|
|
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
|
Network
|
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
|
Live View Display
|
|
| Mount Type | Support table, wall, and ceiling |
| Decoding Mode | Support software decoding |
| Display Mode | 11 display modes in total Software decoding: Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ |
|
Interface
|
|
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| RS485 | N/A |
| Built-In Mic | Supported (2 Mics) |
| Built-In Speaker | N/A |
| WIFI |
N/A |
| Network | 1 * RJ45 10M/100M Base-TX Auto-Adaptive Ethernet |
| Video Output | N/A |
|
Certification
|
|
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
| Safety | IEC 62368-1 EN 62368-1 UL 62368-1 |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| NDAA Compliant | Yes |
|
General
|
|
| Power | DC12V(±25%), PoE (IEEE 802.3af, Mode B – Pins 4, 5, 7 and 8) Power consumption: MAX 8.5W |
| Power Interface | Ø 5.5mm coaxial power plug |

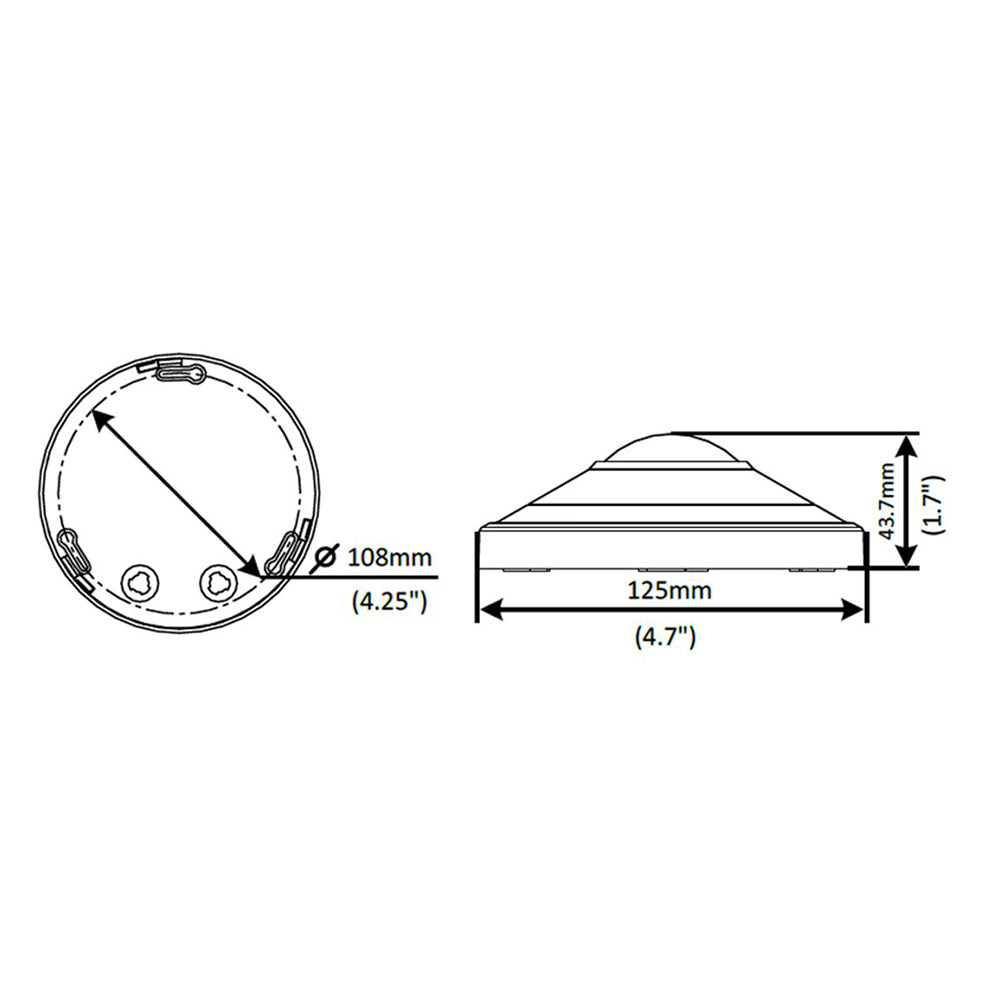

| Dimensions (Ø x H) |
Φ125 × 43.7 mm (Φ4.9" × 1.7") |
| Weight | 0.36kg (0.79lb) |
| Material | Metal + Plastic |
| Working /Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ‰¤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Supported |
