Description

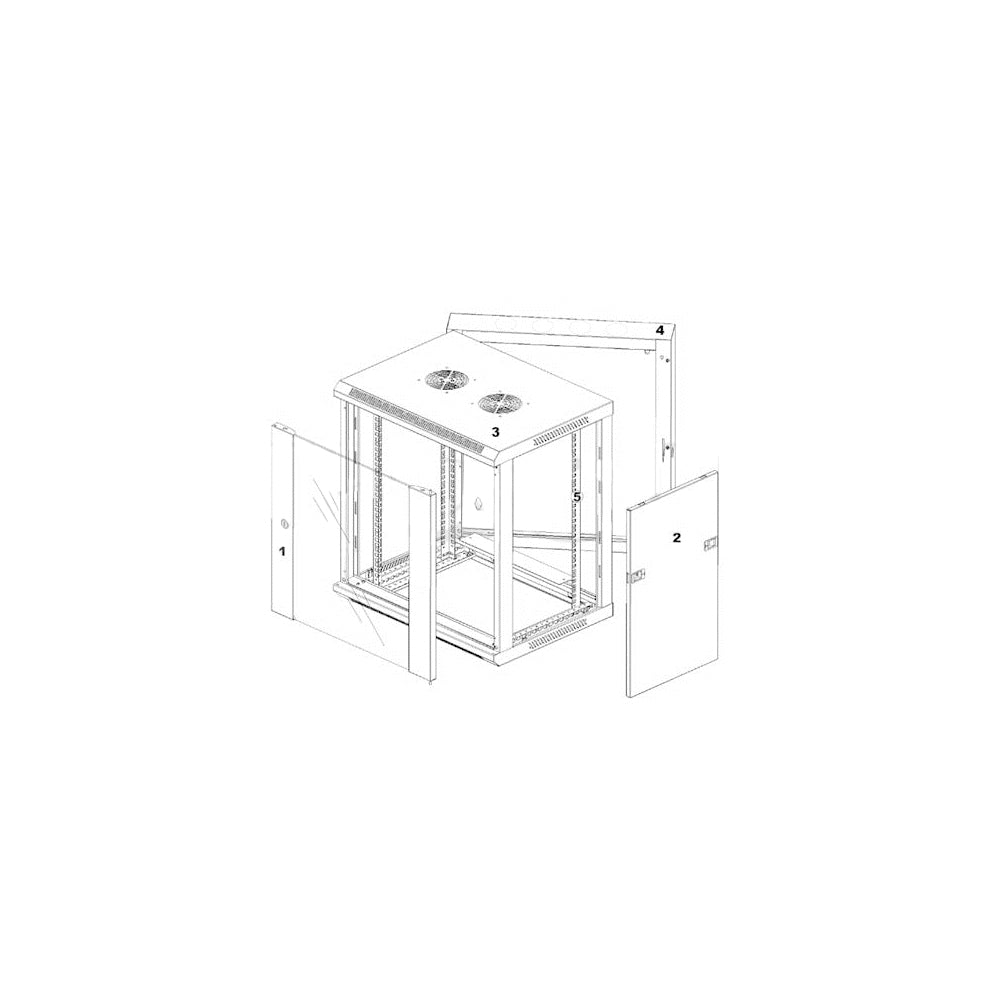

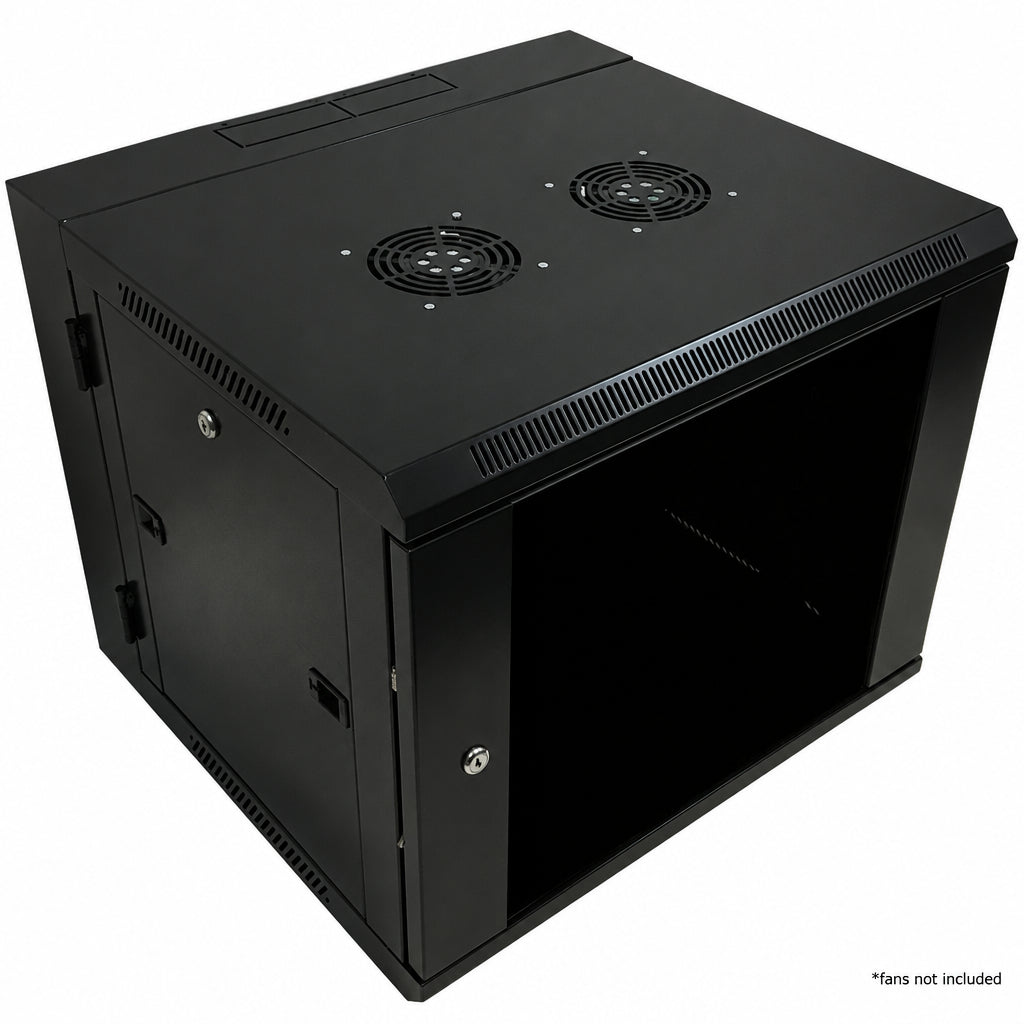

This 9U wall mount swing-out cabinet comes with a lockable front door, lockable swing out back and removable/lockable side panels. The swing-out back door allows for easy access during installation. It is typically used for housing network and DVR equipment used in small offices and homes. (Fans sold separately. Click here for fan kit).
| Physical Characteristics | |
|---|---|
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:1.35mm, Others:1.0 mm |

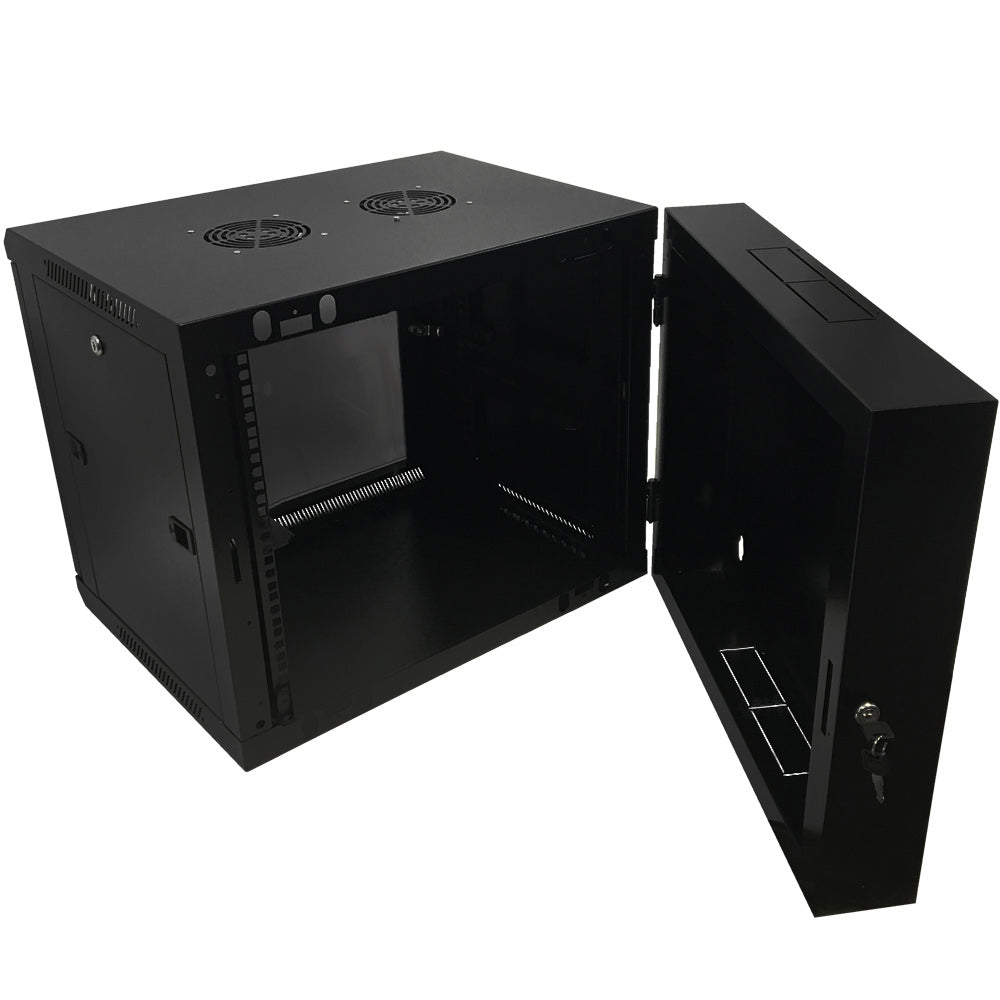

| Front Door | Removable Front Door, Opening Angle is Over 180℃s, Lockable |

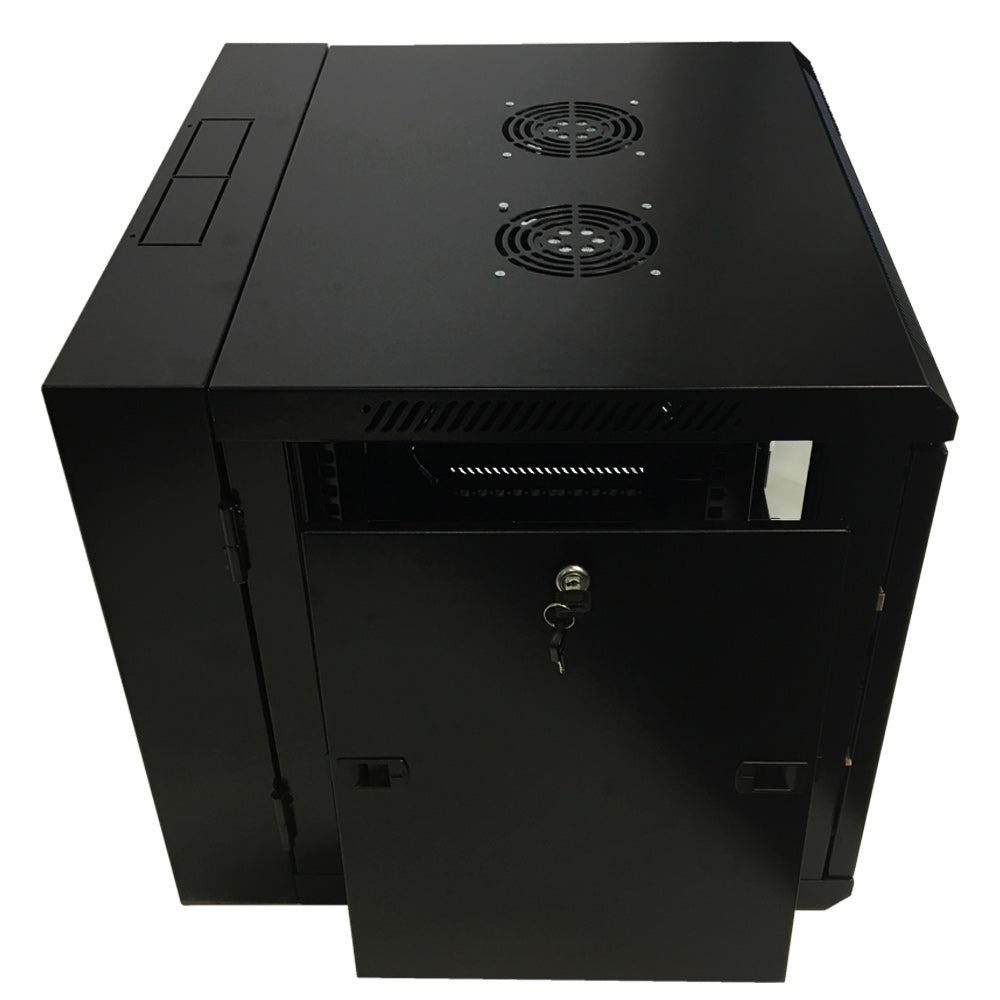

| Swing Out Back | Opening Angle is Over 90℃s, Lockable - Requires Two Keys to Open |
| Lockable Side Panels | Yes |
| Removable Side Panels | Yes |
| Adjustable Mounting Profile Installation | Yes |
| Assembly Required | No |
| Loading Capacity | Maximum 110 lbs [50 kg] |
| Cable Entries | Cable Entry on Top and Bottom Panels |
| Width | 19 inches |
| Capacity | 9U |
| Product Dimensions | 19.7H, 23.6 W, 21.6 D inches [50 H, 60 W, 55 D cm] |
| Mounting Rails | 2 pairs of square hole rails Adjustable depth 75mm, 85mm, 95mm 105mm, 115mm (Measured from the Glass to the Rail) |
| Usable Mounting Dimensions | 9UHeight x 19" Wide x 18.5" Deep |
| Cooling Fans | Not Included, Sold Separately (RM-615) |

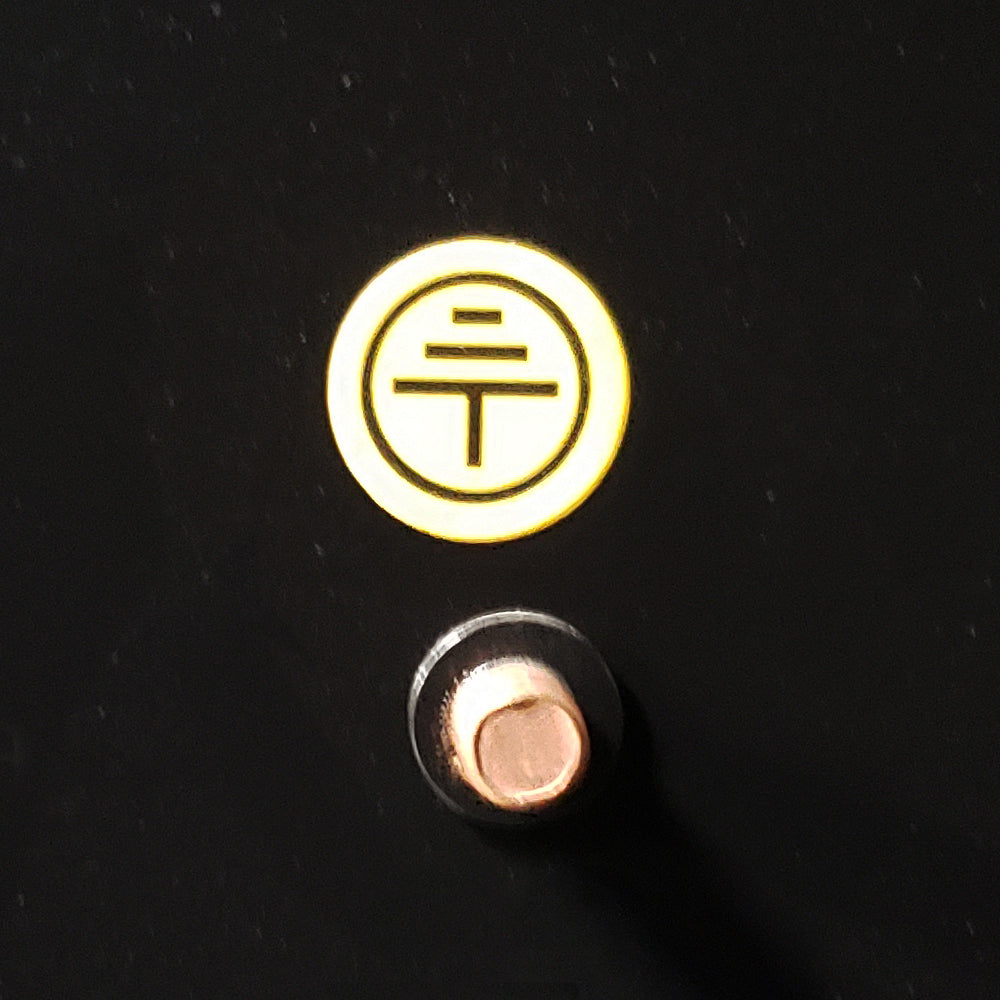

| Grounding Stud | Yes |
| Compatible Products | |
| RM-500-BRUSH |
Brush Opening Cover for Cable Knockout with Screws for RM-5XX Cabinets |
| RM-615 | Fan Kit for RM-500 Series Wall Mount Cabinets - Low Decibel 28dBa - 55 CFM - Pair |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 - Wall Mount Swing-Out Cabinet 9U (Assembled) |
| Mounting Hardware |
10 Sets - M6 Screws and Cage Nuts |
| Product Weight | 51 lbs |
