Description

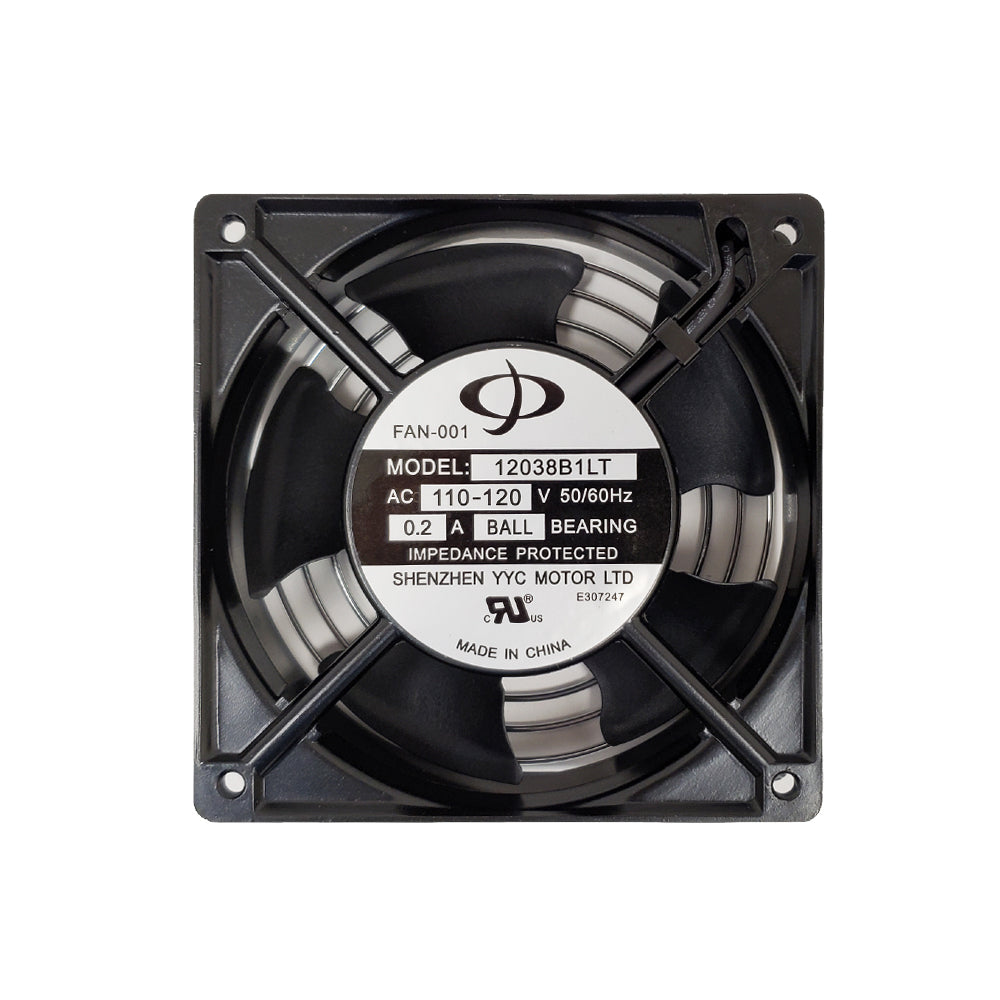

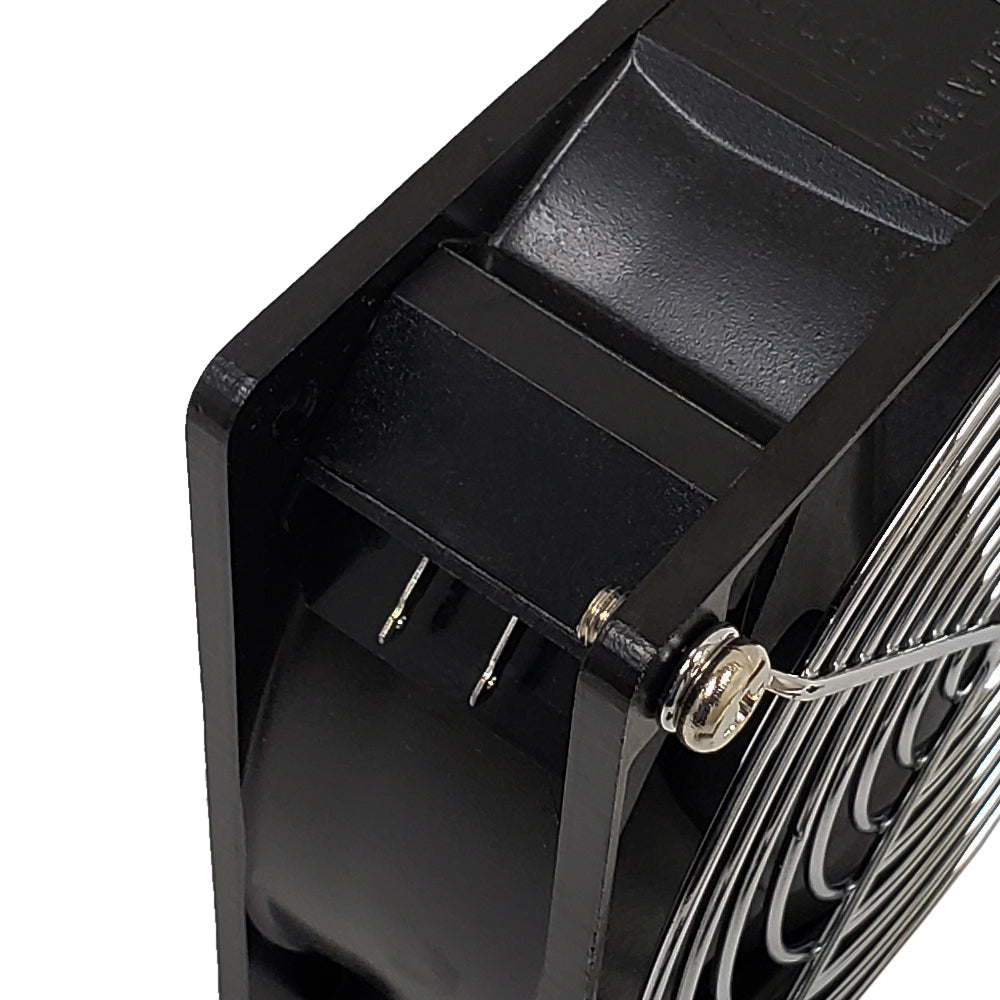

This pair of fans are designed to fit our RM-500 series of wall mount cabinets. Included in the kit is a pair of fans, power splitter cable, fan covers and mounting screws. The fans produce only 28dBA of sound per fan and have combined air flow of 110 CFM.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | Impeller: Thermoplasty PBT of UL94V-0 Bobbin: Thermoplasty PA66 of UL94V-0 Lead Wire: UL 1430 AWG#22 Housing: Die-Cast Aluminum |
| Dimensions | 120 x 120 x 38mm |
| Bearing System | Ball Bearing |
| Rated Voltage | 115V AC |
| Operating Voltage | 100V AC~120V AC |
| Start-up Voltage | 80V AC Normally |
| Rated Current | 0.11 Amps Normally |
| Rated Power | 10 Watts Normally |
| Rated Speed | 1700 RPM +/- 10% |
| Air Flow | 1.56 m3 / min 55 CFM (per fan) |
| Static Air Pressure | 2.0mm H2O |
| Noise Level | 28dBA (per fan) |
| Motor Protection Type | By Impedance |
| Life Expectancy | 50,000 Hours at Room Temperature |
| Operating Temperature | -20℃ ~ 70℃ |
| Power Cable Specifications | |
| Color | Black |
| Jacket Material | SPT-1 Jacket |
| Wire Gauge | 18AWG |
| Number of Conductors | 2C |
| Power Rating | 10 Amps / 125 Volts |
| Compatible Cabinets | |
| RM-501-6U |
Wall Mount Cabinet 6U x 19.5" Usable Depth, Glass Door - Black |
| RM-501-9U |
Wall Mount Cabinet 9U x 19.5" Usable Depth, Glass Door - Black |
| RM-501-12U |
Wall Mount Cabinet 12U x 19.5" Usable Depth, Glass Door - Black |
| RM-501-15U |
Wall Mount Cabinet 15U x 19.5" Usable Depth, Glass Door - Black |
| RM-511-6U |
Wall Mount Cabinet 6U x 23" Usable Depth, Glass Door - Black |
| RM-511-9U |
Wall Mount Cabinet 9U x 23" Usable Depth, Glass Door - Black |
| RM-511-12U |
Wall Mount Cabinet 12U x 23" Usable Depth, Glass Door - Black |
| RM-511-15U |
Wall Mount Cabinet 15U x 23" Usable Depth, Glass Door - Black |
| RM-511-22U |
Wall Mount Cabinet 22U x 23" Usable Depth, Glass Door - Black |
| RM-551-9U |
Wall Mount Swing-Out Cabinet 9U x 18.5" Usable Depth - Black |
| RM-551-12U |
Wall Mount Swing-Out Cabinet 12U x 18.5" Usable Depth - Black |
| RM-551-15U |
Wall Mount Swing-Out Cabinet 15U x 18.5" Usable Depth - Black |
| Approvals | |
| c(UL)us | Cable - Yes |
| Environmental | |
| RoHS | Cable - Yes |
| Packaging Information | |
| Package Quantity | 2 - Fans for RM-500 Series Wall Mount Cabinets |
| Product Weight | 1.05 lbs [0.48kg] |
