Description

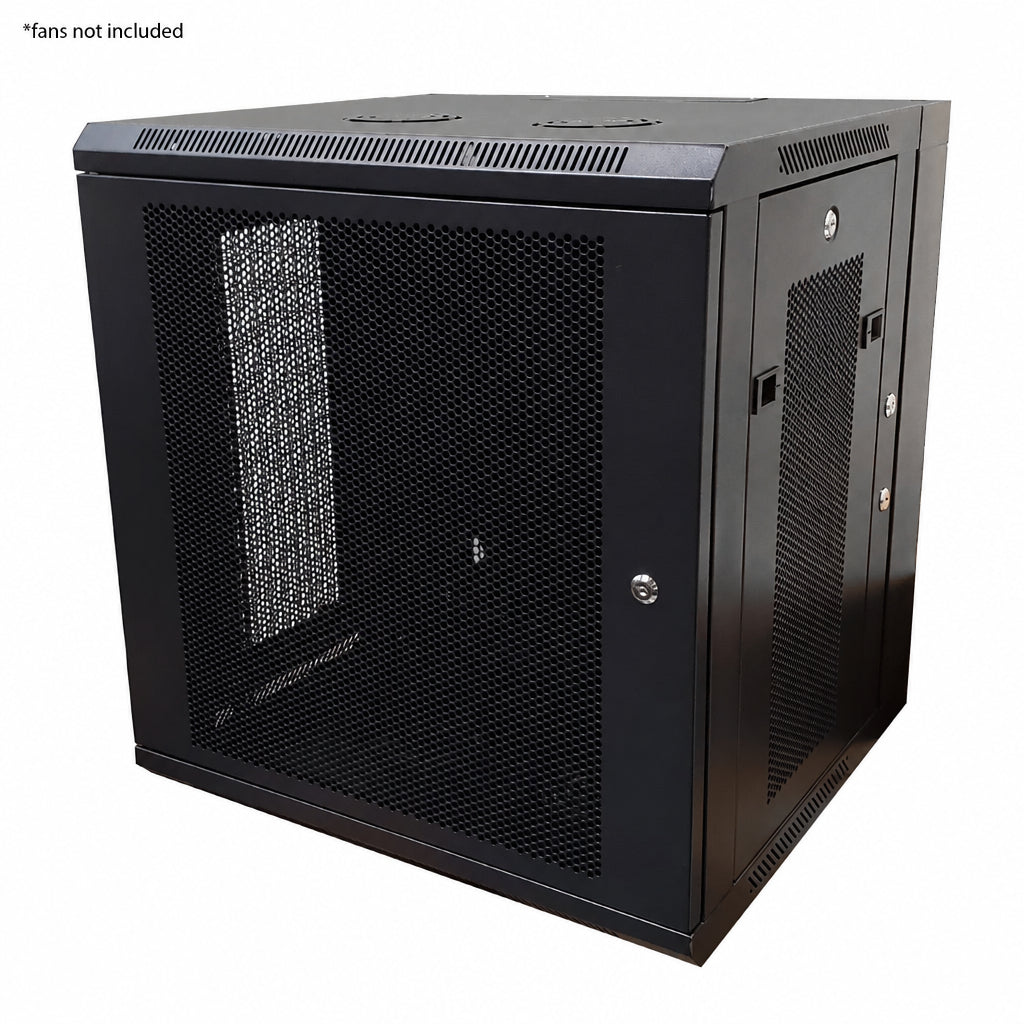

This 12U wall mount swing-out cabinet comes with a lockable front door, lockable swing out back and removable/lockable side panels. The cabinet can be mounted so that the swing-out function can open left or right. The front door can be installed to swing open left or right as well. The front door and side doors are vented for increased airflow as well. Fans holes are located top and bottom to add the airflow. It is typically used for housing network and DVR equipment used in small offices and homes. (Fans sold separately. Click here for fan kit).
|
Physical Characteristics
|
|
|---|---|
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:1.35mm, Others:1.0 mm |

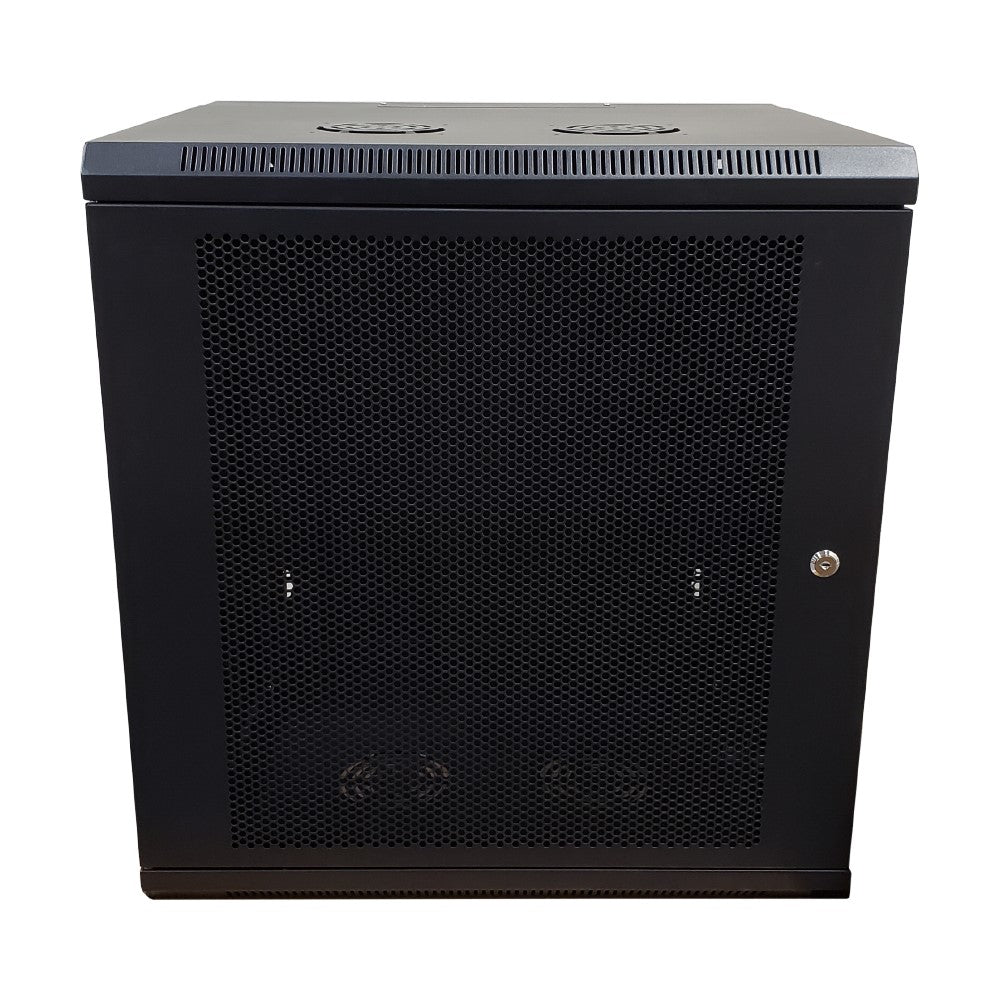

| Front Door |
Removable Perforated Front Door, Opening Angle is Over 180 Degrees, Lockable Can be Mounted to Swing Open Left or Right |

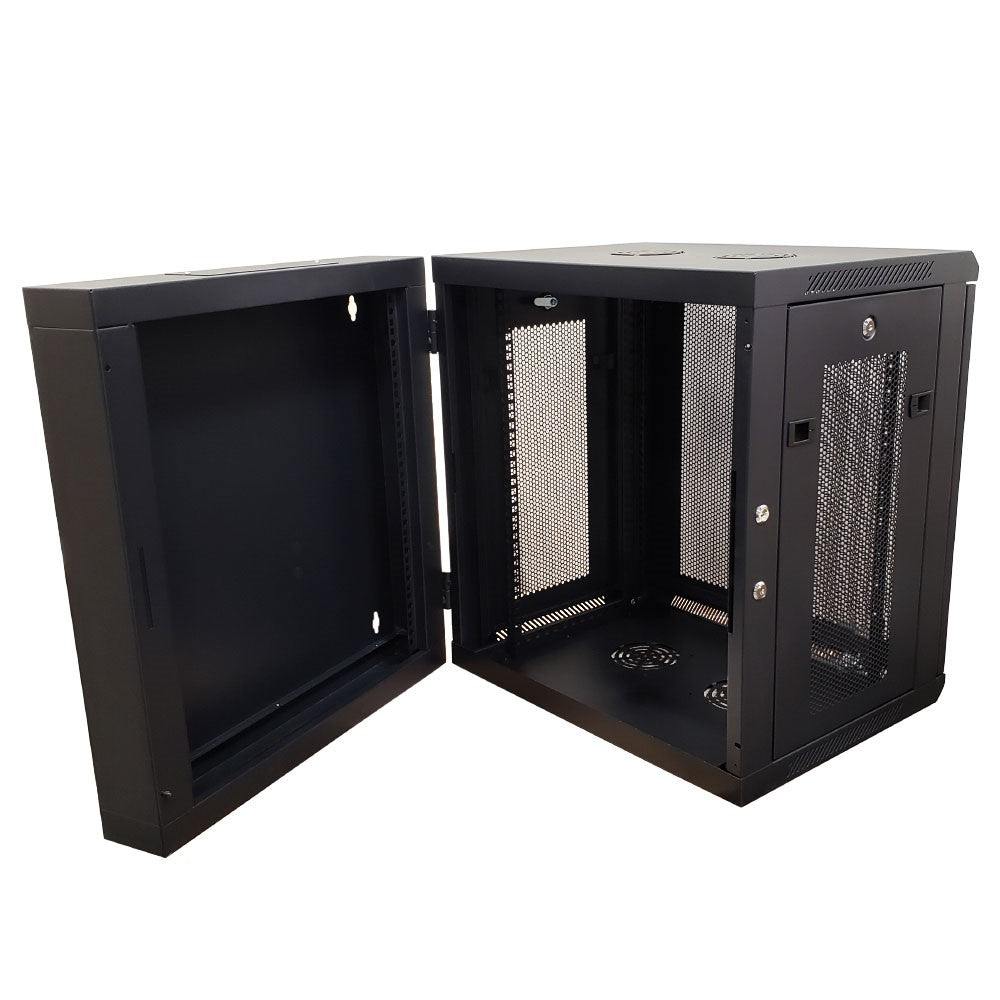

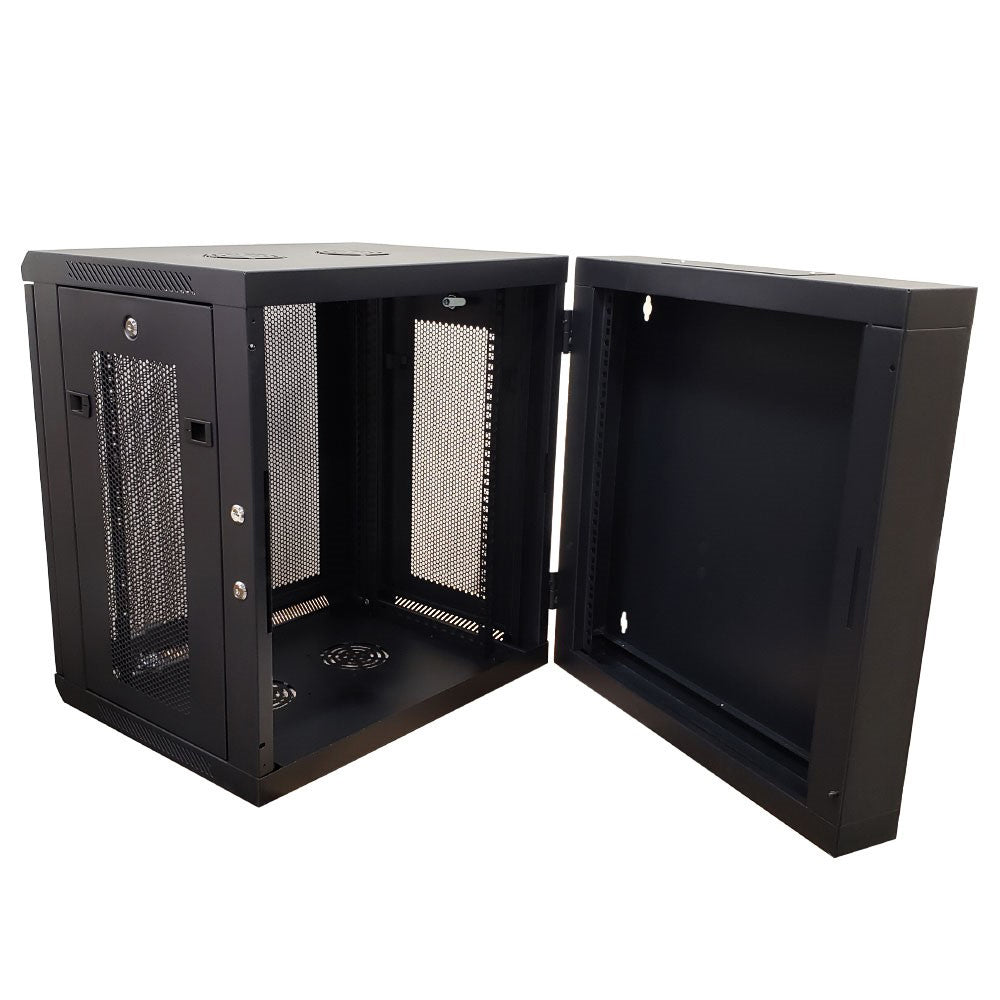

| Swing Out Back |
Opening Angle is Over 90 Degrees, Lockable - Requires Two Keys to Open Can be Mounted to Swing Open Left or Right |

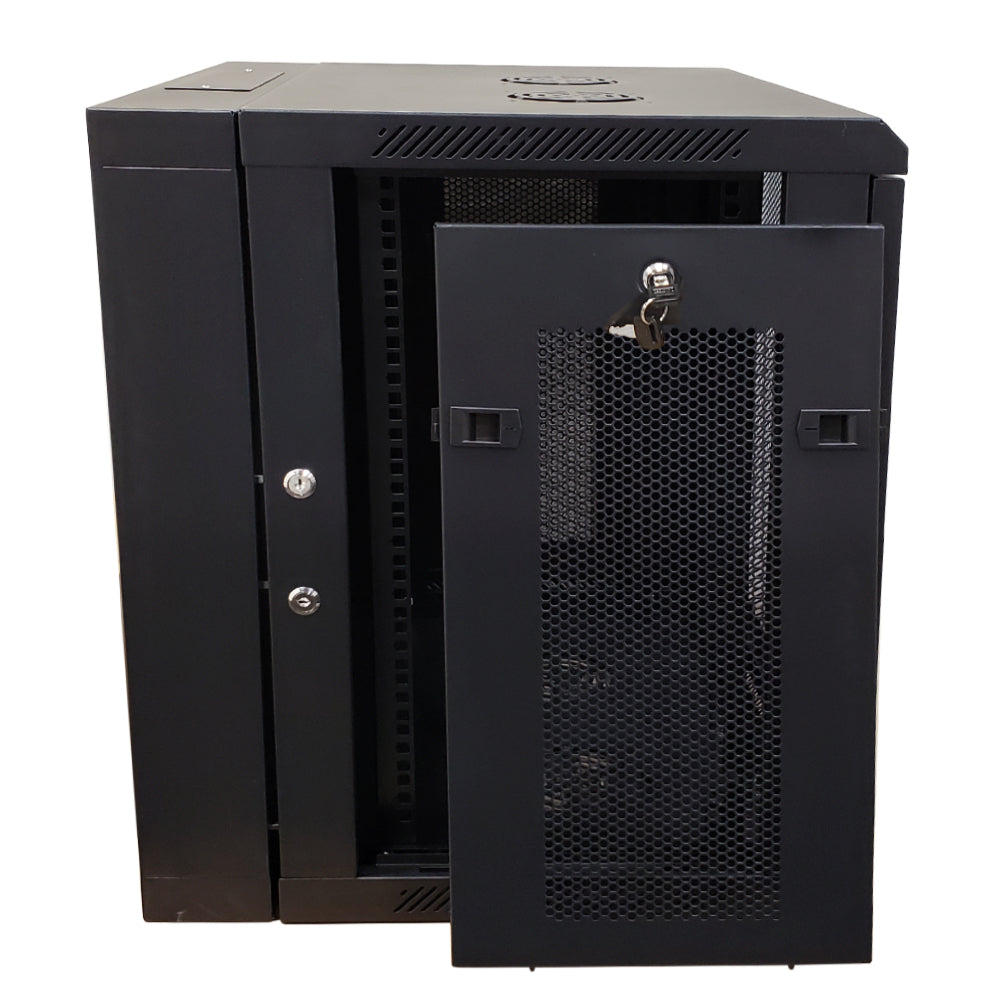

| Lockable Side Panels | Yes - Perforated - Can be flipped so lock faces up |
| Removable Side Panels | Yes - Perforated - Can be flipped so lock faces up |
| Adjustable Mounting Profile Installation | Yes |
| Assembly Required | No |
| Loading Capacity | Maximum 110 lbs [50 kg] |
| Cable Entries | Cable Entry on Top and Bottom Panels |
| Width | 19 inches |
| Capacity | 12U |
| Product Dimensions |
24.8 H, 23.6 W, 21.6 D inches [63 H, 60 W, 55 D cm] |

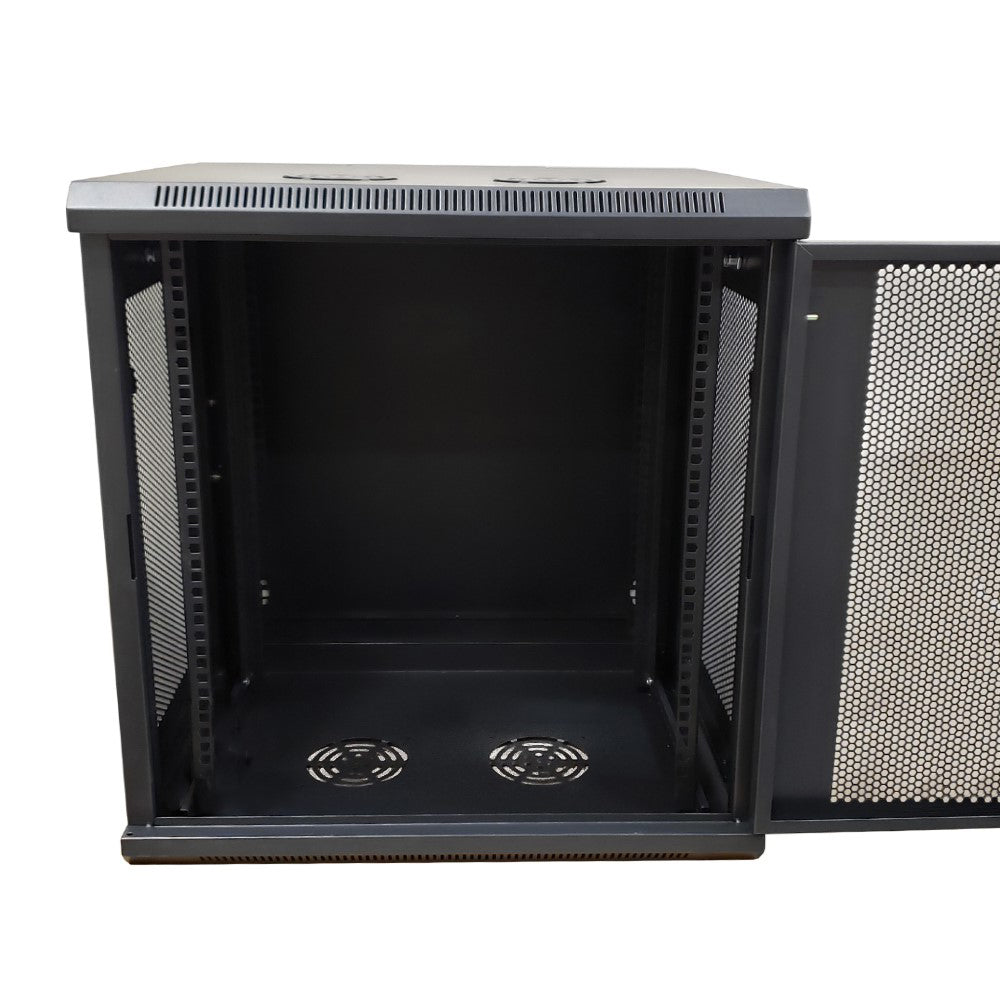

| Mounting Rails | 2 pairs of square hole rails Adjustable depth 75mm, 85mm, 95mm 105mm, 115mm (Measured from the Glass to the Rail) |
| Usable Mounting Dimensions |
Height x 19" Wide x 18.5" Deep |

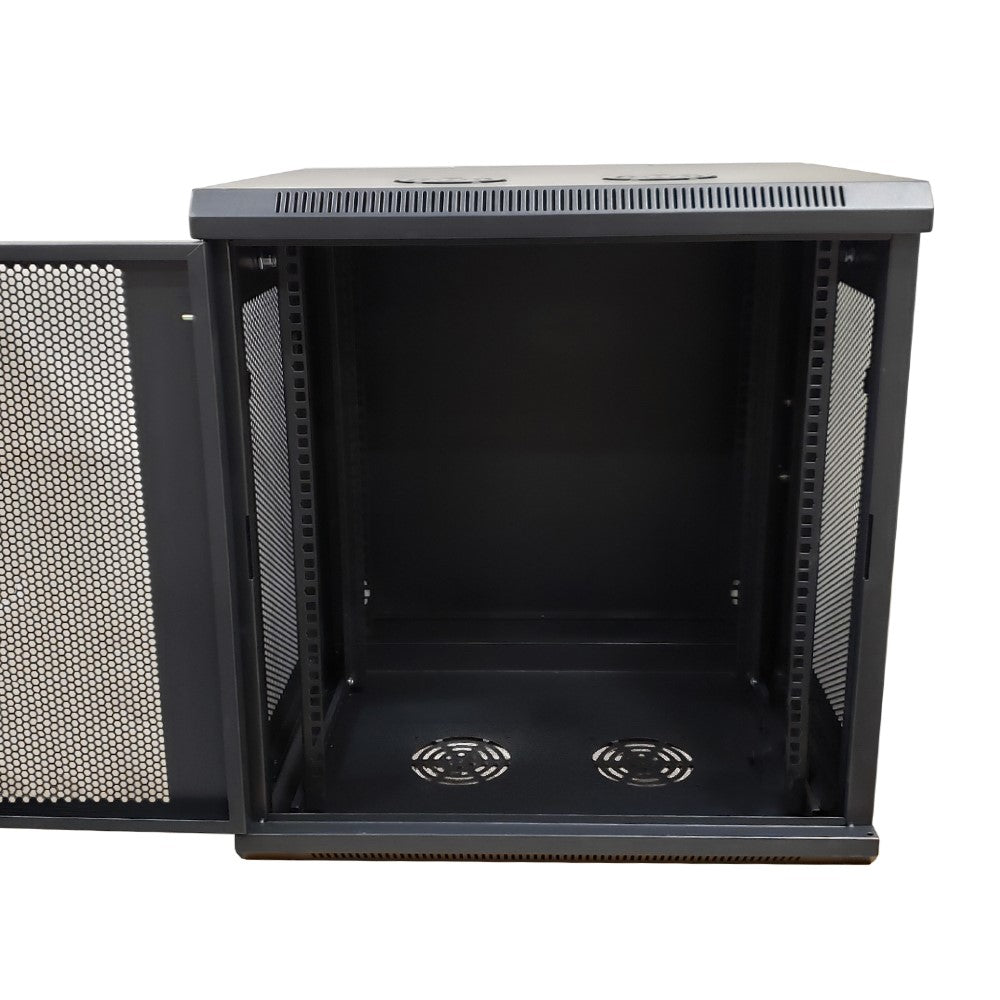

| Cooling Fans | Not Included, Sold Separately (RM-615) Optional fan holes located at both the top and bottom of the cabinet |
| Grounding Stud | Yes |
|
Compatible Products
|
|
| RM-500-BRUSH |
Brush Opening Cover for Cable Knockout with Screws for RM-5XX Cabinets |
| RM-615 | Fan Kit for RM-500 Series Wall Mount Cabinets – Low Decibel 28dBa - 55 CFM - Pair |
|
Approvals
|
|
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 - Wall Mount Swing-Out Cabinet 9U/12U/15U (Assembled) |
| Mounting Hardware |
10 Sets – M6 Screws and Cage Nuts |
| Product Weight |
57.32 lbs |
