Description

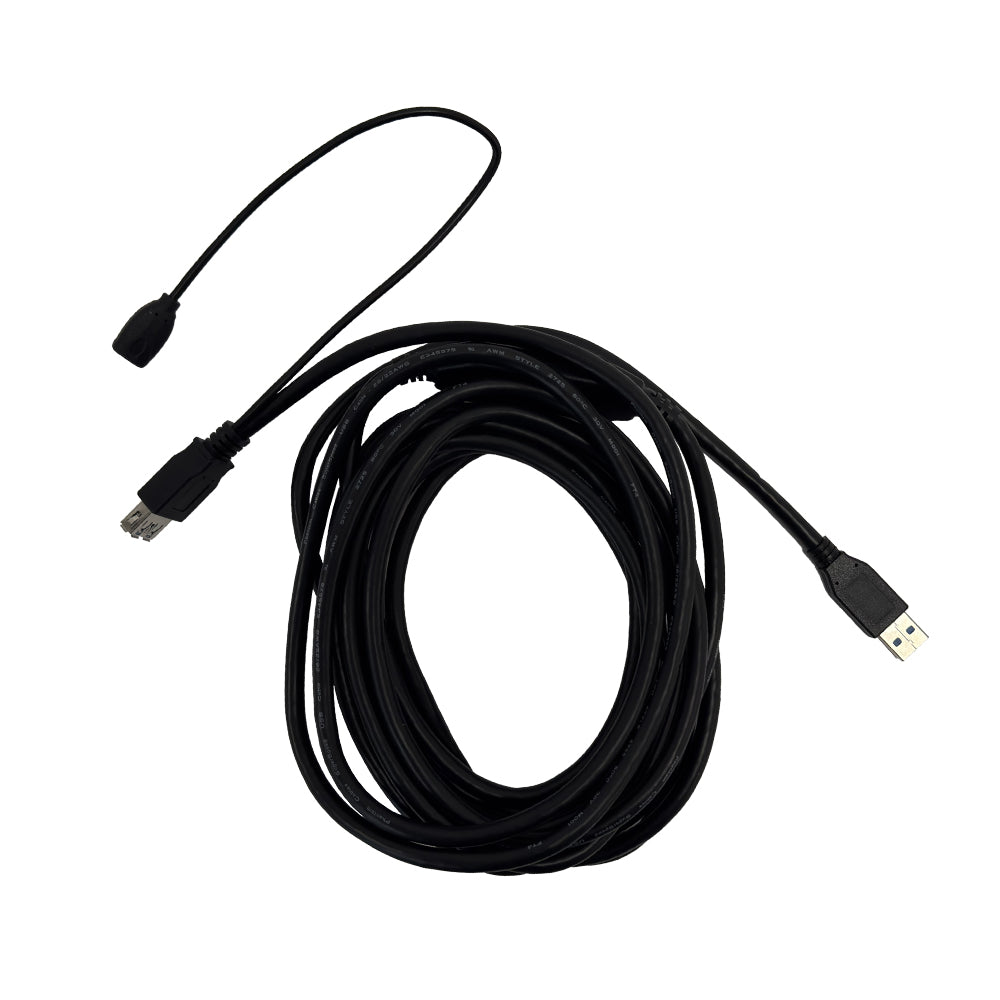

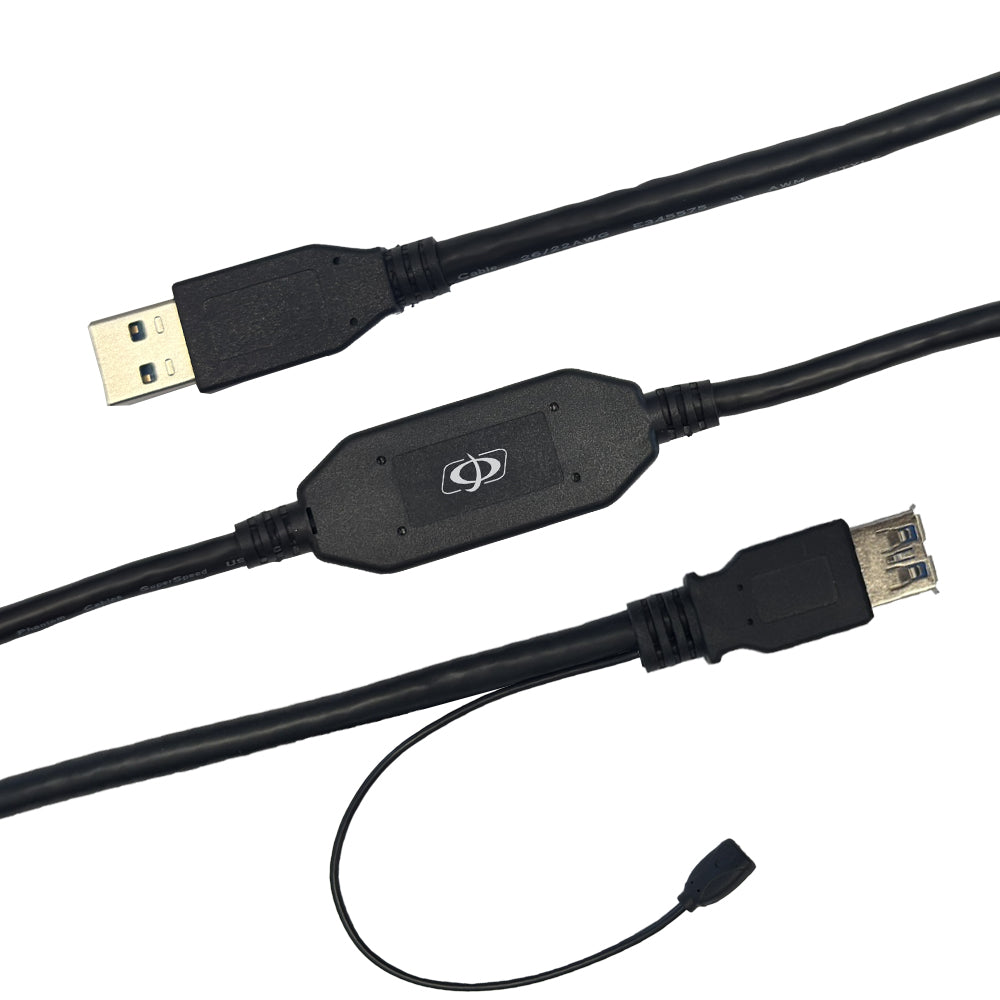

This active USB extension cable consists of a USB A male on one end and a USB A female on the other end. It is used to extend the distance between a USB 3.0 device and a computer. Unlike passive extension cables, this USB active extension cable has bus powered circuitry which enables it to reach distances beyond the length limits of standard passive USB cables.
This cable is directional and will only work when the male end is connected to the computer and the female end is connected to the device.
NOTE: Cable could be cascaded up to a total length of 10m or less.
Application
| Physical Characteristics | |
|---|---|
| Color | Black |
| Length | 5m/10m |
| Connector Plating | Nickel |
| Wire Gauge | 26AWG Data, 22AWG Power |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CL3 |
| Cable Shielding | 100% Aluminum-Mylar Foil, 65% Tinned Copper Braid |
| Strain Relief | Molded PVC |
| Connector(s) | |

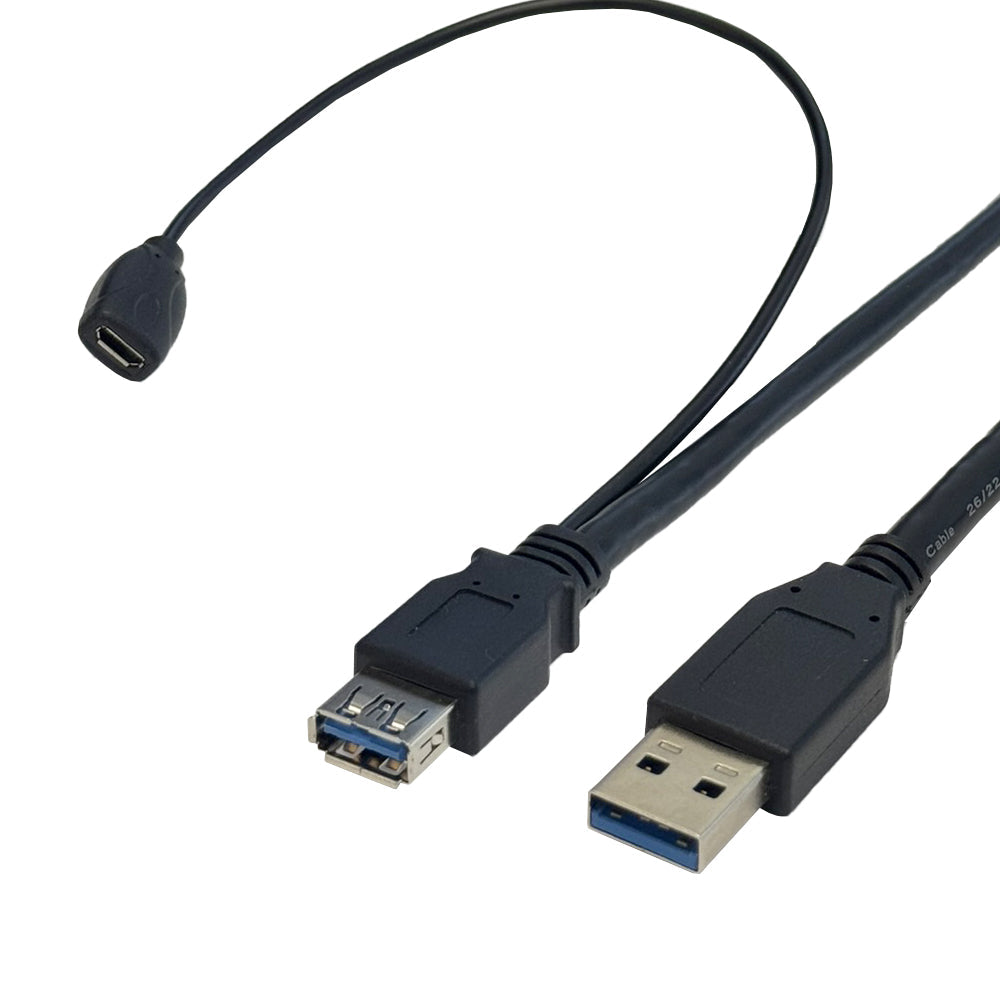

| Connector A (Source) | USB 3.0 Type A Hi-Speed Male |
| Connector B (Device) | USB 3.0 Type A Hi-Speed Female |
| Connector C (Device) | USB Micro-B Female (supplemental power only) |
| Performance | |
| Maximum Power Draw | ~ 1W (5V0.2A) |
| Rating | USB 3.0 Hi-Speed Compliant Cable |
| Speed | 5 Gbps |
| Compatibility | Backwards Compatible with 2.0 and 1.0 |
| System Requirements | |
| Windows | Windows 98, ME 2000/XP, Vista, 7, 8, 10, 11 |
| Apple Mac | OX 9 and OS X |
| Linux, Unix | Compliant |
| Approval/Environmental | |
| c(UL)us | Cable - ApprovedĀ |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty |
3-Years Limited Warranty |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| USB-E3-05M | 16ft | 0.73 lb |
| USB-E3-10M | 32ft | 1.33 lb |
