Description

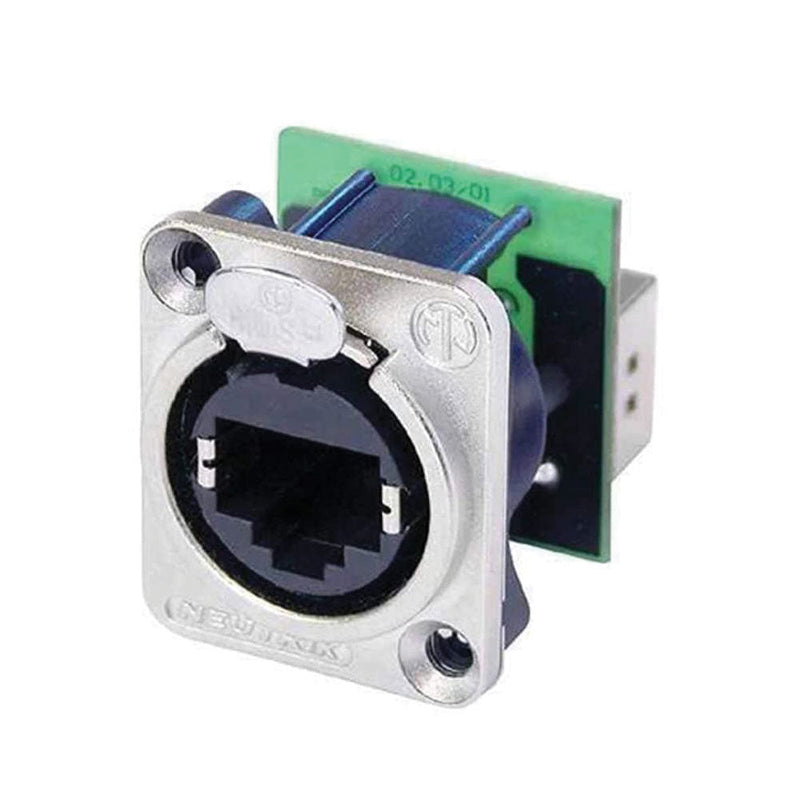

This CAT5E Ethercon feedthrough jack has a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
|
Physical Characteristics
|
|
|---|---|
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze |
| Insert | PBTP 15 % GR |
| Shell | Zinc Diecast |
| Shell Plating | Black Chromium |
| Strain Relief | Nickel |
| Gender | Female |
|
Mechanical Characteristics
|
|
| Panel Thickness | max. 4 mm 0.16' |
| Insertion Force |
≤ 20 N |
| Withdrawal Force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Feedthrough |
| Locking Device | Latch lock |
| Chassis Shape | D |
|
Electrical Characteristics
|
|
| Contact Resistance | < 10 mΩ |
| Dielectric Strength |
1 kVdc |
| Frequency Range | 1 - 100 MHz |
| Insulation Resistance |
> 0.5 GΩ |
| Rated Current per Contact |
1.5 A |
| Rated Voltage |
< 50 V |
| Chassis Shape | D |
|
Manufacturer Information
|
|
| Neutrik Part Number | NE8FDP |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
