Description

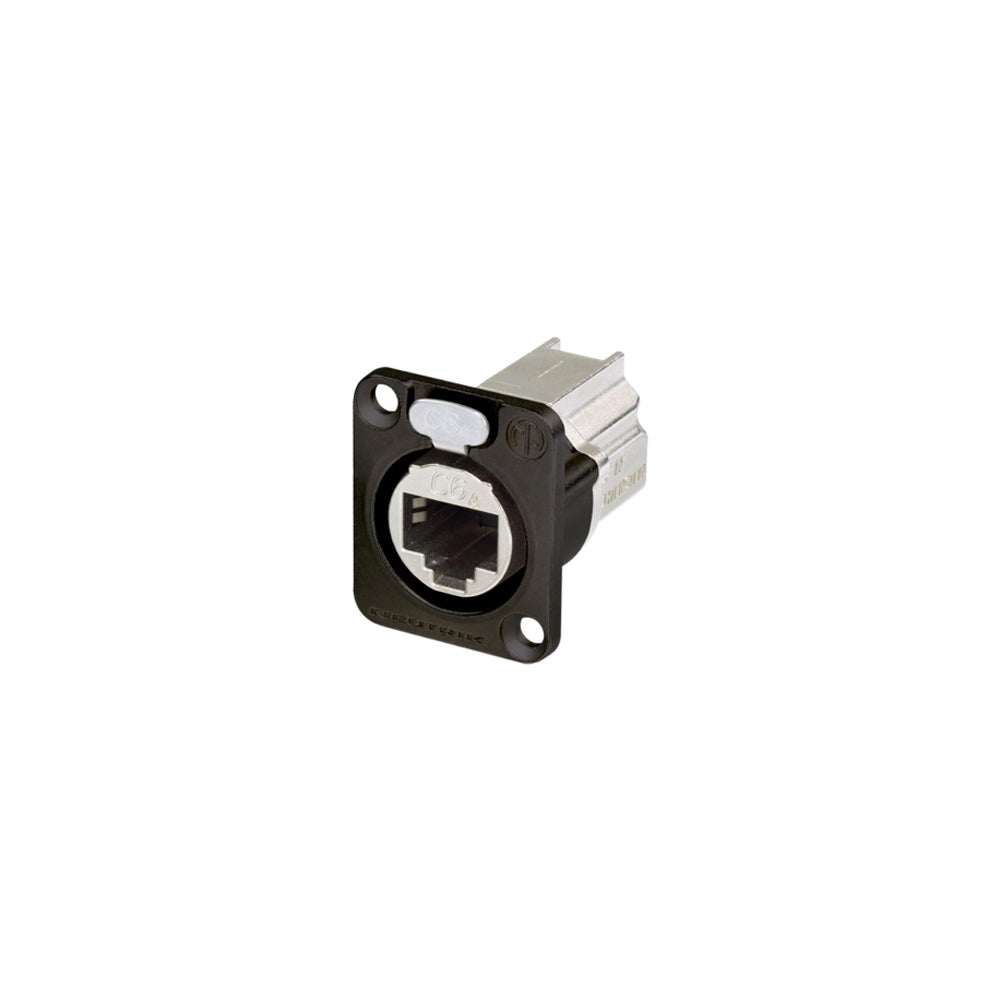

This D-shape CAT6a panel connector is shielded and feedthrough with a rugged latch lock system.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Nickel |
| Temperature Range | -40℃ to +70℃ |
| Contact Plating | Au |
| Shell | Zinc Diecast |
| Shell Plating | Black |
| Gender | Female |
| Electrical Characteristics | |
| Dielectric Strength | 1 kVdc |
| Insulation Resistance | > 0.5 GΩ |
| Rated Current Per Contact | 1,5 A |
| Transmission Performance | CAT6A, acc. TIA/EIA rating Class EA, acc. IEC/ISO/EN rating |
| Power Over Ethernet | PoE+ acc. IEEE 802.3at |
| Mechanical Characteristics | |
| Lifetime | > 1000 mating cycles |
| Wiring | Feedthrough |
| Locking Device | Latch Lock |
| Mounting Direction | Front Mounting |
| Environmental | |
| Flammability | UL 94 V-0 |
| Manufacturer Information | |
| Neutrik Part Number | NE8FDX-P6-B |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
