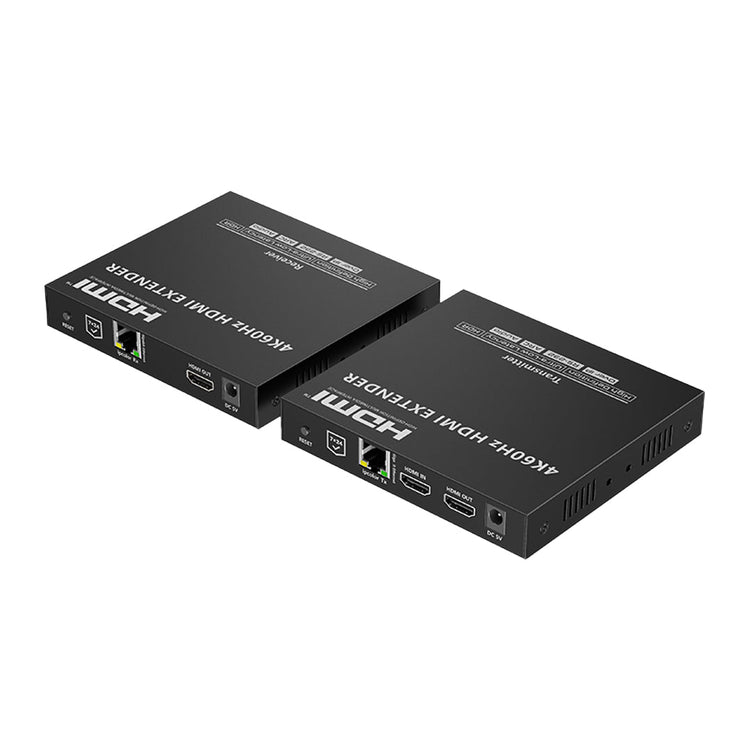

This UHD HDMI Transmit signals up to 120 meters over Cat6/6A/7 cable with ultra-low latency at 4K@60Hz 4:4:4 HDR. It supports point-to-point connection via gigabit switch, and cascading switches. This includes HDMI loop out, bi-directional IR passthrough, ARC, RS-232 passthrough, and audio extraction via S/PDIF and ideal for security monitoring, rail transit, broadcasting, smart cities, conferences, and more.
| Performance | |
|---|---|
| Resolutions | 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080p@24/25/50/60Hz, 720p@50/60Hz, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1440x900, 1400x1050, 1600x900, 1680x1050, 1920x1080, 1920x1200 |
| Maximum Transfer Rate | 18Gbps |
| HDMI Length | ā¤ 5m |
| Connection Types | One-to-one connection One-to-many connection Switch cascading |
| Transmission Distance | CAT5/5e ā¤ 80m CAT6/6A/7 ā¤ 120m |
| HDMI Out | LPCM2.1CH//DTS-Audio/ Dolby Atmos DD+ |
| S/PDIF Out(ARC) | LPCM 2.1CH/DTS-Audio/Dolby Digital 5.1CH |
| Audio Sampling Rate | 44.1kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz |
| Audio Bit Depth | 16bit, 24bit |
| ARC | Supported |
| Receiving Range | ā¤ 5m |
| Infrared frequency | 20kHz~60kHz |
| Protection | - ESD protection 1a> Contact discharge level 2 (Ā±4KV) 1b> Air discharge level 3 (Ā±8KV) - Implementation of the standard: IEC61000-4-2 - Lightning protection, Surge protection |
| CEC | supported |
| RS-232 (GND/RxD/TxD) | Default baud rate: 115200 Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 |
| Physical Characteristics | |
| Color | Black |
| Housing | Metal Enclosure (Iron) |
| Operating Temperature | Working : -20ā~50ā Storage : -30ā~70ā |
| Humidity | 0~90% RH (no condensation) |
| Dimensions | 124.6 (L) x115.0 (W) x21.3 (H) mm |
| Power | |
| Power Consumption | TX/RXļ¼7.5W |
| Power Supply | DC 5V/2A |
| Connector(s) | |
| Transmitter | HDMI Input Female, CAT6/6A Female |
| Receiver | HDMI Output Female, CAT6/6A Female |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Package Weight | 2.95 lbs [1.33kg] |
| Contents | |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |
| 1 - IR Tx | |
| 1 - IR Rx | |
| 2 - DC5V/2A Power Adapter | |
| 4 - Mounting Ears | |
| 10 - Screw | |
| 2 - RS-232 Terminal Block | |
| 1 - Manual | |
