Description
This horizontal fiber optic splice enclosure is used for fiber optic cable splicing. It has -40oC temperature rating, and is suitable for outdoor aerial hung, and wall mount applications.
Features:
- Reasonable design for cable protection.
- Material: PP plastic for base and cover; ABS plastic for inside parts.
- 4 cable ports (2 in 2 out) for max. 19mm diameter optical cable entry & exist.
- Max. 6pcs splice tray, each 24 fibers; max. 144 fibers capacity.
- With fixing cable strengthen core parts.
- Dust-proof and waterproof, IP68.
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Color | Black | ||||
| Material | Outside: PP Plastic Inside: ABS Splice Tray |
||||
| Cable Ports | 2 in 2 out | ||||
| Splice Tray | Max Quantity of Splice Trays: 6pcs – Comes loaded with 6 splice trays Max Capacity of Splice Tray: 24 fibers |
||||
| Capacity | 144 fibers max. | ||||
| Temperature Rating | -40oC | ||||
| Dimension | 424 x 173.6 x 104 mm | ||||
| IP Standard | IP68, Dust-proof and Waterproof | ||||
| Packaging Information | |||||

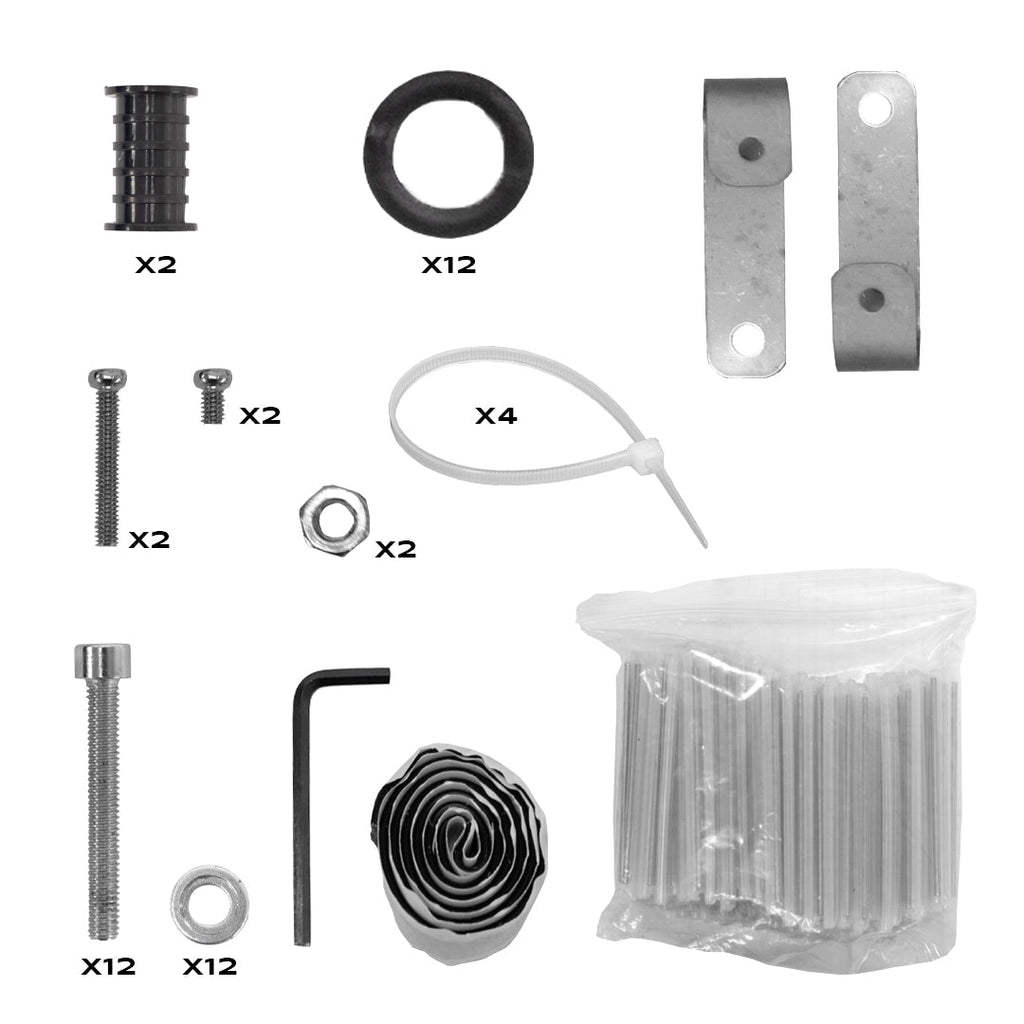

| Package Contents | Heat protect shrinkable sleeve | 60mm*3.0*1.5 | As per using capacity | ||
| Cable tie | 3mm*120mm | 4 pcs | |||
| Inner hexagon spanner | S6 | 1 pc | |||
| Screw | M4*25 | 2 pcs | |||
| Screw nut | M4 | 2 pcs | |||
| Plug cap | Φ28*42mm | 2 pcs | |||
| Plastic gasket | Φ28*Φ12*2.7 | 4 pcs | |||
| Plastic gasket | Φ28*Φ14*2.7 | 4 pcs | |||
| Plastic gasket | Φ28*Φ18*2.7 | 4 pcs | |||
| Adhesive tape | 15mm*2mm*950mm | 1 reel | |||
| Screws | M5*8 | 2 pcs | |||
| Aerial hook | 2 pcs | ||||
| Product Weight | 4.93 lbs [2.23kg] |
||||
