Description

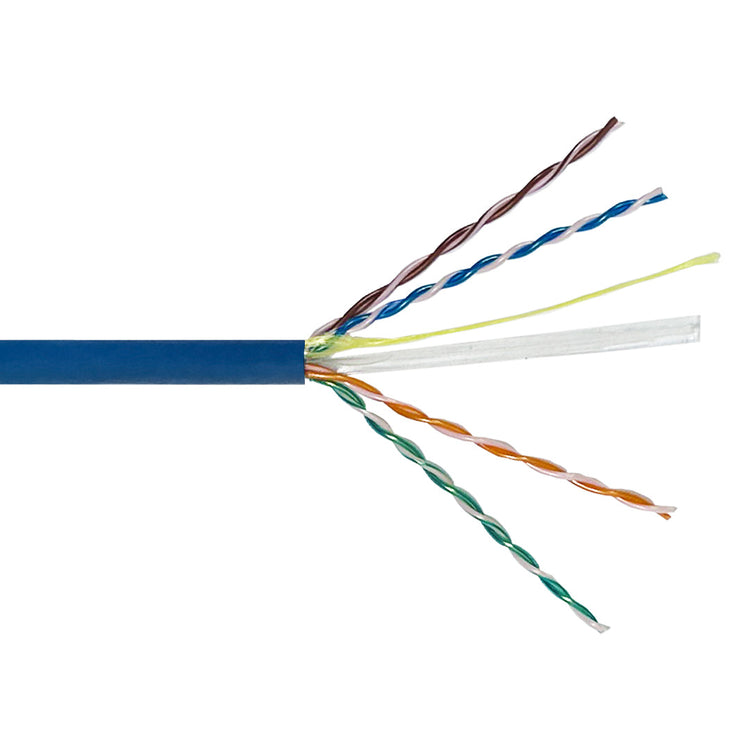

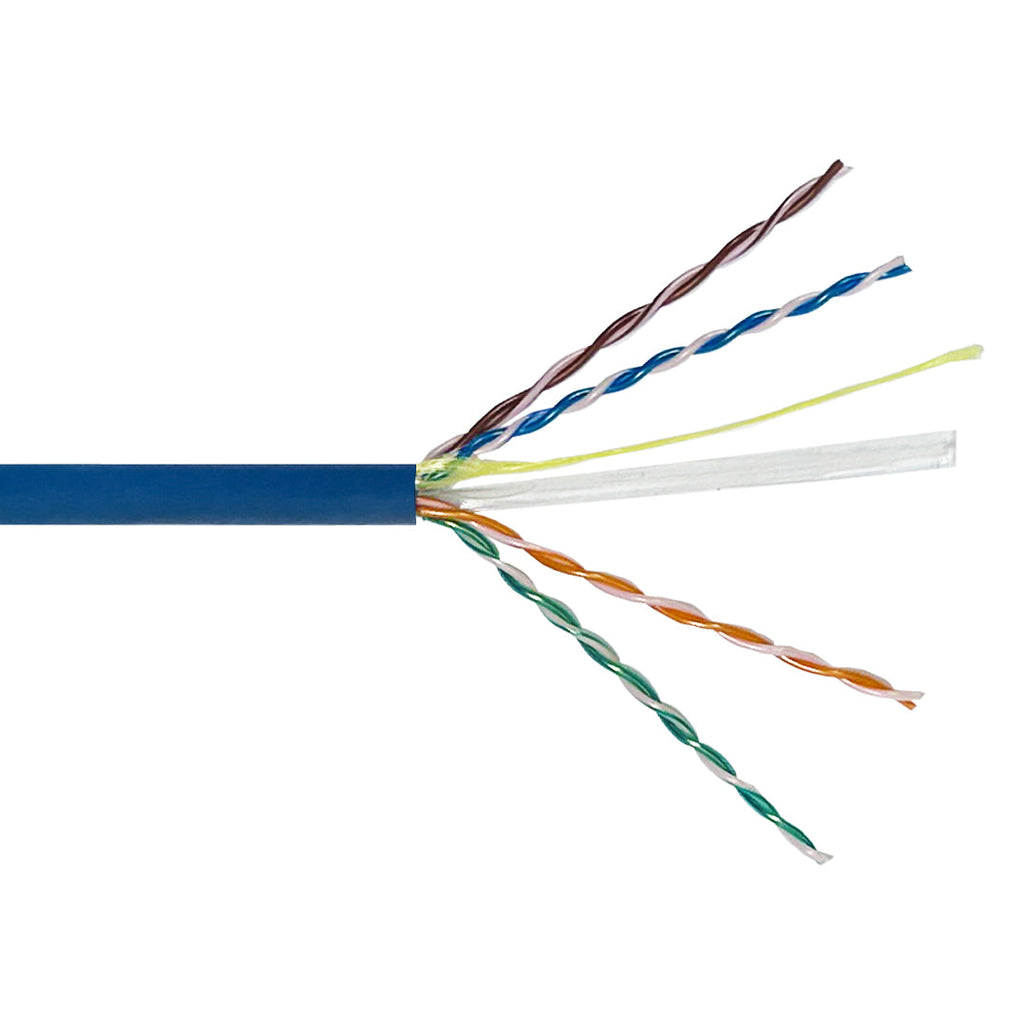

This bulk CAT6 plenum rated cable is 1000 feet in length and consists of 4 pairs of 23AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. The cable is plenum (CMP) UL listed, RoHS Compliant and meets and/or exceeds CAT6 TIA/EIA 568 C.2 standards. It is typically used in plenum environments as premise wiring and terminated from a patch panel to a Cat6 jack.
Suitable Applications:
Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, 622 Mb/s ATM, 1.2 Gb/s ATM, 1.2/2.4 Gb/s ATM, Surveillance, PoE++, PoE+, PoE
|
Physical Characteristics
|
|
|---|---|

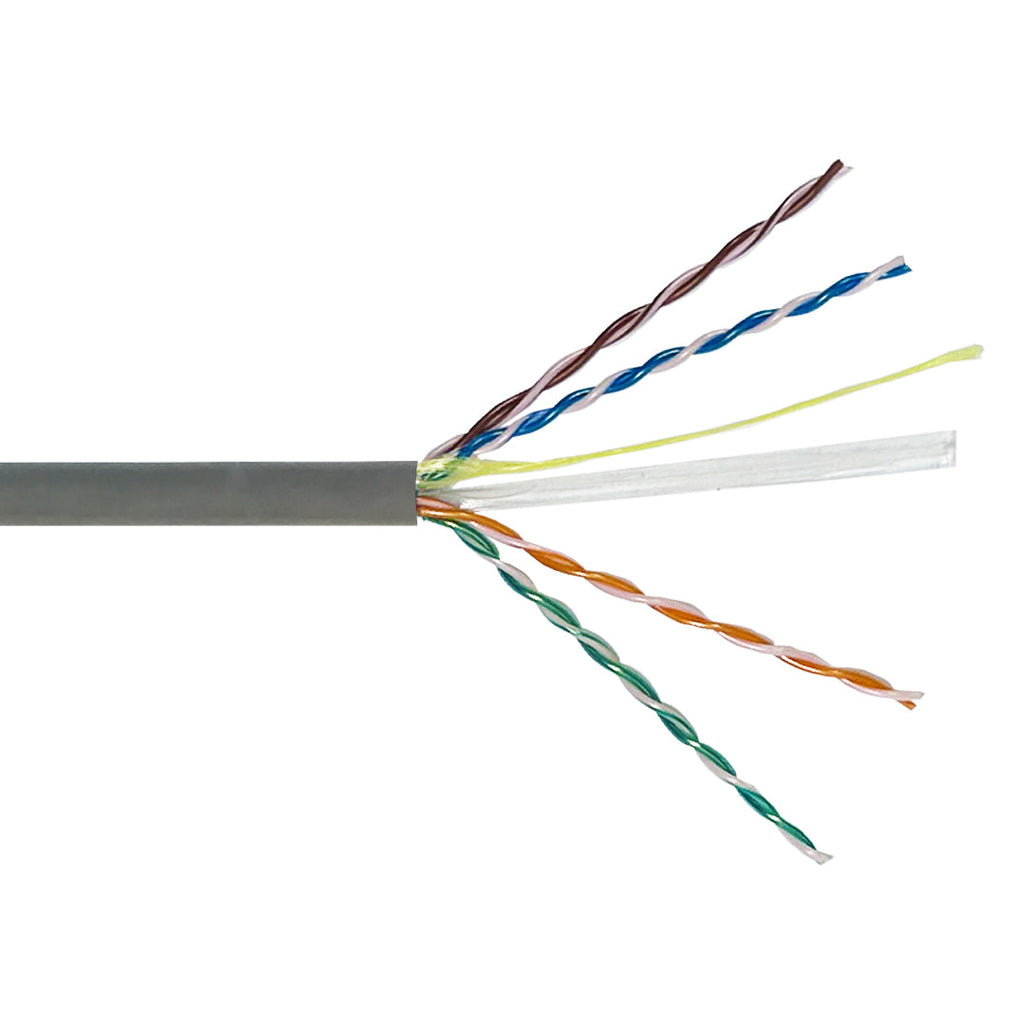

| Color | Blue/Grey |
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.00 mm |
| Number of Pairs | 4 Pairs |
| Core Color | White- Blue /Blue White-Orange /Orange White-Green /Green White- Brown /Brown |
| Wire Gauge | 23AWG Solid |
| Conductor Material | 100% Solid Bare Copper |
| Conductor Nominal Outer Diameter | 0.550±0.005mm |
| Insulation Material | FEP |
| Insulation Diameter | 0.95±0.05mm |
| Filling | Plastic Separator : FEP |
| Sheath Material | PVC(complies RoHS),CMP |
| Sheath Surface | Clean, Frap, Satiation |
| Sheath External O.D. | 5.6±0.4 mm |
| Sheath Thickness | 0.43±0.05mm |
| Rip-cord | Yes |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP [Plenum Rated] |
| Temperature Rating | -20℃ ~ +80℃ |
|
Performance
|
|
| Fluke® CAT6 Permalink Test |
Yes |
| Frequency | 550 MHz |
| Voltage | 300V |
| Before Aging Tensile Strength | ≥13.5Mpa |
| Before Aging Elongation | ≥150% |
| Aging Period | 100℃×24h×7d ℃×hrs |
| After Aging Tensile Strength | ≥12.5Mpa |
| After Aging Elongation | ≥125% |
| Cold bend (-20±2℃×4h) | 8×Cable O.D., No visible cracks |
| Impedance | 100±15Ω |
| Delay Skew | ≤45 ns/100m |
| DC Resistance Max. | 9.5 Ω/100m |
| DC Conductor Resistance Unbalance Max. | 5.0% |
|
Approvals
|
|
| c(UL)us | Yes |
| ISO/IEC11801 | Yes |
| TIA/EIA 568C.2 | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
|
Warranty Information
|
|
| Warranty | 25 year |
|

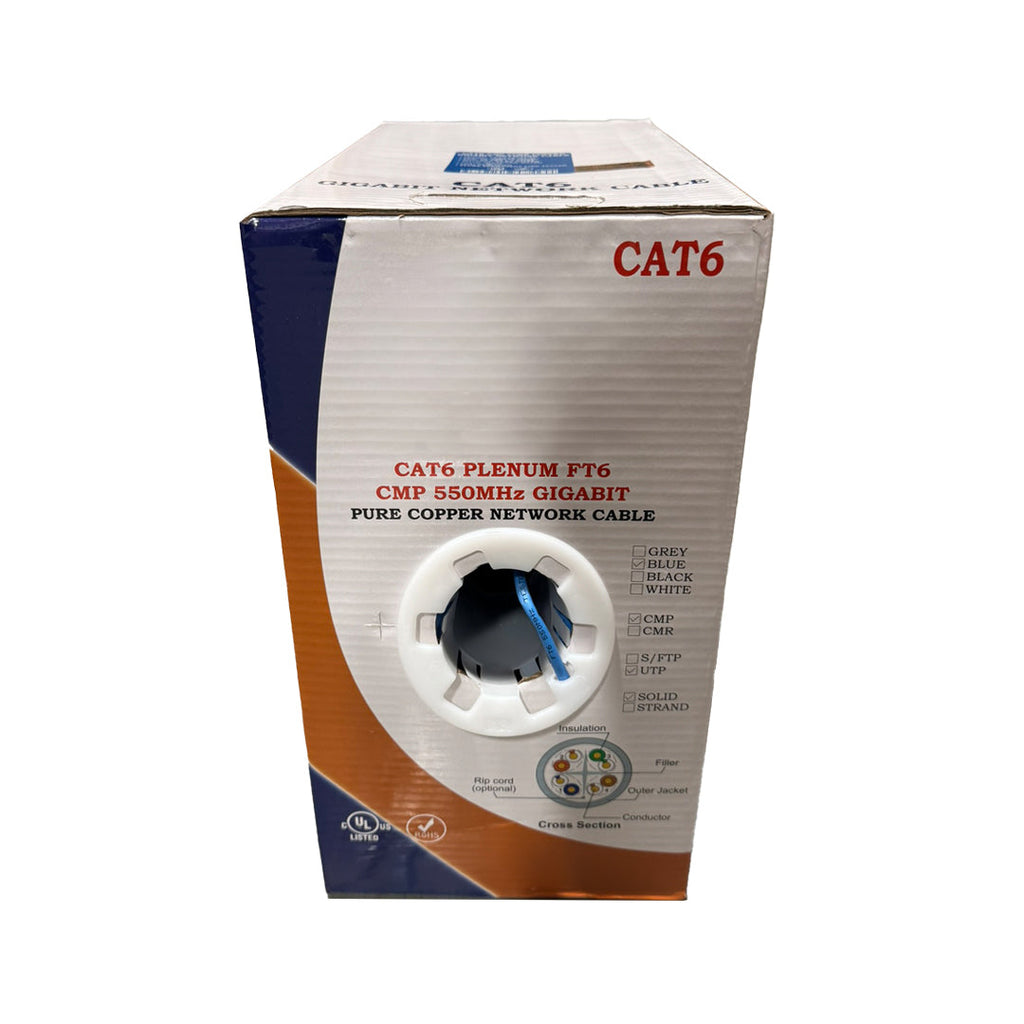

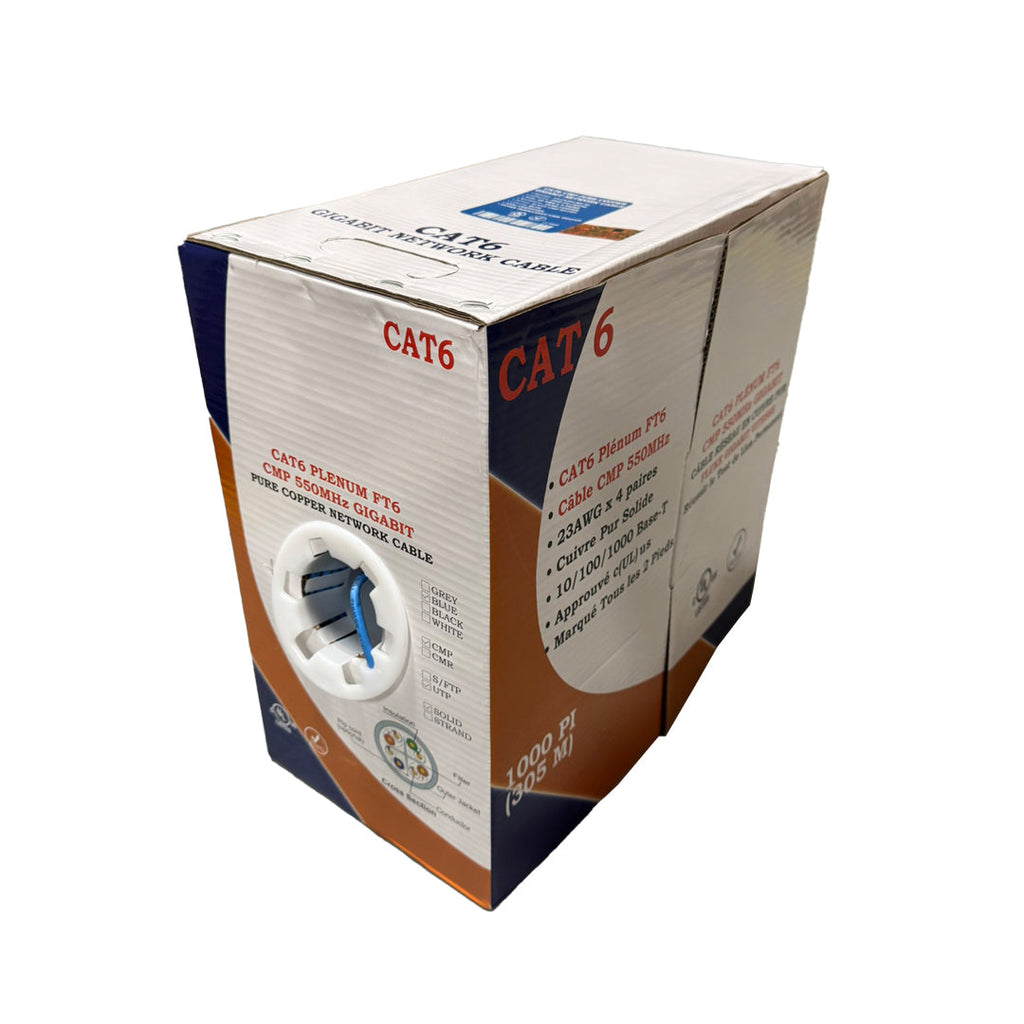

Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 33.5 lbs [15.2kg] |
