Description

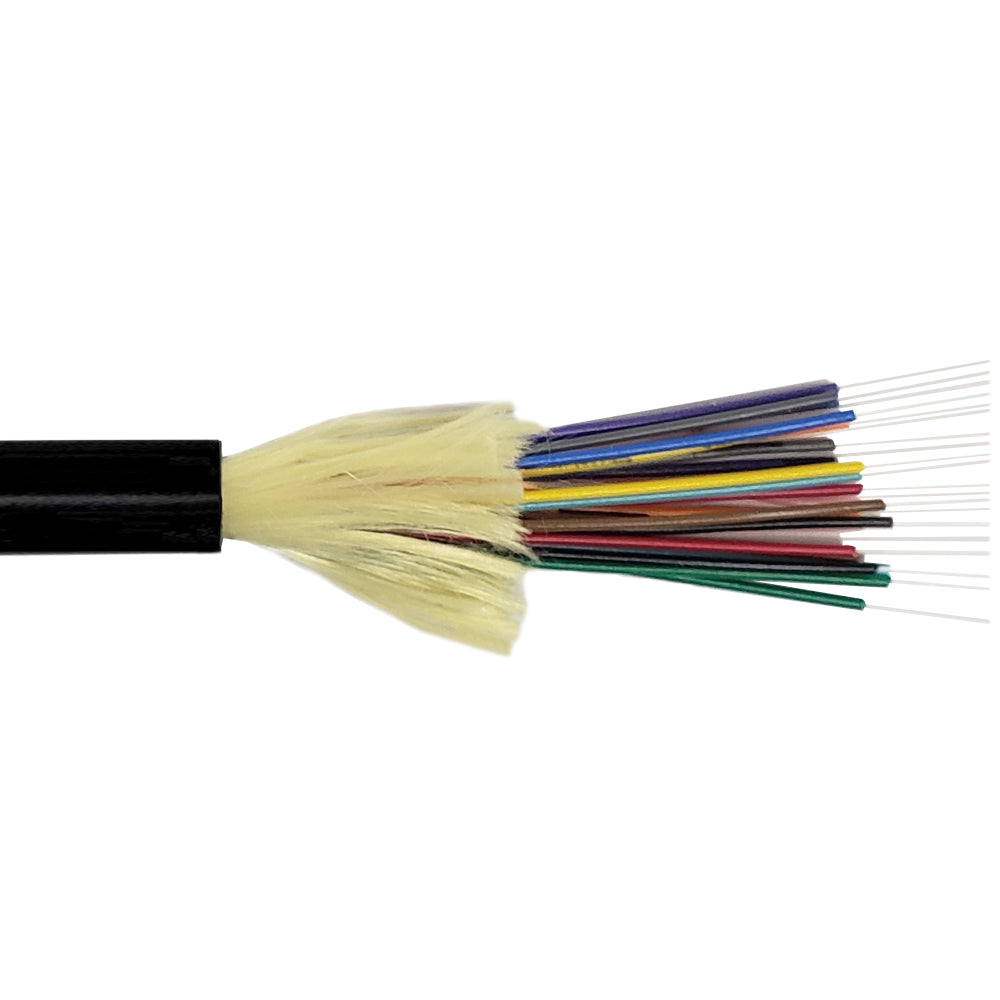

This bulk OS2 singlemode fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments.
Features

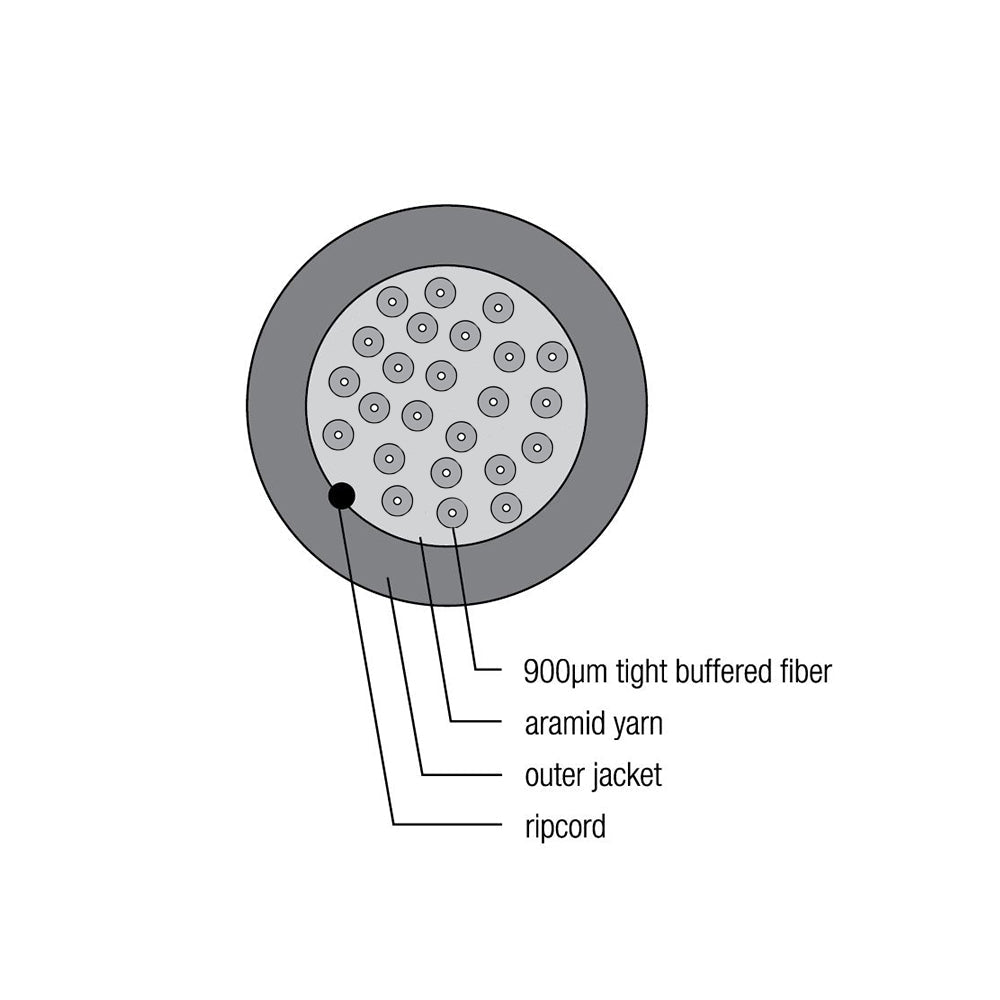

- 900µm Tight Buffers
- Water blocking aramid yarn strength members
- UV resistant jacket, OFNR rated construction
- Exclusive use of Corning® optical fibers
- Durable jacket offers added protection during installation and in rugged use applications
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Fiber Optic Type | OS2 9 micron Singlemode Riser Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 2-Strand / 6-Strand / 12-Strand |
| Glass Fiber |
Corning SMF-28 Ultra |
| Sub Unit Diameter | 900 Micron |
| Outer Jacket Material |
Flame Retardant PVC, UV Resistant |
| Tight Buffer Material | Flame Retardant PVC |
| Strength Member | Aramid Yarn |
| Nominal Diameter |
4.4mm (2-Strand) 4.8mm (6-Strand) 5.8mm (12-Strand) |
| Minimum Bend Radius Installation |
66cm (2-Strand) 72cm (6-Strand) 87cm (12-Strand) |
| Minimum Bend Radius Operation |
44cm (2-Strand) 48cm (6-Strand) 58cm (12-Strand) |
| Operating Temperature | -40 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +70 deg C |
|
Performance
|
|
| Wavelength | 1310 / 1550nm |
| Max Attenuation | 0.5 / 0.4 dB/km |
| Fire Rating | OFNR, FT4 |
|
Certification(s)
|
|
| UL | Yes |
|
Product Support
|
|
| RoHS | Yes |
| Country of Origin | USA |
