Description
Overview
This wireless camera kit includes 4-channel high-performance and high stability wireless NVR with 4 2MP 2.8mm fixed lens. Its maximum resolution is 1920 x 1080 at 30/25 fps and supports Ultra H.265 video compression technology, which assures savings in bandwidth and storage. Its housing is IP67 rated for outdoor use.
Features
NVR
- Embedded WiFi Module with high-performance and high stability
- Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA synchronous outputs provided
- Up to 1080P resolution recording
- 1 SATA HDD, Up to 6TB for each HDD
- Support cloud upgrade
Camera
- High quality image with 2MP, 1/2.9"CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 128 G Micro SD card
- IP67 protection
- 3-Axis
Specifications
NVR Specifications
|
Physical Characteristics
|
|
|---|---|
| Dimensions | 205mm Ă 205mm Ă 47mm (8.1" Ă8.1"Ă1.7") |
| Operating Temperature | -10°C to 55°C (14°F to 131°F); Humidity †90% RH (non-condensing) |
| Power Supply |
12V DC |
| Power Consumption |
†9 W( without HDD ) |
|
Video and Audio Input
|
|
| IP Video Input | 4-channel |
|
Video and Audio Output
|
|
| HDMI/VGA Output |
HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Recording Resolution |
1080P/960P/720P/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4-channel |
| Liveview Display | 1/4 |
| Corridor Mode Screen | 3/4 |
|
Network
|
|
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS |
|
Snapshot
|
|
| Event Snapshot | 1-ch snapshot, up to D1 resolution |
|
Decoding
|
|
| Decoding Format | Ultra 265/H.265/H.264 |
| Liveview/Playback |
1080P/960P/720P/D1/2CIF/CIF |
| Capability |
4 x 1080P@30 |
|
Hard Disk
|
|
| SATA | 1 SATA Interface |
| Capacity |
Up to 6TB for each HDD |
|
General Alarm
|
|
| Network Interface |
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
External Interface
|
|
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface |
Rear panelïŒ2 x USB2.0 |
| RS232, RS485, Alarm In, Alarm Out | N/A |
|
Wi-Fi
|
|
| Frequency | 2.4GHz |
| Transmission Rate |
150Mbps |
| Wireless Standards | IEEE 802.11b/g/n |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
| NDAA Compliant | Yes |
Camera Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/2.9", 2.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.01 Lux (F2.0 AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >52dB |
| WDR | DWDR |
|
Lens
|
|
| Lens Type | 2.8mm @2.0, Fixed-focal |
| Lens Mount | M12 |
| Angle of View (H) | 83.7° |
| Angle of View (V) | 44.6° |
| Angle of View (O) | 89.1° |
|
DORI
|
|
| DORI Distance | Detect(m): 64.3 Observe(m): 25.7 Recognize(m): 12.9 Identify(m): 6.4 |
|
Illuminator
|
|
| LED Distance(IR) | Up to 30m (98ft) |
| Wavelength | 850nm |
| LED On/Off Control | Auto/Manual |
|
Video
|
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
|
|
|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip |
Normal/Vertical/Horizontal/180° |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
|
Intelligent
|
|
| Smart Intrusion Prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring |
|
Events
|
|
| Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function |
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
|
Audio
|
|
| Audio Compression | G.711 |
| Suppression | Support |
| Sampling Rate | 8KHz |
|
Storage
|
|
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR, NAS(NFS) |
|
Network
|
|
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
Phantom Camview Phantom CamStation |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|
Wi-Fi
|
|
| Wireless Standards |
IEEE802.11b/g/n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20 MHz Support |
| Modulation Mode |
802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT |
| Security | 64/128-bit WEP,  WPA-PSK/WPA2-PSK |
| Transmit Power |
802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm @150Mbps |
| Receive Sensitivity |
802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps (Typical) |
| Transmission Rate |
802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps |
|
Interface
|
|
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Support |
|
Certification
|
|
| EMC | FCC: FCC Part 15 |
| Safety |
CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
| NDAA Compliant | Yes |
|
General
|
|
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: â€95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: â€95% RH (non-condensing) |
| Power | DC 12V±25% Power consumption: Max 4.0W |
| Power Interface | Ă 5.5mm coaxial power plug |
| Surge Protection | 4KV |
| Reset Button | Supported |
| Material | Metal + Plastic |
| Dimensions (Ă x H) |
Ί172 Ă 76 Ă72 mm (6.8â Ă 3â Ă 2.8â) |
|

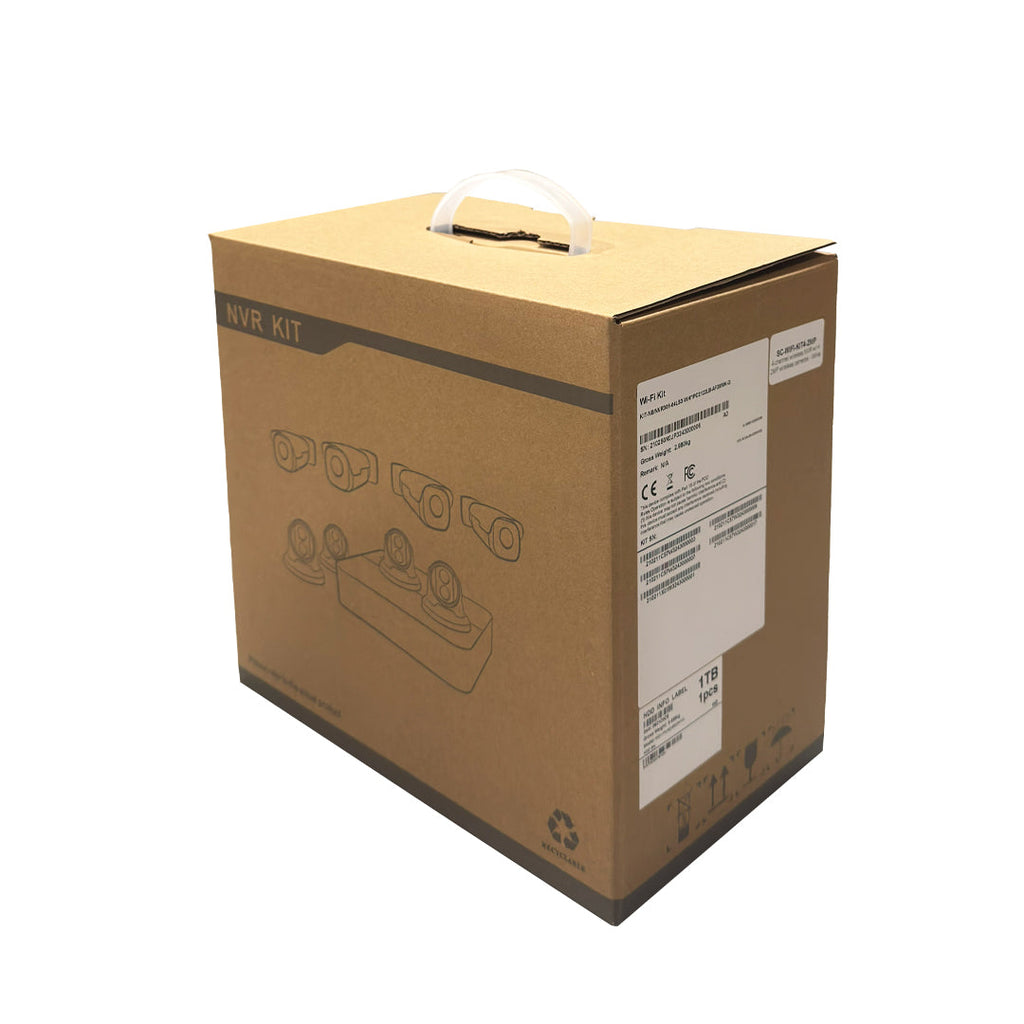

Packaging Information
|
|
| Weight | 6.85 lbs [3.10kg] |
