Overview
This 3MP dual video doorbell featuring WiFi connectivity. This sleek, white doorbell offers smart IR night vision, and an IP65 protection grade for reliable performance in any weather. With a wide-angle view of 116° horizontal and 82.5° vertical with main and 96.8° horizontal and 52.6° vertical with sub camera, you'll never miss a visitor. The device supports H.265 and H.264 video compression and is powered by POE IEEE 802.11 b/g/n/ax, DC12-24V. Perfect for any home, it operates in temperatures from -30°C to 60°C and supports a wireless chime.
Features
- Supports mechanical chime and wireless chime
- Supports reporting motion detection alarms, human body detection alarms, and package detection alarms to APP and NVR

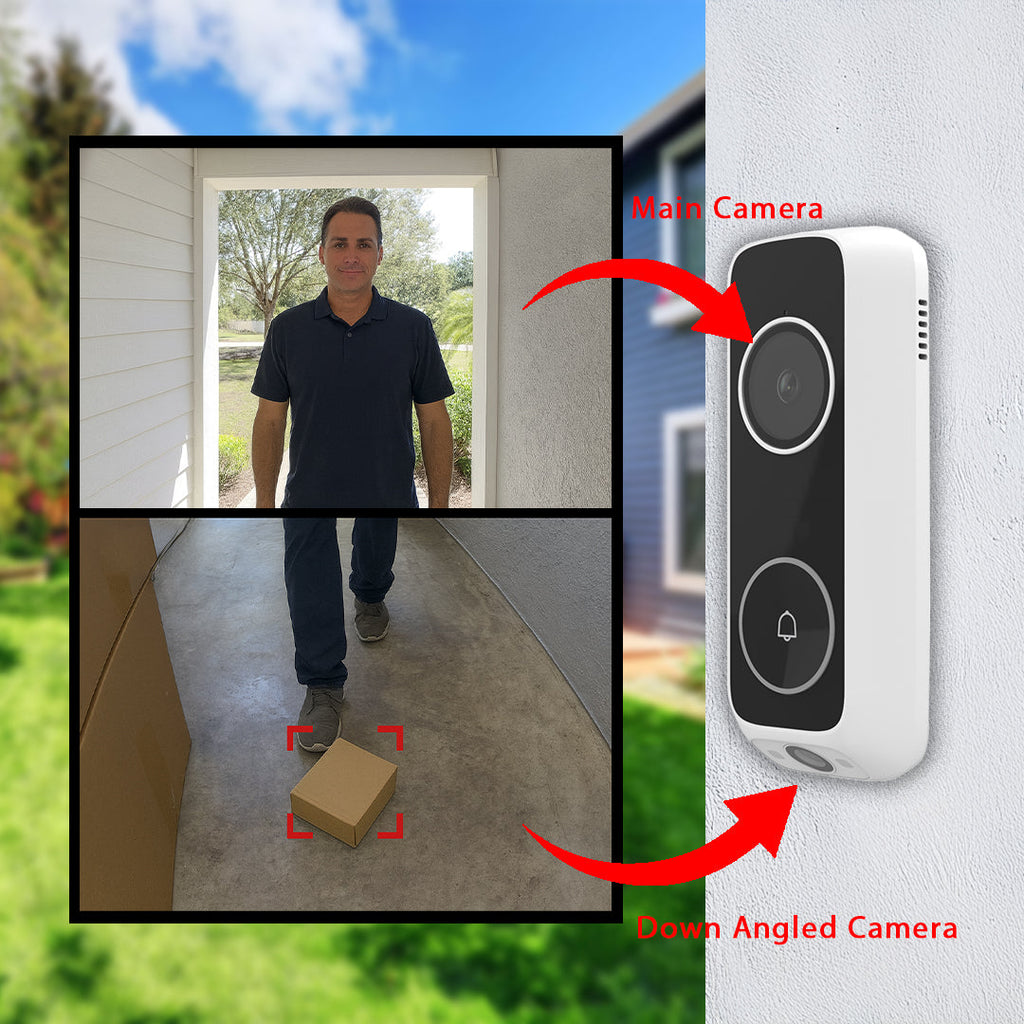

- 3 MP + 2 MP dual cameras: The main camera for observing visitors, and the sub camera for monitoring the ground in front of the door, providing a wider view
- Supports noise suppression
- Supports true HDR and DWDR, capturing clearer images in backlit scenes
- Supports calling the app, allows you to answer visitor calls anytime, anywhere using the app
- Supports Sub-1GHz wireless chime
- Supports dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6, faster video streaming and real-time monitoring
- Supports network connection through Bluetooth, quick and simple
- Built-in 8 GB eMMC storage, no extra storage costs necessary
Specification
| Physical Characteristics | |
|---|---|
| Color | White |
| Resolution |
Main Camera : 3MP |
| Field of View |
Main Camera : Sub Camera : |

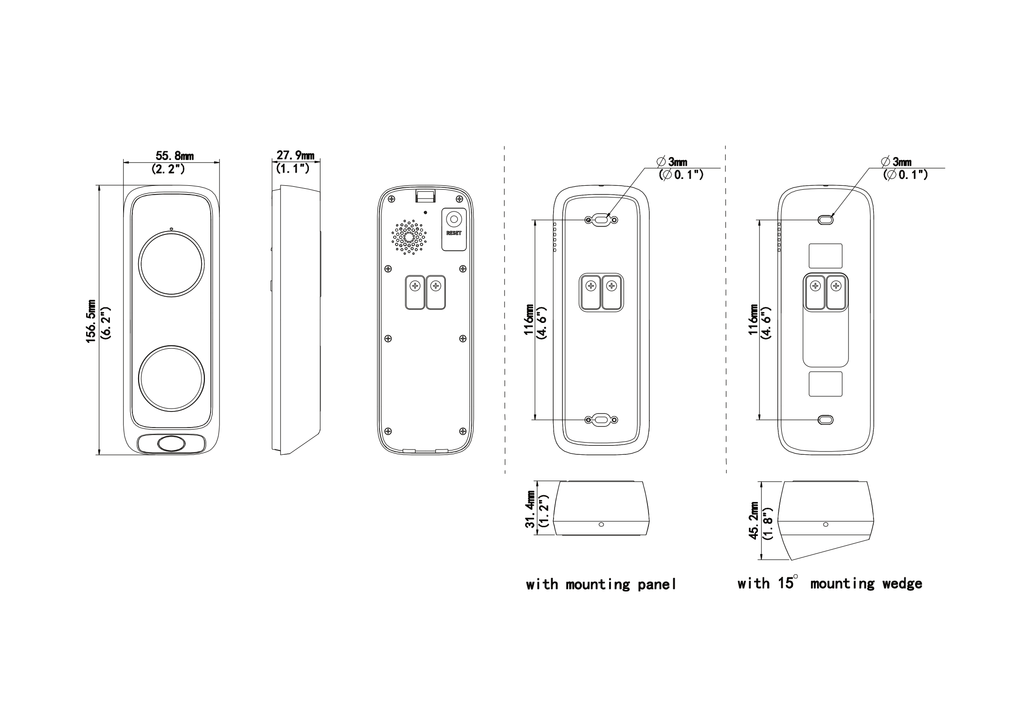

| Dimensions |
55.8 mm × 156.5 mm × 27.9 mm |
| Power consumption |
10W |
| Installation method |
With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts. |
| Button |
One call button |
| Power source |
Contact: AC 12 V to 24 V（0.8A~1.6A） |
| Operating temperature |
-30 °C to 60 °C |
| Ingress protection |
IP65 |
| Power Kit | |
| Power Kit | 240 mAH rechargeable lithium battery (for mechanical chime) |
| Charge Temperature | 0 °C to 45 °C |
| Alarm Event | |
| Motion Detection Alarm | Supported |
| UMD Alarm | Supports human body detection alarm |
| Package detection alarm | Supported |
| Wi-Fi | |
| Operating Frequency Band | 2.4 GHz and 5G Hz |
| BLE Function | Compatible, integrated BLE, supports network connection via Bluetooth |
| Antenna Type | Built-in omnidirectional antenna |
| WLAN | 802.11 b/g/n/ax |
| Encryption | WPA-PSK/WPA2-PSK/WPA3-personal |
| Bluetooth | Supported, integrated in Wi-Fi chip |
| SUB-1G | |
| SUB-1G | Supported, for chime connection |
| Chimes | Max. 3 wireless chimes or 1 mechanical chime |
| Mechanical Chime Lis | LA11WH-1、C210-W |
| Interface | |
| Reset Button | 1 micro switch for both pairing and reset |
| Built-in Mic | Supported |
| Built-in Speaker | Supported |
| Interface Protocol | Private protocol |
| Network Protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
| Illuminator | |
| Illumination Scheme | IR + white light |
| Illumination Distance | IR: 5 meters White light: 2 meters |
| Min. Illumination | 0.02 lux |
| WDR | |
| WDR | Supports DWDR, main camera 80dB, sub camera 58dB |
| Video | |
| Video Compression | H.265, H.264 |
| Audio | |
| Audio Bit Rate | 128 Kbps |
| Audio Sampling Rate | 8K |
| Audio Compression | G711, MP3, PCM |
| Approvals/Environmental | |
| CE | Compliant |
| FCC | Compliant |
| NDAA | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
|
Product Weight |
0.83 lbs [0.37kg] |
| SCD-3DB-100-CHM | WiFi Chime for SCD-3DB-100-WH Doorbell |
| SKU | Weight | |
| SCD-3DB-100-WH | 0.83 lb |
