Description
Overview

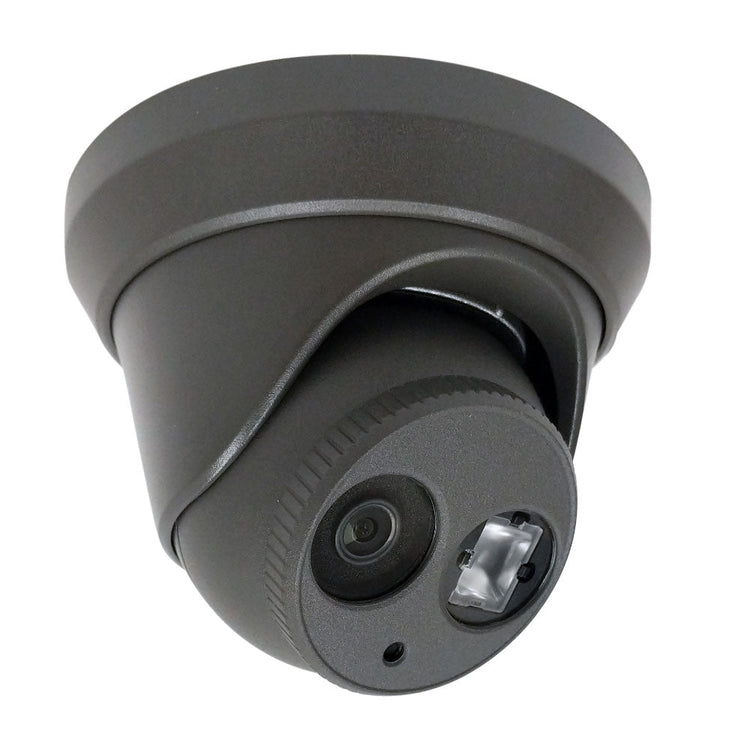

This 2MP indoor/outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 103° horizontal field of view respectively. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
Features
- 2 megapixel high performance CMOS
- Analog HD output, up to 1080p resolution
- True Day/Night
- EXIR 2.0, smart IR, up to 40m IR distance
- Switchable TVI/AHD/CVI/CVBS (white model only)
- Outdoor IP67 rated
- DWDR (Digital Wide Dynamic Range)
- 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- 12 VDC
Application
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 2 MP CMOS image sensor |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution | 1920 (H) x 1080 (V) |
| Minimum Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Slow Shutter | Maximum 16 times |
| Lens | 2.8mm fixed focal lens 3.6mm fixed focal lens |
| Horizontal Field of View |
103°(2.8 mm), 82.2°(3.6 mm) |
| Lens Mount | M12 |
| Day and Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Synchronization | Internal synchronization |
|
Menu
|
|
| AGC | Low/middle/high |
| Day and Night Mode | Smart/color/BW(Black and White) |
| Backlight Compensation | Yes |
| DWDR | Yes |
| Language | English |
| Functions | Brightness, Sharpness, DNR, Mirror |
|
Interface
|
|
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS (white model only) |
|
General
|
|
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Max. 4 W |
| Ingress Protection | IP67 |
| Material | Plastic |
| IR Range | Up to 130 ft (40 m) |
| Dimensions | Φ 110 mm × 93.2 mm (4.33" × 3.67") |
| Weight | Approximately 0.77 lbs (350 g) |
|
Approvals
|
|
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| ONVIF | Yes |
Compatible Products
Compatible Mounts
| CA-B2100-WH | Wall Mounting Bracket with Junction Box for Turret Cameras - White |
| CA-DS-1273ZJ-130-TRL-WH | Wall Mounting Bracket for Turret Cameras - White |
| CA-DS-1280ZJ-DM8-WH | Junction Box Mounting Bracket for Turret Cameras - White |
| CA-DS-1280ZJ-DM8-GY | Junction Box Mounting Bracket for Turret Cameras - Grey |
| CA-DS-1272ZJ-110-TRS-WH | Wall Mounting Bracket for Turret Camera - White |
Compatible Baluns
Compatible DC Power Supplies
Compatible DC Power Connectors
| CN-DCM-S | DC Power Connector Male 2.1mm x 5.5mm Screw Down |
| CN-DCM | DC Power Connector Male 2.1mm x 5.5mm Plastic Shell |
| CN-DCM-8IN | DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG) |
Compatible BNC Connectors
| CN-CBNCM-59-10 | BNC Male Compression Connector for RG59 - Pack of 10 |
| CN-CBNCM-59-10PL | BNC Male Compression Connector for RG59 Plenum - Pack of 10 |
| CN-30-734A | BNC Male Crimp Connector for RG59 (734A) |
| CN-30-RG59P | BNC Male Crimp Connector for RG59 Plenum Cable |
| CN-30-S | BNC Male Screw Down Connector, 75 Ohm |
| CN-TBNC-59 | BNC Male Twist-On Connector for RG59 |
