Description
Overview
This DVR can support a maximum of 16 analog channels or a maximum of 8 IP channels for a total of 24 cameras in any combination. The analog cameras connect directly to the DVR and can support AHD, CVI and CVBS surveillance camera formats. IP cameras can be connected through a PoE switch only. Long distance transmission is supported over UTP and coaxial cables. The DVR can output video simultaneously using the HDMI and VGA ports.
Features
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Support 1-channel CVBS output, 1-channel VGA output, 1-channel HDMI output at up to 4K(3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocol
Specifications
|
Physical Characteristics
|
|
|---|---|
| Dimensions | 380mm ×326mm× 53mm (15.0" × 12.8"×2.1") |
| Operating Temperature |
‑10°C ~ + 55°C ( +14°F ~ +131°F ) Humidity ≤ 90% RH(non‑condensing) |
| Power Supply | DC 12V/3A |
| Power Consumption | ≤ 12W W(without HDD) |
|
Video and Audio Input
|
|
| Analog Video Input | 16-channel, BNC |
| IP Video Input | 8-channel (only IP up to 24-channel), each channel up to 4K |
| Supported Analog Camera Types |
Support AHD input: 8MP@15fps
8MP@15fps
8MP@15fps
|
| Audio Input | 1-channel, RCA |
| Two-Way Audio | 1-channel, RCA (Using the audio input and output) |
|
Video and Audio Output
|
|
| BNC Video Output | 1-channel |
| RCA Audio Output | 1-channel |
| VGA Output |
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output |
HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Live View Display | HDMI/VGA: 1/4/6/8/9/25 |
|
Network
|
|
| Incoming Bandwidth | 80Mbps (Up to 112Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP;NTP |
| Browser(Plugin) | Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
|
Encoding
|
|
| Recording Resolution |
8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1 |
| Recording Frame Rate |
Main stream: 8MP Lite@8fps Sub stream: D1@8fps Main stream: 3K Lite@12fps Sub stream: D1@12fps Main stream: 5MP Lite@12fps Sub stream: D1@12fps Main stream: 4MP Lite@15fps Sub stream: D1@15fps Main stream: 1080P@15fps Sub stream: D1@12fps Main stream: 720P@30fps Sub stream: D1@12fps |
| Audio Sample Rate | 8KHz,16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding Capability | Analog: 16 x 8MP Lite@8, 16 x 3K Lite@12, 16 x 5MP Lite@12, 16 x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 IP: 24 x D1@30, 16 x 720P@30, 8 x 1080P@30 |
|
Hard Disk
|
|
| SATA | 2 SATA Interface |
| Capacity | Up to 8TB for each HDD |
|
Smart
|
|
| Analog Smart by XVR | SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD) |
| VCA Search | Face Search; Behavior Search |
| Smart Functions by XVR | 8‑ch(UMD), 4‑ch(SIP) |
| General Alarm | Motion |
| Alert Alarm | IP Conflict; Network Disconnected; Disk offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal |
|
External Interface
|
|
| Network Interface |
1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0 |
| Serial Interface | 1 x RS485 |
| Alarm In | 4‑ch |
| Alarm Out | 1‑ch |
|
Approvals
|
|
| RoHS | Yes |
| c(UL)us | Yes |
| FCC | Yes |
| CE | Yes |
|
Packaging Information
|
|

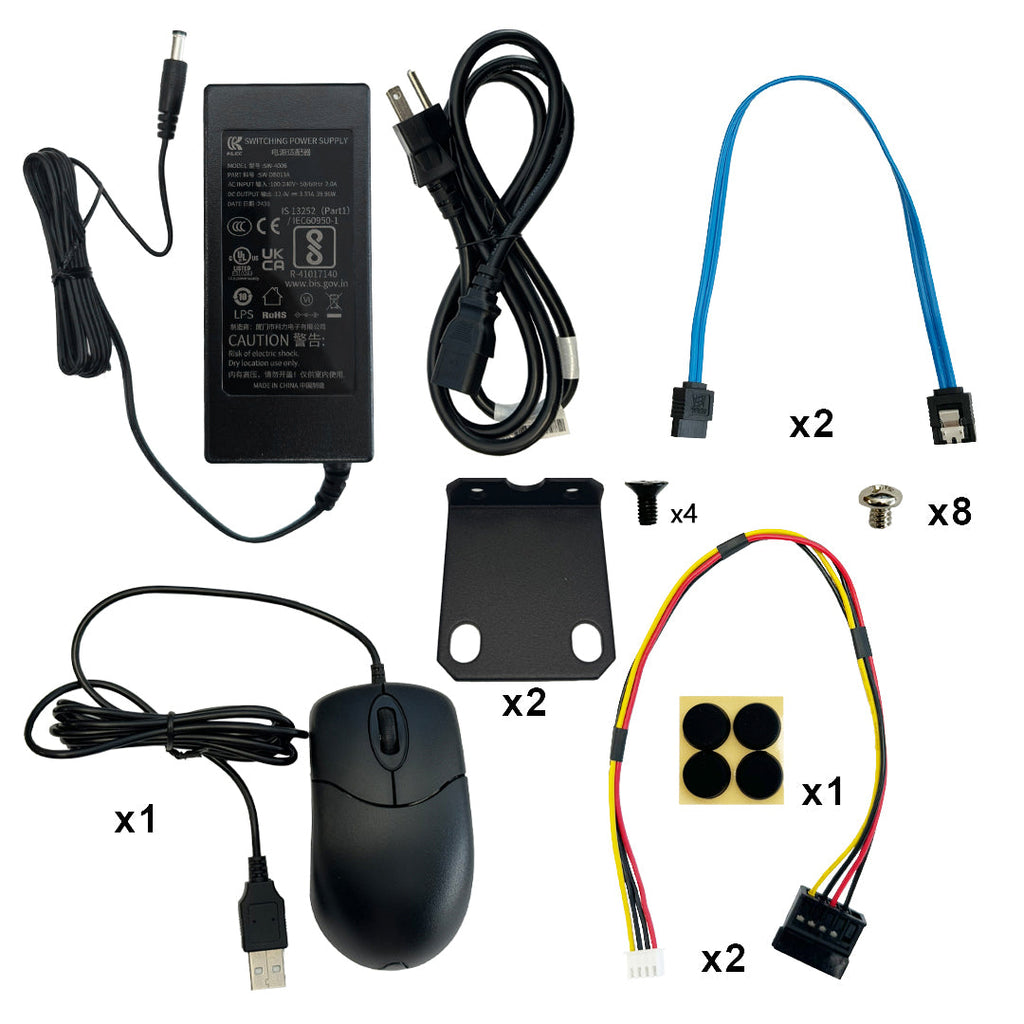

| Package Contents | 1 - DVR 2 - Hard Disk Data Cable 2 - Hard Disk Power Cable 1 - Power Adapter 4 - Screws 1 - Mouse 1 - User Manual |
| Product Weight | 4.4 lbs [2.0 kg] |
Accessories
|
Physical Characteristics
|
|||||||
|---|---|---|---|---|---|---|---|
| Form Factor | 3.5 inch | ||||||
| Dimensions | 5.7" x 4.0" x 1.0" (147 x 102 x 26mm) | ||||||
| Operating Temperature | 0°C to 65°C | ||||||
| Non-Operating Temperature | -40°C to 70°C | ||||||
|
Performance
|
|||||||
| Formatted Capacity (Part Number) | 1TB (WD10PURX) | 2TB (WD20PURX) | 4TB (WD40PURX) | 6TB (WD62PURX) | 8TB (WD84PURZ) | 10TB (WD101PURP) | |
| Cache | 64MB | 128MB | 256MB | ||||
| Data Transfer Rate | Buffer to Host - 6 GB/s Host to/from drive (sustained) - 110 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 145 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 150 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 175 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 245 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 265 MB/s |
|
| Hard Disk Interface | SATA | ||||||
| Rotational Speed (RPM) | IntelliPowerTM | ||||||
| Load/Unload Cycles | 300,000 | 600,000 | |||||
| Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | < 1 in 1015 | |||||
|
Power Management
|
|||||||
| Average Power Requirements | Read/Write - 3.3W Idle - 2.9W Standby and Sleep - 0.4W |
Read/Write - 4.4W Idle - 4.1W Standby and Sleep - 0.4W |
Read/Write - 5.1W Idle - 4.5W Standby and Sleep - 0.4W |
Read/Write - 5.3W Idle - 4.9W Standby and Sleep - 0.4W |
Read/Write - 8.6W Idle - 7.4W Standby and Sleep - 0.4W |
Read/Write - 9W Idle - 8W Standby and Sleep - 0.5W |
|
|
Approvals
|
|||||||
| RoHS | Yes | ||||||
|
Packaging Information
|
|||||||
| Package Quantity | 1 | ||||||
| Product Weight | 0.99 lbs [0.45 kg] | 1.40 lbs [0.64 kg] | 1.50 lbs [0.68 kg] | 1.65 lbs [0.75 kg] | 1.58 lbs [0.72 kg] | 1.65 lbs [0.75 kg] | |
Downloads
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
