Description
Overview

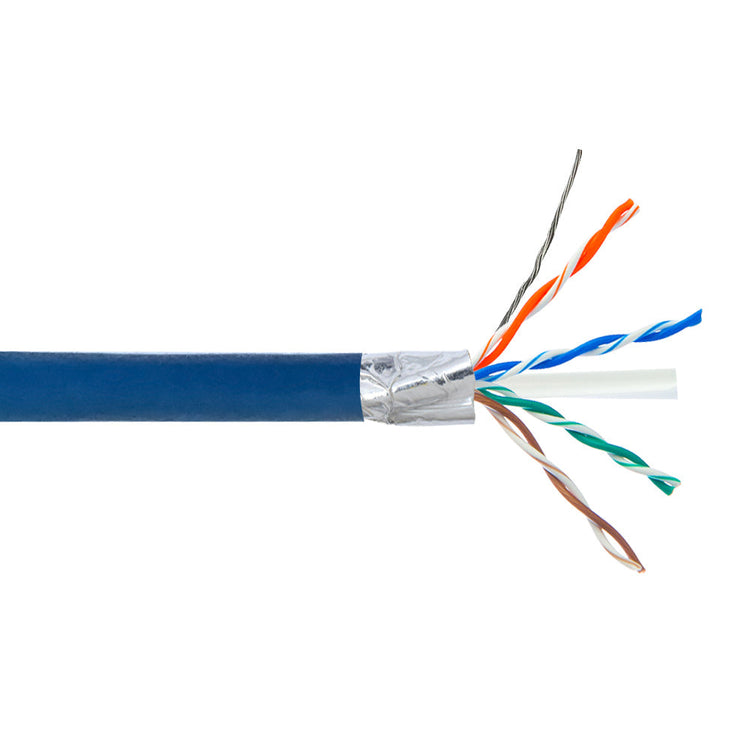

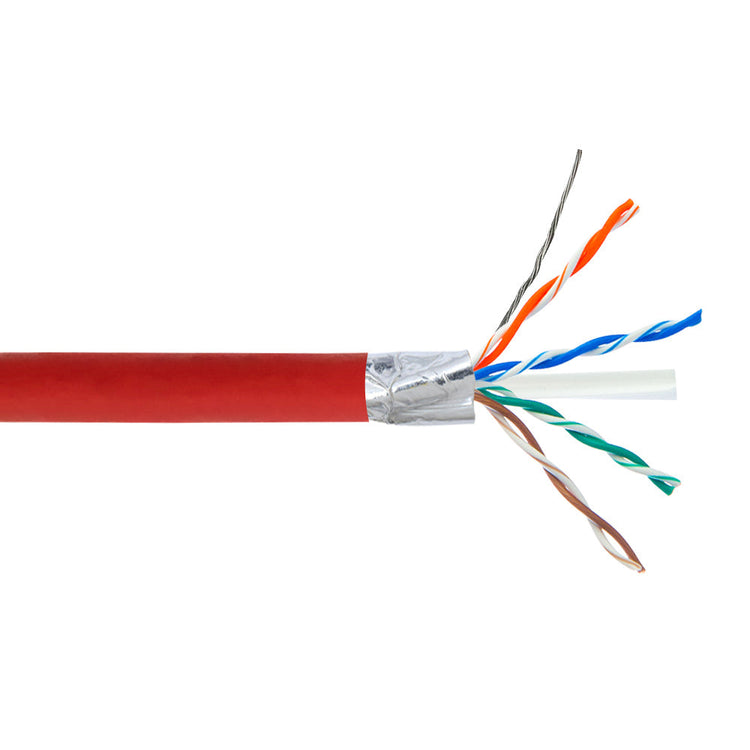

This bulk riser rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 24AWG stranded wires with an overall foil shield. It is typically used to manufacture Cat6 shielded patch cables and terminated with shielded RJ45 plugs.
 |
100% Bare Copper Stranded ConductorsThis cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The stranded wires gives the cable more flexibility, makes it easier to handle and makes it perfect for touring and short patch links. Great for High Speed NetworksOur CAT6 bulk cable is the most practical and economical solution for all your networking applications, it provides 550 MHz of bandwidth, and offers high speed, uninterrupted connection. The Quality and Convenience You NeedThis cable comes in a pull box for easy pulling, it features color striped pairs for easy identification, and a rip cord for easy stripping. also it uses an unshielded twisted pair (STP) structure to retain a high quality signal when passing near high voltage or power cables.
|
Application
Specifications
|
Physical Characteristics
|
|
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.10 mm |
| Number of Pairs | 4 Pairs |
| Twisted Pair Diameter | 3.80 mm (±0.20 mm) |
| Color of Pairs | White-Blue White-Green White-Orange White-Brown |
| Wire Gauge | 24AWG Stranded |
| Stranding Count & Diameter | 7x0.32 mm |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Cable Shielding | 100% Aluminum Foil Shield |
| Temperature Rating | 75ºC |
|
Approvals
|
|
| UL | Yes |
| CSA | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Product Weight |
29.9 lbs [13.5kg] |
