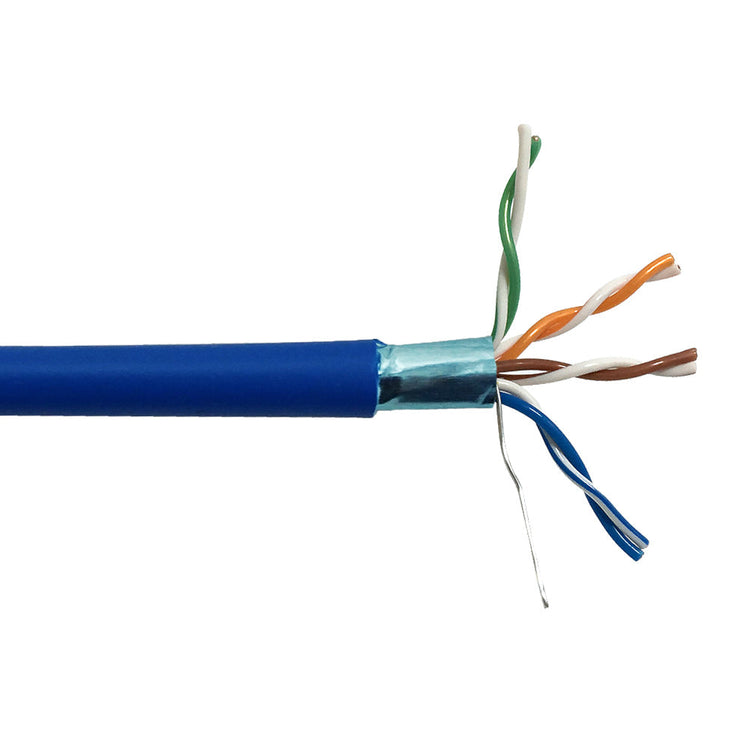

This bulk plenum rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used in a plenum environment as premise wiring and terminated from a patch panel to a Cat5e jack.



Physical Characteristics
|
Cable Length |
1000 foot [305m] |
Cable Diameter |
6.30 mm |
Number of Pairs |
4 Pairs |
Wire Gauge |
24AWG Solid |
Conductor Material |
100% Bare Copper |
Jacket Material |
PVC - Polyvinyl Chloride |
Jacket Nominal Thickness |
0.0197 inches [0.50mm] |
Jacket Rating |
CMP/FT6[Plenum Rated] |
Cable Shielding |
100% Aluminum Foil Shield |
Insulation Material |
FEP |
Insulation Outer Diameter |
0.0378 inches [0.96±0.05mm] |
Drain Wire |
24AWG Solid Tinned Copper |
Ripcord |
Kevlar |
Temperature Rating |
-20 deg C to +80 deg C |
Electrical Characteristics
|
Voltage |
30V |
Capacitance |
5.6nF/100m .Nom |
Velocity of Propagation |
ā„65% |
DCR Conductor |
9.38 Ohms/100m.Nom |
D-C Resistance Unbalance |
ā¦5% |
Performance
|
Fluke CAT5e Permalink |
Pass |
PoE Compliance
|
PoE / IEEE 802.3af Type 1 |
15.4W (37-57V) |
PoE+ / IEEE 802.3at Type 2 |
30W (42.5-57V) |
PoE++ / IEEE 802.3bt Type 3
|
60W (42.5-57V)
|
4PPoE / IEEE 802.3bt Type 4
|
100W (41.1-57V)
|
Approvals
|
c(UL)us |
Compliant |
Environmental
|
RoHS |
Compliant |
Packaging Information
|
Package Quantity |
1 |
Product Weight |
35.62 lbs [16.15 kg] |
