1000ft 2C 18AWG Stranded Control Cable - CMP Plenum - White

Control Bulk CableSKU: BK-CON621-WH

Price:
Sale price$229.40 CAD
Stock:
In stock

Description

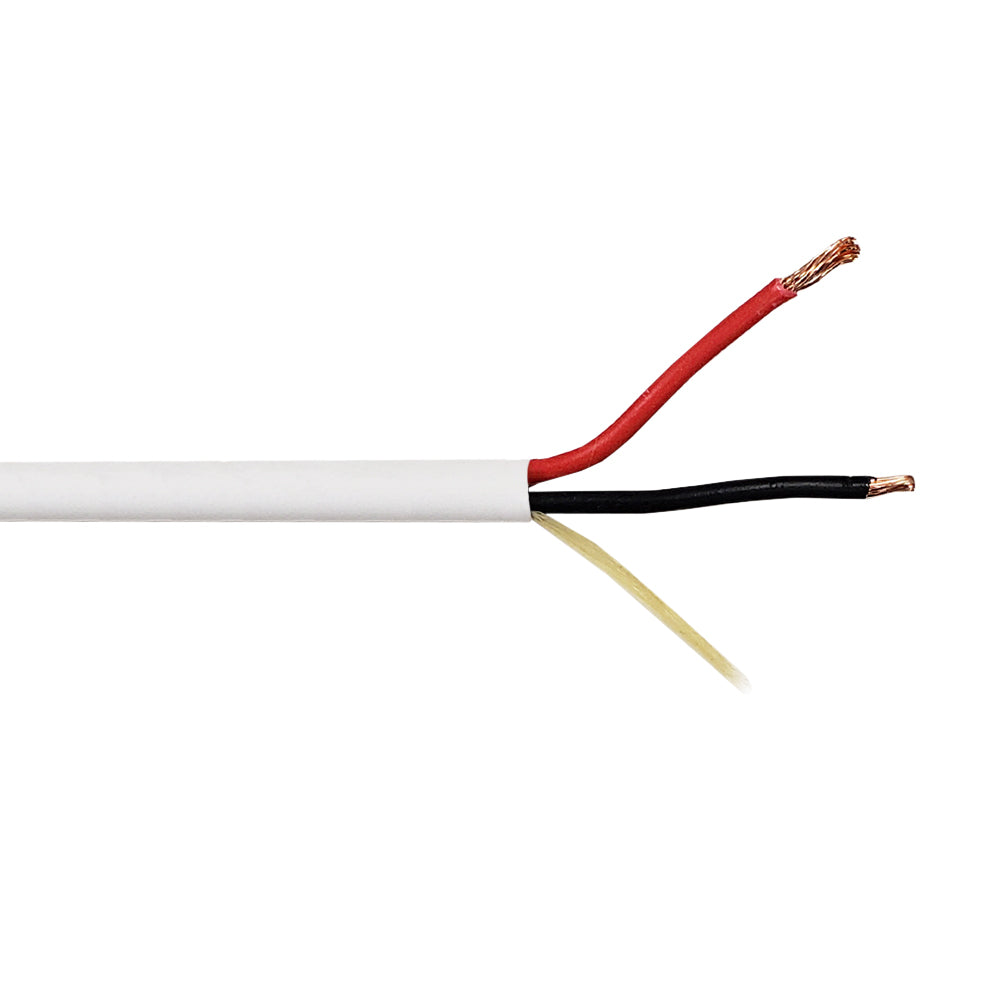

This 2 conductor 18AWG stranded unshielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.

Physical Characteristics

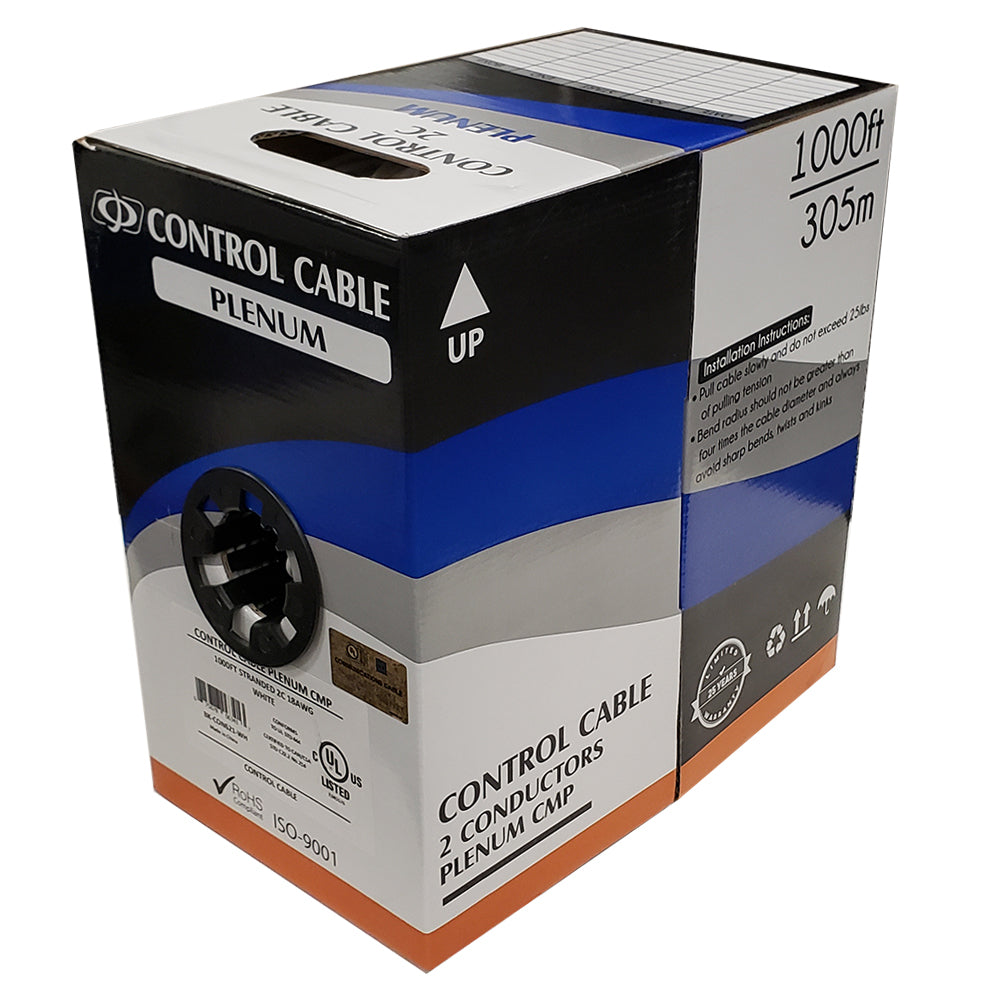

Cable Lengths Available 1000 foot [305m] Pull Box
Color (jacket) White
Number of Conductors 2 Conductors (Red/Black)
Jacket Material PVC - Polyvinyl Chloride
Min Average Jacket Thickness 0.38mm
Jacket Outer Diameter 4.6 +/- 0.20mm
Insulation Material PVC - Polyvinyl Chloride
Min Average Insulation Thickness 0.24mm
Insulation Outer Diameter 1.7 +/- 0.05mm
Min. Ave. Jacket Thickness 0.36 mm
Wire Gauge 18 AWG
Maximum Voltage 300V
Material (conductors) Bare Copper
Ripcord DuPont Kevlar®
Conductor Resistance 21.8 ohms/km (at 20℃ Max)
Tensile Strength Unaged: Min 1500psi
Aged: Min 70%
Elongation Unaged: 100% Min
Aged: 65% Min
Heat Shock Test No Crack
Cold Bend Test No Crack
Deformation Test Max 50%
Flame Test UL910/CMP
Approvals
c(ETL)us Yes
Packaging Information
Package Quantity 1 Pull Box
Product Weight 22.53 lbs

Spec Sheets

Download spec sheet
