Description

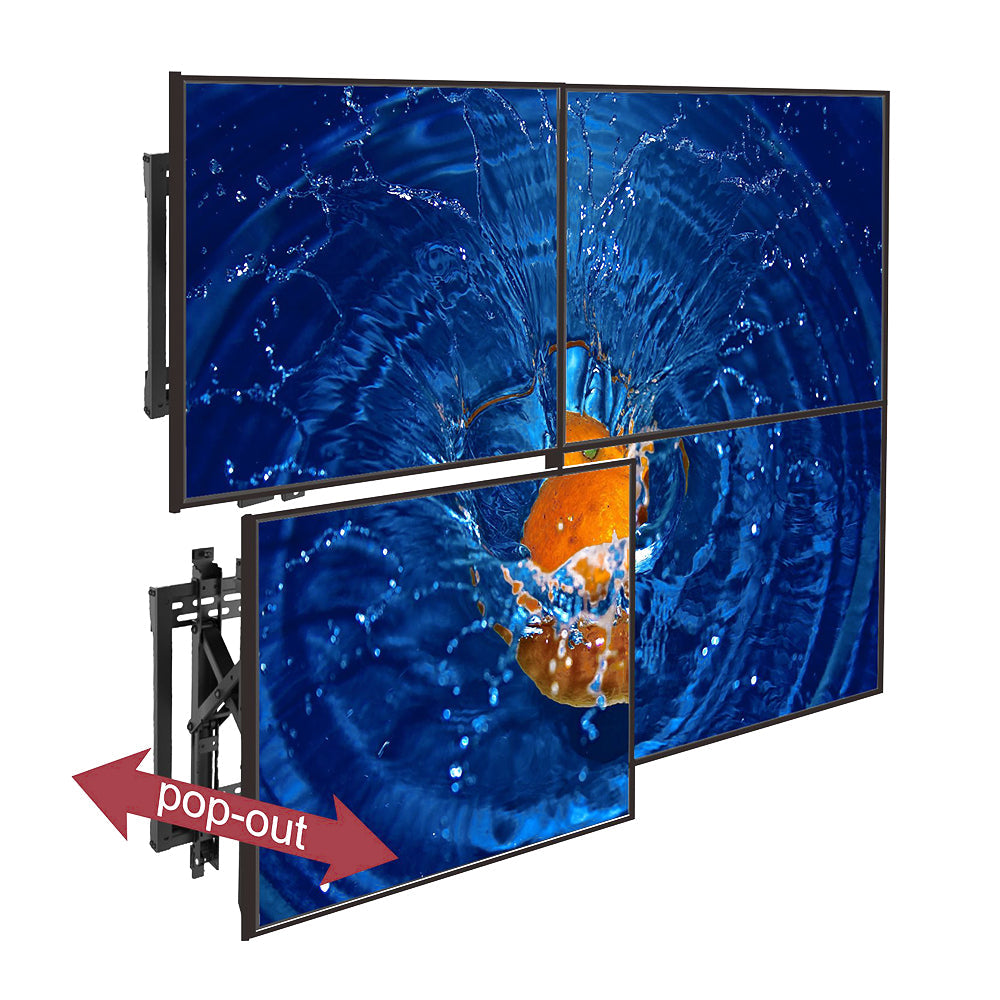

This pop-out video wall mount bracket is designed to hold most 45 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 600x400. It can be used on a single TV or in conjunction with additional mounts to create a video wall.
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Micro Adjustment, Pop-out, Tilting |
| Color | Durable Powder-coated Black Finish |
| Material | Metal |
| Mounting Pattern | VESA 200X200, 400X200, 300x300, 400x400, 600x400 |
| Screen Size | 45 - 70 inches [114 - 178cm] |
| Weight Capacity | 154lbs [70kg] |
| Profile | 95 - 285mm |
| Level Adjustment | -3° ~ +3° |
| Tilt |
-2° ~ +4° |
| Installation | Solid Wall or Double Stud |
| Micro Adjustments |
Up/Down 28mm, In/Out 18mm |
| Rear Access |
Kick-out Bottom |
| Swivel | No |
| Rotating | No |
| Bubble Level | No |
| Anti-Theft | Yes |
| Cable Management | No |
|
Approvals
|
|
| c(UL) | Yes |
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x20 Screws 4 - M8x30 Screws 4 - Rectangular Washers 8 - Small Spacers 4 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Product Weight | 26.5 lbs [12 kg] |
