Description
Overview

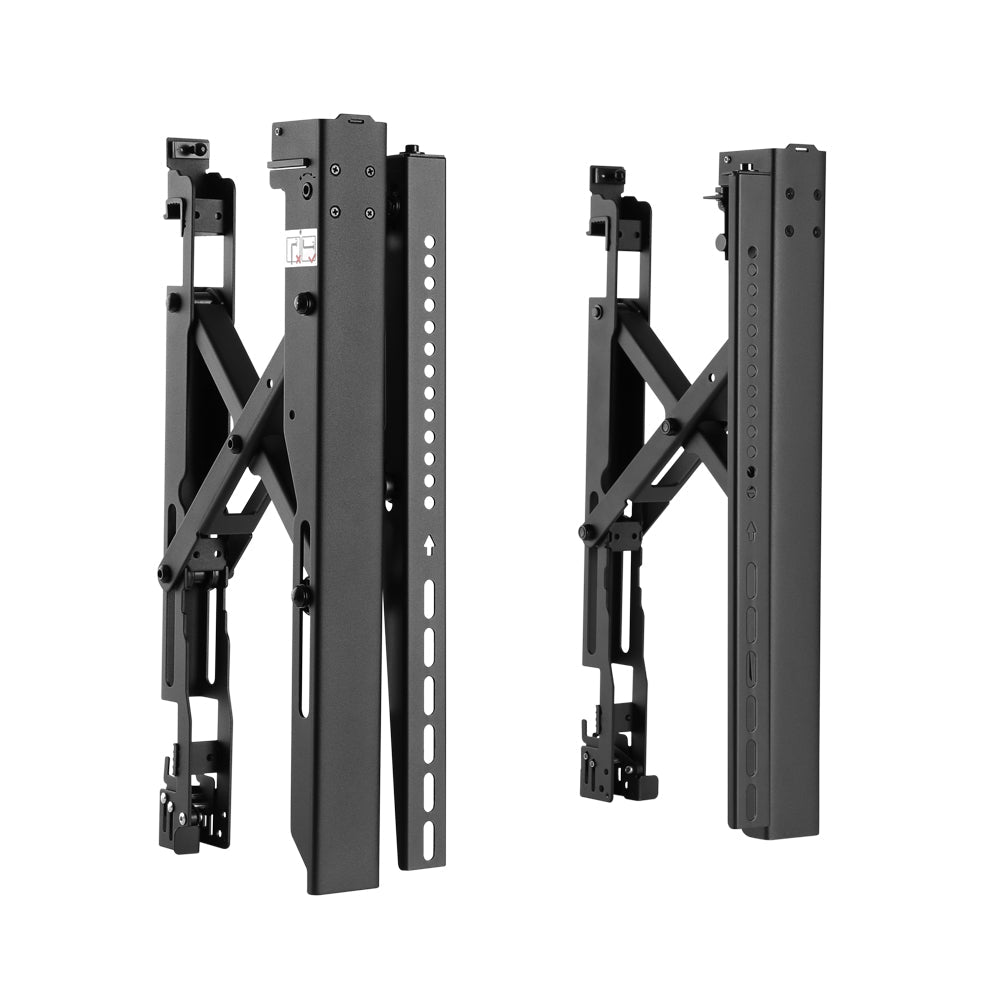

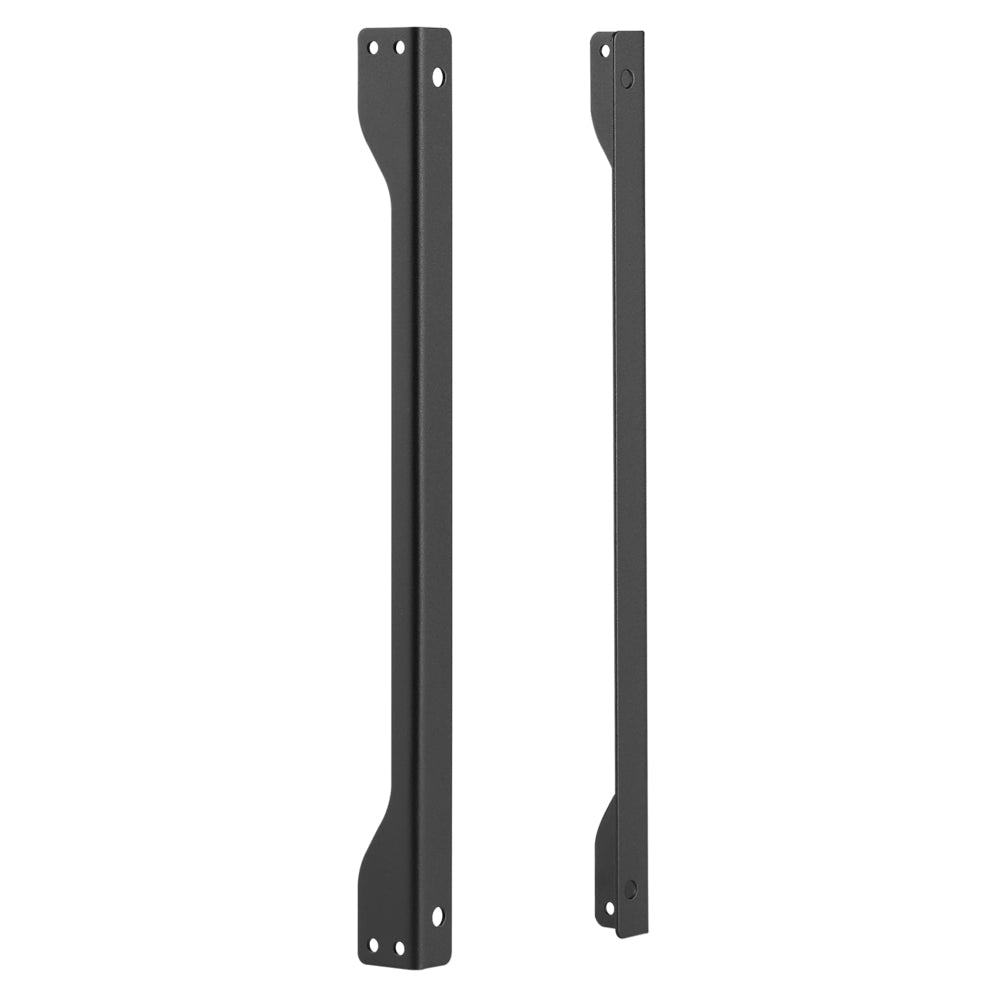

These video wall TV mounting arms are part of a modular video wall mount system which are to be used in conjunction with the MT-1514-495 and MT-1514-745 aluminum rails. One set of arms should be purchased for each TV.
 |
Quick and Easy InstallationThese mounting arms and accessories can be put together with as many aluminum rails as required for quick and easy installation. Pop-Out Extension for Easy AccessThere is a pop-out extension function on this bracket that allows easy rear access of the screen. Multi-Dimensional Micro AdjustmentThis allows precision alignment of the video wall configuration including depth, height and tilt.
|
Features
Installation
Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Micro Adjustment, Pop-out, Tilting |
| Color | Durable Powder-Coated Black Finish |
| Material | Metal |
| Metal Sheet Thickness | Bracket Arm Thickness = 2mm Cold-Rolled Sheet |
| Mounting Pattern | VESA 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400,1000x400 |
| Screen Size | 45 inches [114cm] (Min) |
| Weight Capacity | 154lbs [70kg] |

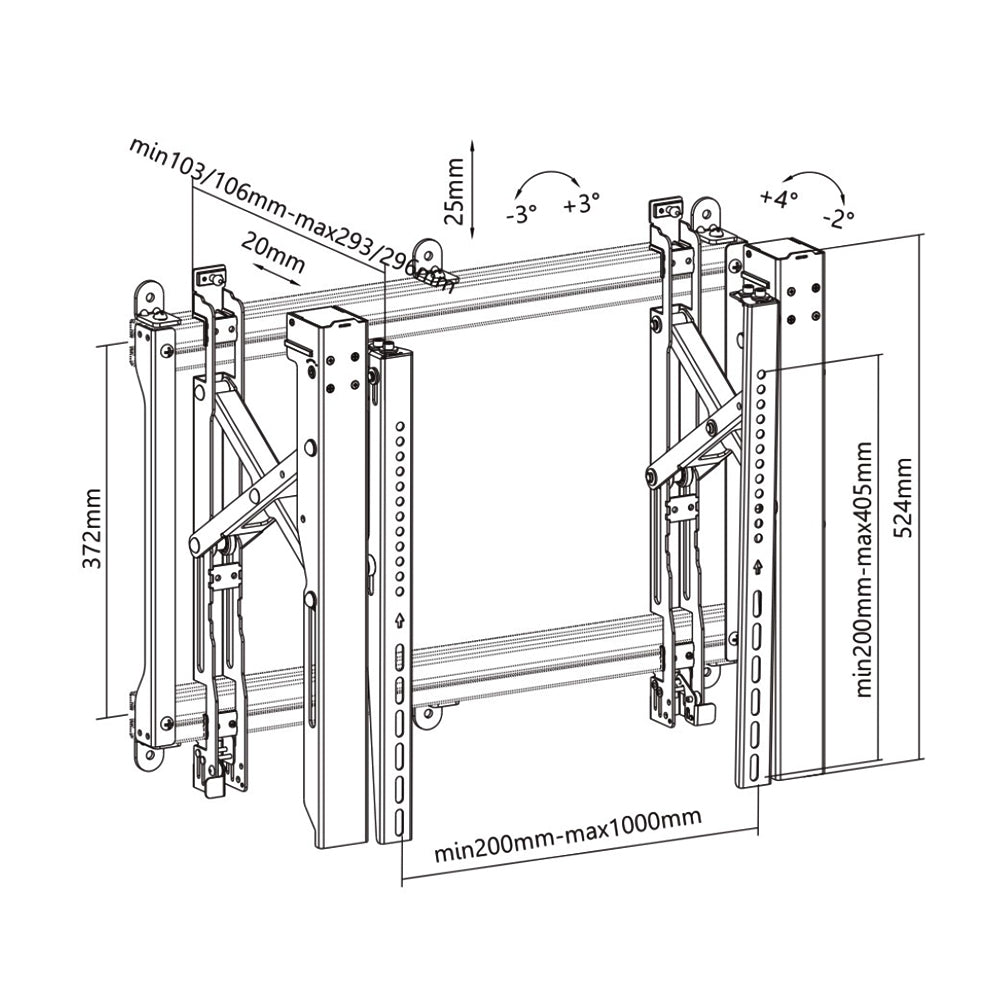

| Profile | 103/106 ~ 293/296mm [4.1/4.2 ~ 11.5/11.7 inches] |
| Fine Adjustment | 20/25mm [0.79/0.98 inches] |
| Level Adjustment | -3° ~ +3° |
| Tilt |
-2° ~ +4° |
| Installation | Solid Wall |
| Anti-Theft | Yes |
|
Compatibility
|
|
| MT-1514-495 | 495mm Aluminum Rails for Custom Installation (Pair) |
| MT-1514-745 |
745mm Aluminum Rails for Custom Installation (Pair) |
|
Approvals
|
|
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |

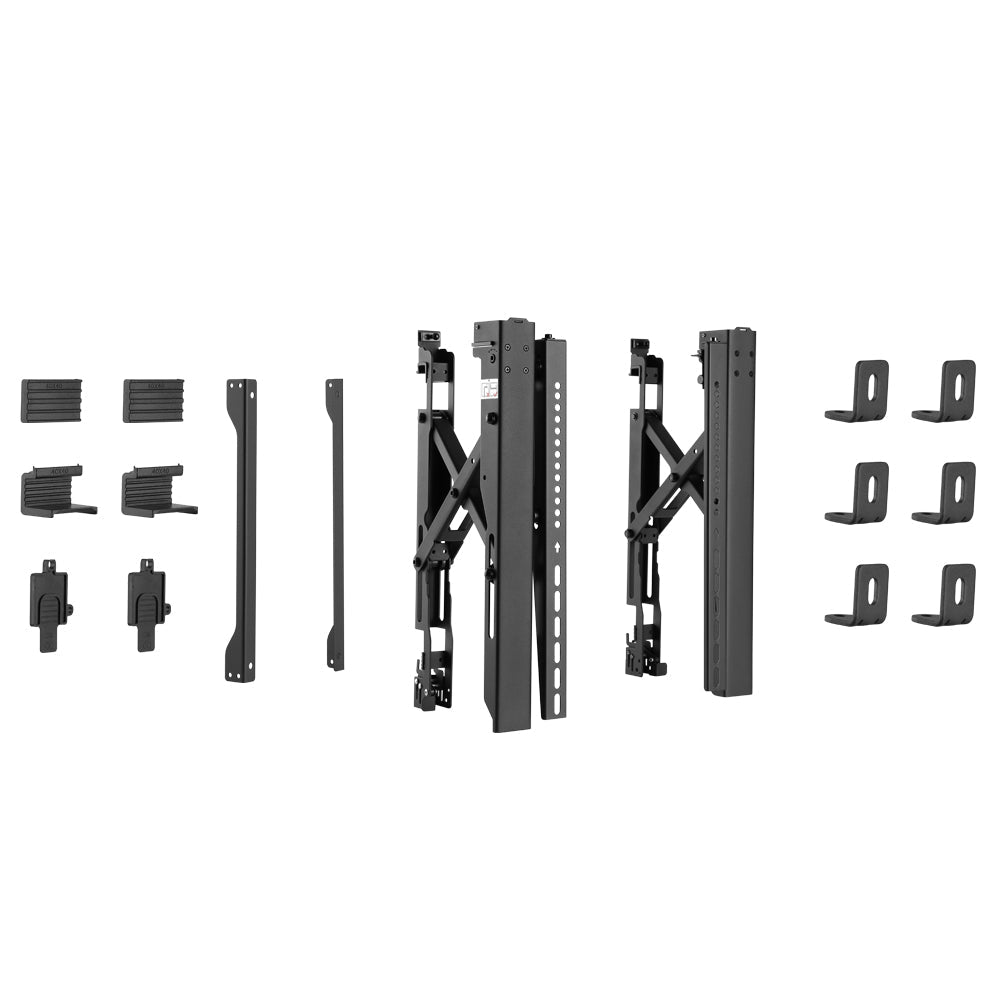

| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x20 Screws 4 - M8x30 Screws 4 - Rectangular Washers 8 - Small Spacers 4 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Product Weight | 26.5 lbs [12 kg] |
