Description

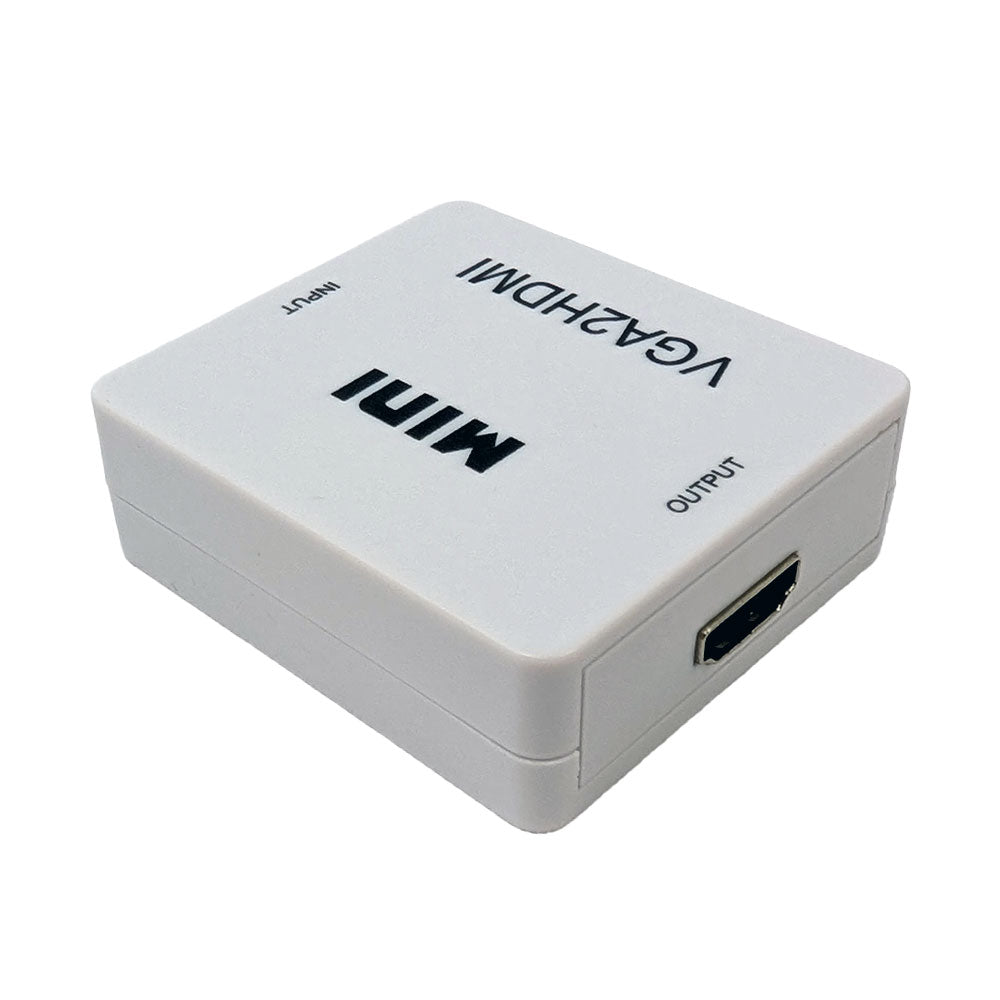

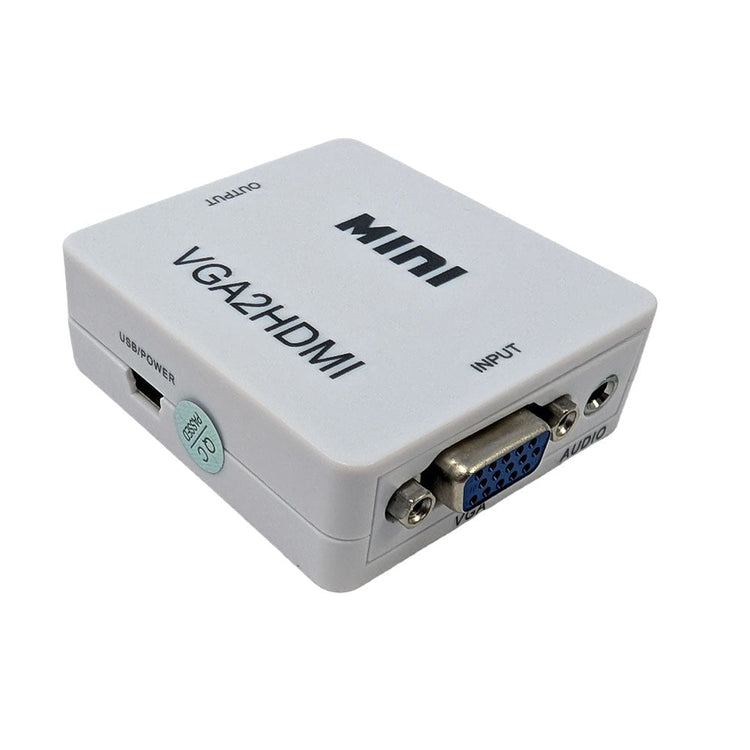

This converter consists of a VGA and stereo audio input and a HDMI output. It is used to convert an analog video and audio signal to a digital HDMI signal. A typical application would be to connect a computer or laptop with an analog video card to a HDMI display.
Features：
- Scales general PC resolutions to HDMI 1080p output.
- Provides advanced signal processing with great precision.
- High quality scaling technology for progressive input resolutions, VGA input supports up to 1920x1080@60Hz.
Application
Specification
| Physical Characteristics | |
|---|---|
| Color | White |
| Dimension (DxWxH) | 66x55x20 mm |
| Connector(s) | |
| Input |

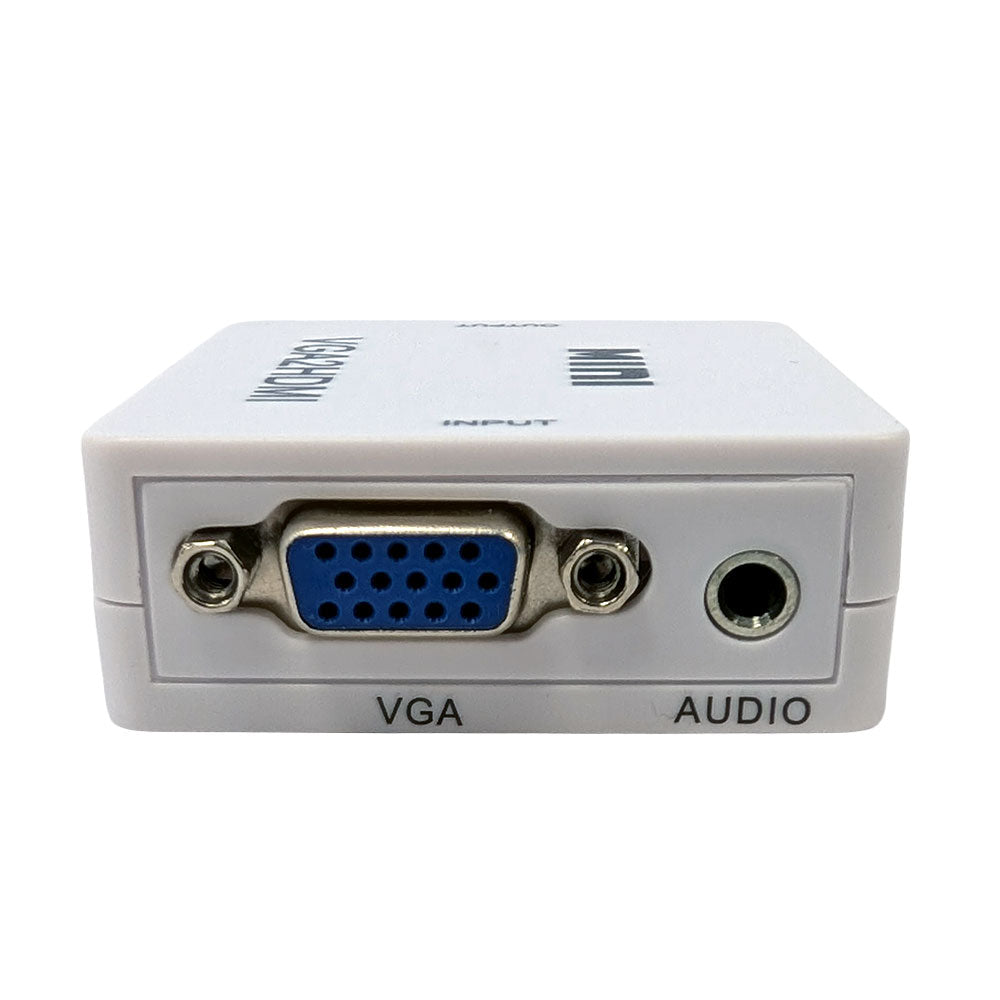

1 - VGA Female 1 - 3.5mm Female |

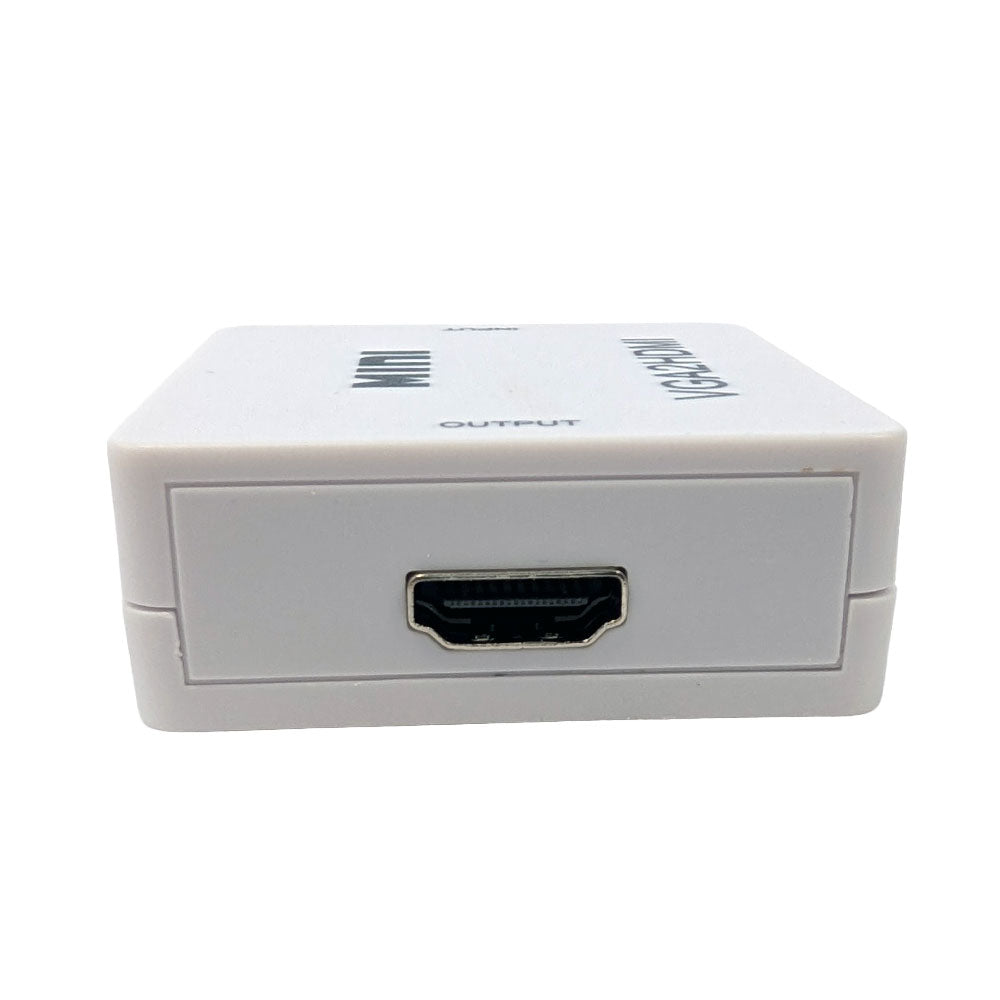

| Output | 1 - HDMI Female |
|
Performance |
|
| Input Resolution |
640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1920x1080@60Hz |
| Output Resolution |
1080p/60Hz, 720p/60Hz |
| TV Format Input |
PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N |
| Environmental | |
| RoHS | Compliant |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Package Weight | 0.08 lbs |
| Contents | |
| Included in Package | 1 - VGA to HDMI converter |
| 1 - USB-A to mini-B Cable | |
| 1 - User Manual | |
Product Weights
| SKU | Weight | |
| VC-010 | 0.2 lb |
