USB AA Male to Female 3.0 Active Extension Cable


Length: 16ft
Price:
Sale price$23.95 CAD
Stock:
In stock

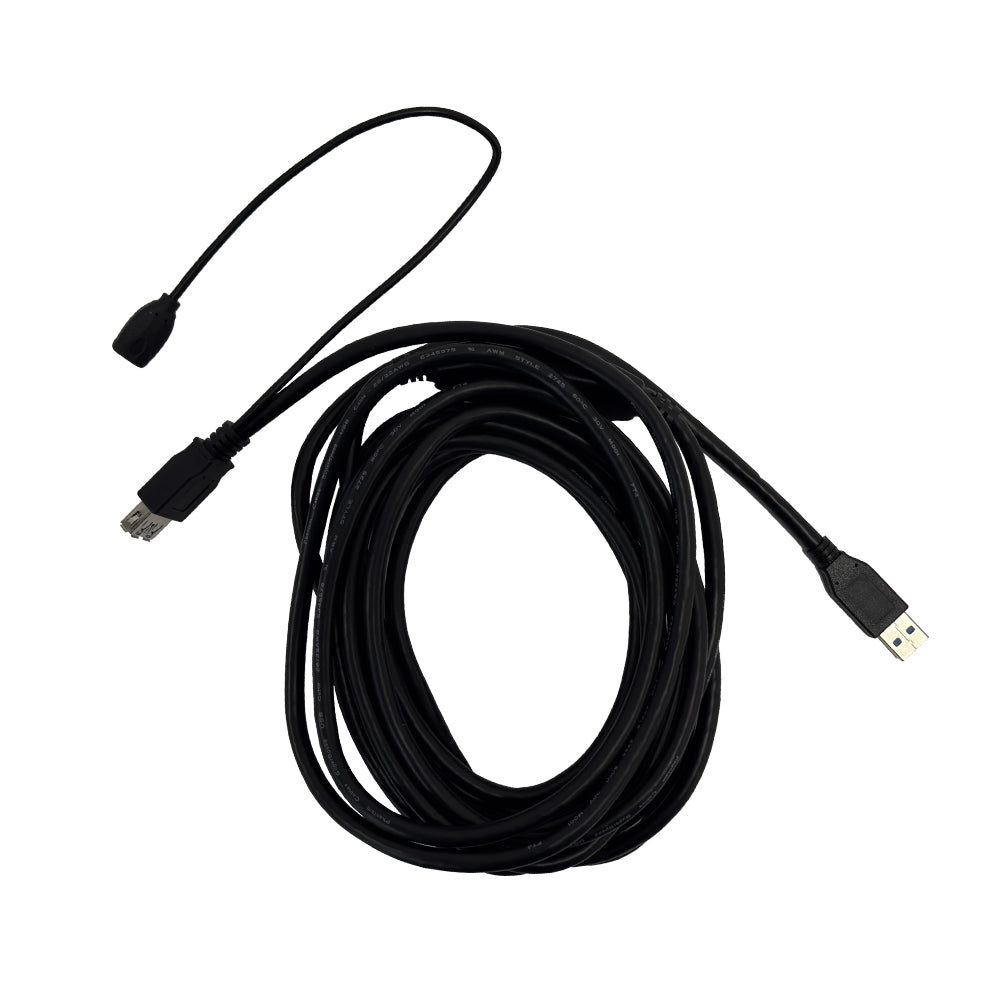

This active USB extension cable consists of a USB A male on one end and a USB A female on the other end. It is used to extend the distance between a USB 3.0 device and a computer. Unlike passive extension cables, this USB active extension cable has bus powered circuitry which enables it to reach distances beyond the length limits of standard passive USB cables.

This cable is directional and will only work when the male end is connected to the computer and the female end is connected to the device.

NOTE: Cable could be cascaded up to a total length of 10m or less.

Application

Physical Characteristics
Color Black
Length 5m/10m
Connector Plating Nickel
Wire Gauge 26AWG Data, 22AWG Power
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CL3
Cable Shielding 100% Aluminum-Mylar Foil, 65% Tinned Copper Braid
Strain Relief Molded PVC
Connector(s)
Connector A (Source) USB 3.0 Type A Hi-Speed Male
Connector B (Device) USB 3.0 Type A Hi-Speed Female
Connector C (Device) USB Micro-B Female (supplemental power only)
Performance
Maximum Power Draw ~ 1W (5V0.2A)
Rating USB 3.0 Hi-Speed Compliant Cable
Speed 5 Gbps
Compatibility Backwards Compatible with 2.0 and 1.0
System Requirements
Windows Windows 98, ME 2000/XP, Vista, 7, 8, 10, 11
Apple Mac OX 9 and OS X
Linux, Unix Compliant
Approval/Environmental
c(UL)us Cable - ApprovedĀ
RoHS Compliant
Reach Compliant
Conflict Minerals Compliant
Packaging Information
Package Quantity 1
Warranty Information
Warranty
3-Years Limited Warranty
SKU Options Weight
USB-E3-05M 16ft 0.73 lb
USB-E3-10M 32ft 1.33 lb
