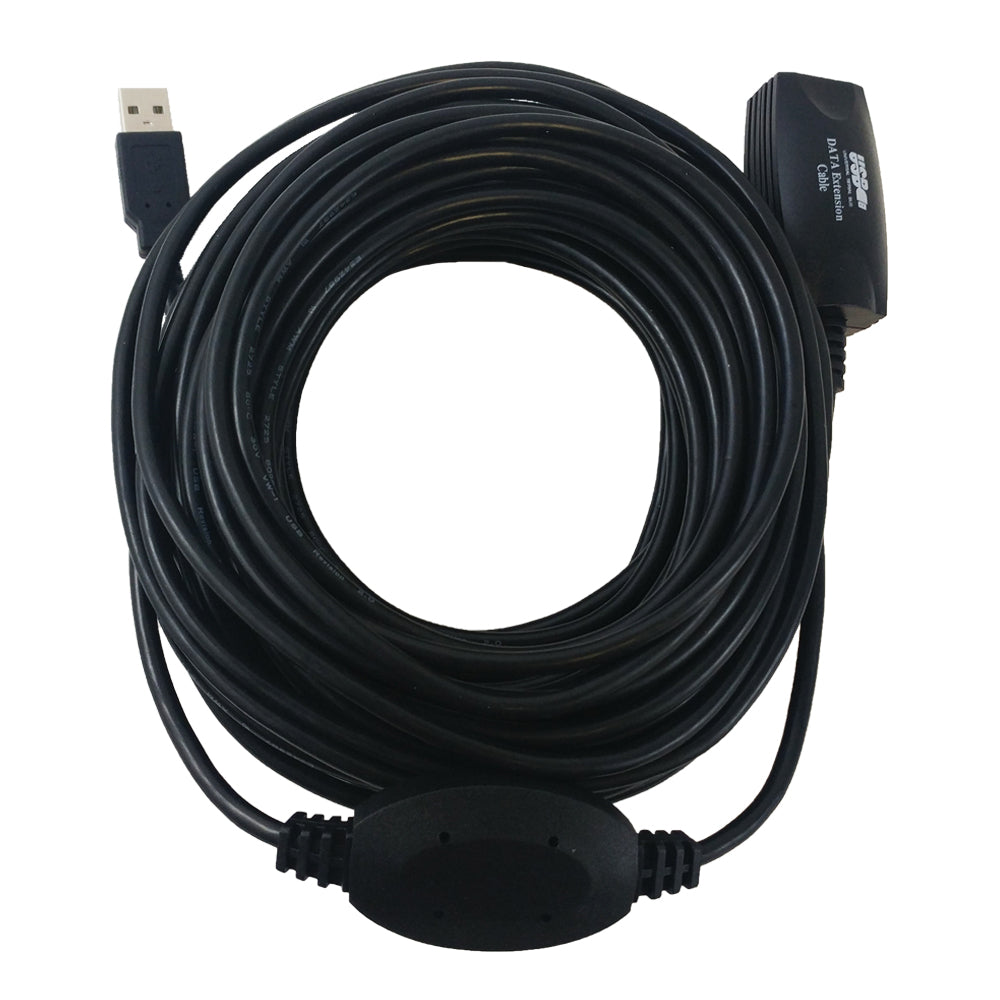

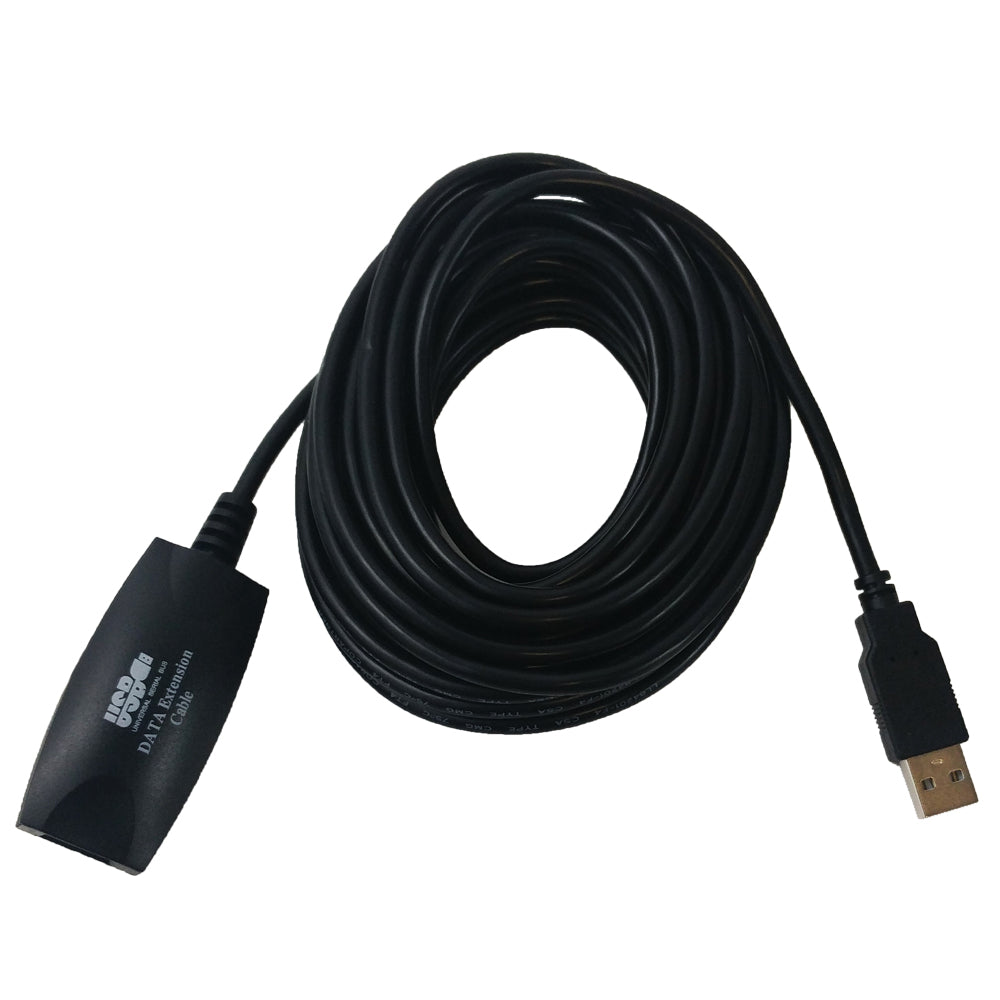

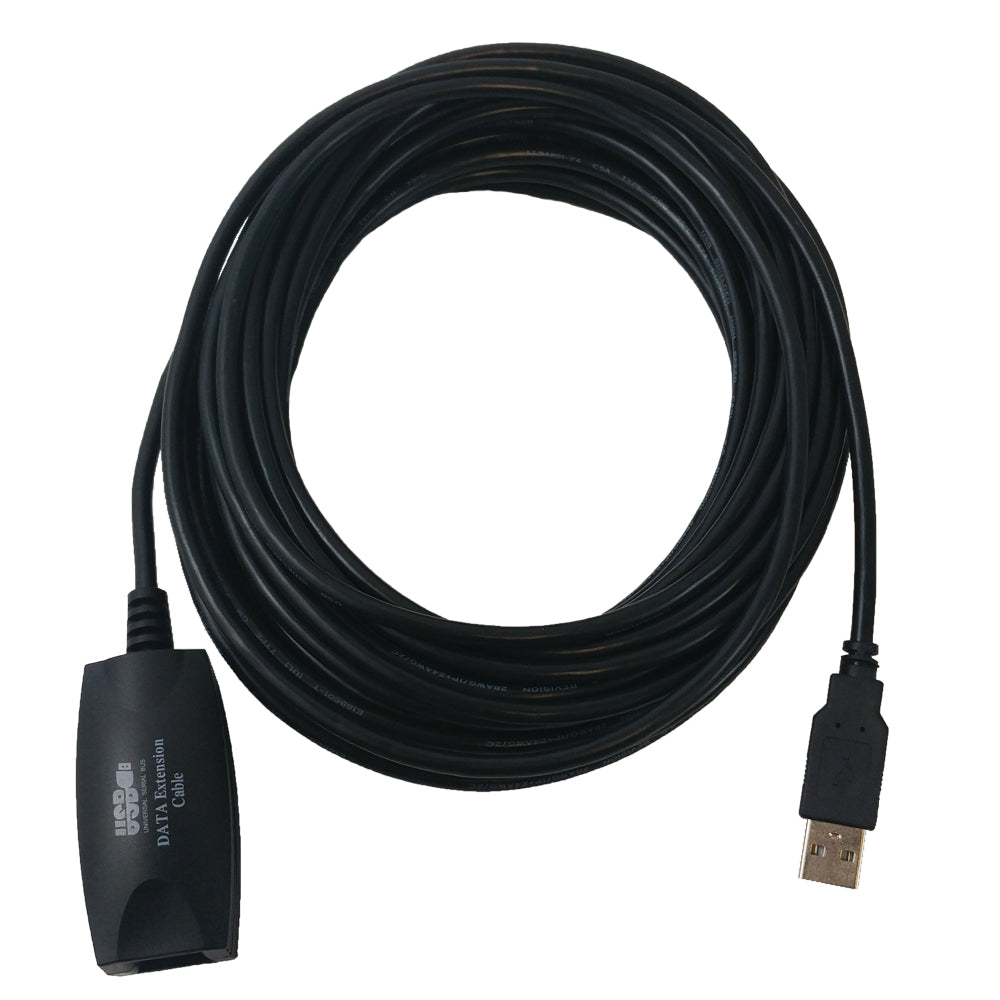

USB AA Male/Female 2.0 Active Extension Cable

Length: 16ft
Sale price$12.65 CAD
In stock


This active USB extension cable consists of a USB A male on one end and a USB A female on the other end. It is used to extend the distance between a USB 2.0 device and a computer. Unlike passive extension cables, this USB active extension cable has bus powered circuitry which enables it to reach distances beyond the length limits of standard passive USB cables.

This cable is directional and will only work when the male end is connected to the computer and the female end is connected to the device.

NOTE: Only the 16ft cable supports cascading with 1x1 connection.

Physical Characteristics
Color Black
Connector Plating Nickel
Cable Diameter 4.5 mm
Wire Gauge 28AWG Data, 24AWG Power
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CMG, FT4 Riser
Cable Shielding 100% Aluminum-Mylar Foil, 65% Tinned Copper Braid
Strain Relief Molded PVC
Temperature Rating 75‚ĄÉ
Connector A USB 2.0 Type A Hi-Speed Male
Connector B USB 2.0 Type A Hi-Speed Female
Repeater (USB-E50) Located directly in middle of cable - 25ft from either end
Rating USB 2.0 Hi-Speed Compliant Cable
Speed 480 Mbps
Windows Windows 98, ME 2000/XP, Vista, 7, 8, 10
Apple Mac OX 9 and OS X
Linux, Unix Yes
UL Yes
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
3-Years Limited Warranty
