Description
Overview

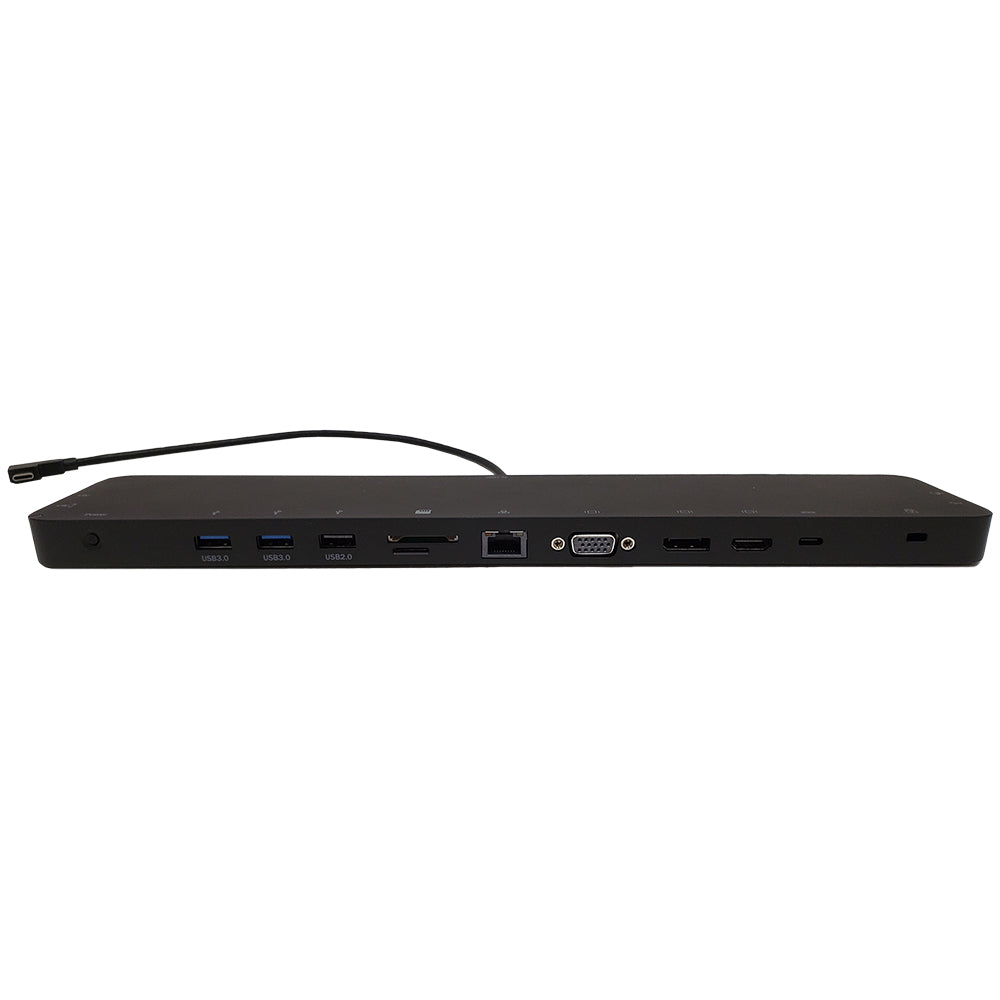

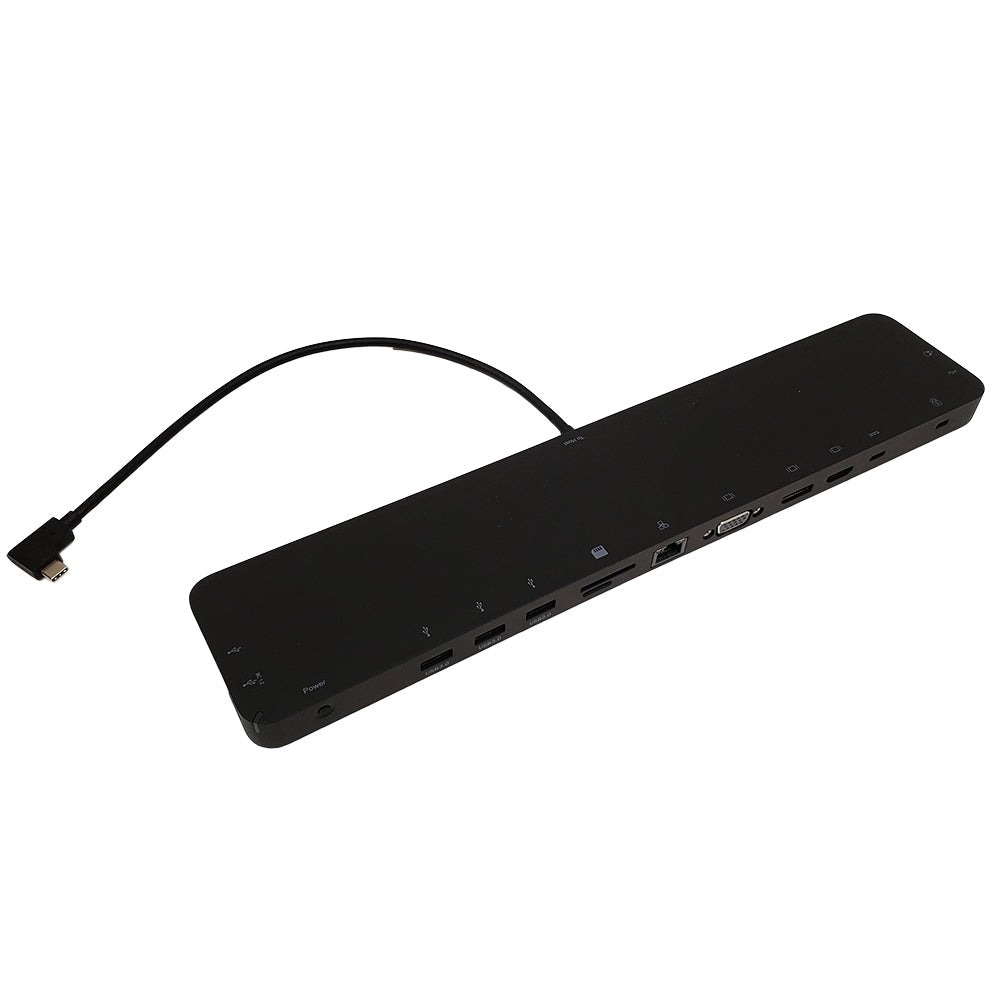

This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C female on one end and a Type-C female (PD charging), HDMI female, DP female, VGA female, RJ45 port, SD/Micro SD 3.0 slot, two USB-A 2.0 female, two USB-A 3.0 female, Type-C female (data) and combo audio jack on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation.
Features
- Type-C male to angled male cable is provided
- Power switch can be used to turn on/off the docking station
- LED indicator turns green when docking station is on
- Supports DP1.2 Alt mode
|
|
Expand your Type-C Devices ConnectivityThis USB Type-C docking station has HDMI, VGA and DP ports for connecting external displays, an Ethernet port for network connection, USB 3.0 Super Speed ports, USB 2.0 ports, Micro SD & SD/MMC port for memory cards, and a 3.5mm port for audio. High Performance and Quality Video OutputThe HDMI and DP output provides a simple Plug & Play connection to almost any display with an Ultra HD 4K/30Hz resolution. The VGA output support monitors with 1920x1080 resolution. Stable Internet Access and Fast Data TransferWired network connection supports 10/100/1000 Mbps Bandwidth via the RJ45 port provides a faster, more secure and more stable Internet connection. And the Type-C port supports faster data transfer up to 5.4Gbps per lane.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector(s) | |
| Connector A | Type-C Female |
| Connector B | Type-C Female (PD charging) |
| HDMI Female | |
| DP Female | |
| VGA Female | |
| RJ45 | |
| SD/Micro SD 3.0 | |
| USB-A 2.0 Female x 2 | |
| USB-A 3.0 Female x 2 | |
| USB-A 3.0 Female | |
| Type-C Female (Data) | |
| Combo Audio Jack | |
| Port Features | |
| Type-C Female (Connect Host at the bottom) | Supports DP1.2 Alt Mode, with max bandwidth of 21.6Gbps (5.4Gbps per lane) |
| Type-C Female (near HDMI, connect PD power adapter) | Supports max 100W charging Supports fast role swap of PD3.0, the connected device will not get connected while plugging PD adapter in and out Supports dynamic current detection and power distribution, which distributes power according to actual consumption of itself, taking full advantage of the power supply and dynamically charging the host with more power Note: Power is 4-18W (4W for no-load mode and 18W for full-load mode) |
| Type-C Female (near USB-A, connect Type-C device) | Supports max 5Gbps data transmission and 1.5A downstream charging |
| USB3.0-A (near Type-C data port) | Support max 7.5W (5V/1.5A) downstream charging Support max 5Gbps data transmission |
| USB 3.0-A x 2 (near power switch) | Support max 5Gbps data transmission Support max 900mA downstream charging |
| USB 2.0-A x 2 | Support max 500mA downstream charging and 480Mbps data transmission |
| RJ45 | Support 10/100/1000 Mbps for Ethernet port |
| SD/Micro SD | Support Secure Digital v3.0 UHS-I (Ultra High Speed)?SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s) Allow SD/Micro SD slots to work simultaneously |
| Combo Audio | Support both microphone and headphone Supports 48KHz and CTIA |
| Performance | |
| HDMI | Supports HDMI max resolution: 4k/30Hz Supports 6/8/10/12 bit color depth output Supports output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2 Supports HDCP 1.4 |
| VGA | Supports VGA max resolution: 1920x1200/60Hz |
| DP | Supports DP max resolution: 4K/30Hz |
| Operating Systems | Mac: Support 3 displays to work simultaneously under SST mode, 3 outputs show the same picture or video with max 1080p@60Hz due to bandwidth distribution Windows: Support 3 displays to work simultaneously under SST mode, 3 outputs show the same picture or video with max 1080p@60Hz due to bandwidth distribution Support three different videos to display simultaneously under MST mode Note: Some host PC just supports to output 3 video streams, in this case, to ensure the output of the three displays, you can turn off the screen of the Host PC |
| Resolutions |
Under Mac System: Supports 3 displays to work simultaneously under SST mode, 3 outputs show the same picture or video with max 1080p@60Hz due to bandwidth distribution Under Windows System: Supports 3 displays to work simultaneously under SST mode, 3 outputs show the same picture or video with max 1080p@60Hz due to bandwidth distribution Supports three different videos to display simultaneously under MST mode (Note: Some host PCs just support the output of 3 video streams, in this case to ensure the output of the three displays, you can turn off the screen of the Host PC). Under SST Mode Single Port Connected: VGA (1080p/60Hz) HDMI (4K/30Hz) DP (4K/30Hz) Dual Ports Connected: VGA (1080p/60Hz), HDMI (1080p/60Hz) VGA (1080p/60Hz), DP (1080p/60Hz) HDMI (4K/30Hz), DP (4K/30Hz) Triple Ports Connected: VGA (1080p/60Hz), HDMI (1080p/60Hz), DP (1080p/60Hz) Under MST Mode Single Port Connected: VGA (1080p/60Hz) HDMI (4K/30Hz) DP (4K/30Hz) Dual Ports Connected: VGA (1080p/60Hz), HDMI (1080p/60Hz) VGA (1080p/60Hz), DP (1080p/60Hz) HDMI (1080p/60Hz), DP (1080p/60Hz) Triple Ports Connected: VGA (1080p/60Hz), HDMI (720p/60Hz), DP (720p/60Hz) VGA (720p/60Hz), HDMI (720p/60Hz), DP (1080p/60Hz) VGA (720p/60Hz), HDMI (1080p/60Hz), DP (720p/60Hz) |
| Certifications | |
| FCC | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.54 lbs [0.24kg] |
