Description
Overview

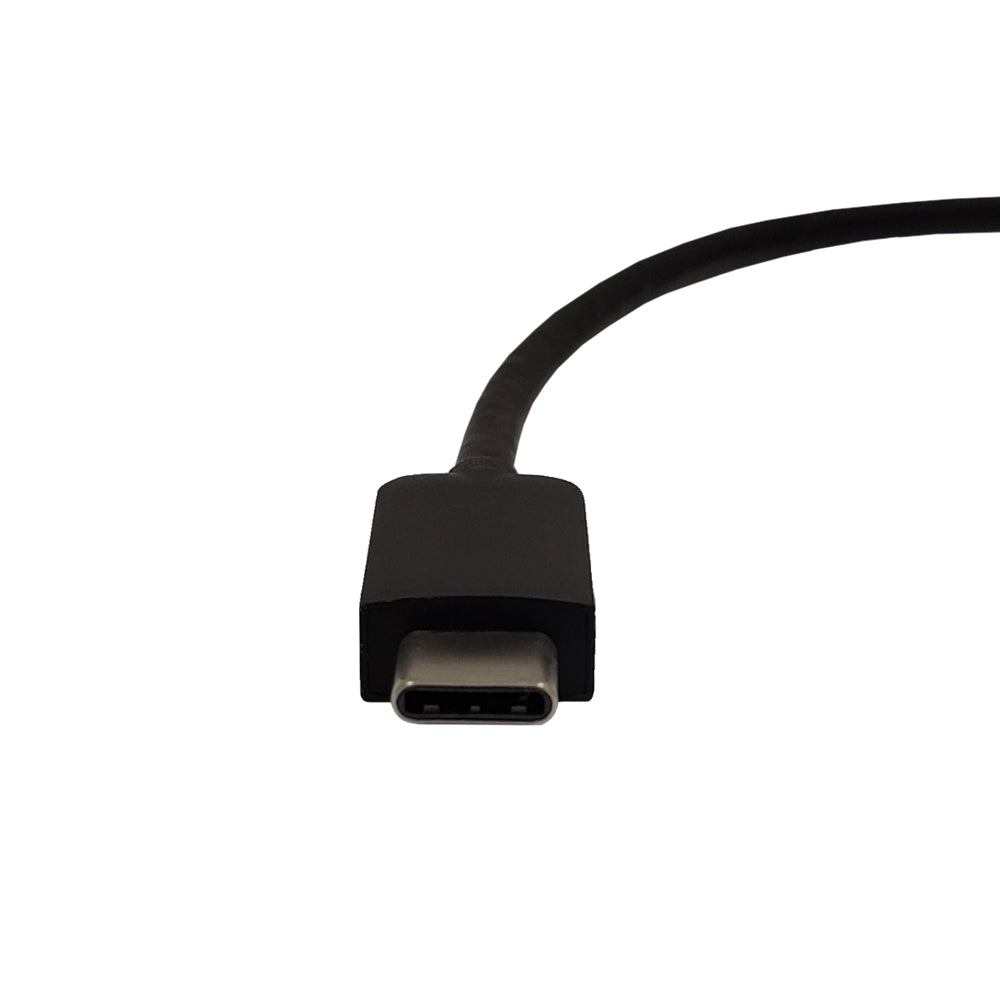

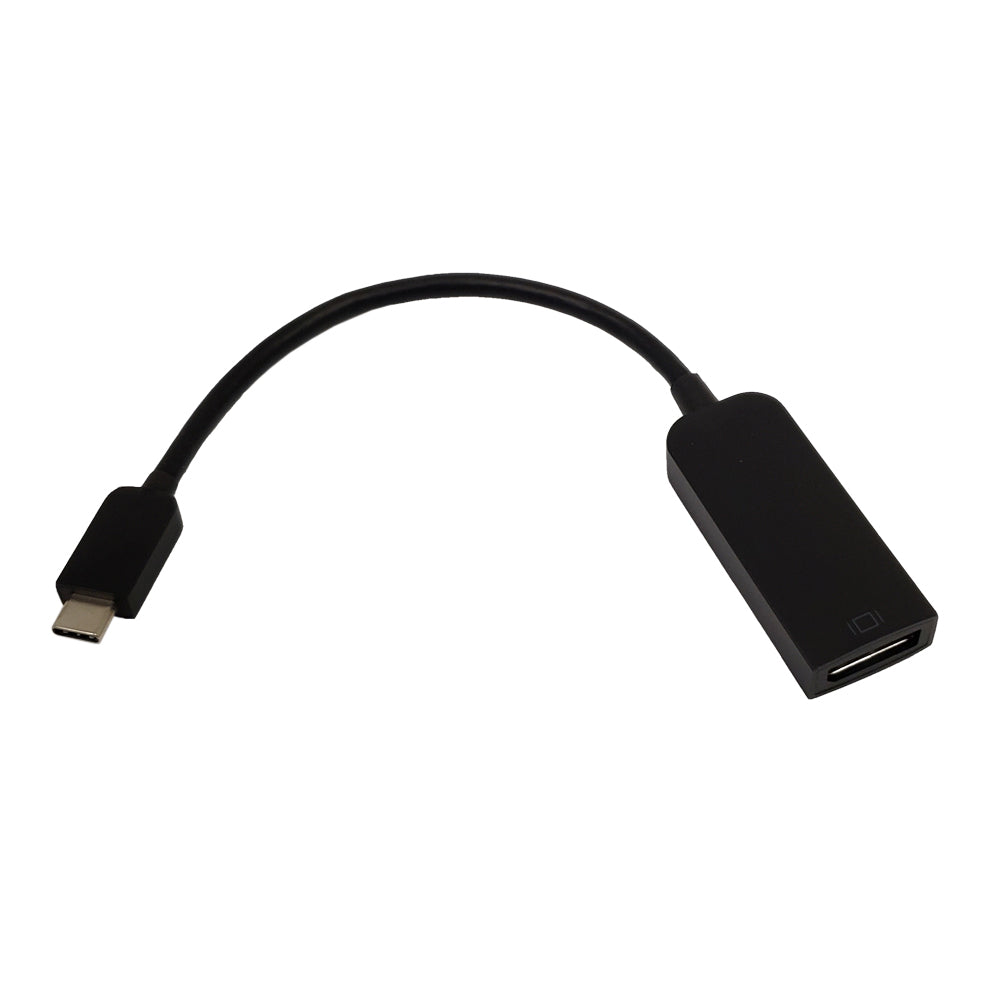

The USB Type-C to DisplayPort adapter consists of a USB 3.1 Type-C male
on one end and a DisplayPort v1.4 female on the other end. It allows you to
connect an extra display from your laptop's USB Type-C port. This adapter
provides video output of 4K@60Hz resolution, high throughput using the USB 3.1
bus and supports high definition monitors. The adapter can either extend or
mirror your source. It can work on all Type-C and Thunderbolt 3 hosts that
support DP Alt mode (including DP1.4 and DP1.2 Alt mode).
Please note, when trying to use this adapter to convert DP to HDMI, an active DP to HDMI cable must be used. See here.
|
|
High Performance and Quality Video OutputThe DisplayPort output provides a simple Plug & Play connection to displays with an Ultra HD 4K (3840x2160)@60Hz resolution. DisplayPort Alt ModeThis adapter works on all Type-C and Thunderbolt 3 hosts that support DP 1.2 Alt mode.
|
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Operating Temperature | 0℃ to +45℃ |
| Operating Humidity | 10% to 85% RH (No Condensation) |
| Storage Temperature | -10℃ to +70℃ |
| Storage Humidity | 5% to 90% RH (No Condensation) |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | DisplayPort v1.2 Female |
| Performance | |
| Resolution | Up to 4K (3840 x 2160) @ 60Hz |
| Version | DisplayPort 1.2 Alt mode |
| Power Source | USB Bus Power (No External Power Supply) |
| Compatibility | Compliant with USB 3.1 Backward Compatible with USB 3.0 and USB 2.0 |
| System Requirements | |
| Operating System | Windows Compliant |
| Mac Compliant | |
| Certifications | |
| FCC | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.06 lbs [0.02kg] |
