Description

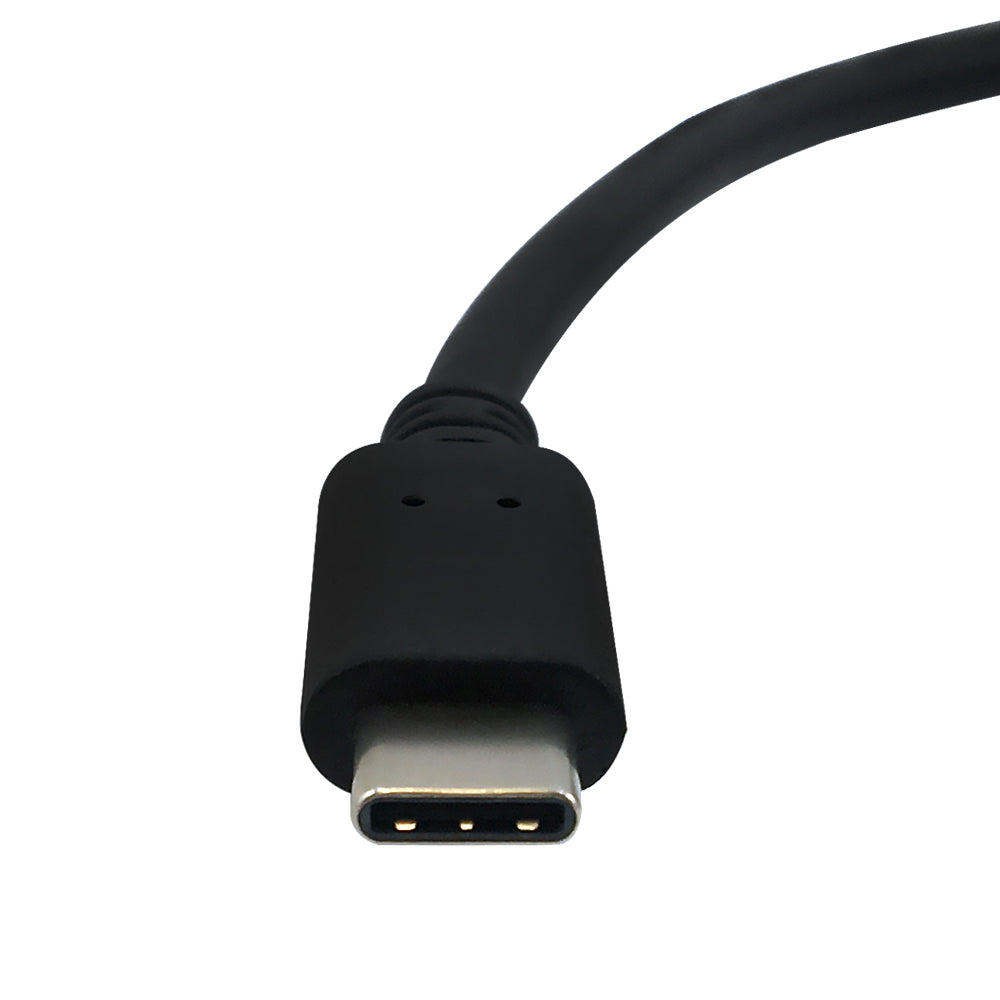

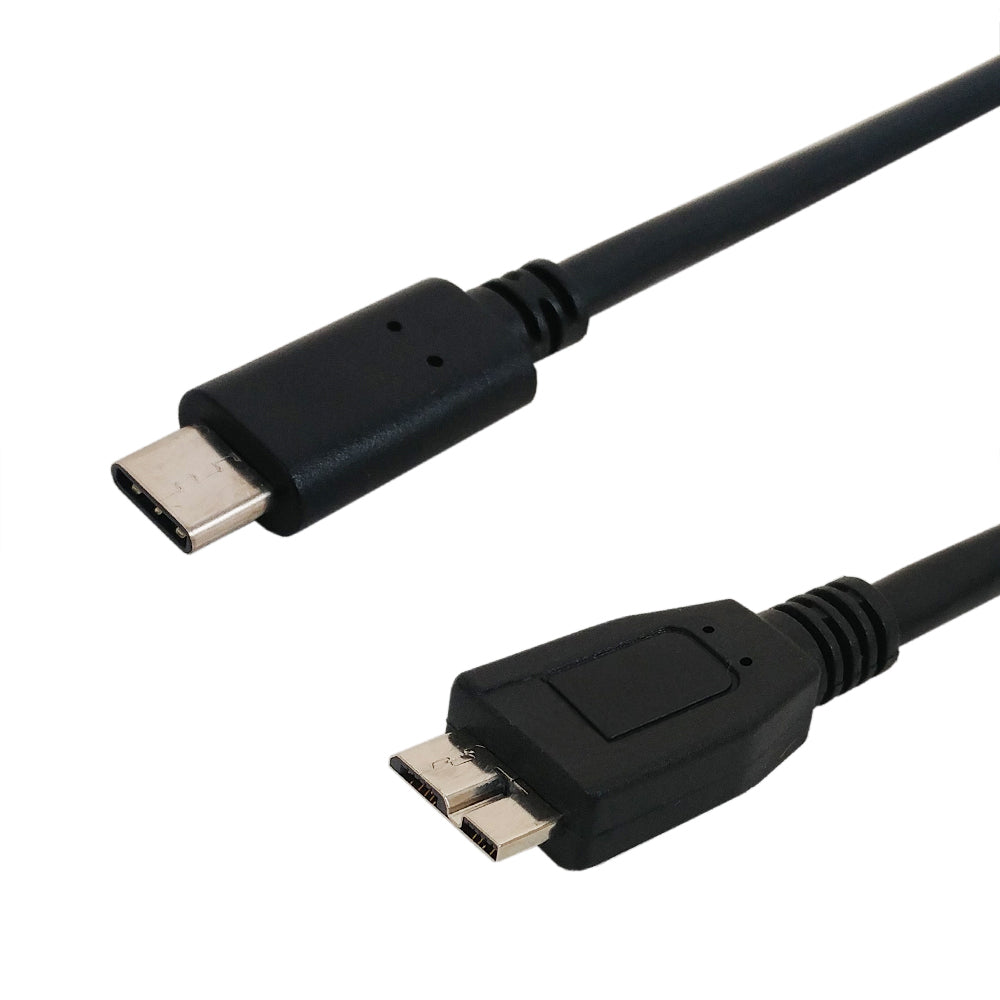

This USB 3.1 cable consists of a USB type-C male on one end and a USB Micro-B male on the other end. It is capable of transferring data at 5Gbps and is typically used to connect Type-C laptops and tablets with Micro-B external drives, smartphones or tablets. USB 3.1 is backwards compatible with previous generation USB devices and is also compatible with Thunderbolt™ 3 ports.
Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 30AWG (data) / 24AWG (power) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Strain Relief | Molded |
Connector(s) | |
| Connector A | 9-pin USB 3.1 Type-C SuperSpeed Male |
| Connector B | 9-pin USB 3.1 Micro-B SuperSpeed Male |
Performance | |
| Rating | USB 3.1 SuperSpeed - Gen 1 |
| Speed | 5 Gbps |
| Compatibility | Backwards Compatible Previous Generation USB |
| Power | 3 Amp |
| Support | DisplayPort, 4-Channel Audio, Thunderbolt™ 3, PCI Express |
Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
Packaging Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 6ft | 10ft | 15ft |
|---|---|---|
| 0.17 lbs | 0.28 lbs | 0.42 lbs |
