Description

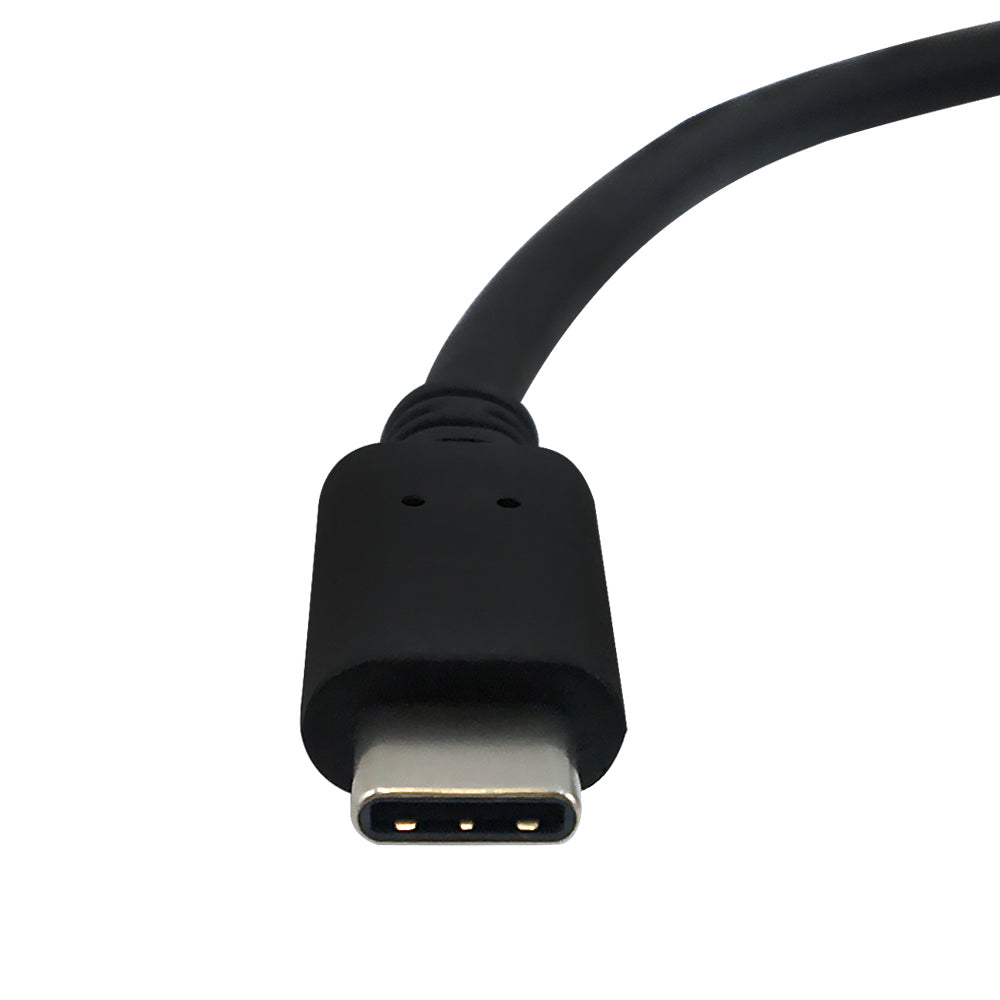

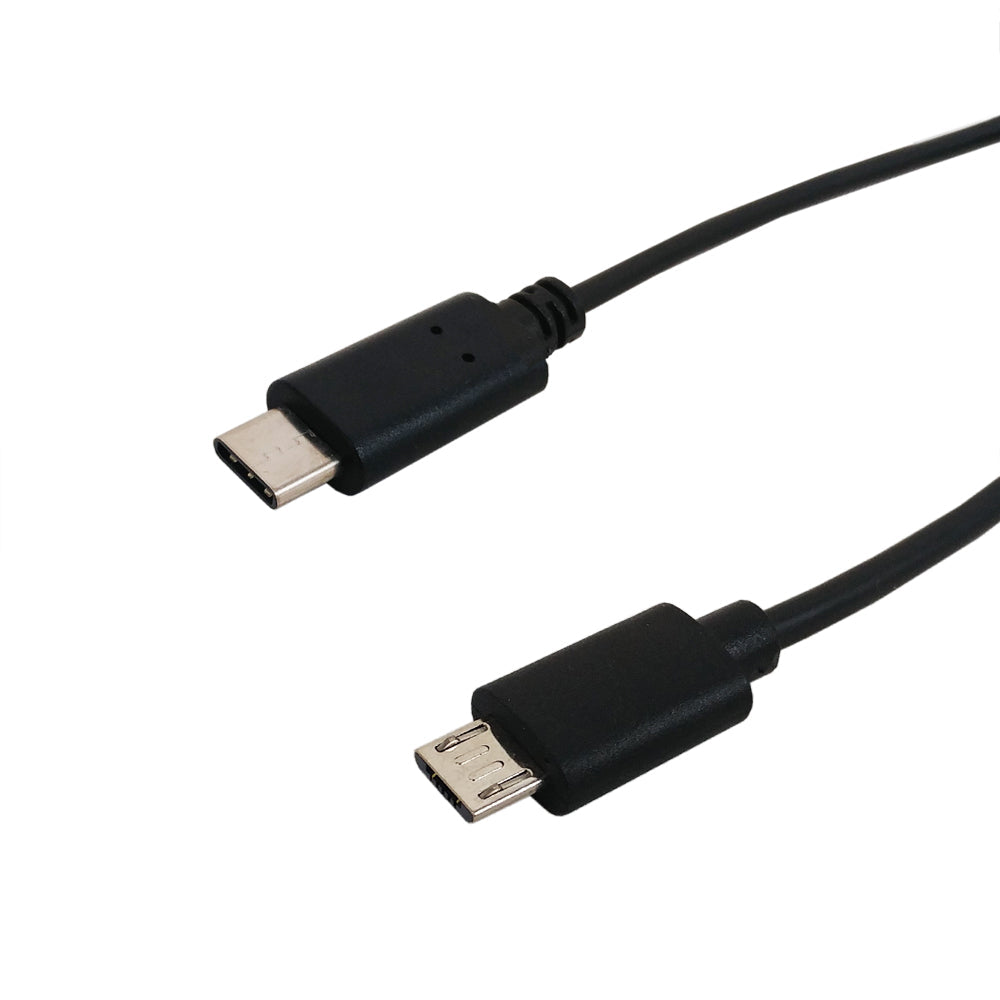

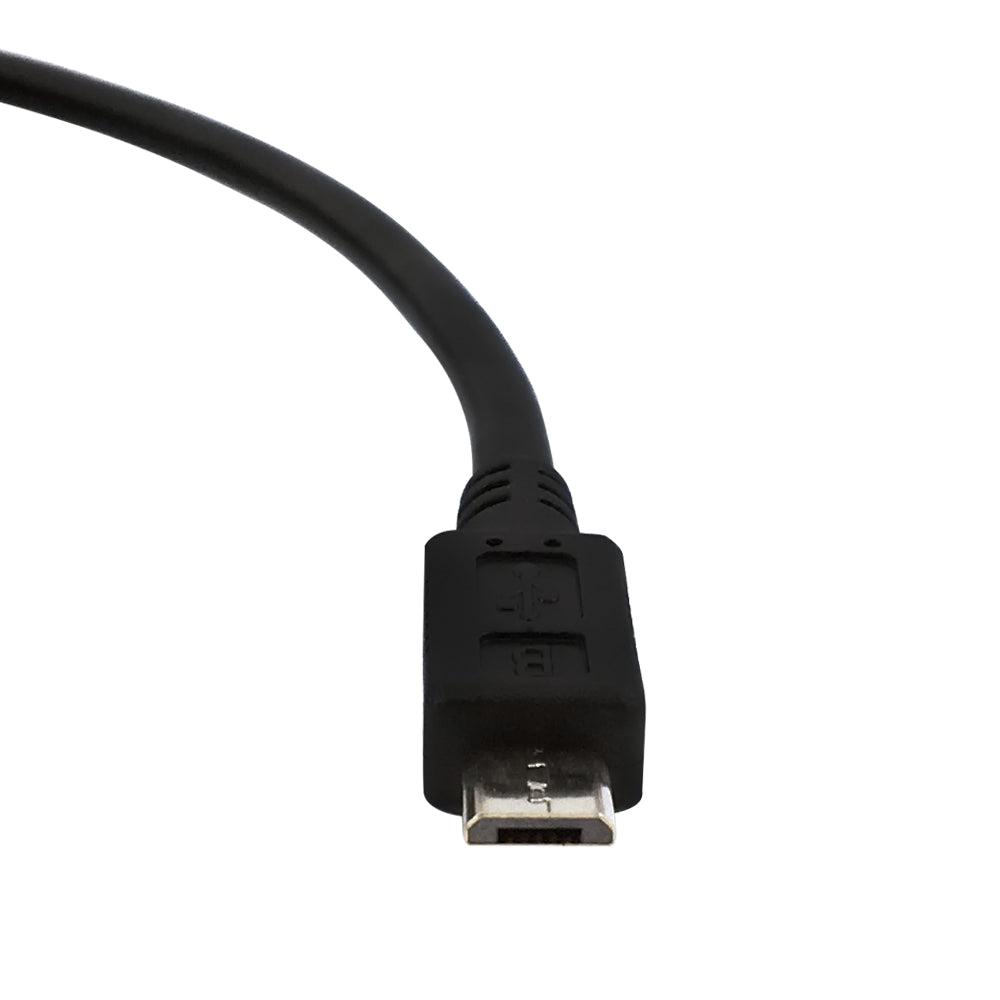

This USB 2.0 cable consists of a USB type-C male on one end and a USB Micro-B male on the other end. It is capable of transferring data at 480Mpbs and is typically used to connect a Micro-USB 2.0 device to a newer USB Type-C laptop or desktop computer. USB Type-C is also compatible with Thunderbolt™ 3 ports.
Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 3.0 mm |
| Wire Gauge | 30AWG (data) / 24AWG (power) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Strain Relief | Molded |
Connector(s) | |
| Connector A | 9-pin USB 2.0 Micro-B Male |
| Connector B | 9-pin USB 2.0 Type-C Male |
Performance | |
| Rating | USB 2.0 |
| Speed | 480 Mbps |
| Compatibility | Backwards Compatible Previous Generation USB |
| Power | 3 Amp |
Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
Packaging Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|---|
| 0.03 lbs | 0.05 lbs | 0.11 lbs | 0.18 lbs | 0.27 lbs |
