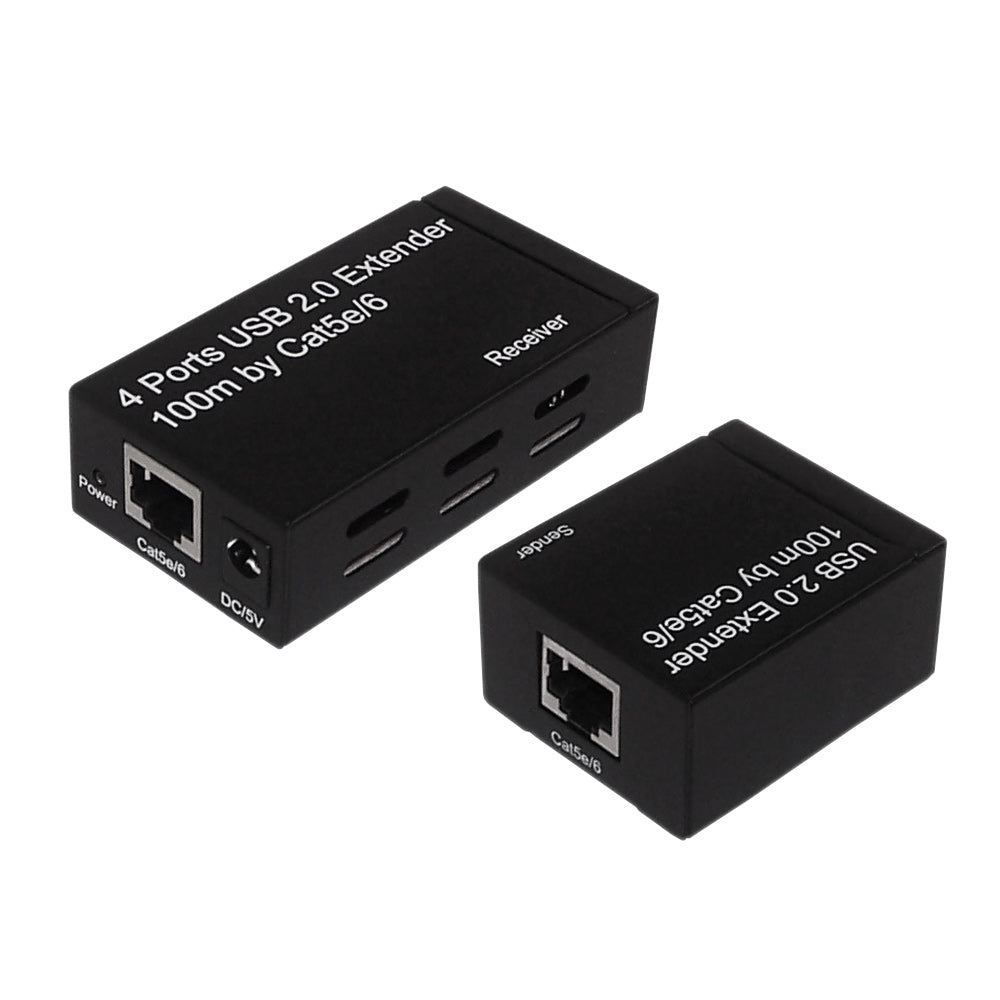

USB 2.0 extender over Cat5e/Cat6 (100M)


Price:
Sale price$91.60 CAD
Stock:
In stock

Description

This USB extender allows you to extend four USB devices to 100m away from the host (computer) using one Cat5e/6 cable. The extender can also be connected through an Ethernet switch which will double the length to 200m away from the host (100m from the sender to the switch and 100m from the switch to the receiver). This device supports Windows XP, Vista 32bit and 64bit, Windows 7 32bit and 64bit, Windows 8 32bit and 64bit.

Features:

  • Extend up to 4 USB devices
  • Compatible with USB 2.0
  • Supports high speed (150Mbps), full speed (12 Mbps) or low-speed (1.5 Mbps) USB devices
  • Can extend a USB device up to 100m over a Cat5e/6 cable
  • Can be connected through an Ethernet switch
  • Integrates 10/100Mbps Fast Ethernet MAC/PHY
  • Compatible 100Base-TX and 10Base-T PMD level standards
  • Embedded Ethernet 802.3/3u transceiver
  • Supports MDI/MDIX auto crossover function (Auto-MDIX)
  • Supports major Ethernet protocols TCP/IP
  • Supports OS: Windows XP, Vista, 7, 8 and 10 32bit and 64bit
  • Not compatible with MAC or Linux operating systems, Windows only
  • This product can only be used with devices which can load the driver. E.g., not compatible with DVRs


Installation Steps for PC:

  • Once plugged into PC, install driver from CD / link below or allow Windows to auto-install driver.
  • Also make sure the drivers for your USB device(s) are installed.
  • Once this is complete, restart the PC.
  • Once your USB device is connected to the Extender, open the USB 2.0 Extender.exe file to initialize the device. An example would be a USB Webcam being recognized by PC after opening this .exe file.
Physical Characteristics
Distance 100m Max. Over a CAT5e/6 Cable
200m Max. Through an Ethernet Switch (100m in, 100m out)
Color Black
Housing Metal Enclosure
Power
Input Voltage 125V
Power Supply (Transmitter) 1 x 5 volt, 2 amp DC Converter
Connector(s)

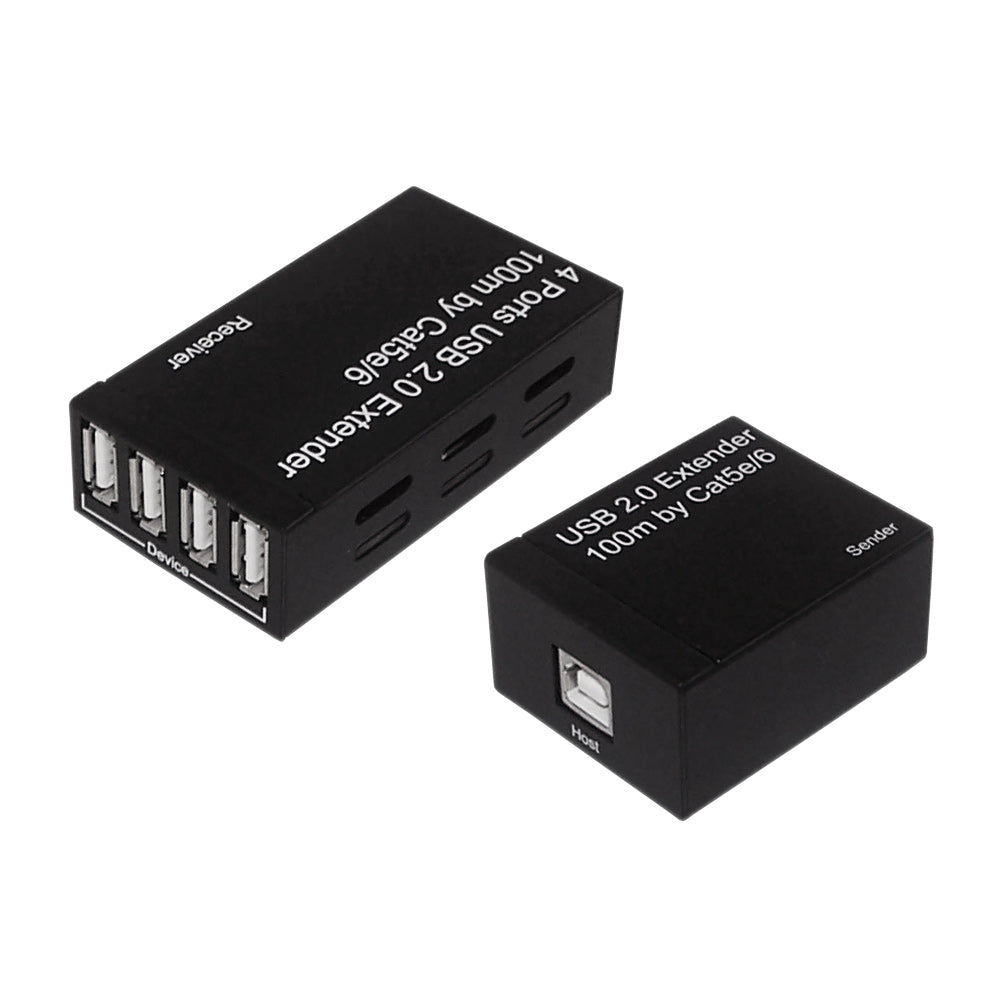

Sender 1 - USB Type-B Female
1 -RJ45 Female
Receiver

4 - USB Type-A Female
1 - RJ45 Female

Performance
Data Transfer Speed 150Mbps, 12 Mbps or 1.5 Mbps
Environmental
RoHS Yes

Compatibility

Windows Windows XP, Vista, 7, 8 and 10 32bit and 64bit
Mac No
Linux No
Packaging Information
Package Quantity 1
Product Weight 3.3 lbs [1.5kg]
Contents
Included in Package 1 Sender
1 Receiver
1 - DC5V 2A Power Adapter
1 - USB 2.0 A male to B male cable
1 - Manual

Spec Sheets

Download attachment

Downloads

USB LAN Extender Driver for Windows 7, XP and Vista
USB Server Driver for Windows 10, Windows 8/8.1
