USB 2.0 A Male to A Panel Mount Female Hi-Speed Cable

USB CablesSKU: USB-252-0.5

Length: 0.5ft
Sale price$2.05 CAD
In stock

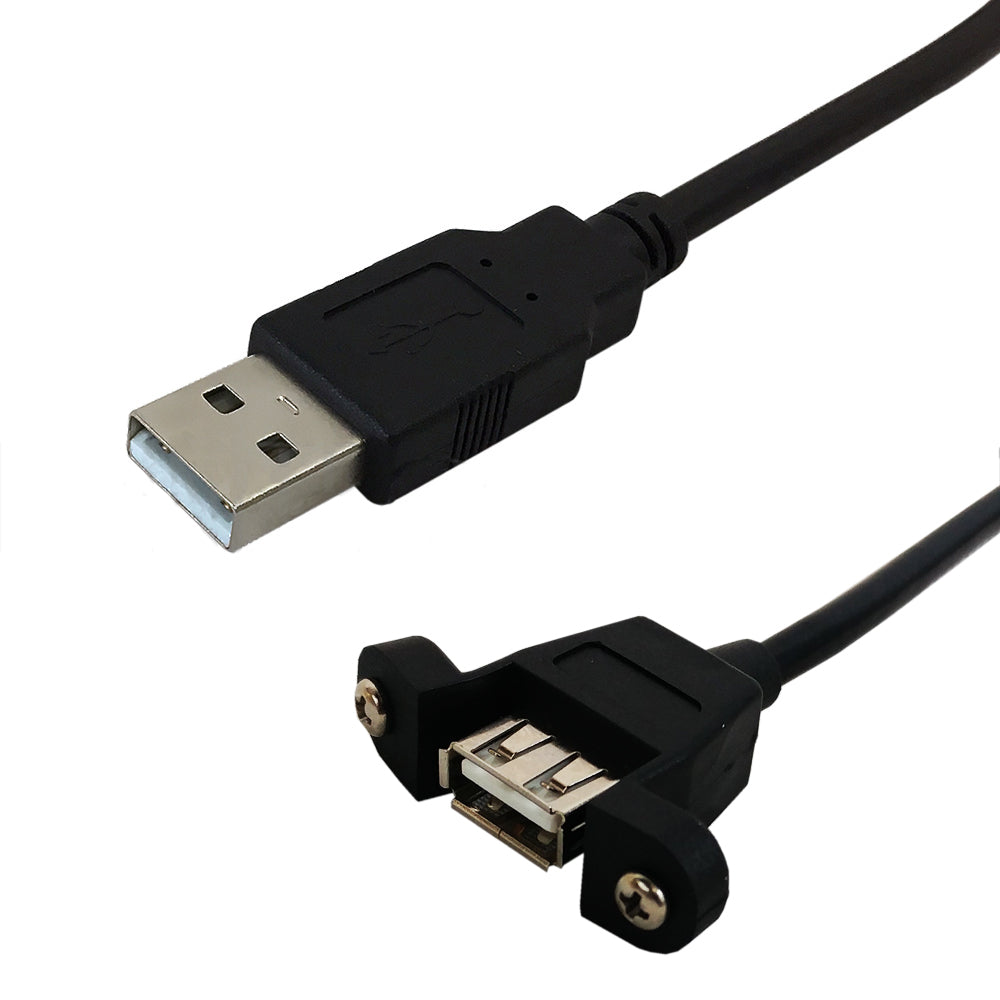

This cable consists of a USB 'A' male on one end and a USB 'A' panel mount female on the other end. It is typically used to add an external panel mount USB connection to wall plates, kiosks or other custom solutions where a USB outlet is required.

Physical Characteristics
Color Black
Connector Plating Nickel Plated
Contact Plating Gold Plated
Cable Diameter 4.5 mm
Wire Gauge 28AWG (data) / 24AWG (power)
Jacket Material PVC - Polyvinyl Chloride
Cable Shielding 65% ALMG
Strain Relief Molded PVC
Temperature Rating 80 deg C
Cable Voltage Rating 30V
Connector A USB 2.0 Type A Hi-Speed Male
Connector B USB 2.0 Type A Panel Mount Hi-Speed Female
Rating USB 2.0 Hi-Speed Compliant Cable
Speed 480 Mbps
Compatibility Backwards Compatible with 1.0
UL Yes - Cable
cUL Yes - Cable
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
6 inch 1ft 3ft 6ft
0.05 lbs 0.07 lbs 0.10 lbs 0.15 lbs
