These twist-on wire caps ensure a secure, reliable connection for all standard low-voltage applications. Engineered with a durable zinc-plated core and a UL94V-2 flame-retardant thermoplastic shell, they feature an internal spring design that grips wires tightly for a superior, long-lasting hold. They are gel-filled and designed to protect wire splices in damp, wet, or outdoor environments. The internal silicone gel prevents moisture, dirt, and corrosion from reaching the copper, making them ideal for landscape lighting, sprinkler systems, and underground or exposed wiring.
|
|
Active Spring-Action GripAn internal zinc-plated square wire spring for a firm grip on conductors, ensuring a highly secure connection that won't loosen under mechanical vibration or thermal expansion. High-Heat & Flame ResistanceEncased in a rugged thermoplastic cover with a UL94V-2 flame rating, safely handling operating temperatures up to 105°C (221°F). Ideal for Outdoor ApplicationsWaterproof, dust-proof and corrosion proof, making them prefect for use in dry, damp, and wet locations, below or above ground applications. |
| Suitable wires | |
|---|---|

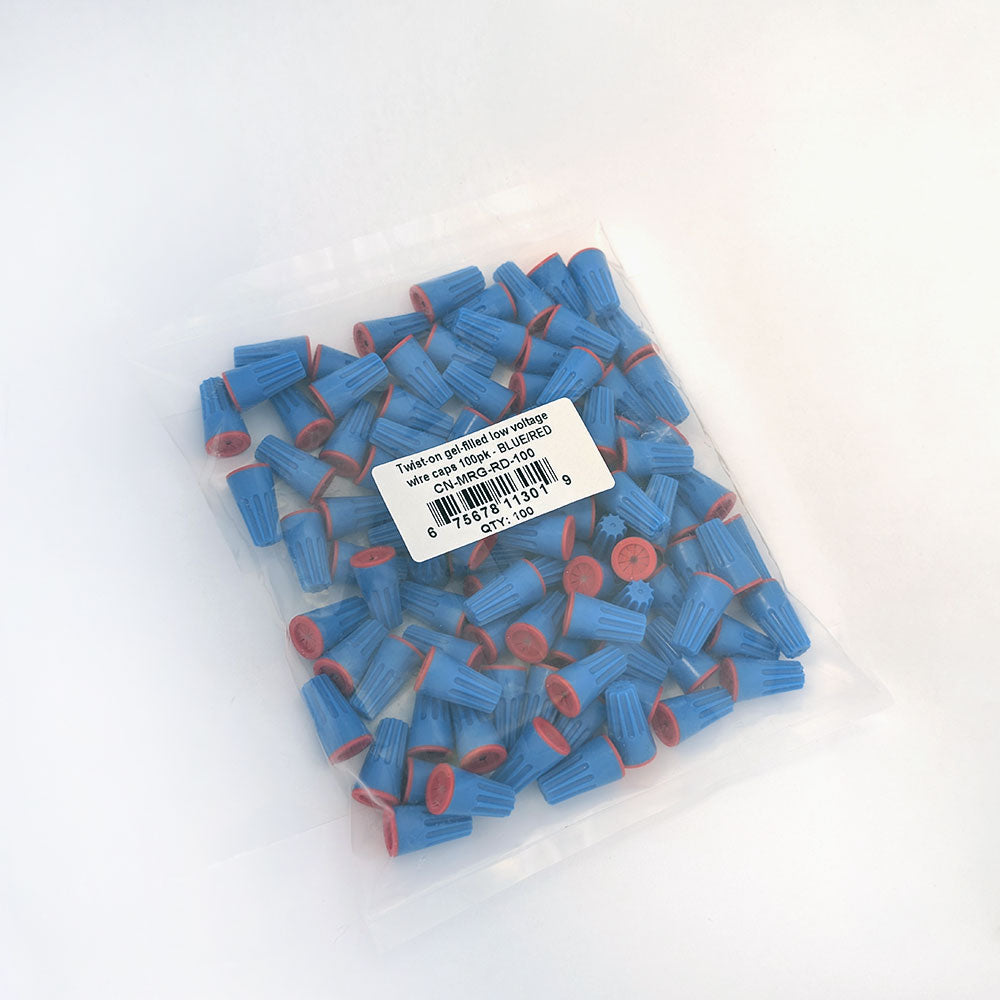

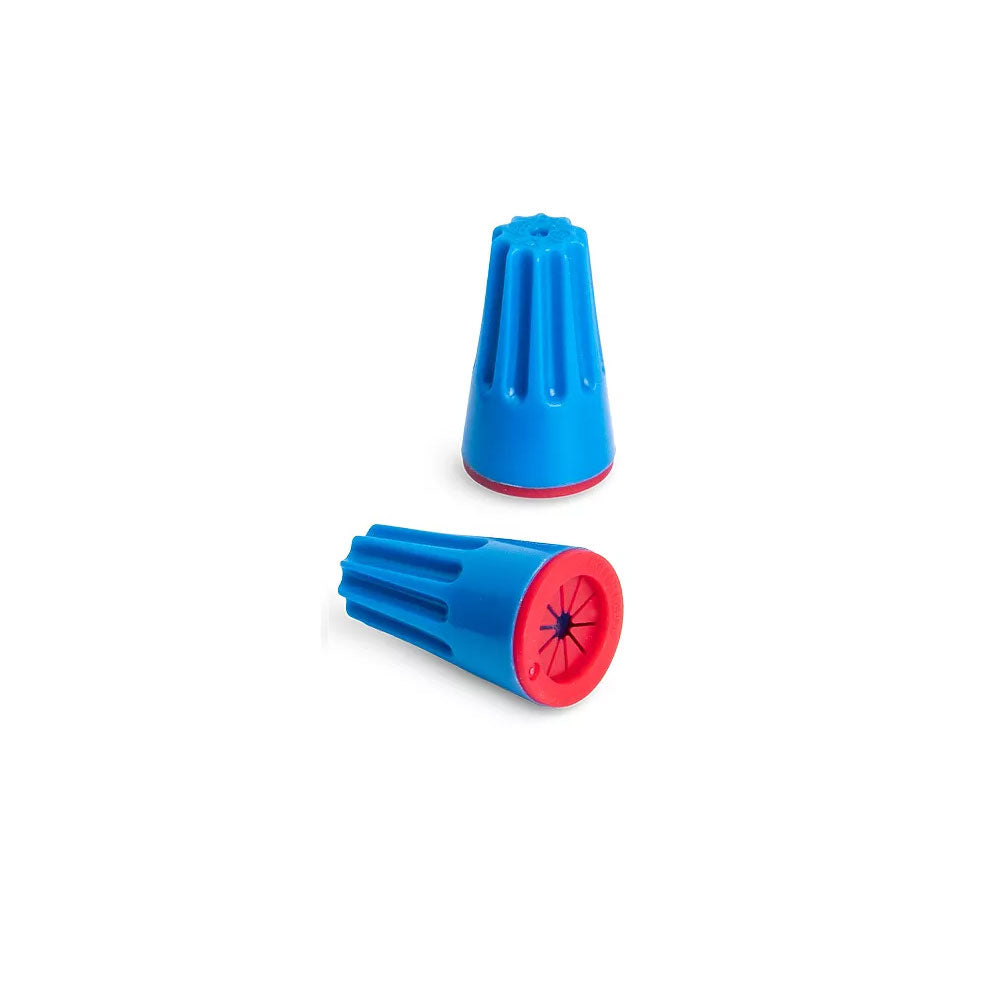

| CN-MRG-RD-100 | 8-22 AWG Max. 2 #12 w/ 2 #14 Min. 3 #20 |

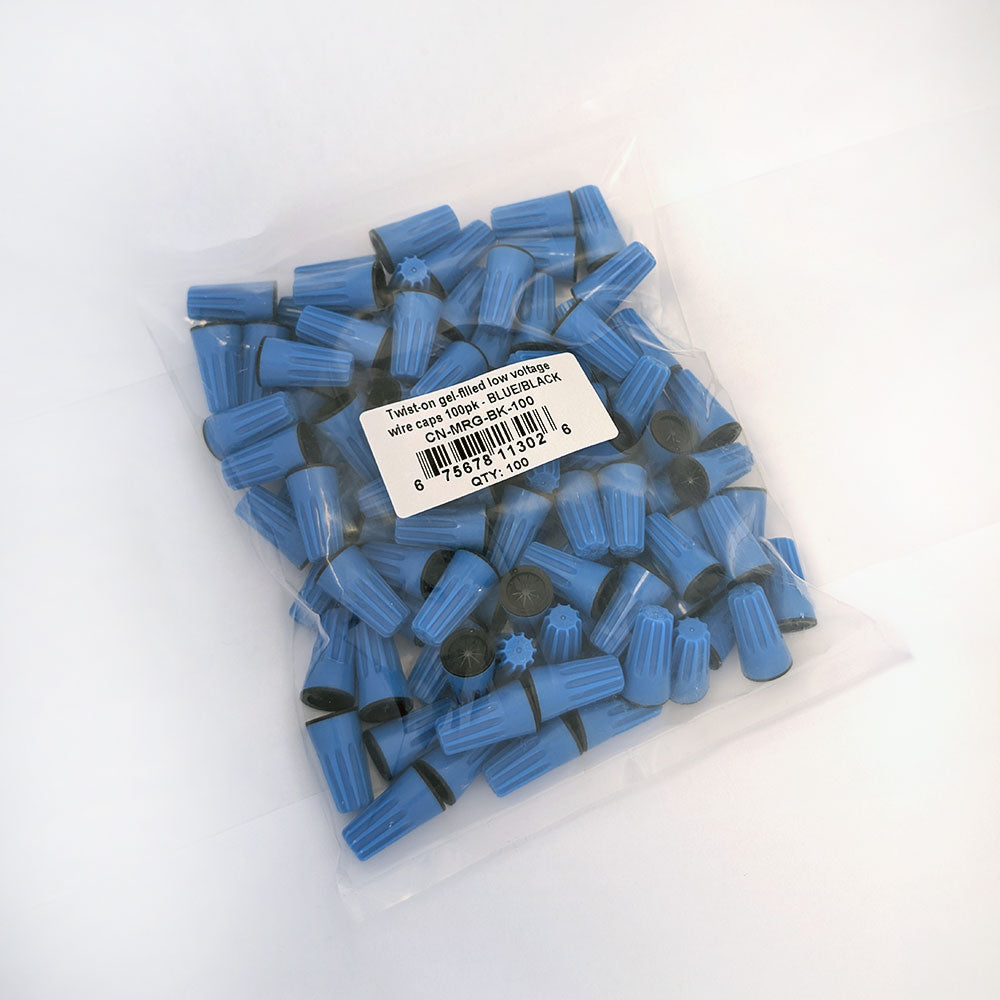

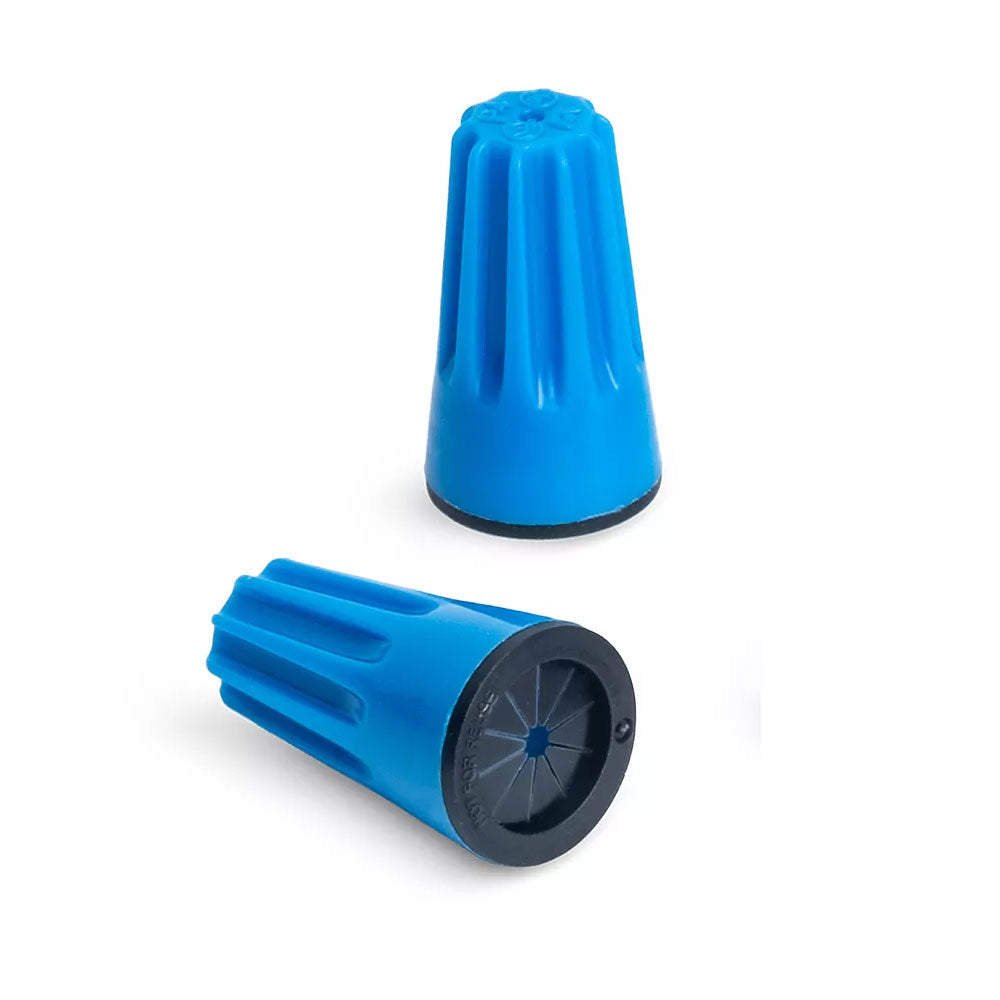

| CN-MRG-BK-100 | 14-22 AWG Max. 4 #16 w/ 1 #20 Min. 1 #18 w/ 1 #20 |
| Physical Characteristics | ||
|---|---|---|
| Color | Blue/Red | Blue/Black |
| Outer Diameter | 12.3mm | 13.5mm |
| Inner Diameter | 8.5mm | 9.7mm |
| Height | 21mm | 23.65mm |
| Voltage Rating | 600V max. | |
| Temperature Rating | 105℃ (221℉) | |
| Material | Thermoplastic cover | |
| Flame Rating | UL94V-2 | |
| Gel Filled | Yes, dielectric silicone sealant | |
| Approvals | ||

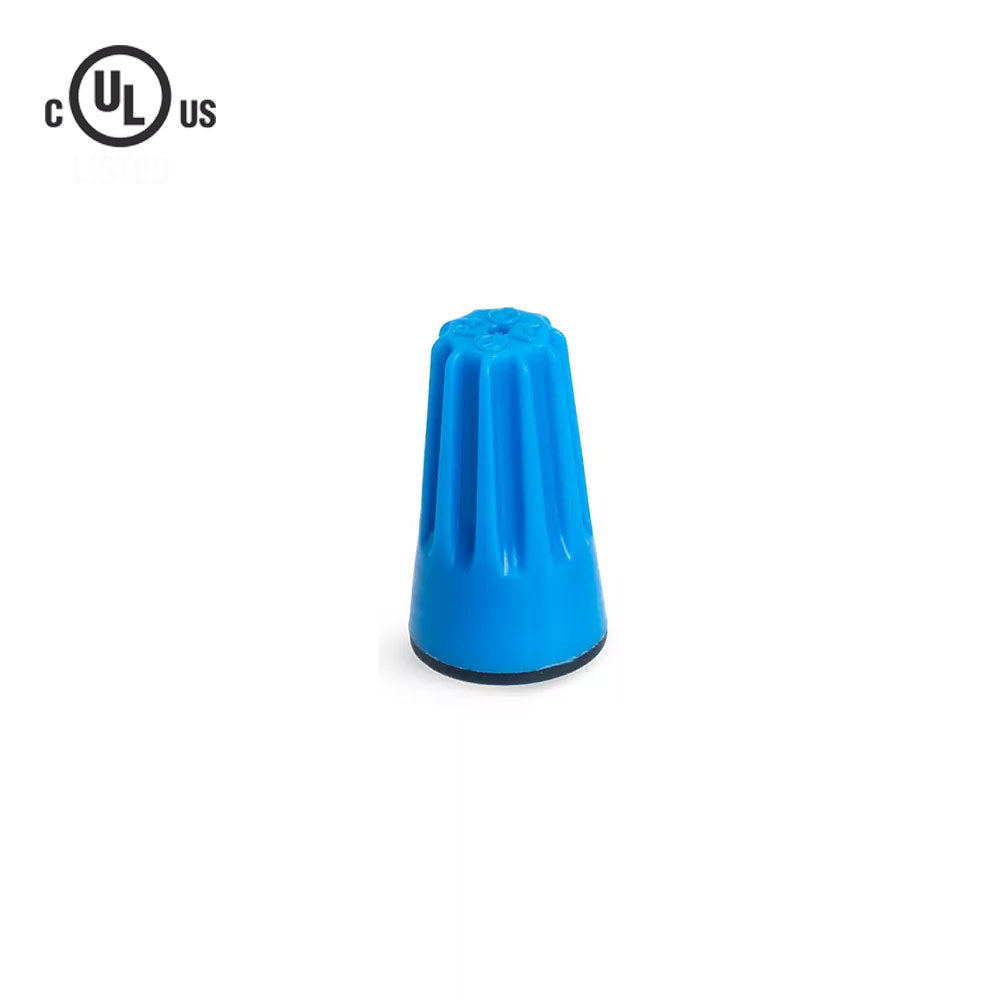

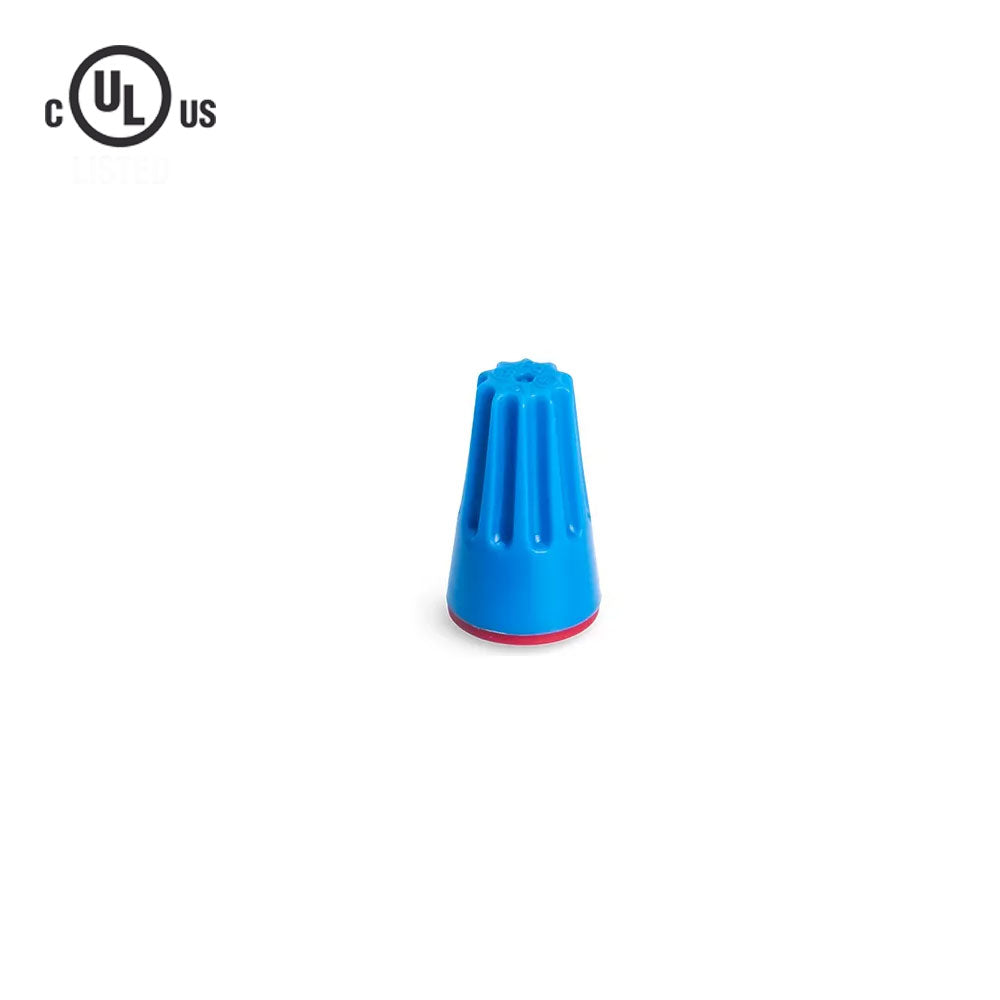

| c(UL)us | Compliant | |
| Packaging Information | ||
| Package Quantity | 100 | |
| Product Weight | 0.31 lbs | 0.42 lbs |
