Description

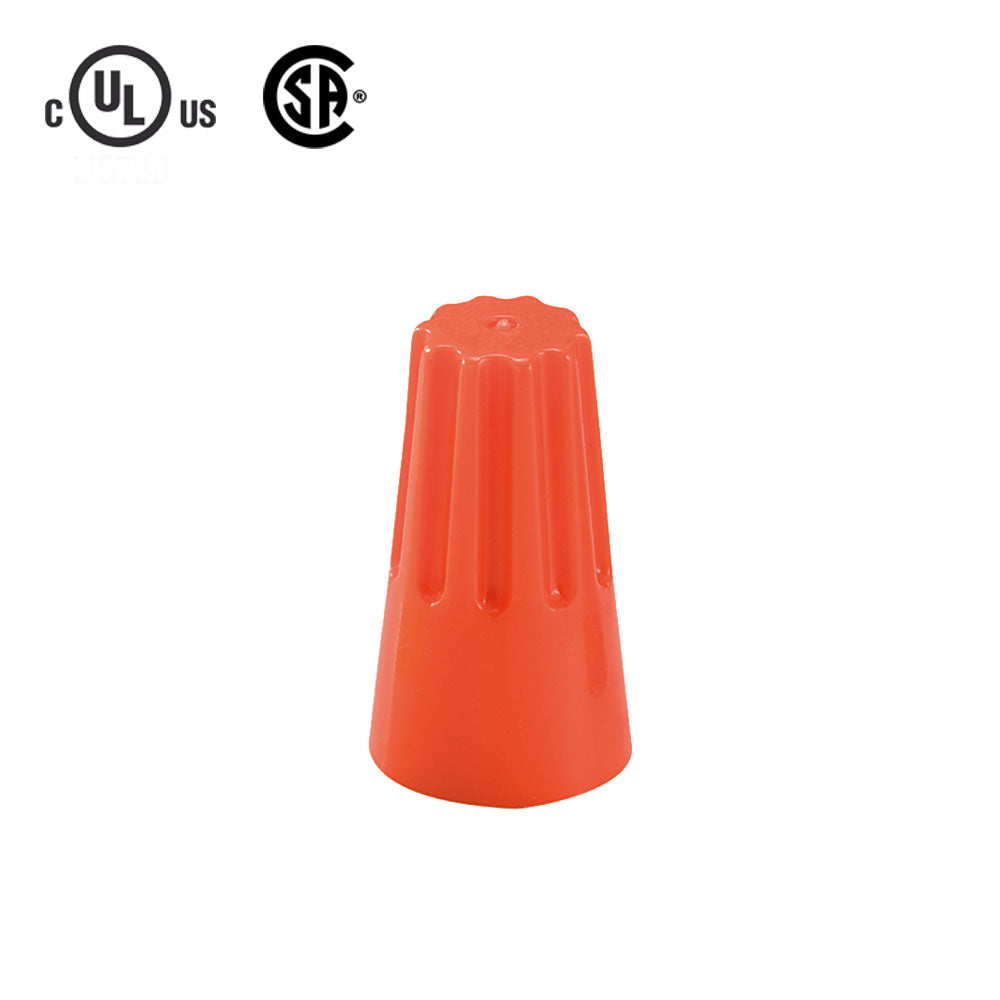

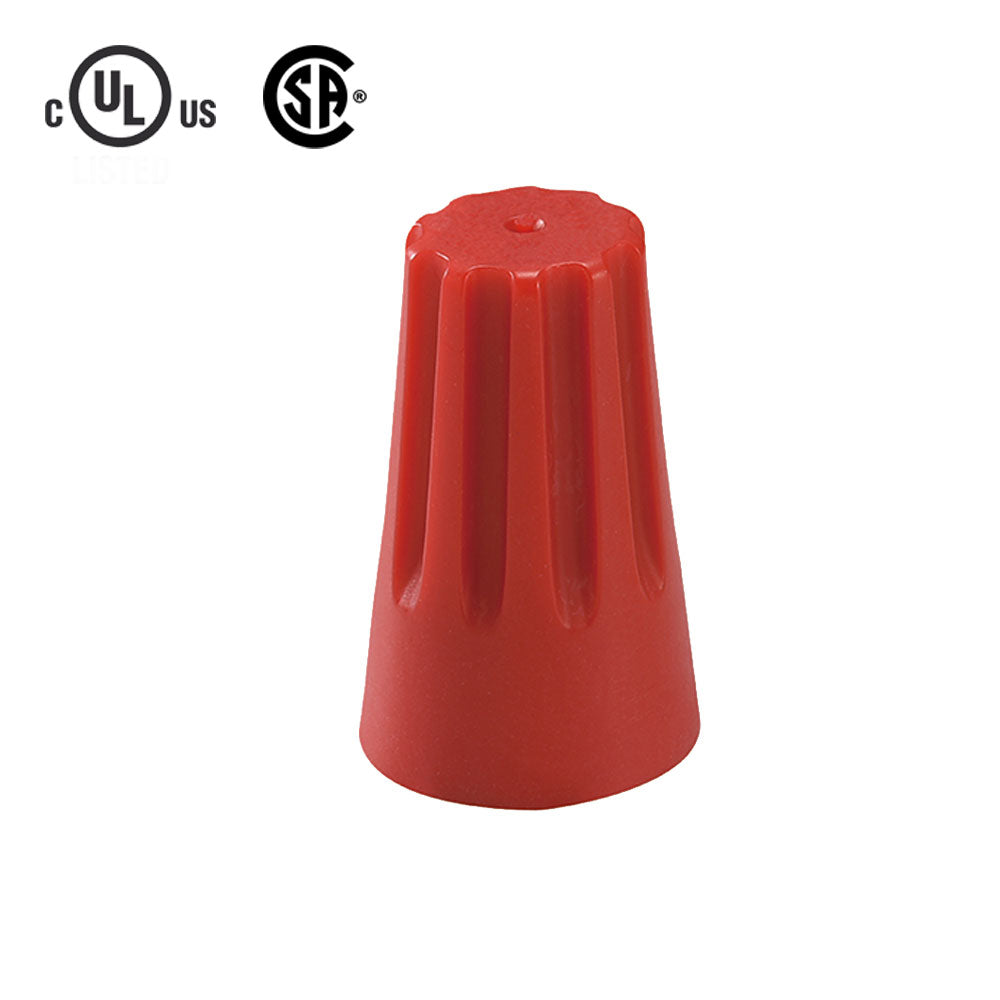

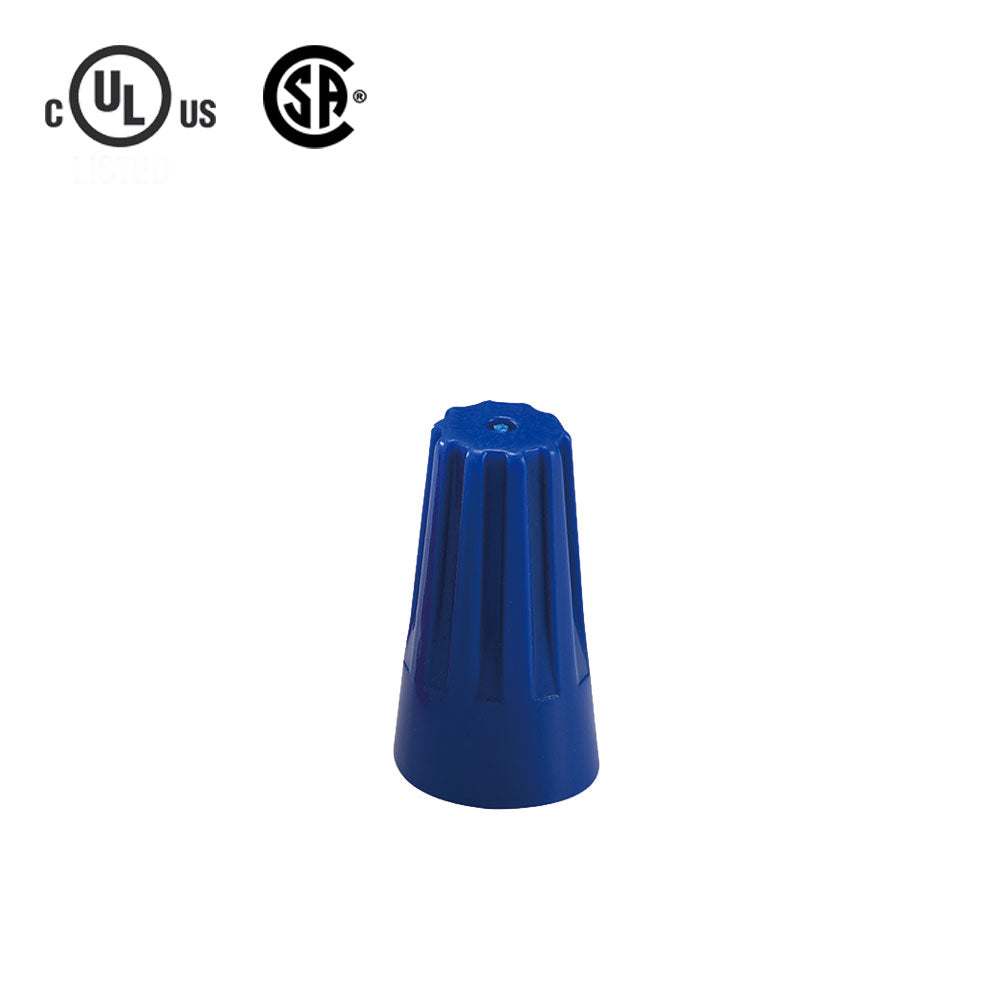

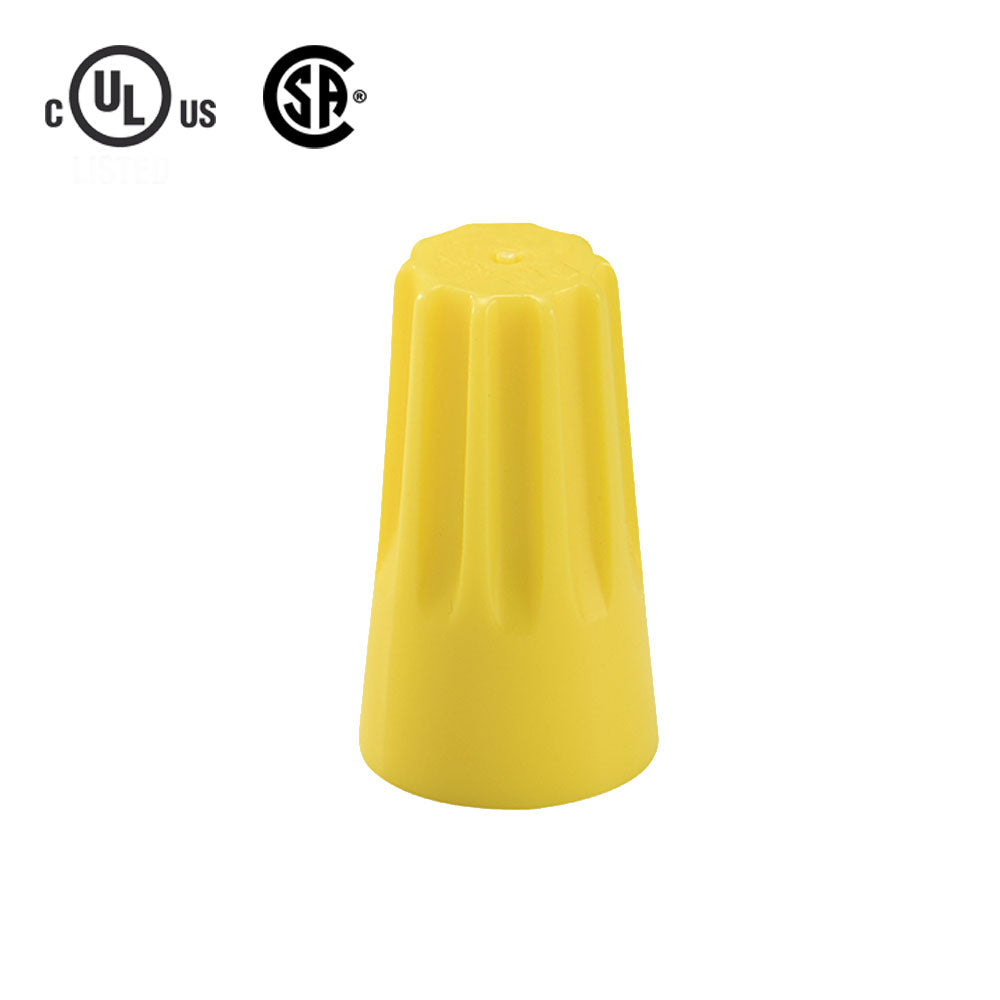

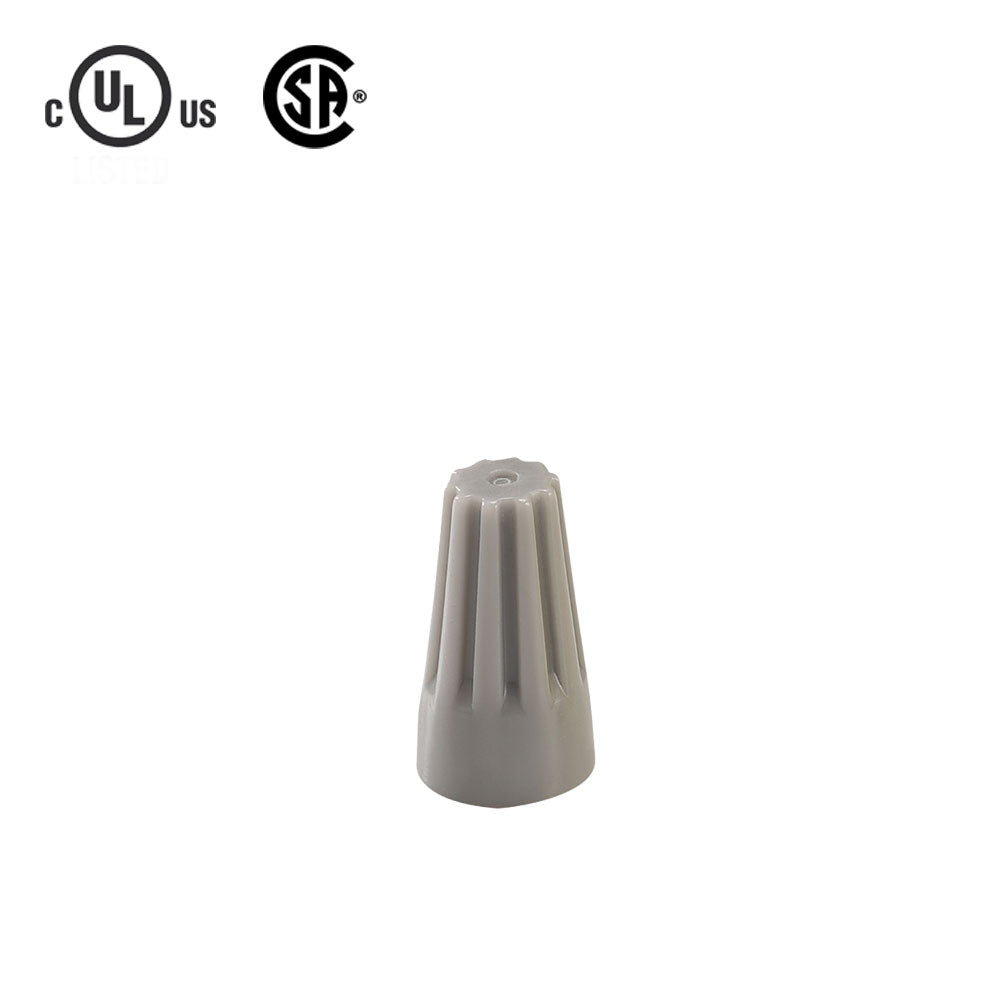

These twist-on wire caps ensure a secure, reliable connection for all standard electrical and low-voltage applications. Engineered with a durable steel core and a UL94V-2 flame-retardant thermoplastic shell, they feature an internal spring design that grips wires tightly for a superior, long-lasting hold.
|
|
Active Spring-Action GripAn internal steel spring design actively bites into stripped wires as you twist, ensuring a highly secure connection that won't loosen under mechanical vibration or thermal expansion. High-Heat & Flame ResistanceEncased in a rugged thermoplastic cover with a UL94V-2 flame rating, safely handling operating temperatures up to 105°C (221°F). Fully Certified & CompliantMeet safety and environmental standards, carrying UL, CSA, and RoHS certifications for peace of mind on regulated job sites. |
| Suitable wires | |
|---|---|
| CN-MR-GY-100 | AWG Max. 1 #16 w/1 #18 w/1 #20 Min. 2 #22 JIS Max. 1 #1.25 w/1 #0.75 w/1 #0.5 Min. 2 #0.5 |
| CN-MR-BL-100 | AWG Max. 3 #16 Min. 2 #22 JIS Max. 3 #1.25 Min. 2 #0.5 |
| CN-MR-OR-100 | AWG Max. 4 #16 w/1 #20 Min. 1 #18 w/1 #20 JIS Max. 4 #1.25 w/1 #0.5 Min. 1 #0.75 w/1 #0.5 |
| CN-MR-YL-100 | AWG Max. 2 #12 w/2 #14 Min. 3 #20 Sol JIS Max. 2 #3.5 w/2 #2.0 Min. 3 #0.5 Sol |
| CN-MR-RD-100 | AWG Max. 2 #10 Sol w/2 #12 Str Min. 3 #18 JIS Max. 2 #5.5 Sol w/2 #3.5 Str Min. 3 #0.75 |
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Color | Grey | Blue | Orange | Yellow | Red |
| Outer Diameter | 8.6mm | 9.9mm | 12.7mm | 14mm | 16.3mm |
| Inner Diameter | 6.5mm | 7.1mm | 9.7mm | 11mm | 13.1mm |
| Height | 15.2mm | 17.7mm | 22mm | 24.6mm | 26.5mm |
| Voltage Rating | 300V max. | 300V max. | 600V max. | 600V max. | 600V max. |
| Temperature Rating | 105℃ (221℉) | ||||
| Material | Steel with thermoplastic cover | ||||
| Flame Rating | UL94V-2 | ||||
| Approvals | |||||
| c(UL)us | Compliant | ||||
| CSA | Compliant | ||||
| Environmental | |||||
| RoHS | Compliant | ||||
| Packaging Information | |||||
| Package Quantity | 100 | ||||
| Product Weight | 0.09 lbs | 0.16 lbs | 0.30 lbs | 0.41 lbs | 0.65 lbs |
