Description
Overview

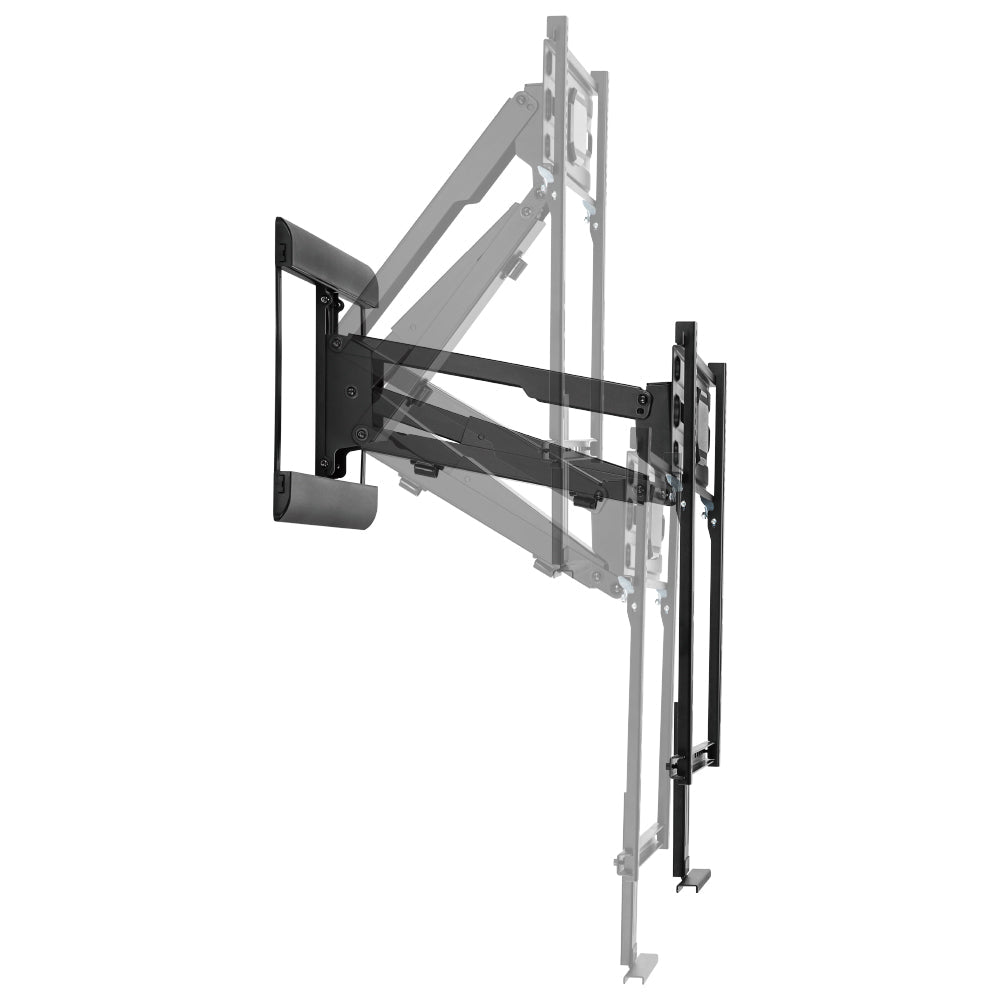

This swivel and tilting wall mount bracket is designed to hold most 43 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 600x400. It offers a up to a -3° to -9° tilt, +30° to -30° swivel and +3° ~ -3° screen level. This bracket has a pull-down mechanism that can be positioned at eye level in front of a fireplace. It can be used in both residential and commercial environments.
 |
Height Adjustable for the Perfect Viewing LevelThis mantel TV mount bracket has all the features you need to take advantage of the space above your fireplace. it can move downward and out for the best viewing level. Full Motion Makes any Seat, the Best SeatThe tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. Save Space and Keep Everything OrganizedWhen not in a viewing position you can grab the handle and push back your TV to the folding position. The heavy-duty steel constructed mount provides a solid hold for even the largest TVs. The mount also features cable management to add a touch of elegancy to your room. The Ideal TV Mount for Many PossibilitiesThis TV mount offers a wide VESA spacing to accommodate larger TVs from 43 inch and up to 70 inch flat and curved displays. It can also be used on wood, masonry or concrete construction.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Powder Coated Black |
| Material | Steel, Plastic |
| Mounting Pattern | VESA 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400 |
| Screen Size | 43 - 70 inches [109.2- 177.8 cm] |
| Weight Capacity | 28.6 ~ 72.6 lbs [13~33kg] |
| Tilt | -3° ~ -9° |
| Swivel | +30° ~ -30° |
| Screen Level | +3° ~ -3° |
| Profile | 160mm to 587mm [6.3 to 23.1 inches] |
| Cable Management | Yes |
|
Approvals
|
|
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 42 lbs [19.05kg] |
|
Warranty Information
|
|
| Warranty |
Limited Lifetime |
