Description

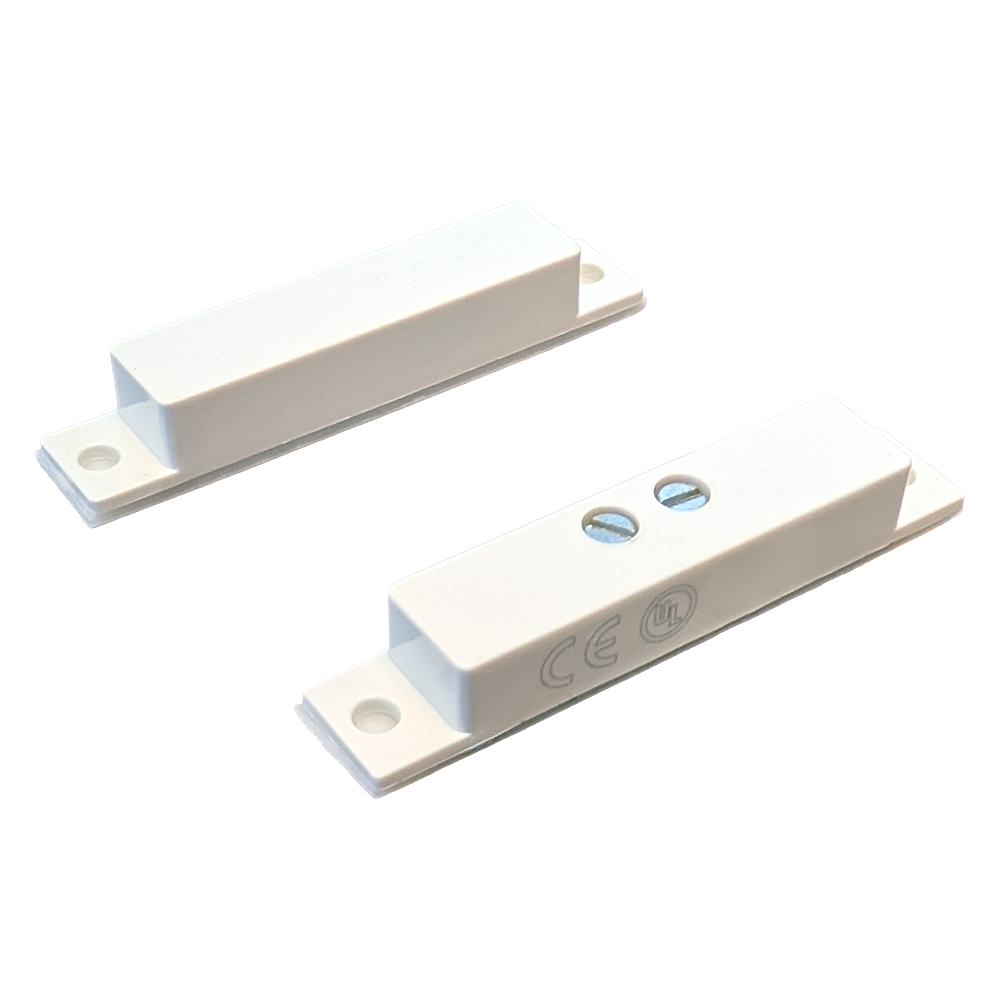

This surface mounted contact sensor is a hardwired security solution designed to provide simple and reliable protection for commercial and residential spaces.
This sensor operates on a Normally Open (N/O) reed switch configuration for a standard closed-loop security system, meaning the circuit remains closed when the door is shut, triggering an alarm instantly if the connection is broken.
Features:

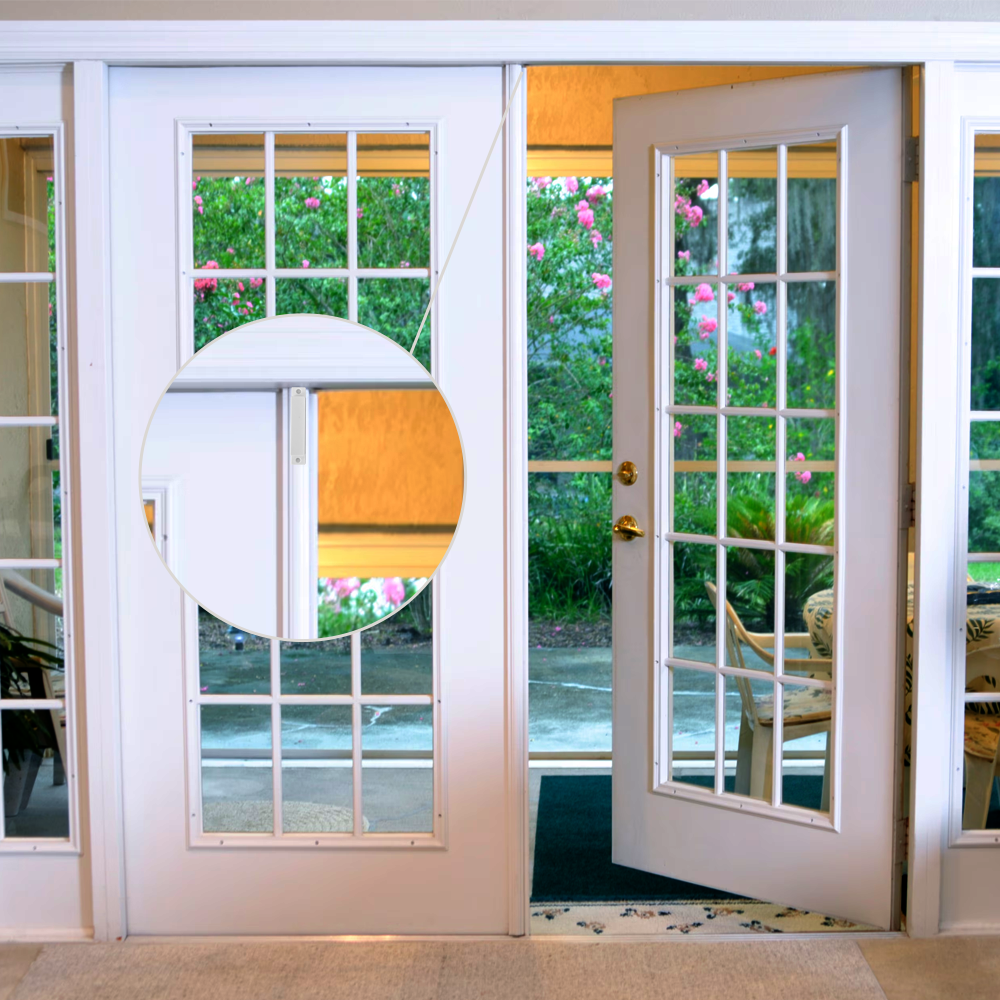

- Suitable for doors and windows

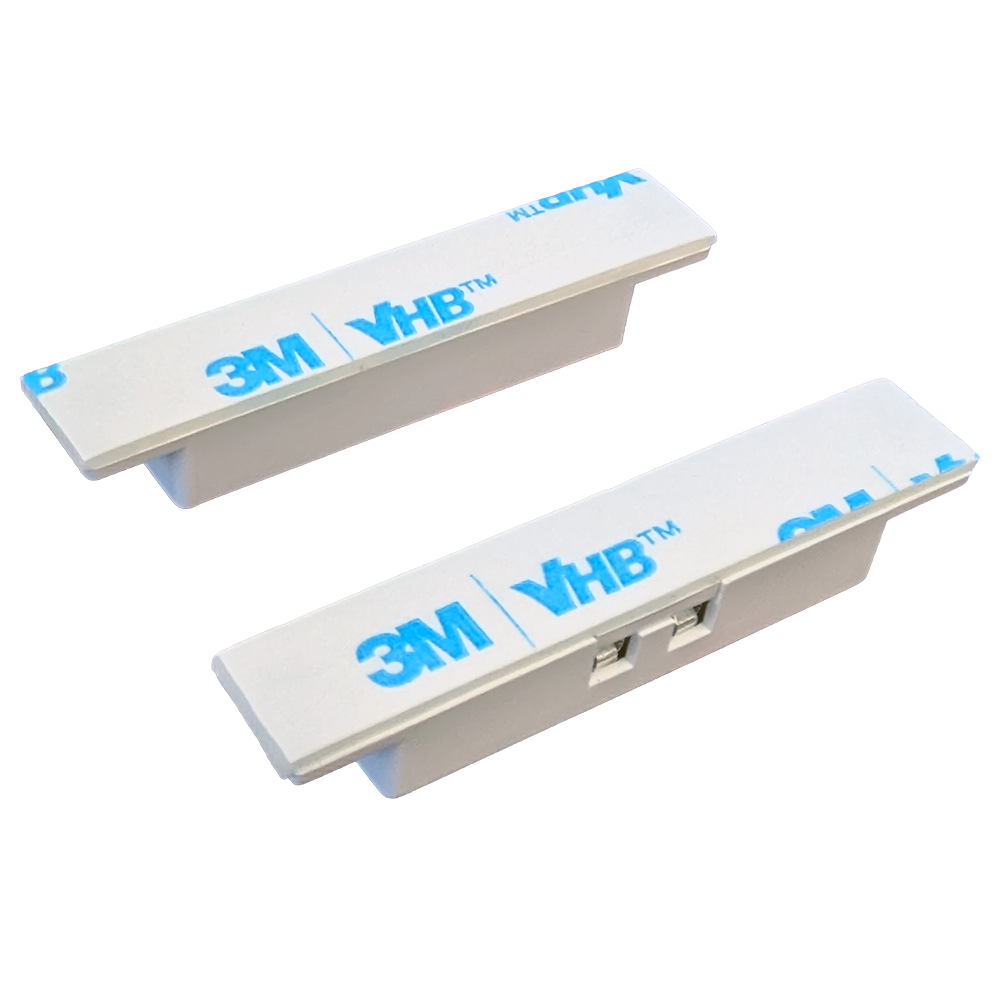

- Adhesive and screws mount
- Magnetic contact switch easy to install in tight spaces
- Closed Gap, 0.95" (24mm)
- Departure Gap, 1.06" (27mm)
- UL Approved
| Physical Characteristics | |
|---|---|
| Color | White |

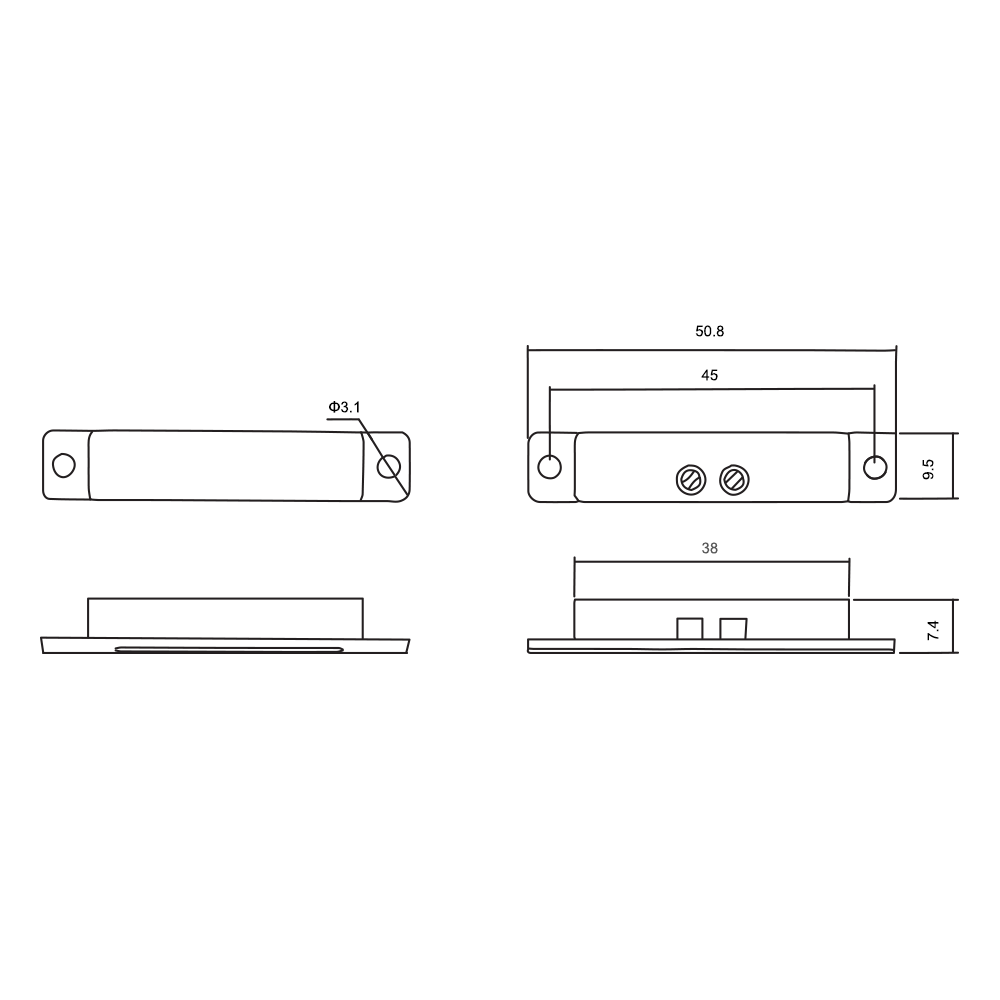

| Dimensions | 50.8 x 9.5 x 7.4mm |
| Loop Type | Closed |
| Reed Form | N/O (Normally Open) |
| Closed Gap | 0.95" (24mm) |
| Departure Gap | 1.06" (27mm) |
| Wiring Connection | Built-in Terminal Block |
| Maximum Initial Contact Resistance | 0.150 Ohm |
| Maximum Contact Rating | 10W |
| Maximum Switching Voltage | 100 VDC/VAC |
| Maximum Switching Current | 0.5A |
| Approvals | |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| CE | Compliant |
| Packaging Information | |

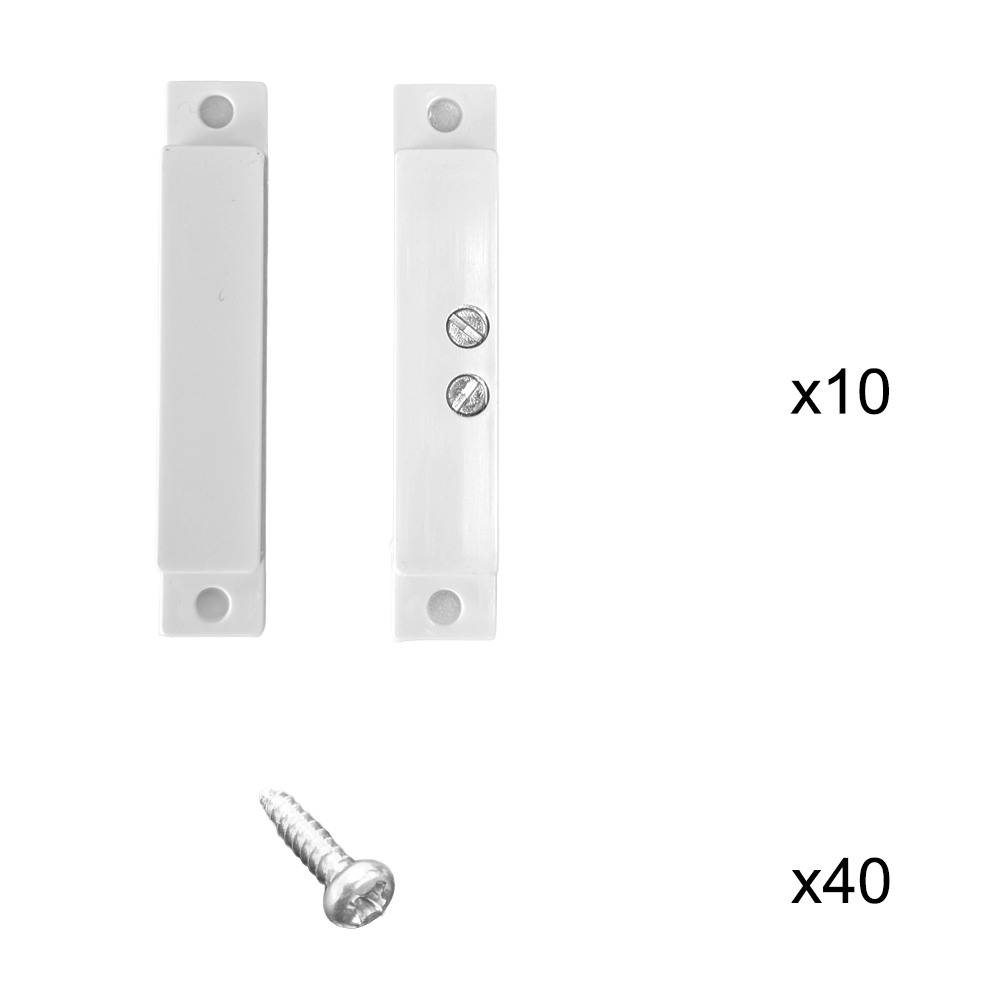

| Package Quantity | 10x Contacts 10x Magnets 40x Screws |
| Product Weight | 0.27 lbs |
