Description
Overview

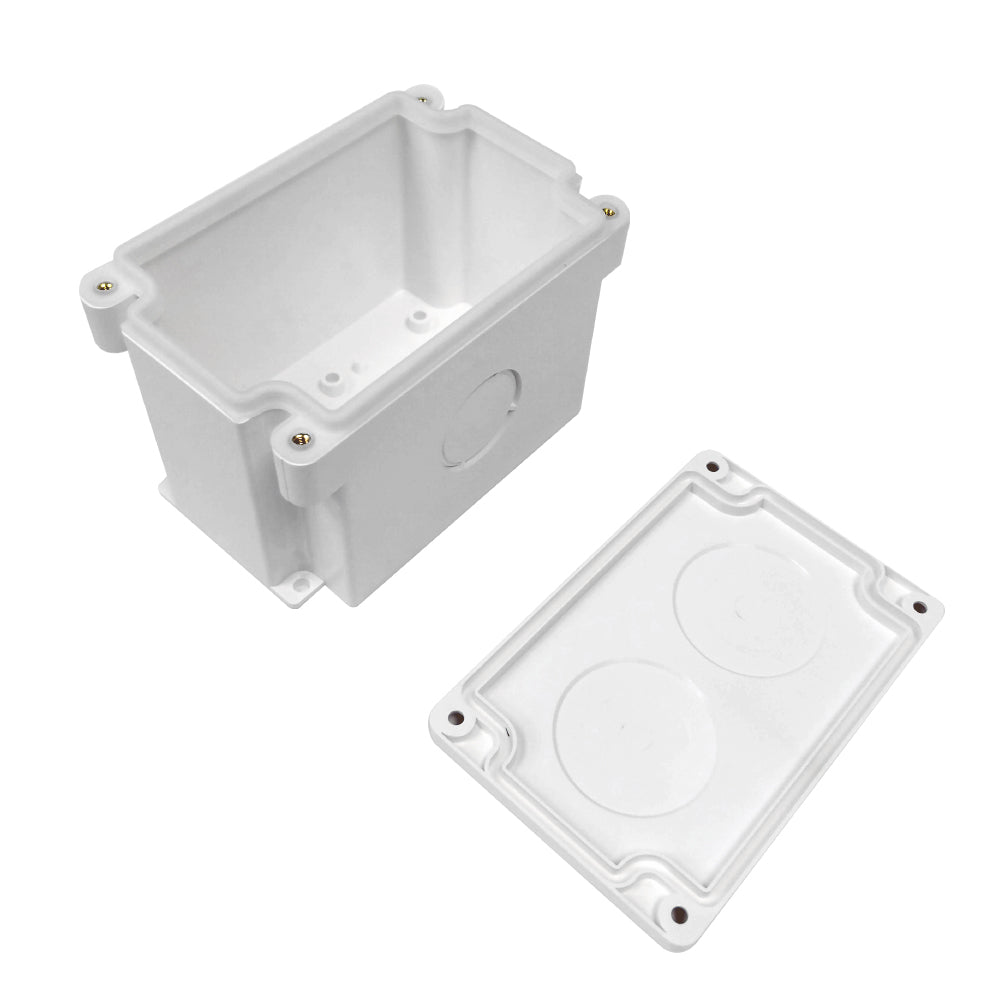

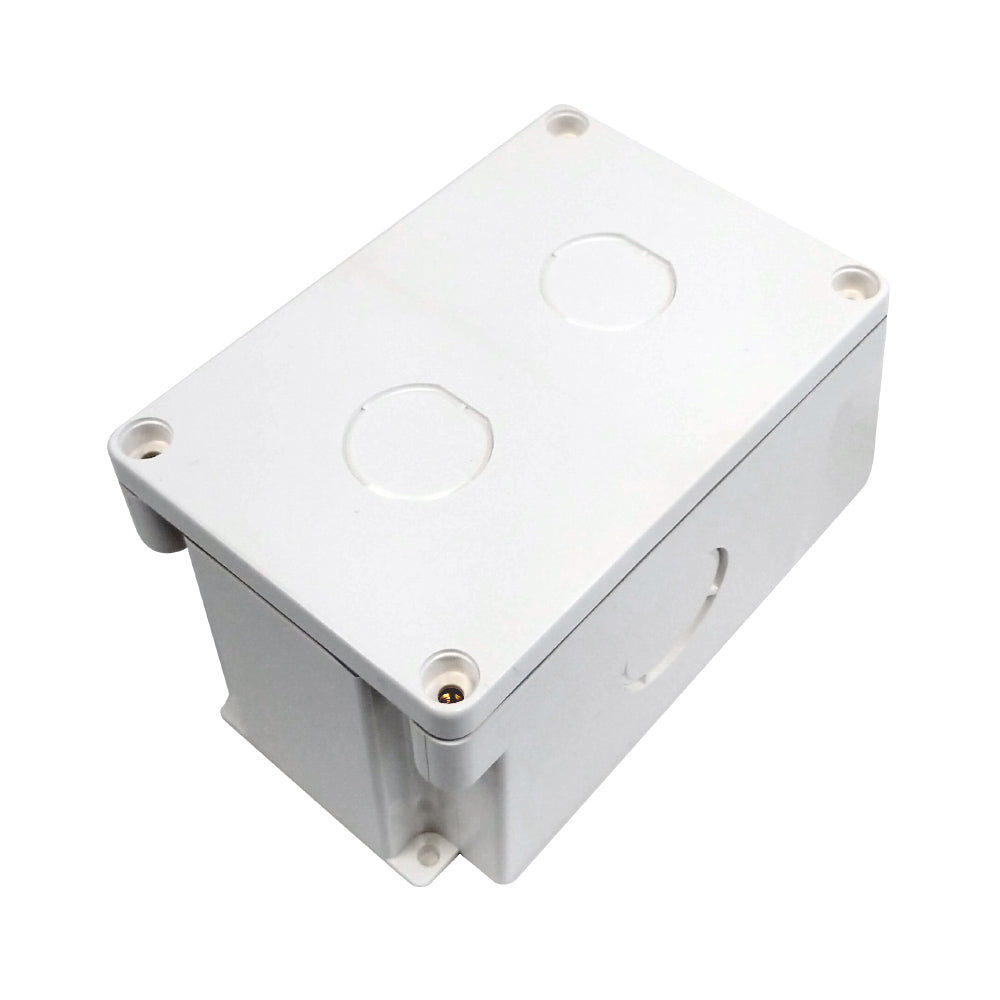

This waterproof single gang surface mounting box can accept up to two RJ45 bulkhead couplers. It is typically used to house bulkhead jacks and couplers and can be mounted on a wall where dust, water and protection from the elements is required. It is IP68 rated and is suitable for outdoor or industrial applications.
| Physical Characteristics | ||
|---|---|---|
| Color | White | |
| Size | Single Gang | |
| Housing Material | Polycarbonate Resin High-Impact UL94V-0 Thermoplastic | |
| Gasket | Rubber | |
| Knockout Holes |
2x Ethernet Bulkhead 1x M32 Conduit Gland 2x M16 Cable Gland |
|
| Operating Temperature | -10℃ to 60℃ | |
| Storage Temperature | -40℃ to 68℃ | |
| Humidity | 10% ~ 90% RH | |
| Connectors | ||
| Ethernet Bulkhead Hole | 2 | |
| Compatible Items | ||
| CN-C5E-FFS-IP68 | Cat5e RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| CN-C6-FFS-IP68 | Cat6 RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| CN-C6A-FFS-IP68 | Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| JK-C5P-SBK-IP68 | Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| JK-C6P-SBK-IP68 | Cat6 RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| Environmental | ||
| IP Rating | IP68Rated | |
| RoHS | Yes | |
| Packaging Information | ||
| Product Weight | 0.41 lbs [0.18 kg] | |
| Included in Package | 1 - Surface Box |
|
