Description

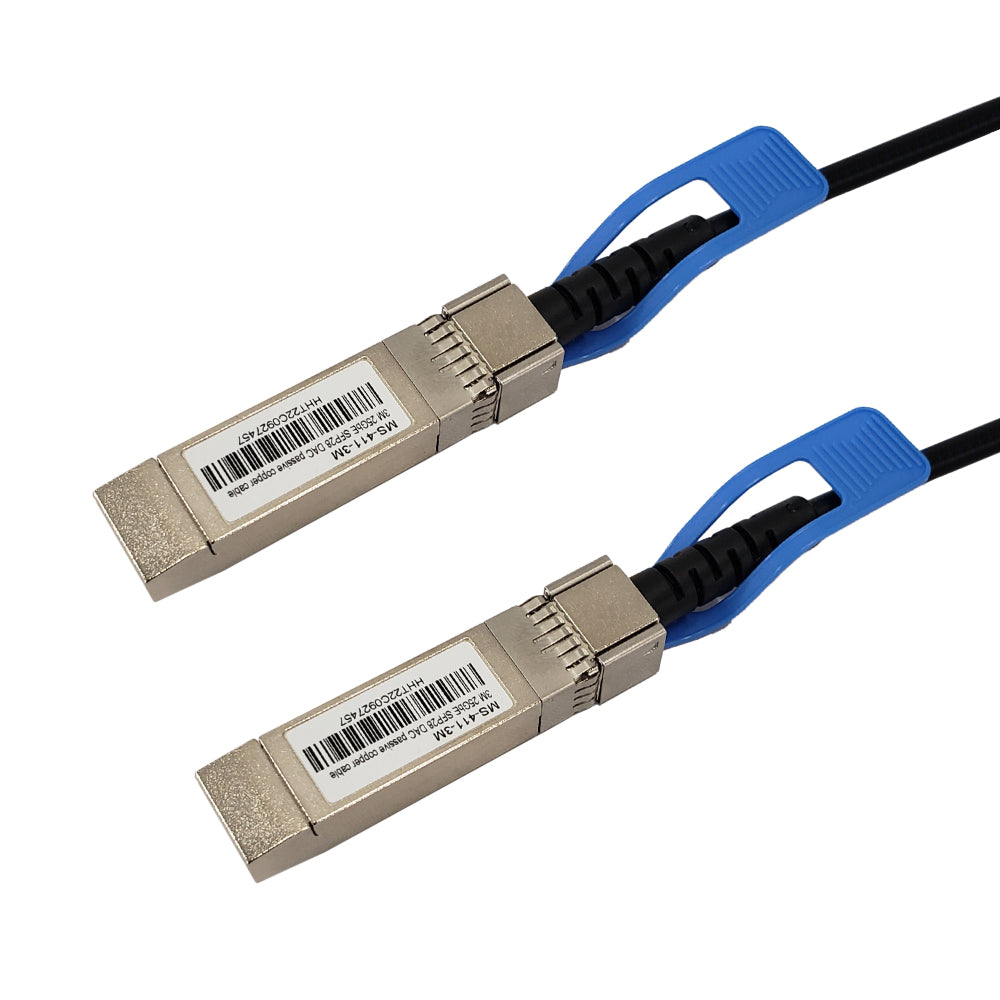

This passive SFP28 direct attach data storage cable has a SFP28 (25GbE) connector on both ends. They are constructed using 30 to 26AWG shielded twin-axial copper cable. It is typically used to directly attach switches/servers in short distance point to point applications and provide 25 Gigabit Ethernet connectivity between devices with SFP+/SFP28 interfaces. The cable is also hot-swappable which minimizes network downtimes, making upgrades quick and easy.
| Physical Characteristics | |
|---|---|
| Application | 25Gb Ethernet and Fiber Channel Applications |
| Wire Gauge | 30AWG (1m and 2m) 30AWG/26AWG (3m) 26AWG (4m and 5m) |
| Cable Jacket Material | PVC |
| Contact Plating | Gold Plated |
| Connector Material | Zinc Die Cast, Nickel Plated Back Shells |
| Temperature Rang | 0 ~ 70℃ |
| Performance | |
| Data Rate | 25.88243 Gbps |
| Transmission Distance | Up to 5 meters |
| Supports | Hot-Pluggable SFP 20PIN footprint Improved Pluggable Form Factor (IPF) Enhanced EMI/EMC performance |
| Connectors | |
| Connector A | SFP28 (SFF-8402 and SFF-8432) - (Small Form Factor Pluggable) |
| Connector B | SFP28 (SFF-8402 and SFF-8432) - (Small Form Factor Pluggable) |
| Approvals | |
| UL | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Packaging Quantity | 1 Cable |
| 0.5m | 1m | 2m | 3m | 5m |
|---|---|---|---|---|
| 0.15 lb | 0.35 lbs | 0.50 lbs | 0.65 lbs | 1.20 lbs |
