Description

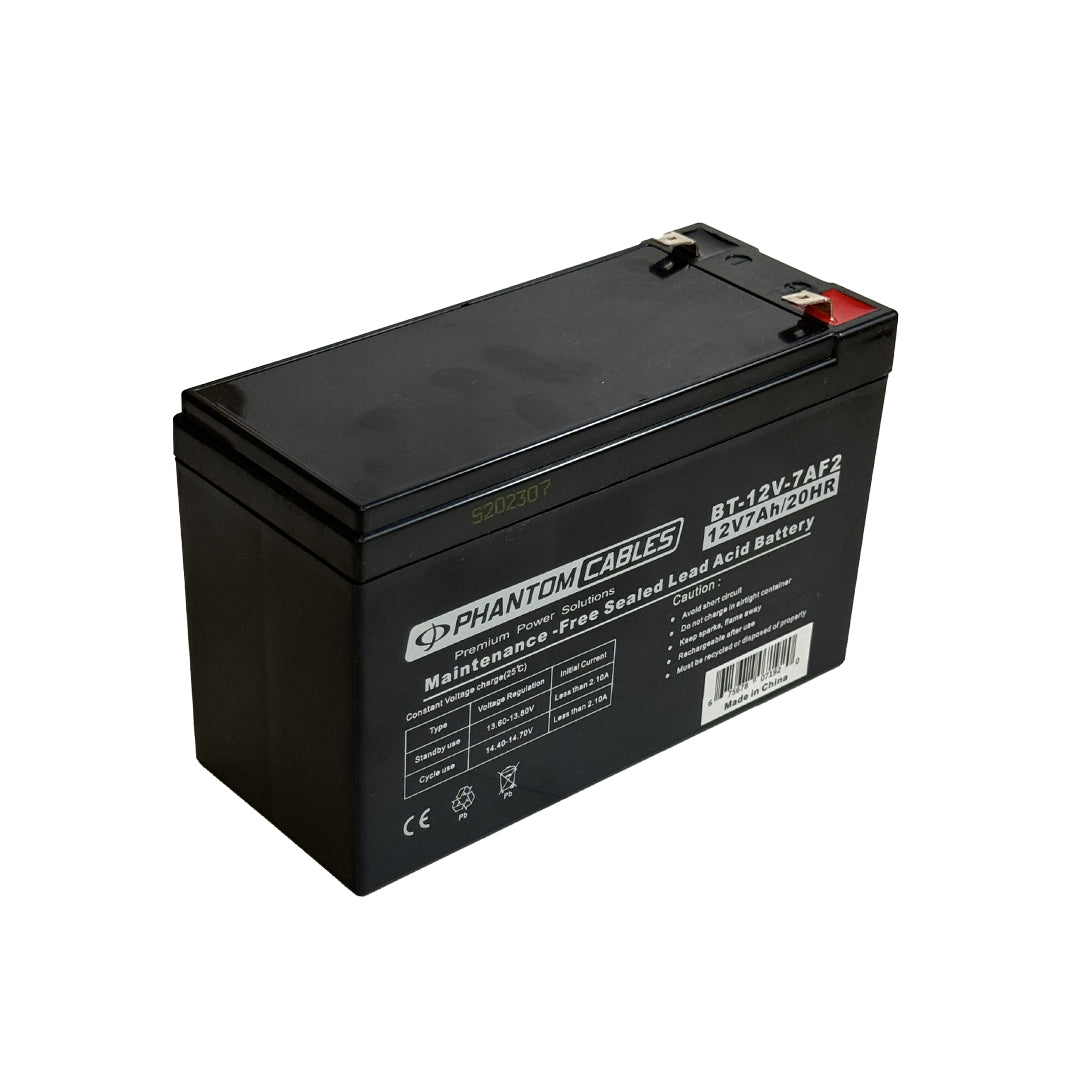

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | 4x UPS Replacement |
| Absorbed Glass Mat (AGM) | Yes |
| Voltage | 12V |
| Amps | 7A |

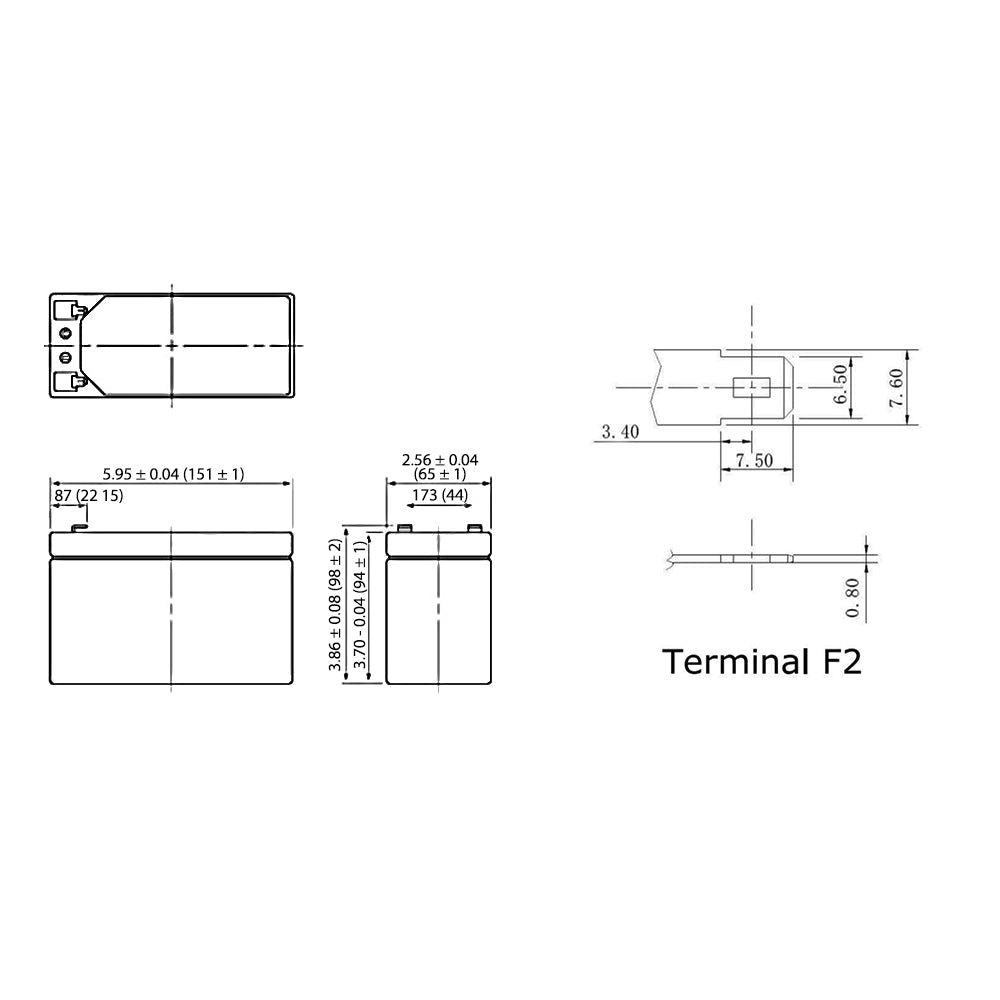

| Terminal Type | F2 |
| Tab Size | 0.25 inch |
| Container Material | ABS(UL-94HB) |
| Length | 5.94 inches [151mm] |
| Width | 2.56 inches [65mm] |
| Height | 3.70 inches [100mm] |
| Operating Temperature | 25±3°C (77±5°F ) |
| Compatible Terminal Adapter | |
| BT-ADT2T1 | Battery terminal adapter F2 female (0.25") to F1 male (0.1875") |
| Performance | |
| Internal Resistance | Approx.20m„¦ |
| Max. Discharge Current | 112.5A(5S) |
| Rated Capacity | 7.00AH (20hr, 1.75V/cell,25°C/77°F) 6.70AH (10hr, 1.75V/cell,25°C/77°F) 6.27AH (5hr, 1.75V/cell,25°C/77°F) 5.49AH (3hr, 1.75V/cell,25°C/77°F) 4.17AH (1hr, 1.75V/cell,25°C/77°F) |
| Cycle Use | Initial Charging Current less than 2.10A 14.1V~14.7V@25°C(77°F)Temp. Coefficient -30mV/°C |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25°C(77°F)Temp. Coefficient -20mV/°C |
| Capacity affected by Temperature |
40°C 103% 25°C 100% 0°C 86% -15°C 65% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:65% |
| Packaging Information | |
| Product Weight | 21.8 lbs [9.9kg] |
| Packaging Quantity | 4 UPS Battery 12V 7amp |
| Warranty Information | |
| Warranty | 6 Months |
| Compatibility Information | |
| Model Number | APC Smart-UPS SU1400RM APC Smart-UPS SU1400RMBX120 APC Smart-UPS SU1400RMNET APC Smart-UPS SU1400RMX106 APC Smart-UPS SU1400RMX176 APC Smart-UPS SU1400RMX93 APC Smart-UPS SU1500RMXLX157 Exide NetUPS SE 1000RM Exide NetUPS SE 1500RM Powerware UPS 5119-1000RM Powerware UPS 5119-1500RM Powerware UPS 5125-1500 Powerware UPS 5125-2200 Powerware UPS 5125-2200B Powerware UPS 5125-1500RM Powerware UPS 9120-1500 Powerware UPS 9120BAT-700 Powerware UPS 9125-1250 Powerware UPS 9125-1500 Powerware UPS 9125-2000 Powerware UPS 9125-2000 Tripp-Lite Omni UPS OMNIPRO 850 |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| BT-12V-7A-4PCS | 21.8 lb |
