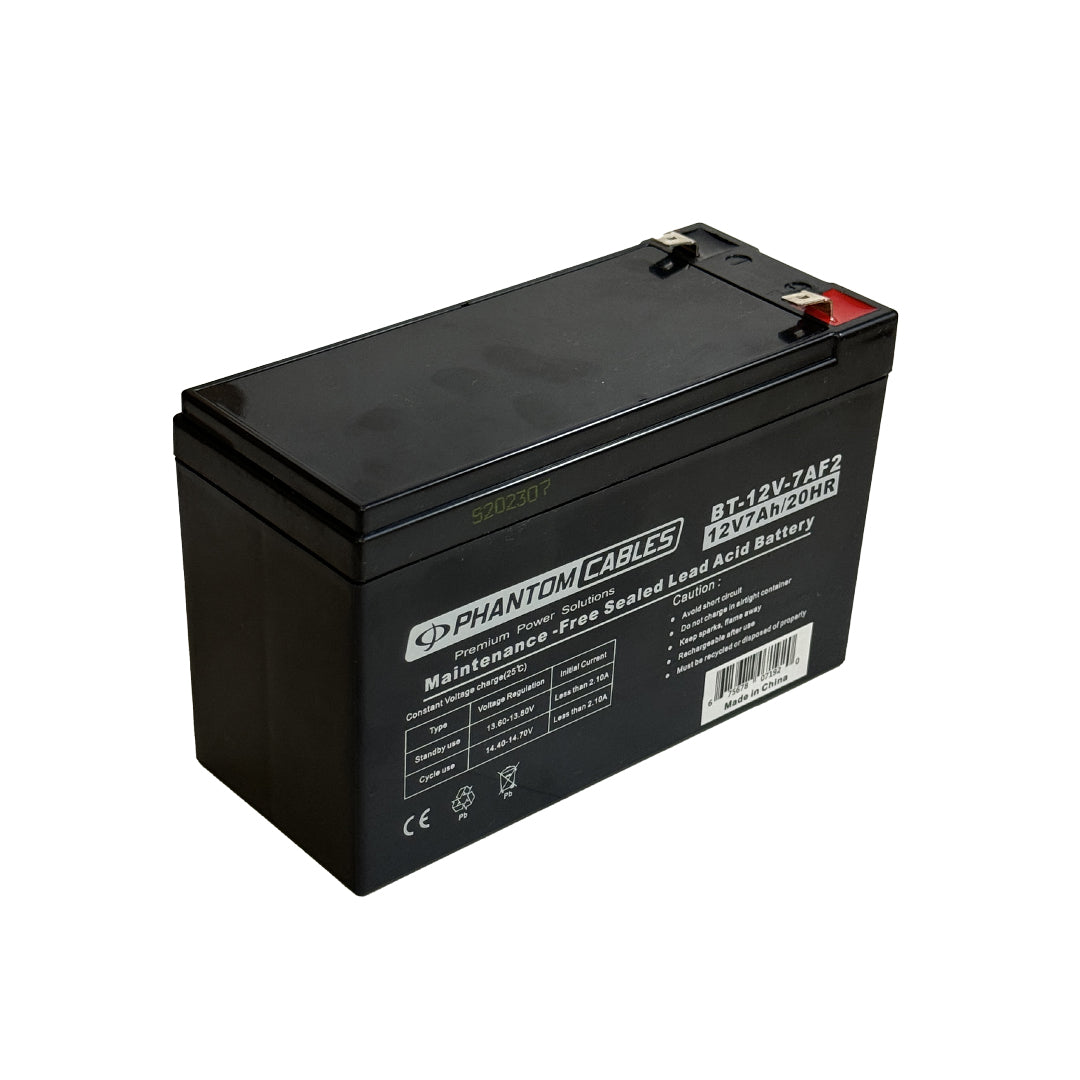

Sealed Lead Acid Battery 12V 7amp x 12

Sealed Lead Acid BatteriesSKU: BT-12V-7A-12PCS

Price:
Sale price$349.80 CAD
Stock:
In stock

Description

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

Application

Specifications

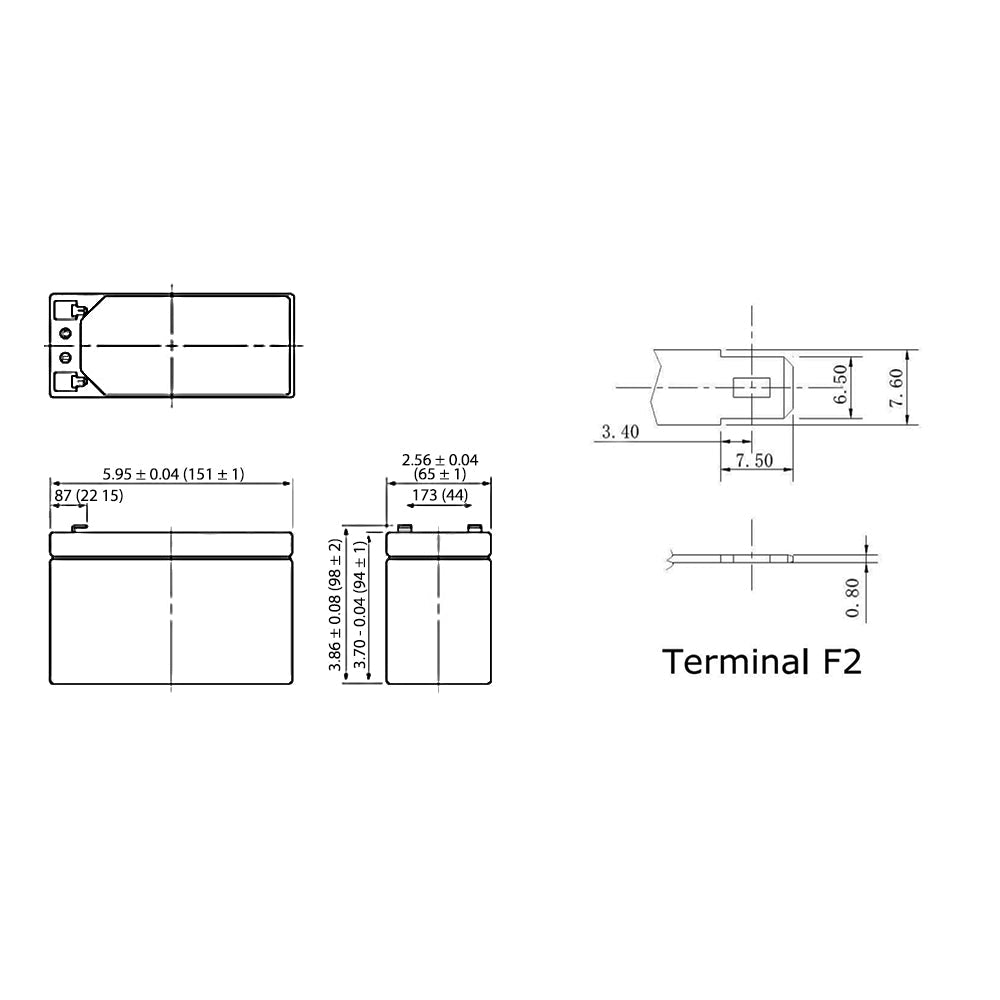

Physical Characteristics
Type 12x UPS Replacement
Voltage 12V
Amps 7A
Terminal Type F2
Tab Size 0.25 inch
Container Material ABS(UL-94HB)
Length 5.94 inches [151mm]
Width 2.56 inches [65mm]
Height 3.70 inches [100mm]
Operating Temperature 25±3℃ (77±5℃F )
Compatible Terminal Adapter
BT-ADT2T1 Battery terminal adapter F2 female (0.25") to F1 male (0.1875")
Performance
Internal Resistance Approx.20mΩ
Max. Discharge Current 112.5A(5S)
Rated Capacity 7.00AH (20hr, 1.75V/cell,25℃/77℃F)
6.40AH (10hr, 1.75V/cell,25℃/77℃F)
5.95AH (5hr, 1.75V/cell,25℃/77℃F)
4.55AH (1hr, 1.75V/cell,25℃/77℃F)
Cycle Use Initial Charging Current less than 2.10A
14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature
40℃ 102%
25℃ 100%
0℃ 85%
-15℃ 64%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:65%
Packaging Information
Product Weight 65.4 lbs [30kg]
Packaging Quantity 12 UPS Battery 12V 7amp
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number APC Smart-UPS SU5000T
APC Smart-UPS SU5000TX168
APC Smart-UPS SU5000TXFMR
APC Smart-UPS SU2000R3X155
APC Smart-UPS SU2000RMXLX157
APC Smart-UPS SU2200R3BX120
APC Smart-UPS SU2200R3X106
APC Smart-UPS SU2200R3X147
APC Smart-UPS SU2200R3X152
APC Smart-UPS SU2200R3X167
APC Smart-UPS SU2200RM3U
APC Smart-UPS SU2200RMXL3U
APC Smart-UPS SU3000R3BX120
APC Smart-UPS SU3000R3X145
APC Smart-UPS SU3000RM3U
APC Smart-UPS SU3000RMT3U
APC Smart-UPS SU3000RMT3U
APC Smart-UPS SU3000RMTX136
APC Smart-UPS SU5000R5TBX120
APC Smart-UPS SU5000RMTSU
APC Smart-UPS AP9621
Powerware UPS 5125-EBM-24RM
Powerware UPS 5125-EBM-48RM
Powerware UPS 9120-2000
Powerware UPS 9120-3000
Powerware UPS 9120-3000B
Powerware UPS 9120-BAT-1500
