Description

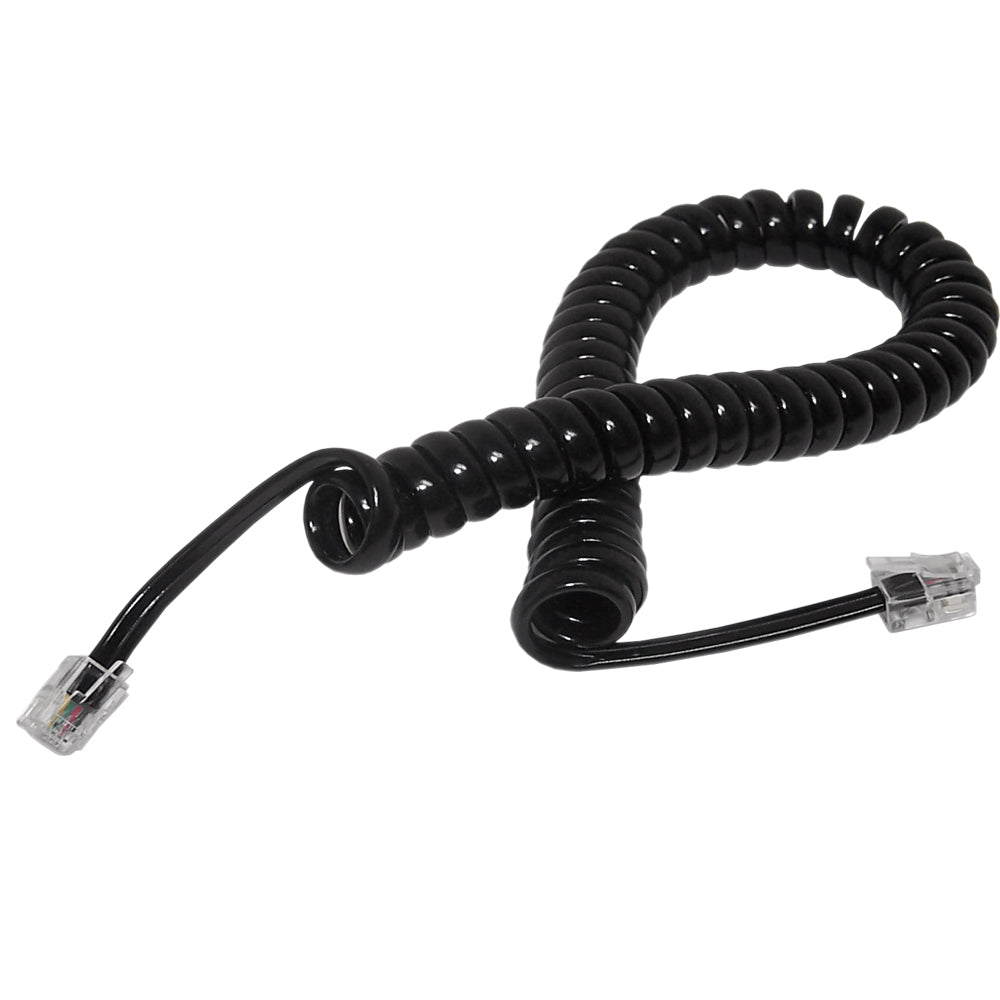

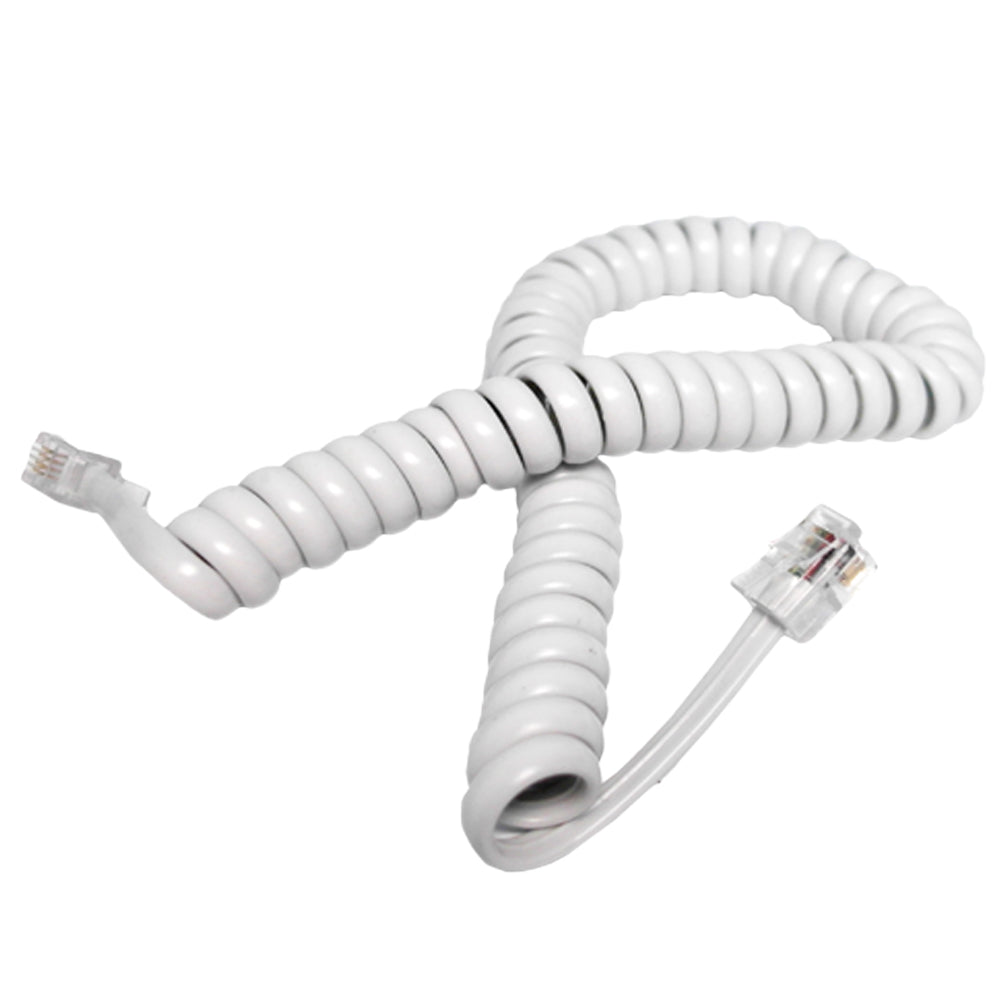

This curly modular phone cable consists of a RJ9 (4P4C) male plug on both ends and has cross-over wiring. It is typically used in to connect a handset to a telephone base.
| Physical Characteristics | |
|---|---|
| Cable Length | 7ft / 15ft / 25ft |
| Color | Black/White |
| Contact Plating | Gold |
| Cable Diameter | 5mm x 2.5mm |
| Wire Gauge | 30AWG - CCS |
| Jacket Material | PVC - Polyvinyl Chloride |
| Wiring | Reverse (1-4, 2-3, 3-2, 4-1) |
| Connector(s) | |
| Connector A | RJ9 (4P4C) Male (Handset Plug) |
| Connector B | RJ9 (4P4C) Male (Handset Plug) |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 7ft |
15ft |
25ft |
|---|---|---|
| 0.062 lbs | 0.14 lbs | 0.23 lbs |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| PH-131-07BK | 7ft / Black | 0.24 lb |
| PH-131-07WH | 7ft / White | 0.24 lb |
| PH-131-15BK | 15ft / Black | 0.5 lb |
| PH-131-15WH | 15ft / White | 0.5 lb |
| PH-131-25BK | 25ft / Black | 0.77 lb |
| PH-131-25WH | 25ft / White | 0.77 lb |
