Description
Overview

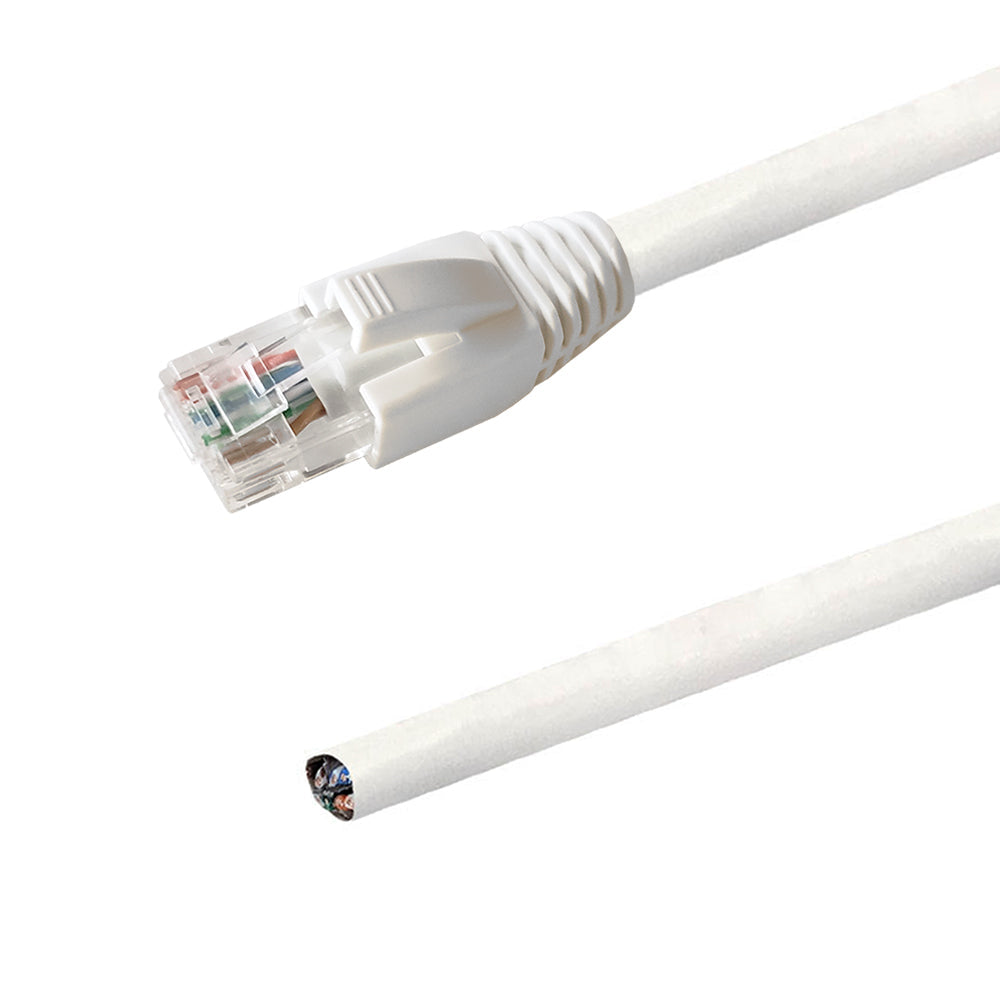

This CAT6A ethernet cable consists of a RJ45 male on one end and has no termination on the other. The un-terminated end is typically used for punching down onto a terminal block and the RJ45 end can be connected to a patch panel or pass-through coupler.
|
|
100% Copper Solid ConductorsThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Colors Available | Black/Blue/White |
| Cable Diameter | 7.60mm |
| Wire Gauge | 23AWG Solid |
| Color Code | 568A/568B |
| Shielding | None |
| Pairs | 4 |
| Fire Rating | CMR [Riser Rated] |
| Temperature Rating | -20ºC ~ 75ºC |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | Un-terminated |
| Performance | |
| Frequency | 550 MHz |
| Approvals | |
| c(ETL)us | Compliant |
| ISO/IEC 9001 | Compliant |
| ANSI/TIA-568.C.2 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Conflict Minerals Compliant | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| CAT6ACMPT-25BKA | 25ft / Black / 568A | 0.77 lb |
| CAT6ACMPT-25BLA | 25ft / Blue / 568A | 0.77 lb |
| CAT6ACMPT-25WHA | 25ft / White / 568A | 0.77 lb |
| CAT6ACMPT-25BKB | 25ft / Black / 568B | 0.77 lb |
| CAT6ACMPT-25BLB | 25ft / Blue / 568B | 0.77 lb |
| CAT6ACMPT-25WHB | 25ft / White / 568B | 0.77 lb |
| CAT6ACMPT-30BKA | 30ft / Black / 568A | 0.95 lb |
| CAT6ACMPT-30BLA | 30ft / Blue / 568A | 0.95 lb |
| CAT6ACMPT-30WHA | 30ft / White / 568A | 0.95 lb |
| CAT6ACMPT-30BKB | 30ft / Black / 568B | 0.95 lb |
| CAT6ACMPT-30BLB | 30ft / Blue / 568B | 0.95 lb |
| CAT6ACMPT-30WHB | 30ft / White / 568B | 0.95 lb |
| CAT6ACMPT-35BKA | 35ft / Black / 568A | 1.1 lb |
| CAT6ACMPT-35BLA | 35ft / Blue / 568A | 1.1 lb |
| CAT6ACMPT-35WHA | 35ft / White / 568A | 1.1 lb |
| CAT6ACMPT-35WHB | 35ft / White / 568B | 1.1 lb |
| CAT6ACMPT-35BLB | 35ft / Blue / 568B | 1.1 lb |
| CAT6ACMPT-35BKB | 35ft / Black / 568B | 1.1 lb |
| CAT6ACMPT-40BKA | 40ft / Black / 568A | 1.33 lb |
| CAT6ACMPT-40BLA | 40ft / Blue / 568A | 1.33 lb |
| CAT6ACMPT-40WHA | 40ft / White / 568A | 1.33 lb |
| CAT6ACMPT-40BKB | 40ft / Black / 568B | 1.33 lb |
| CAT6ACMPT-40BLB | 40ft / Blue / 568B | 1.33 lb |
| CAT6ACMPT-40WHB | 40ft / White / 568B | 1.33 lb |
| CAT6ACMPT-45BKA | 45ft / Black / 568A | 1.4 lb |
| CAT6ACMPT-45BLA | 45ft / Blue / 568A | 1.4 lb |
| CAT6ACMPT-45WHA | 45ft / White / 568A | 1.4 lb |
| CAT6ACMPT-45WHB | 45ft / White / 568B | 1.4 lb |
| CAT6ACMPT-45BLB | 45ft / Blue / 568B | 1.4 lb |
| CAT6ACMPT-45BKB | 45ft / Black / 568B | 1.4 lb |
| CAT6ACMPT-50BKA | 50ft / Black / 568A | 1.55 lb |
| CAT6ACMPT-50BLA | 50ft / Blue / 568A | 1.55 lb |
| CAT6ACMPT-50WHA | 50ft / White / 568A | 1.55 lb |
| CAT6ACMPT-50WHB | 50ft / White / 568B | 1.55 lb |
| CAT6ACMPT-50BLB | 50ft / Blue / 568B | 1.55 lb |
| CAT6ACMPT-50BKB | 50ft / Black / 568B | 1.55 lb |
| CAT6ACMPT-55BKA | 55ft / Black / 568A | 1.65 lb |
| CAT6ACMPT-55BLA | 55ft / Blue / 568A | 1.65 lb |
| CAT6ACMPT-55WHA | 55ft / White / 568A | 1.65 lb |
| CAT6ACMPT-55BKB | 55ft / Black / 568B | 1.65 lb |
| CAT6ACMPT-55BLB | 55ft / Blue / 568B | 1.65 lb |
| CAT6ACMPT-55WHB | 55ft / White / 568B | 1.65 lb |
| CAT6ACMPT-60BKA | 60ft / Black / 568A | 1.8 lb |
| CAT6ACMPT-60BLA | 60ft / Blue / 568A | 1.8 lb |
| CAT6ACMPT-60WHA | 60ft / White / 568A | 1.8 lb |
| CAT6ACMPT-60BKB | 60ft / Black / 568B | 1.8 lb |
| CAT6ACMPT-60BLB | 60ft / Blue / 568B | 1.8 lb |
| CAT6ACMPT-60WHB | 60ft / White / 568B | 1.8 lb |
| CAT6ACMPT-65WHA | 65ft / White / 568A | 2.0 lb |
| CAT6ACMPT-65BLA | 65ft / Blue / 568A | 2.0 lb |
| CAT6ACMPT-65BKA | 65ft / Black / 568A | 2.0 lb |
| CAT6ACMPT-65BKB | 65ft / Black / 568B | 2.0 lb |
| CAT6ACMPT-65BLB | 65ft / Blue / 568B | 2.0 lb |
| CAT6ACMPT-65WHB | 65ft / White / 568B | 2.0 lb |
| CAT6ACMPT-70BKA | 70ft / Black / 568A | 2.12 lb |
| CAT6ACMPT-70BLA | 70ft / Blue / 568A | 2.12 lb |
| CAT6ACMPT-70WHA | 70ft / White / 568A | 2.12 lb |
| CAT6ACMPT-70BKB | 70ft / Black / 568B | 2.12 lb |
| CAT6ACMPT-70BLB | 70ft / Blue / 568B | 2.12 lb |
| CAT6ACMPT-70WHB | 70ft / White / 568B | 2.12 lb |
| CAT6ACMPT-75WHA | 75ft / White / 568A | 2.26 lb |
| CAT6ACMPT-75BLA | 75ft / Blue / 568A | 2.26 lb |
| CAT6ACMPT-75BKA | 75ft / Black / 568A | 2.26 lb |
| CAT6ACMPT-75BKB | 75ft / Black / 568B | 2.26 lb |
| CAT6ACMPT-75BLB | 75ft / Blue / 568B | 2.26 lb |
| CAT6ACMPT-75WHB | 75ft / White / 568B | 2.26 lb |
| CAT6ACMPT-80BKA | 80ft / Black / 568A | 2.65 lb |
| CAT6ACMPT-80BLA | 80ft / Blue / 568A | 2.65 lb |
| CAT6ACMPT-80WHA | 80ft / White / 568A | 2.65 lb |
| CAT6ACMPT-80WHB | 80ft / White / 568B | 2.65 lb |
| CAT6ACMPT-80BLB | 80ft / Blue / 568B | 2.65 lb |
| CAT6ACMPT-80BKB | 80ft / Black / 568B | 2.65 lb |
| CAT6ACMPT-85BKA | 85ft / Black / 568A | 2.75 lb |
| CAT6ACMPT-85BLA | 85ft / Blue / 568A | 2.75 lb |
| CAT6ACMPT-85WHA | 85ft / White / 568A | 2.75 lb |
| CAT6ACMPT-85BKB | 85ft / Black / 568B | 2.75 lb |
| CAT6ACMPT-85BLB | 85ft / Blue / 568B | 2.75 lb |
| CAT6ACMPT-85WHB | 85ft / White / 568B | 2.75 lb |
| CAT6ACMPT-90WHA | 90ft / White / 568A | 2.85 lb |
| CAT6ACMPT-90BLA | 90ft / Blue / 568A | 2.85 lb |
| CAT6ACMPT-90BKA | 90ft / Black / 568A | 2.85 lb |
| CAT6ACMPT-90BKB | 90ft / Black / 568B | 2.85 lb |
| CAT6ACMPT-90BLB | 90ft / Blue / 568B | 2.85 lb |
| CAT6ACMPT-90WHB | 90ft / White / 568B | 2.85 lb |
| CAT6ACMPT-95BKA | 95ft / Black / 568A | 2.88 lb |
| CAT6ACMPT-95BLA | 95ft / Blue / 568A | 2.88 lb |
| CAT6ACMPT-95WHA | 95ft / White / 568A | 2.88 lb |
| CAT6ACMPT-95BKB | 95ft / Black / 568B | 2.88 lb |
| CAT6ACMPT-95BLB | 95ft / Blue / 568B | 2.88 lb |
| CAT6ACMPT-95WHB | 95ft / White / 568B | 2.88 lb |
| CAT6ACMPT-100BKA | 100ft / Black / 568A | 3.0 lb |
| CAT6ACMPT-100BLA | 100ft / Blue / 568A | 3.0 lb |
| CAT6ACMPT-100WHA | 100ft / White / 568A | 3.0 lb |
| CAT6ACMPT-100WHB | 100ft / White / 568B | 3.0 lb |
| CAT6ACMPT-100BLB | 100ft / Blue / 568B | 3.0 lb |
| CAT6ACMPT-100BKB | 100ft / Black / 568B | 3.0 lb |
| CAT6ACMPT-110BKA | 110ft / Black / 568A | 3.2 lb |
| CAT6ACMPT-110BLA | 110ft / Blue / 568A | 3.2 lb |
| CAT6ACMPT-110WHA | 110ft / White / 568A | 3.2 lb |
| CAT6ACMPT-110BKB | 110ft / Black / 568B | 3.2 lb |
| CAT6ACMPT-110BLB | 110ft / Blue / 568B | 3.2 lb |
| CAT6ACMPT-110WHB | 110ft / White / 568B | 3.2 lb |
| CAT6ACMPT-125BKA | 125ft / Black / 568A | 5.0 lb |
| CAT6ACMPT-125BLA | 125ft / Blue / 568A | 5.0 lb |
| CAT6ACMPT-125WHA | 125ft / White / 568A | 5.0 lb |
| CAT6ACMPT-125WHB | 125ft / White / 568B | 5.0 lb |
| CAT6ACMPT-125BLB | 125ft / Blue / 568B | 5.0 lb |
| CAT6ACMPT-125BKB | 125ft / Black / 568B | 5.0 lb |
| CAT6ACMPT-135BKA | 135ft / Black / 568A | 5.5 lb |
| CAT6ACMPT-135BLA | 135ft / Blue / 568A | 5.5 lb |
| CAT6ACMPT-135WHA | 135ft / White / 568A | 5.5 lb |
| CAT6ACMPT-135BKB | 135ft / Black / 568B | 5.5 lb |
| CAT6ACMPT-135BLB | 135ft / Blue / 568B | 5.5 lb |
| CAT6ACMPT-135WHB | 135ft / White / 568B | 5.5 lb |
| CAT6ACMPT-150BKA | 150ft / Black / 568A | 6.2 lb |
| CAT6ACMPT-150BLA | 150ft / Blue / 568A | 6.2 lb |
| CAT6ACMPT-150WHA | 150ft / White / 568A | 6.2 lb |
| CAT6ACMPT-150BKB | 150ft / Black / 568B | 6.2 lb |
| CAT6ACMPT-150BLB | 150ft / Blue / 568B | 6.2 lb |
| CAT6ACMPT-150WHB | 150ft / White / 568B | 6.2 lb |
