to RJ45 Male with IP68 Shroud Cat6a UTP Outdoor UV / Direct Burial Patch Cable - Black
to RJ45 Male with IP68 Shroud Cat6a UTP Outdoor UV / Direct Burial Patch Cable - Black

RJ45 Male with IP68 Shroud to RJ45 Male with IP68 Shroud Cat6a UTP Outdoor UV / Direct Burial Patch Cable - Black

CAT6A Patch CablesSKU: CAT6AOIP2-01BK
Length: 1ft
Price:
$20.10 CAD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com

Description

Overview

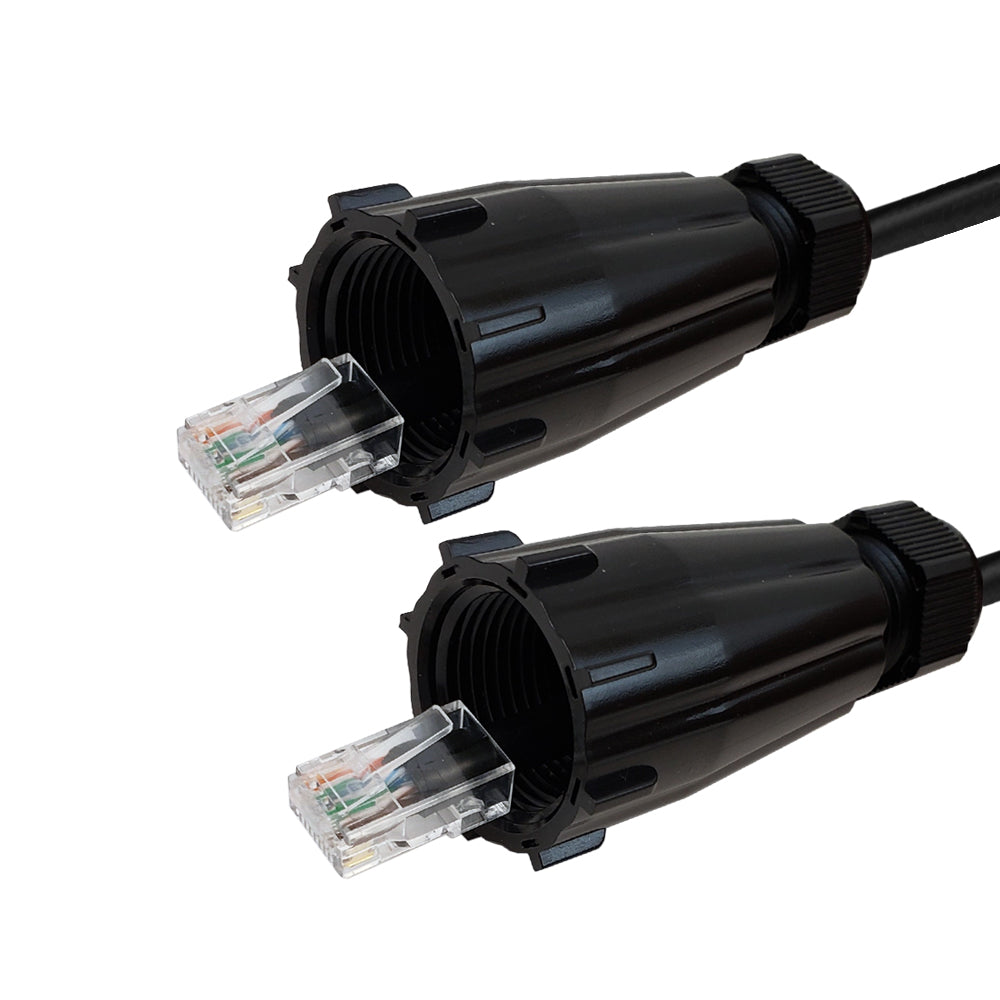

This Cat6a UTP outdoor UV direct burial Ethernet cable consists of RJ45 male connectors on both ends as well as IP68 rated shrouds. It is typically used outdoors either above or below ground as premise wiring to connect network devices and intended to mate with our IP68 rated couplers for a weather tight seal.

These cables are made to order. Most orders ship out same day or next day depending on the quantity. Please contact us for more details.

100% Pure Copper

This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.

50 Micron Gold Plated Connectors

This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.

Outdoor Cable, IP68 Rated Housing

Ideal for use in cable runs that are located above or below ground as premise wiring to connect network devices. The shrouds are IP68 rated and can be secured to mating IP68 rated RJ45 couplers - not allowing water penetration.

Application

Specifications

Physical Characteristics
Connector Plating Gold Plated 50 Micron
Conductor Material 100% Bare Copper
Cable Diameter 7.60 mm
Wire Gauge 23AWG Solid
Shielding UTP (Unshielded)
Pairs 4
Temperature Rating -40℃ to +75℃
Strain Relief
Tab Style Strain Relief Boot
Jacket Rating Direct Burial / UV
Jacket Material LLDPE
UV Yes
Connectors
Connector A RJ45 Long Body Male
Connector B RJ45 Long Body Male


Environmental
RoHS Yes
Package Information
Package Quantity 1
Cable Weights
1ft 2ft 3ft 4ft 5ft 6ft 7ft 8ft 9ft 10ft 11ft 12ft 13ft 14ft 15ft 16ft 17ft 18ft 19ft 20ft 21ft 22ft 23ft 24ft 25ft 30ft 35ft 50ft 75ft 100ft 125ft 150ft
0.05 lbs 0.08 lbs 0.10 lbs 0.13 lbs 0.15 lbs 0.17 lbs 0.20 lbs 0.22 lbs 0.24 lbs 0.25 lbs 0.30 lbs 0.35 lbs 0.37 lbs 0.40 lbs 0.43 lbs 0.45 lbs 0.47 lbs 0.49 lbs 0.51 lbs 0.53 lbs 0.55 lbs 0.57 lbs 0.58 lbs 0.59 lbs 0.60 lbs 0.70 lbs 0.80 lbs 1.10 lbs 1.90 lbs 2.15 lbs 3.75 lbs 4.50 lbs

Spec Sheets

Download attachment
