Description

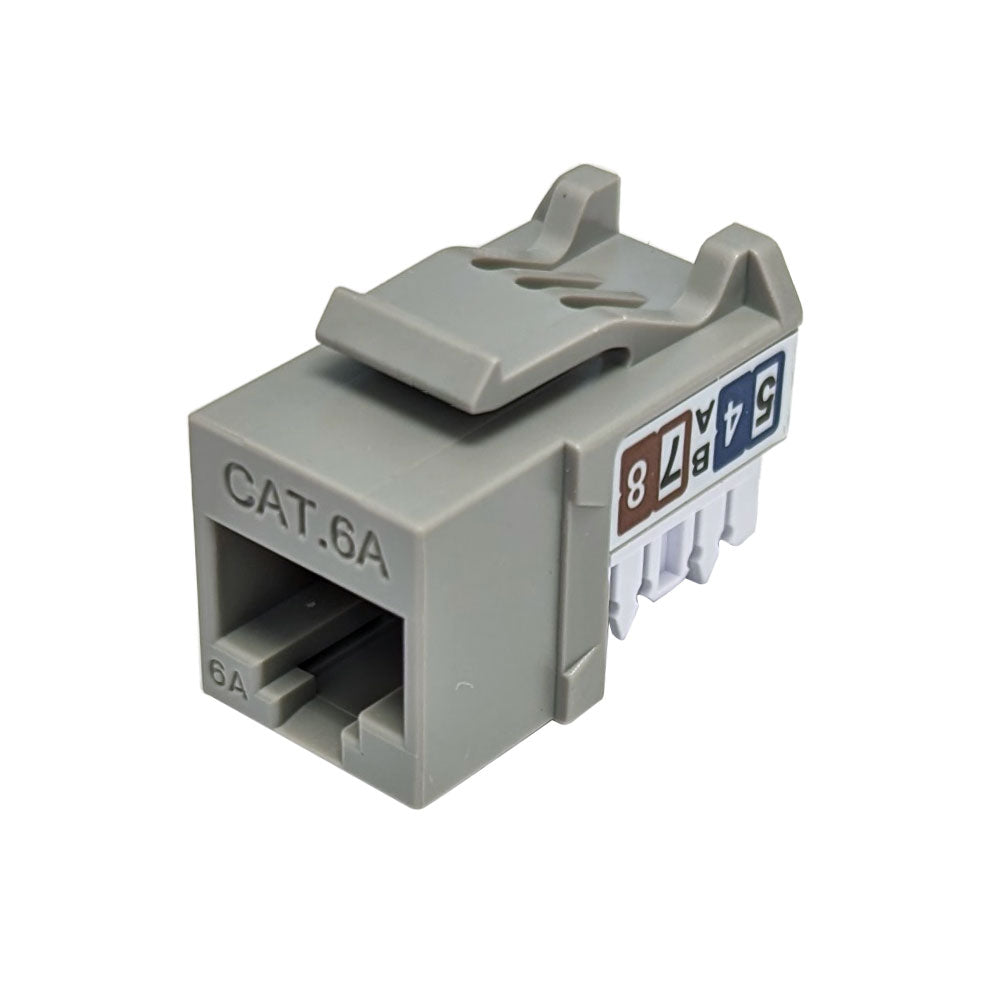

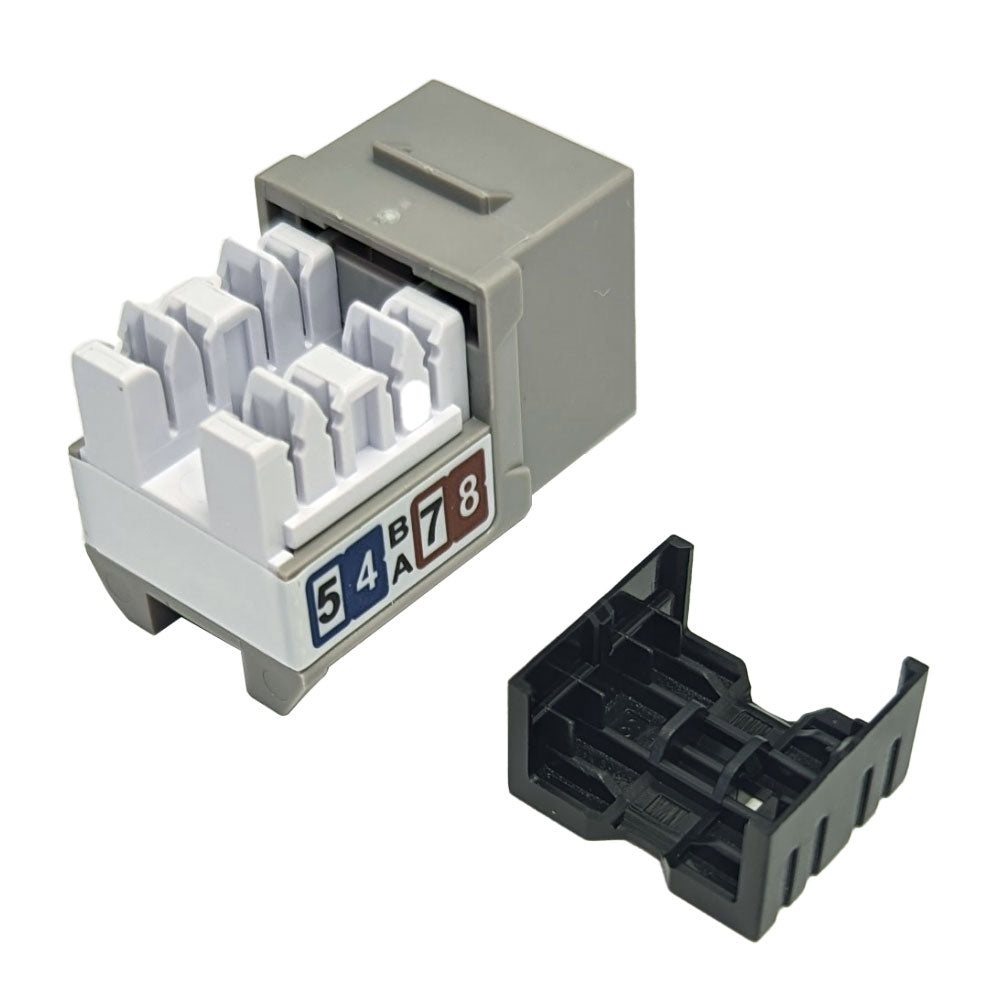

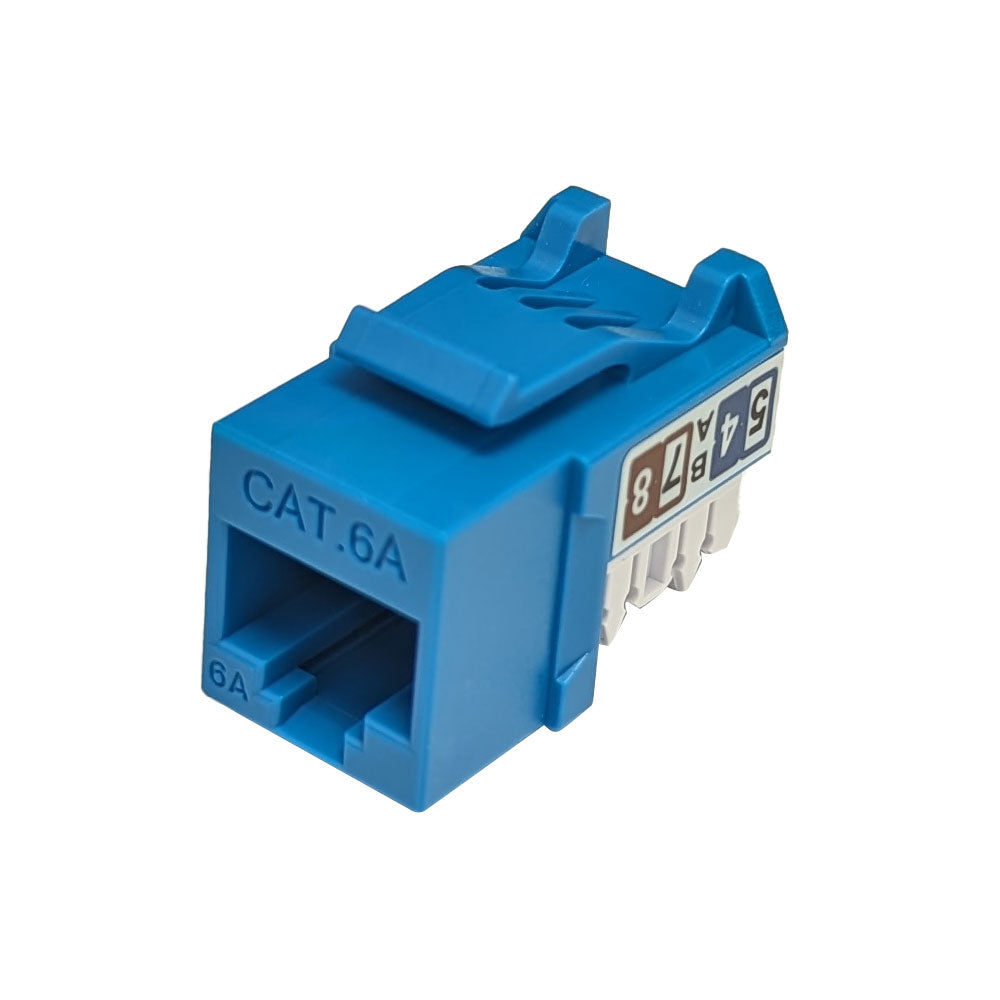

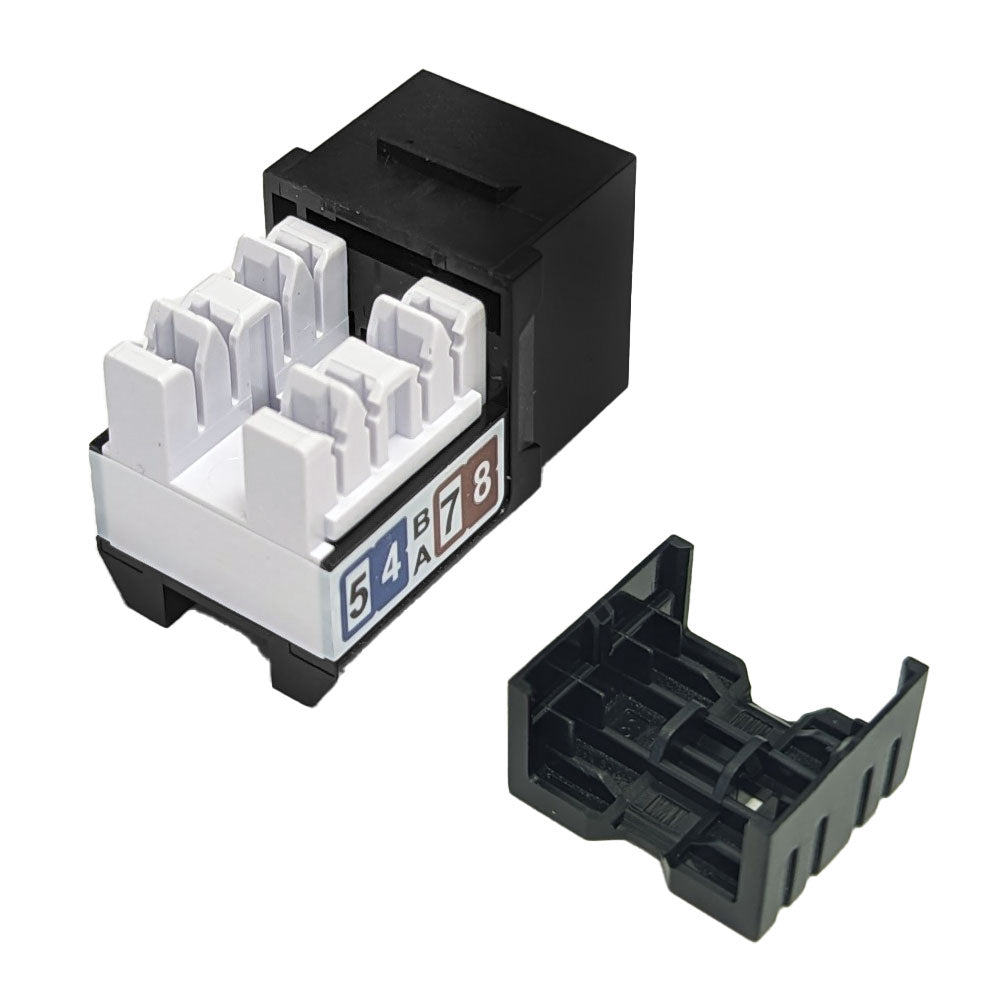

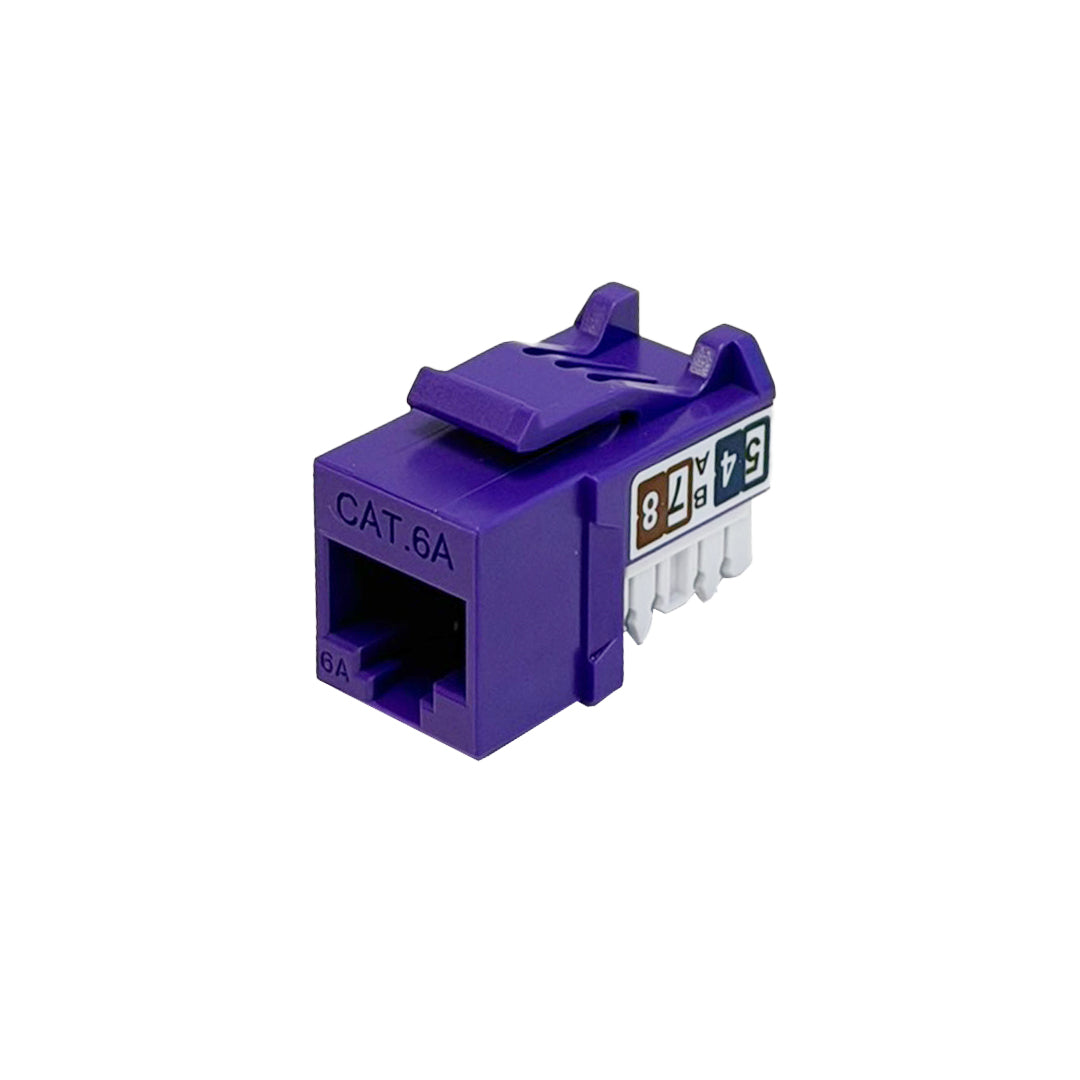

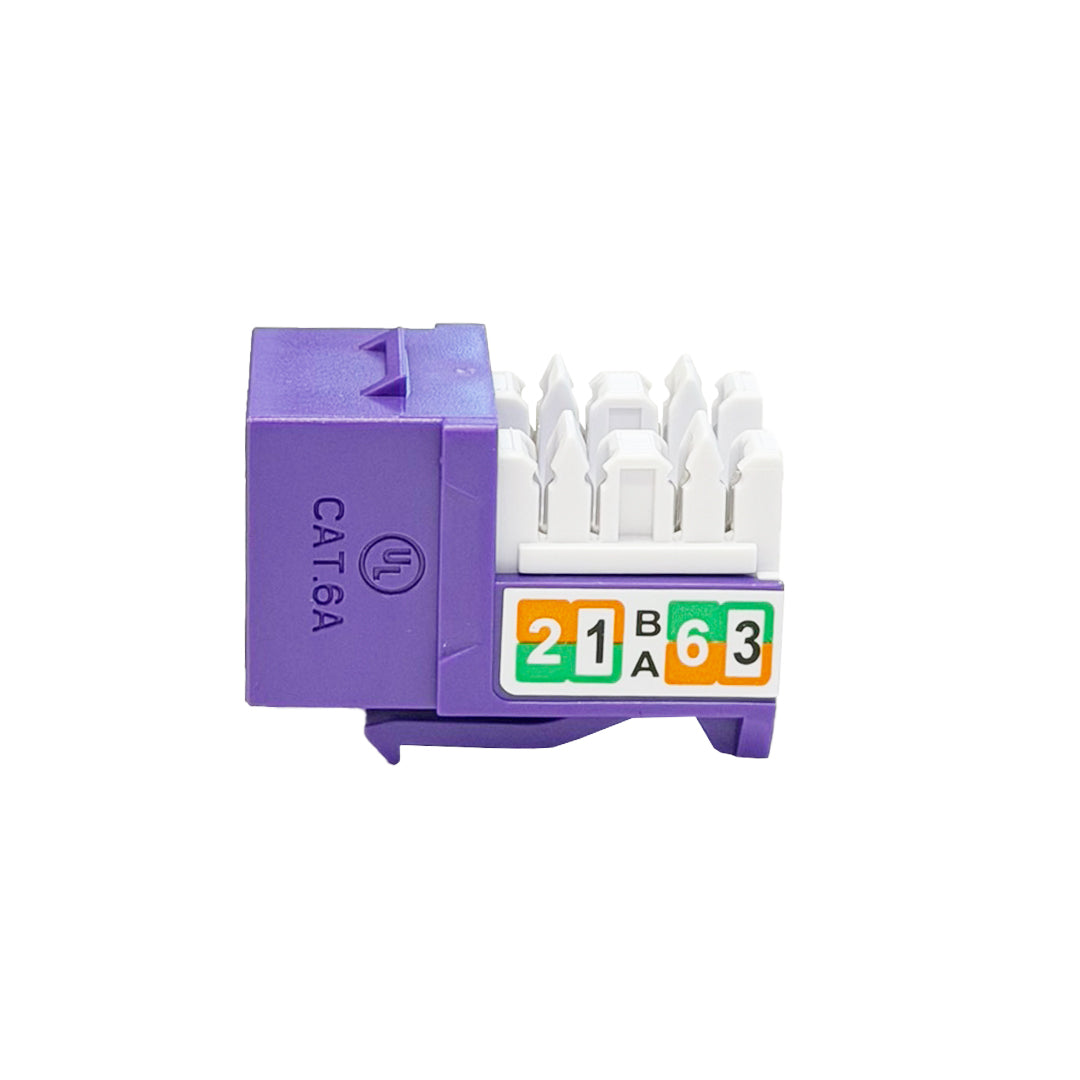

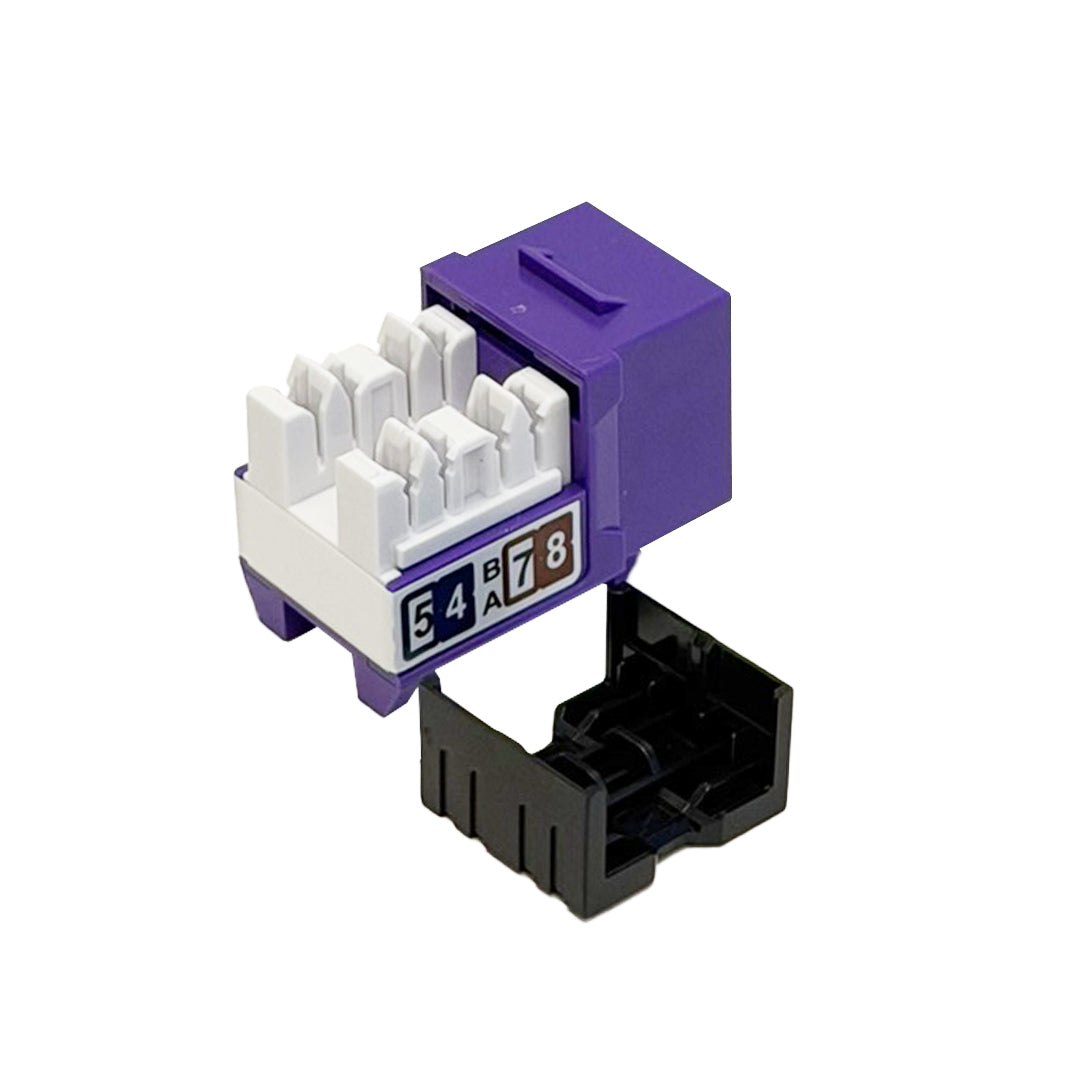

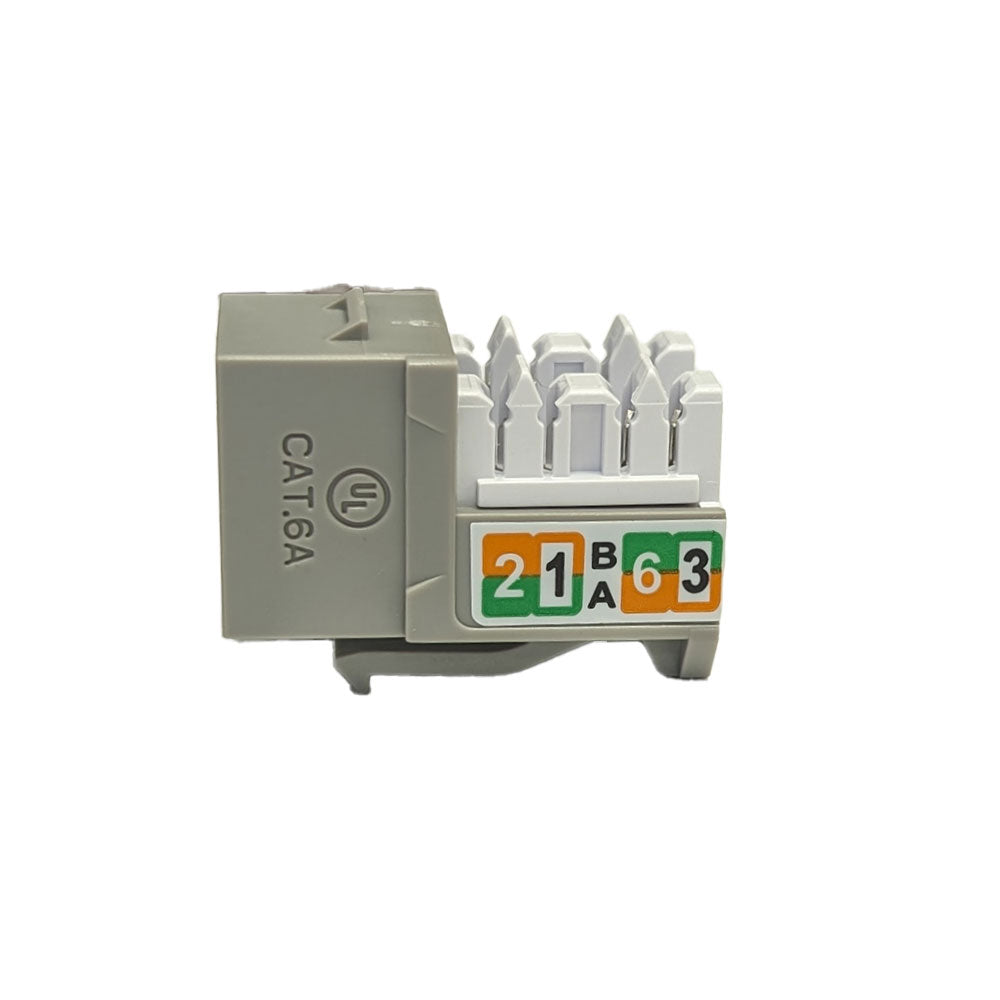

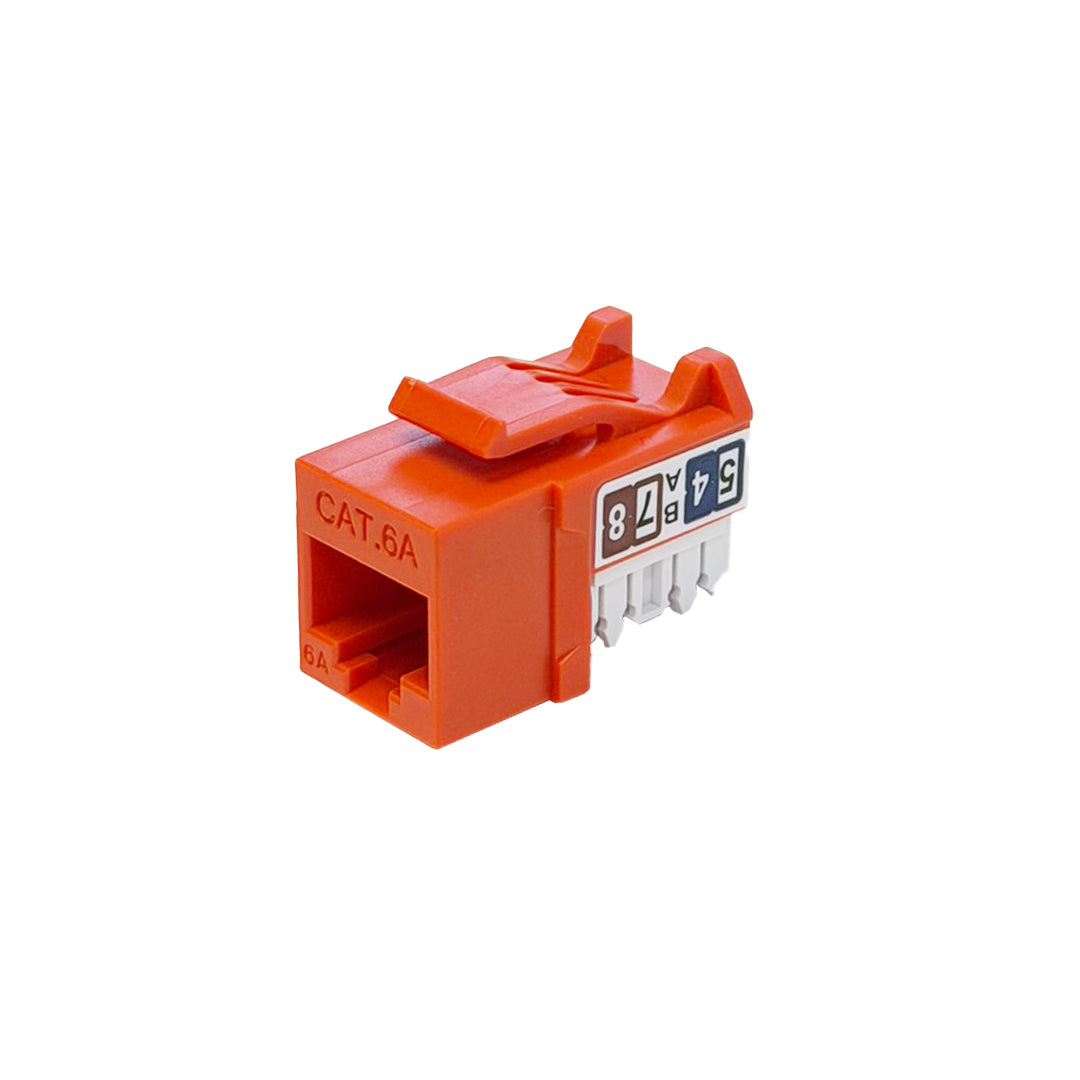

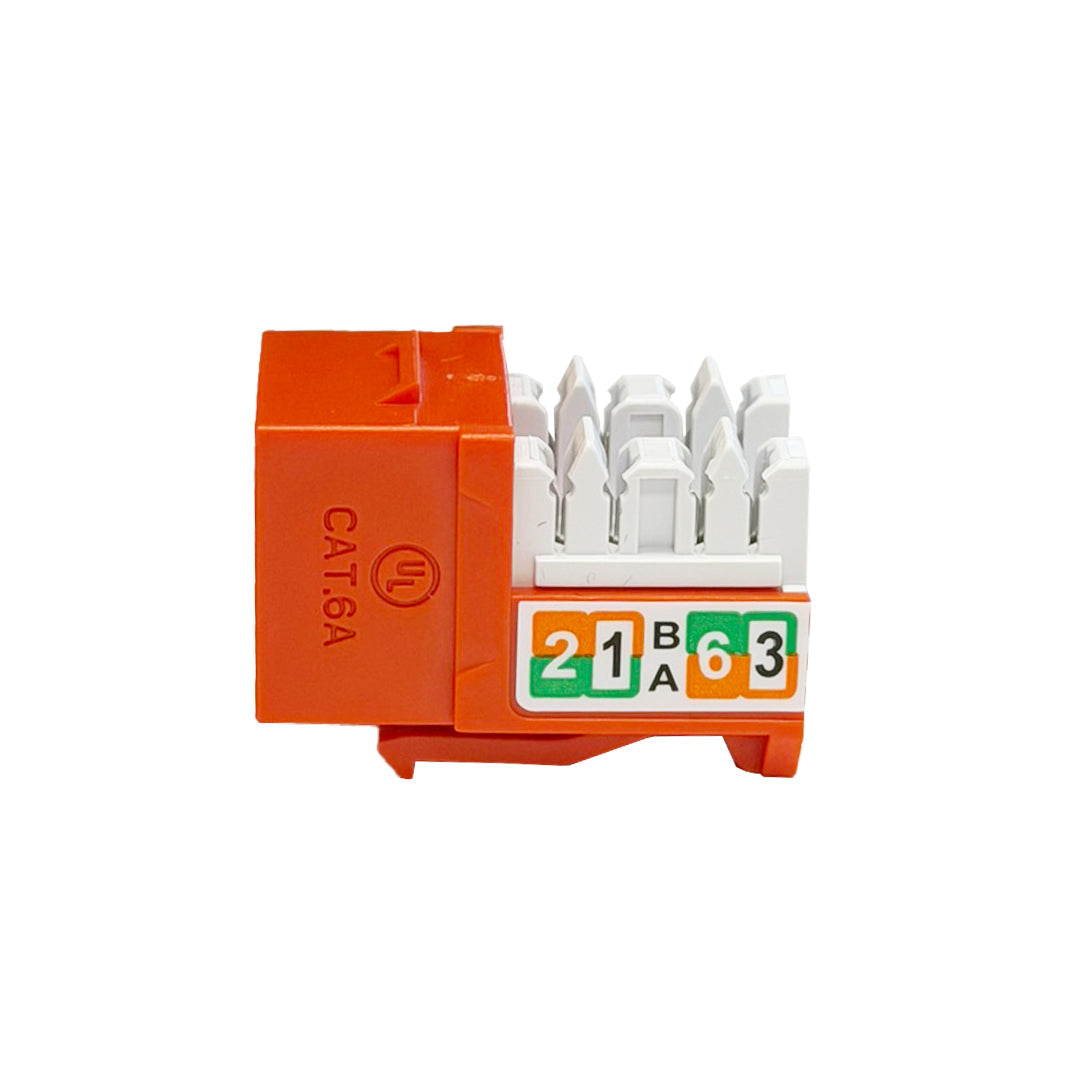

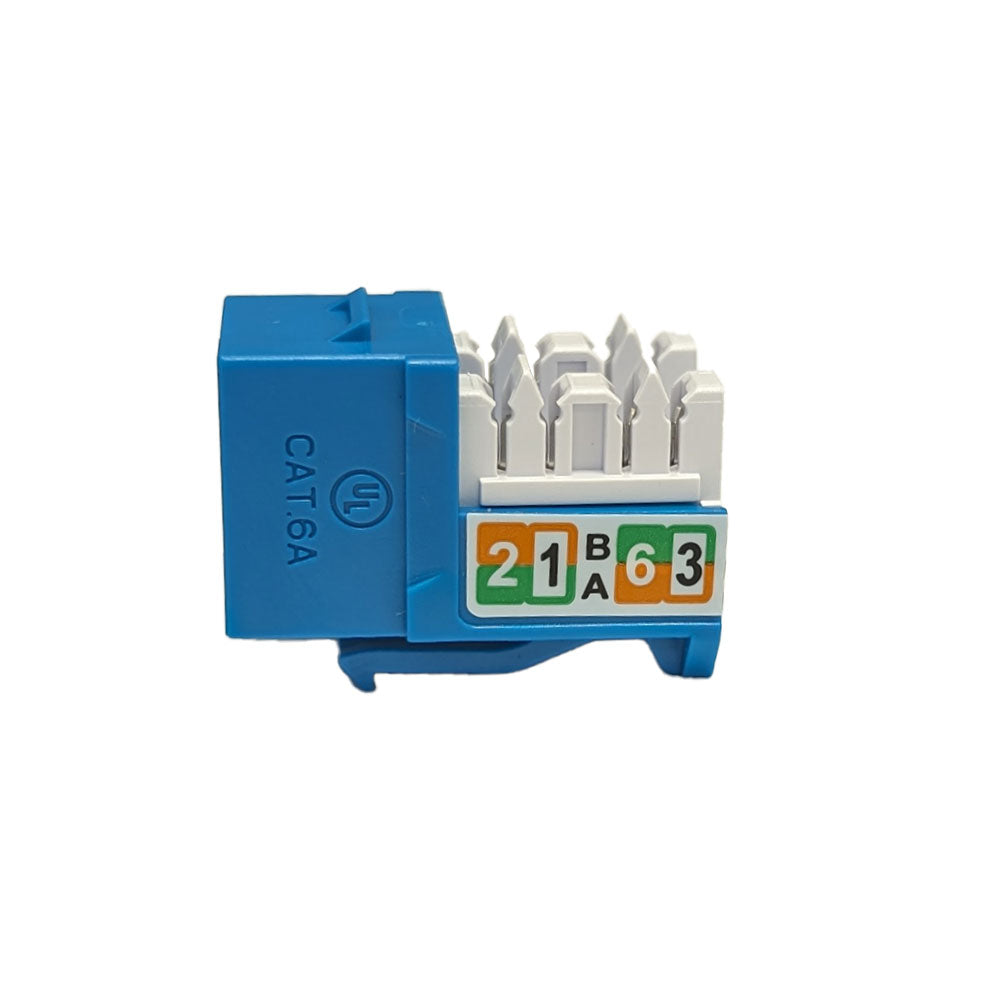

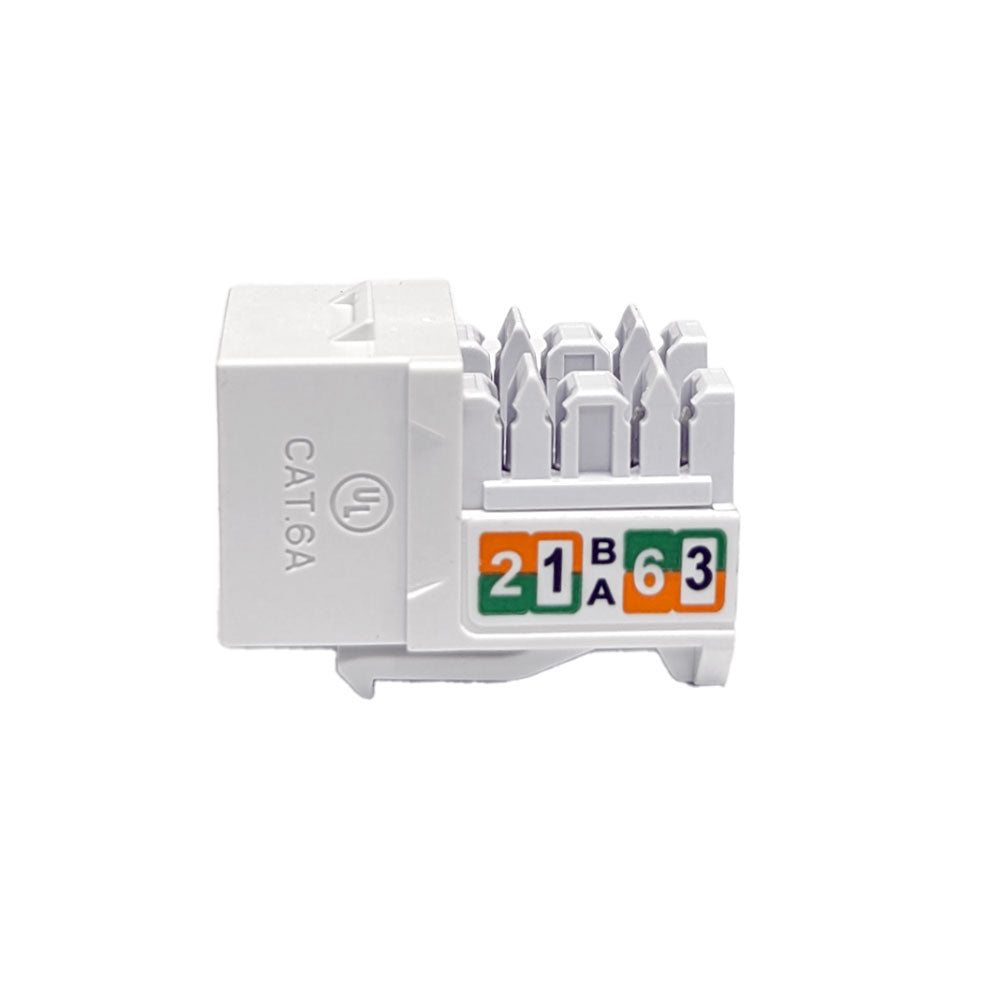

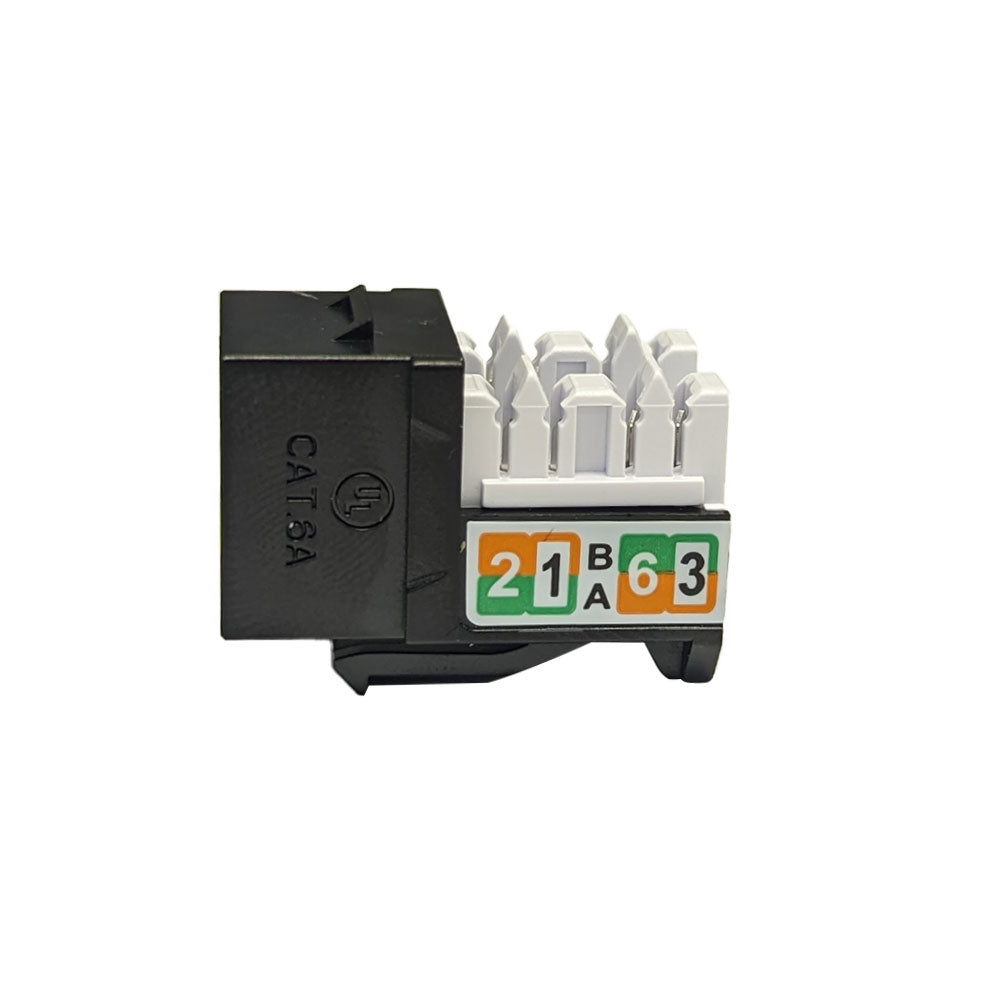

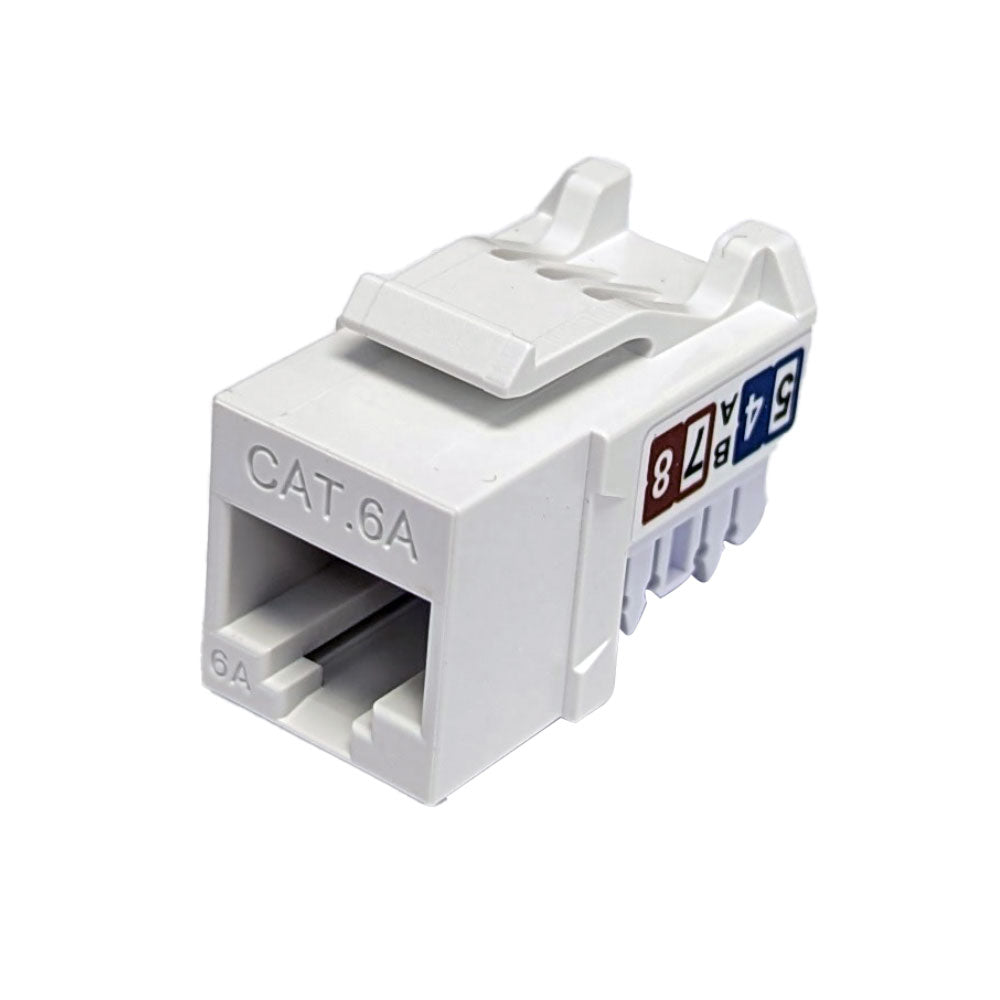

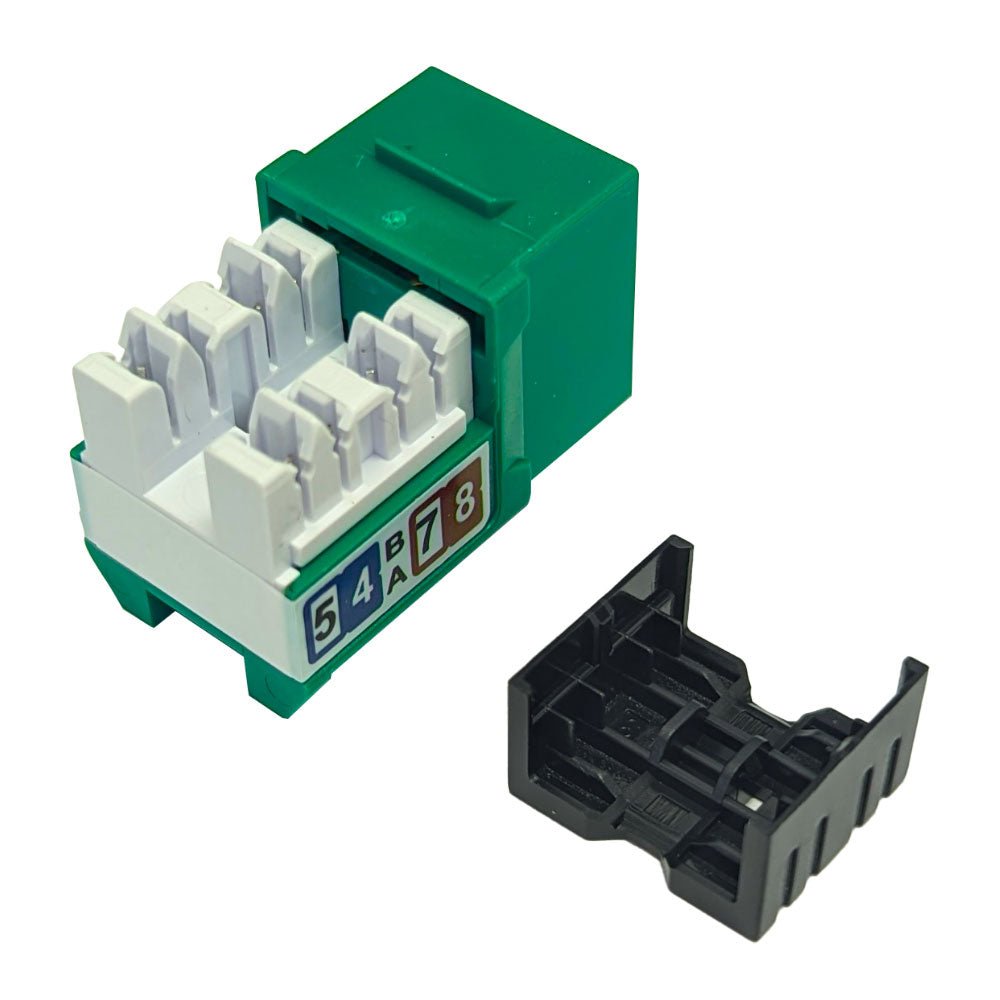

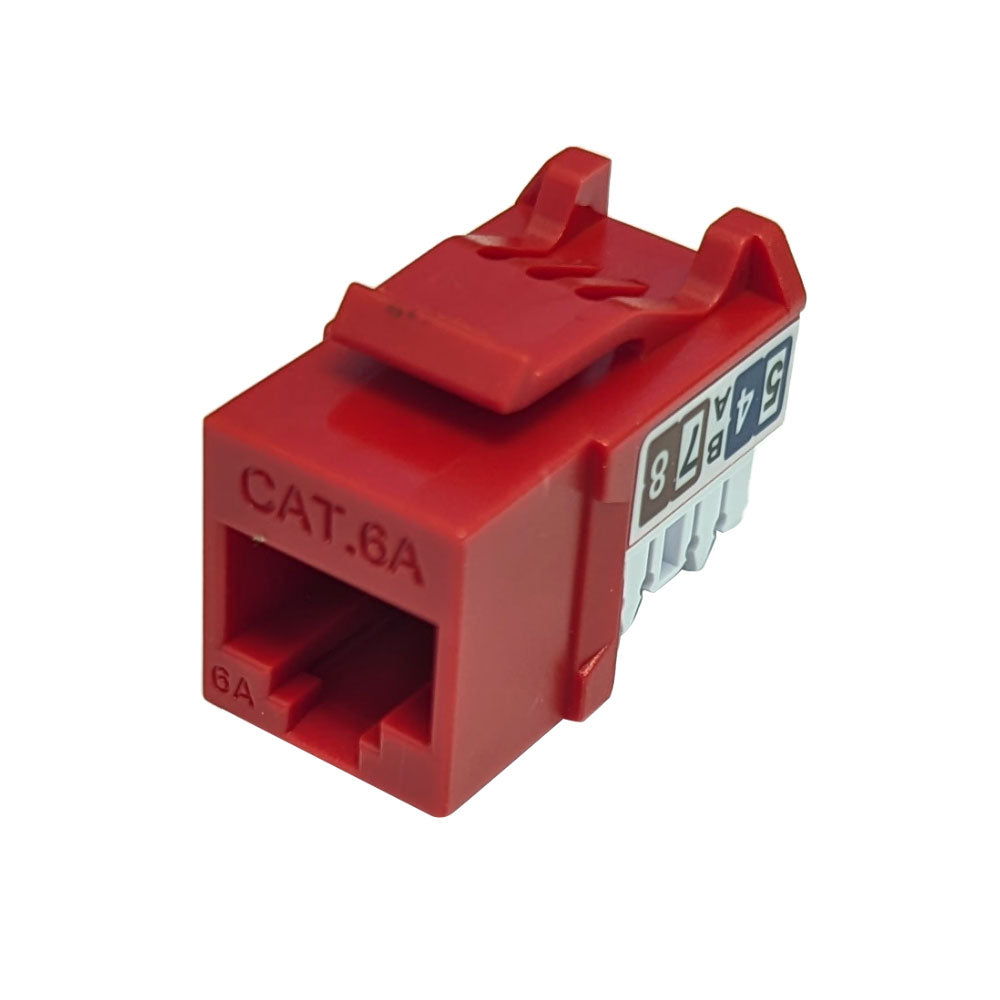

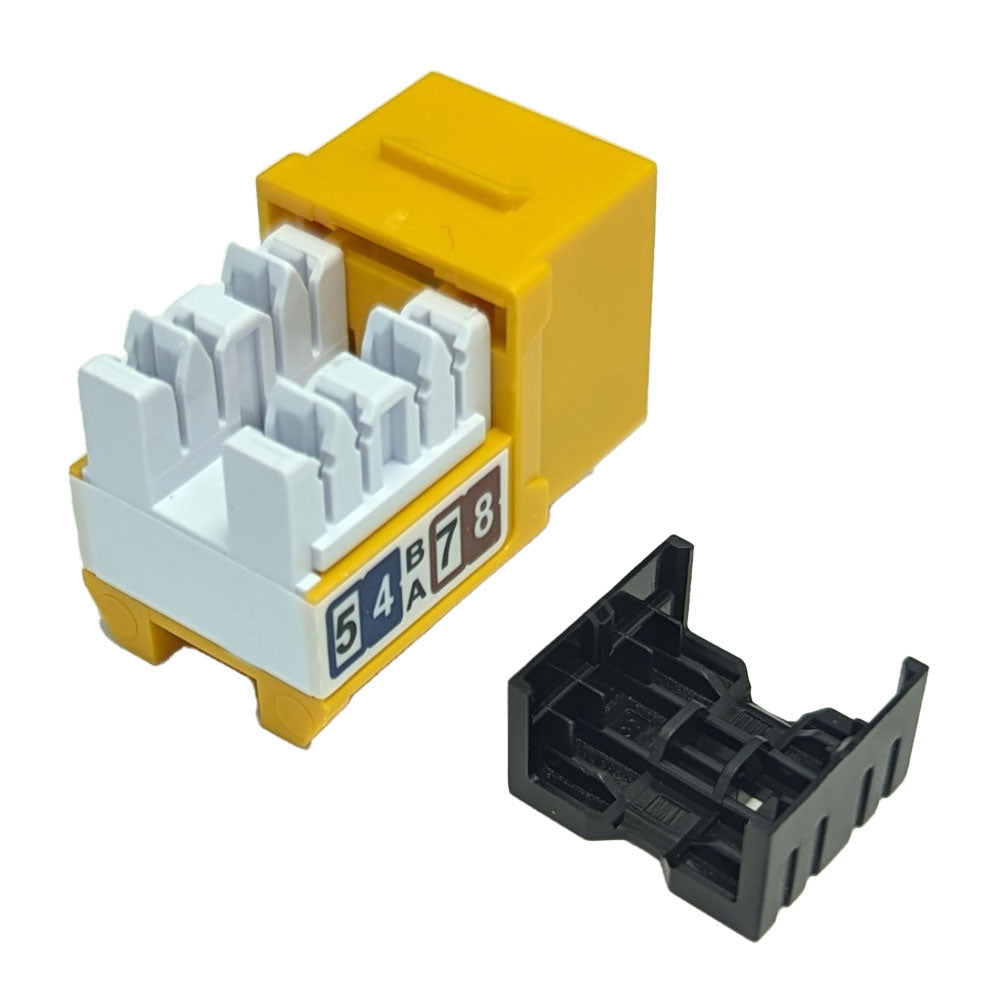

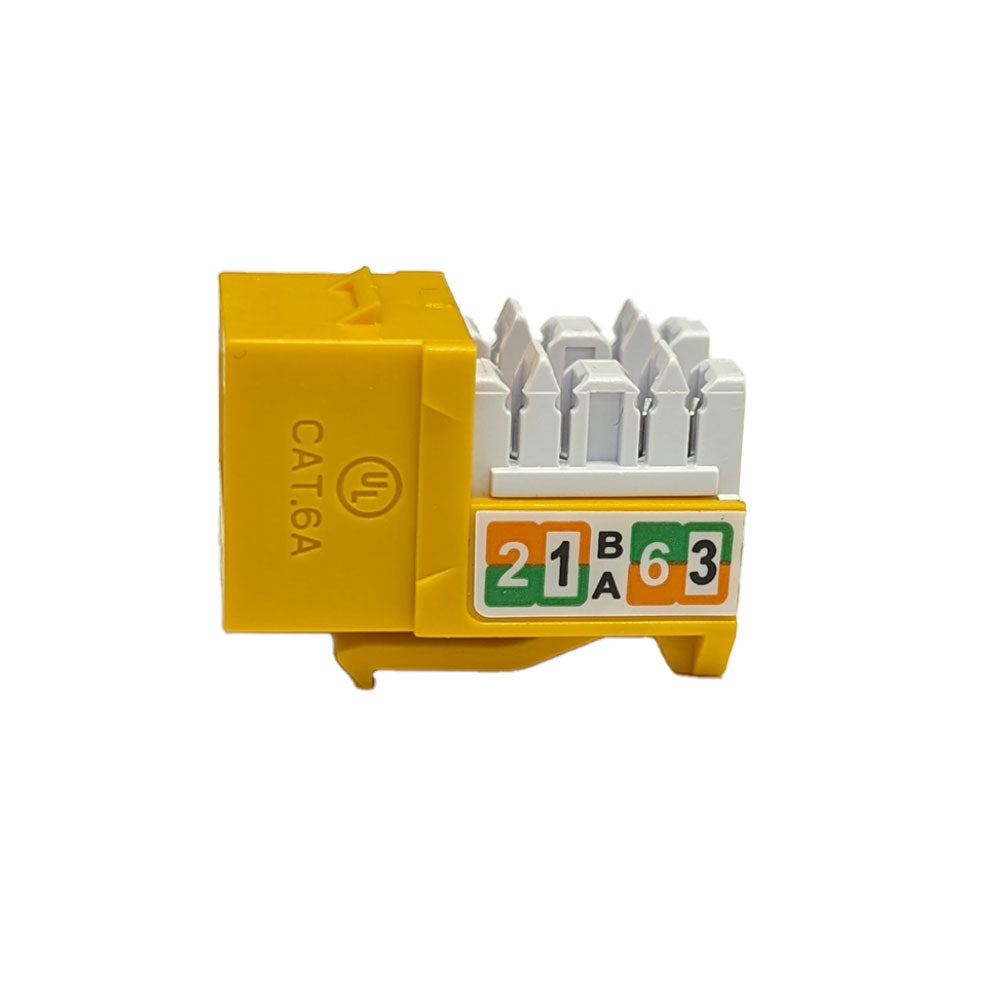

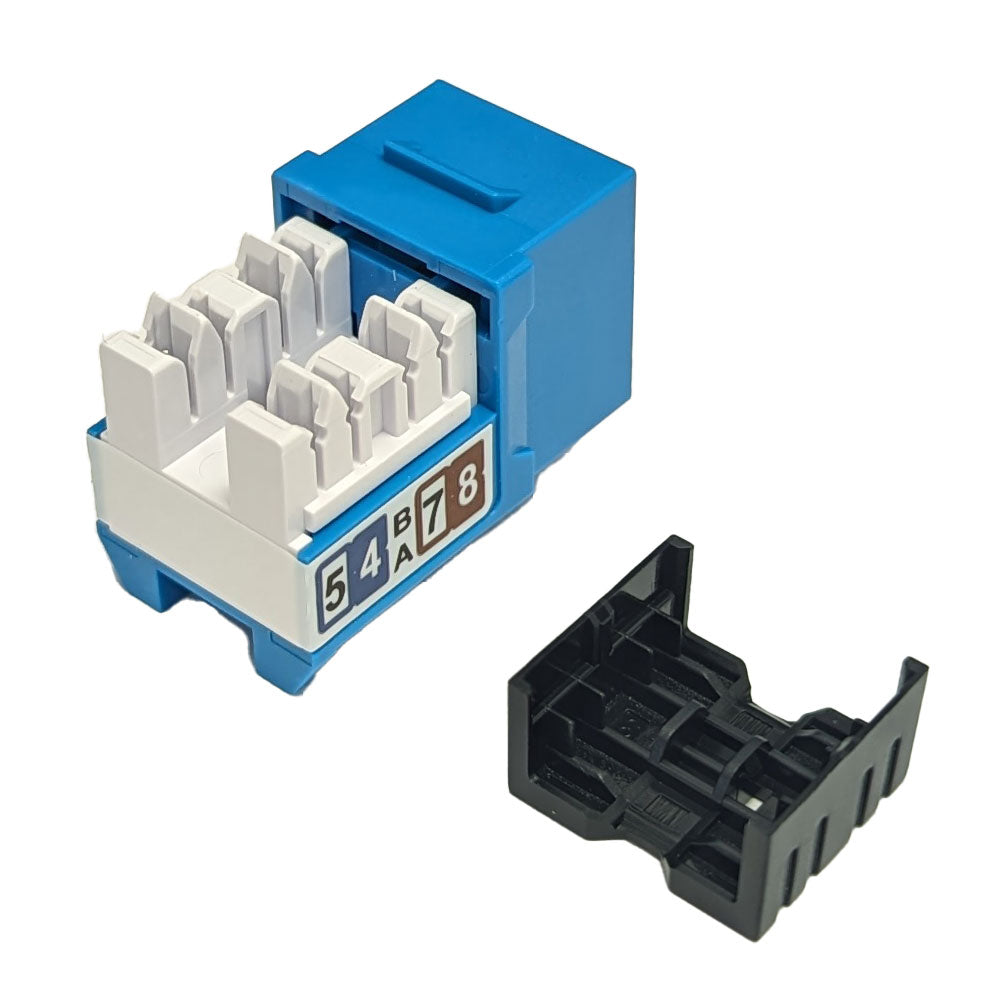

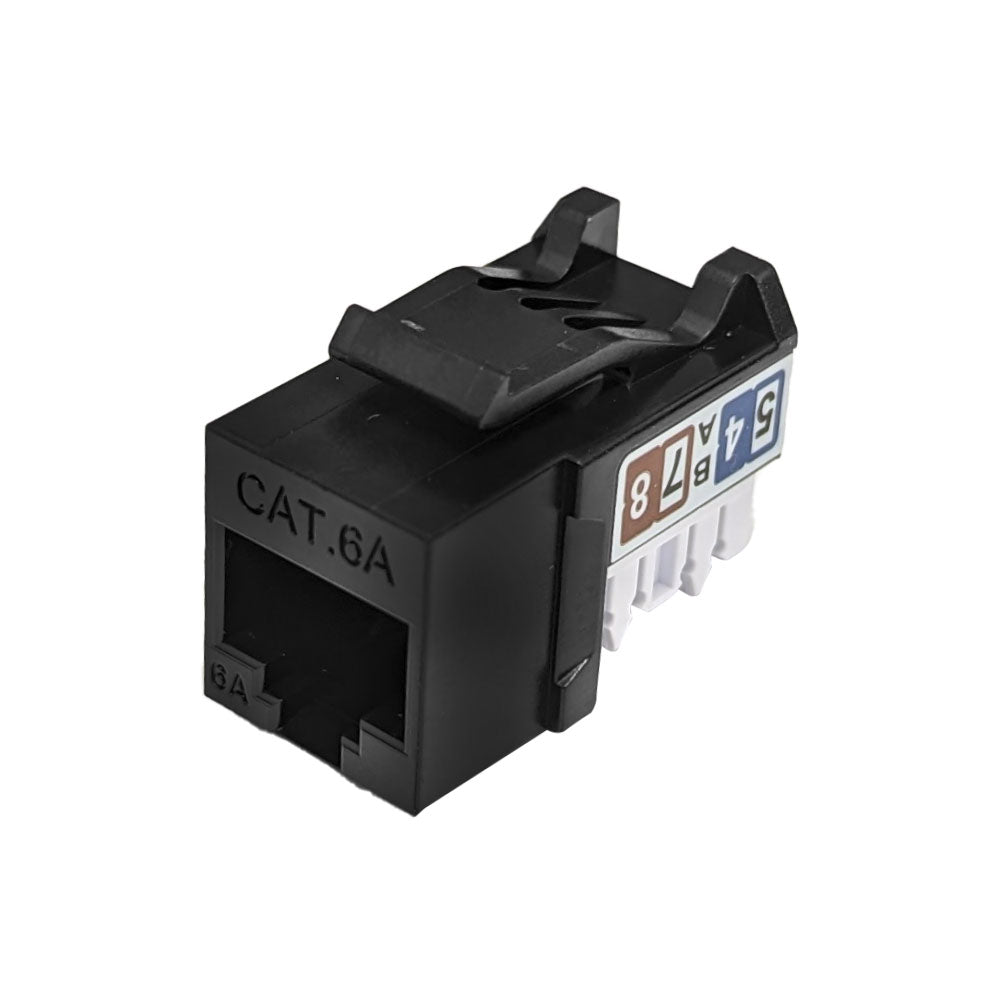

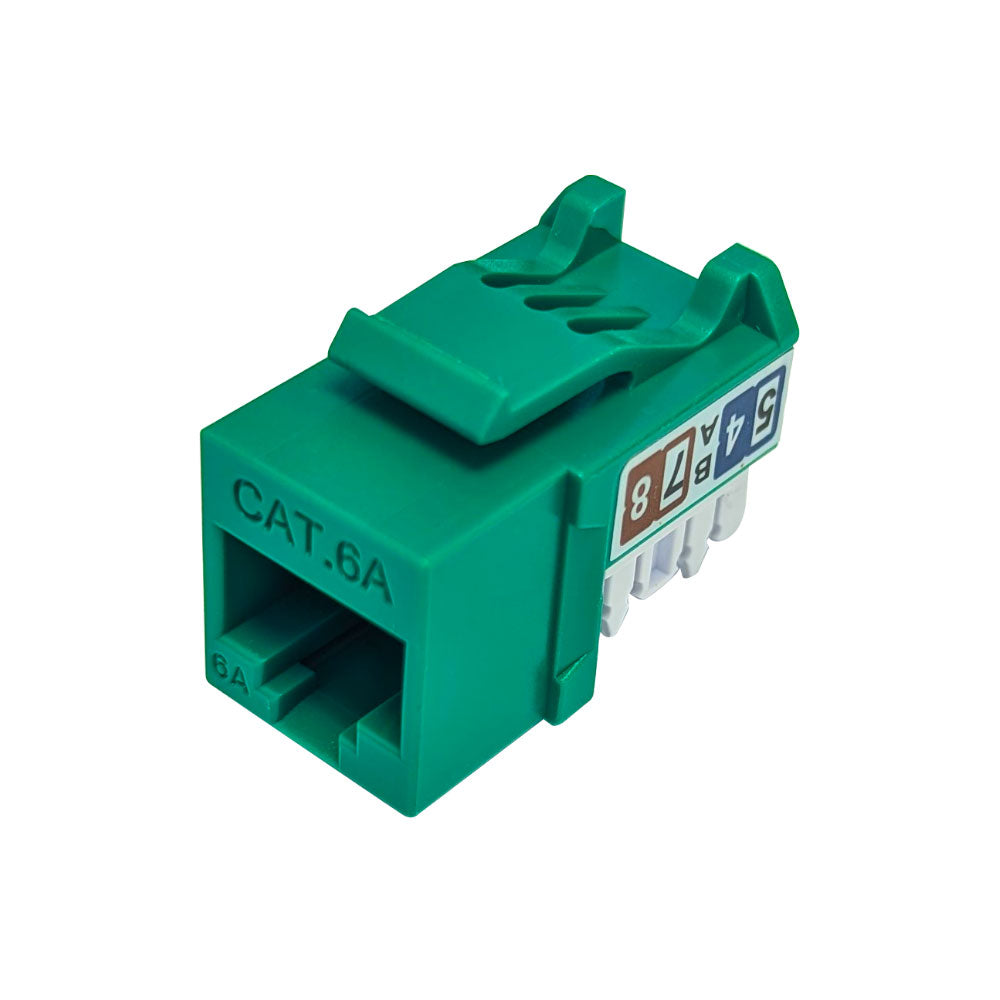

This keystone insert consists of a RJ45 Cat6a slim profile jack female on one end and a standard 110 punch down on the other end. It fits into a standard keystone opening and used to terminate bulk Cat6a UTP cable.
| Physical Characteristics | |
|---|---|

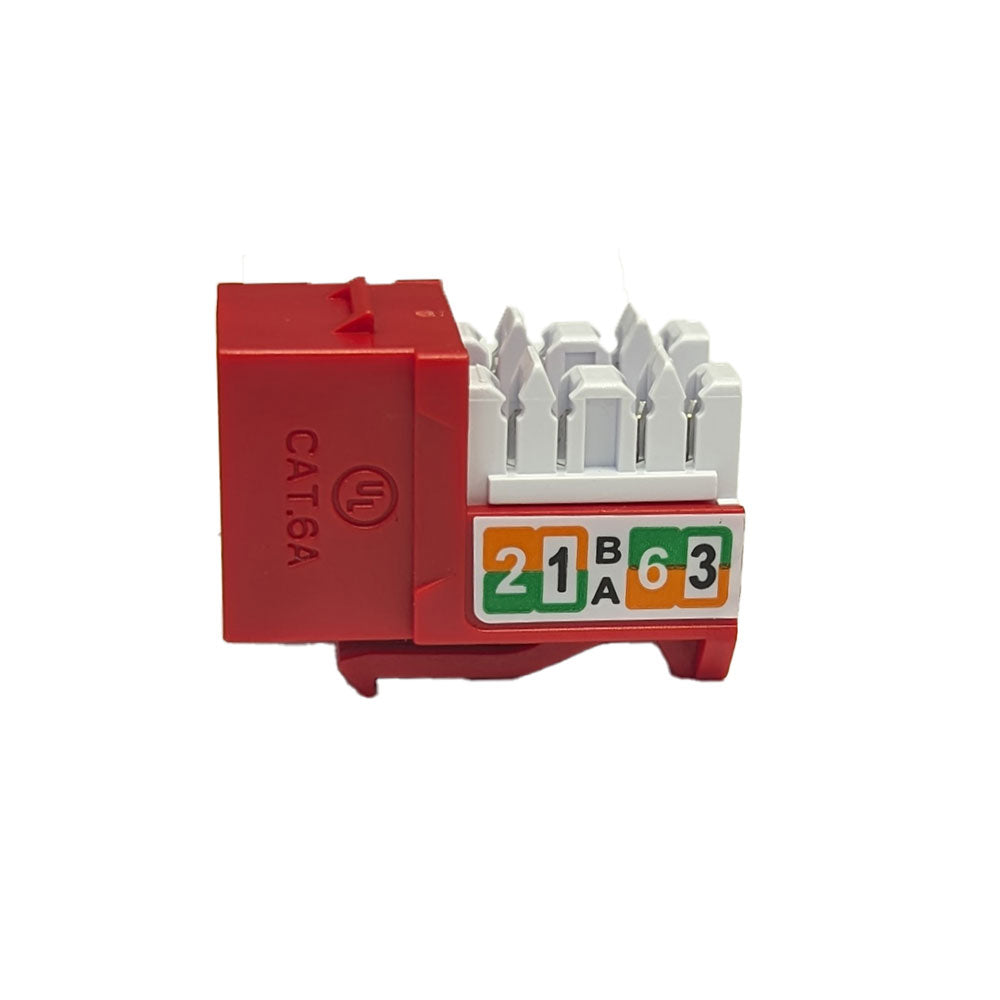

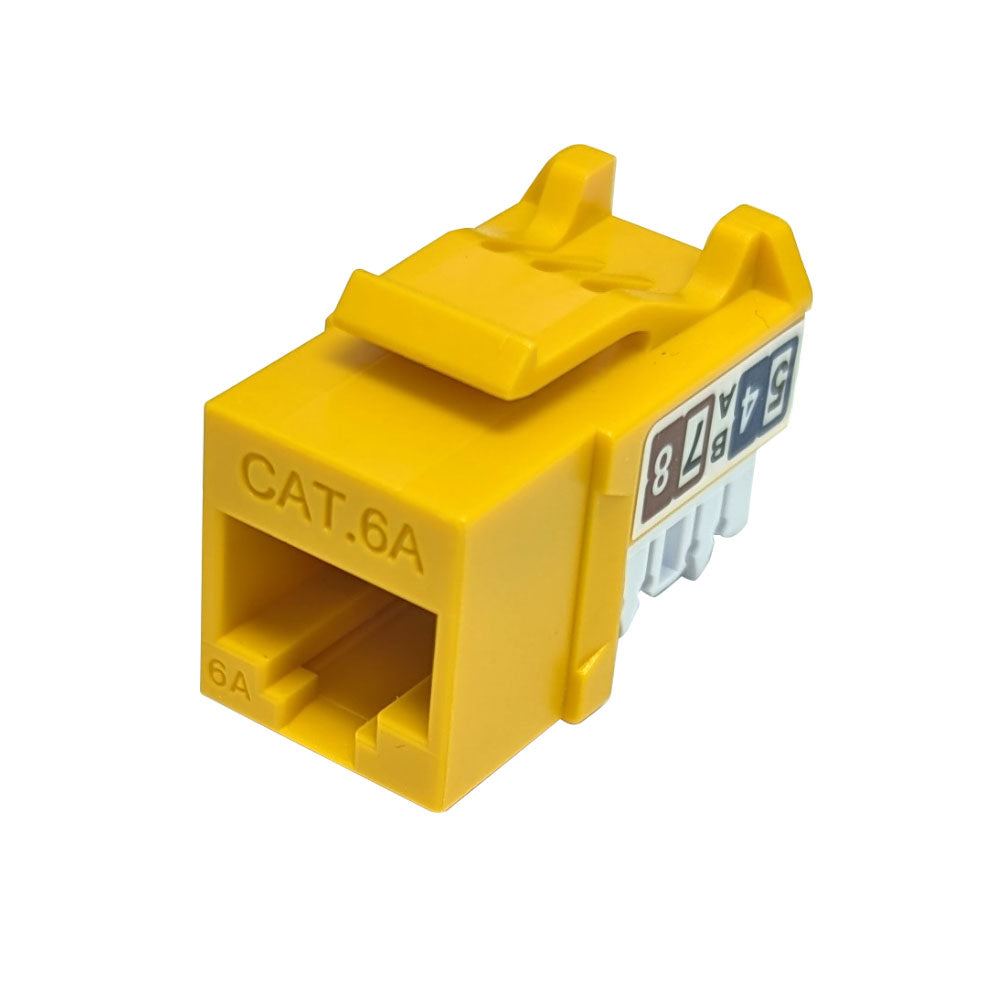

| Color | Black / Blue / Green / Grey / Red / White / Yellow |
| Material | ABS |
| Body Style | Slim Profile |
| Termination | IDC 110 Punch |
| Connector Plating | Nickel |
| Size | Standard Keystone |
| Performance | |
| Insertion Force | 20N max. |
| Retention Strength | 16.97 lbs between Jack & Plug |
| Operating Temperature | -10 ~ 60 degree C |
| Life (mating cycles) | Jack: 750 cycles min. |
| Connector(s) | |
| Connection A | RJ45 Female |
| Connection B | IDC 110 Punch |
| Color Codes Supported | |
| T568A Wiring | Yes |
| T568B Wiring | Yes |
| Approvals | |
| c(UL)us | Yes |
| ETL | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
| Contents | |

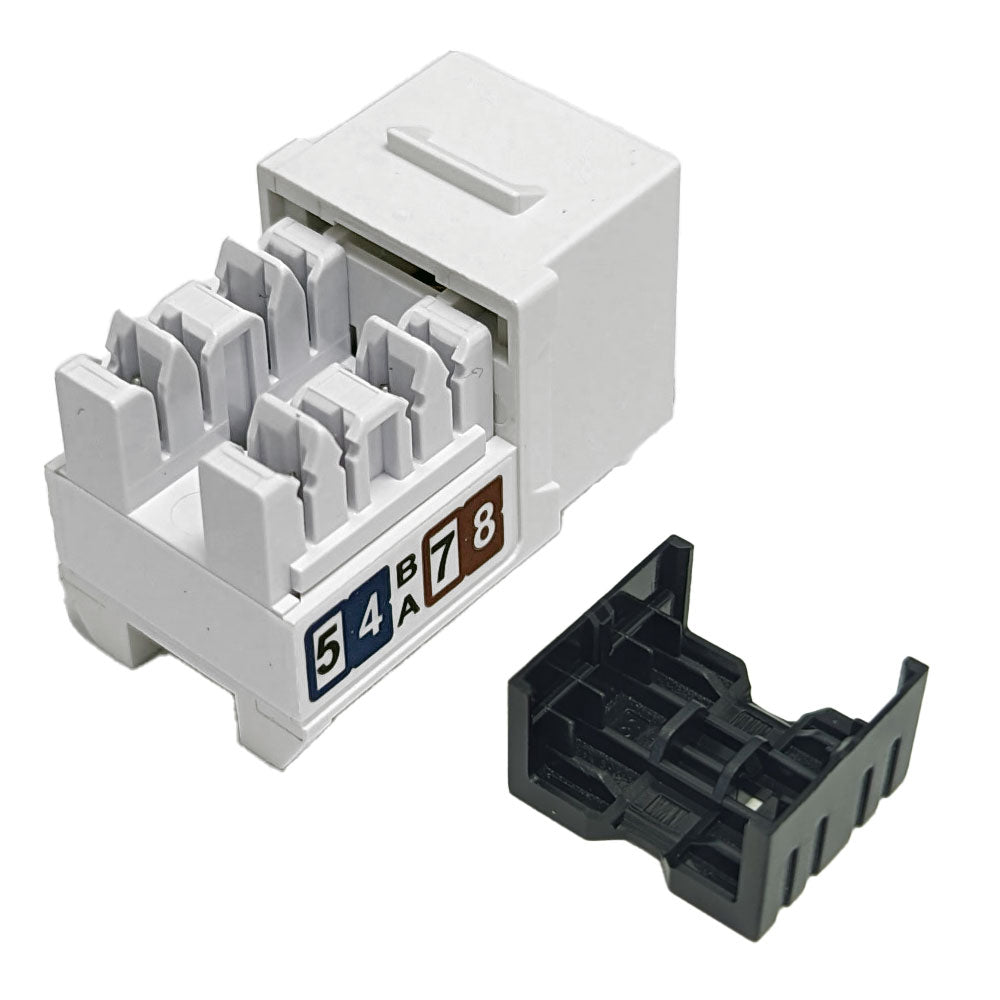

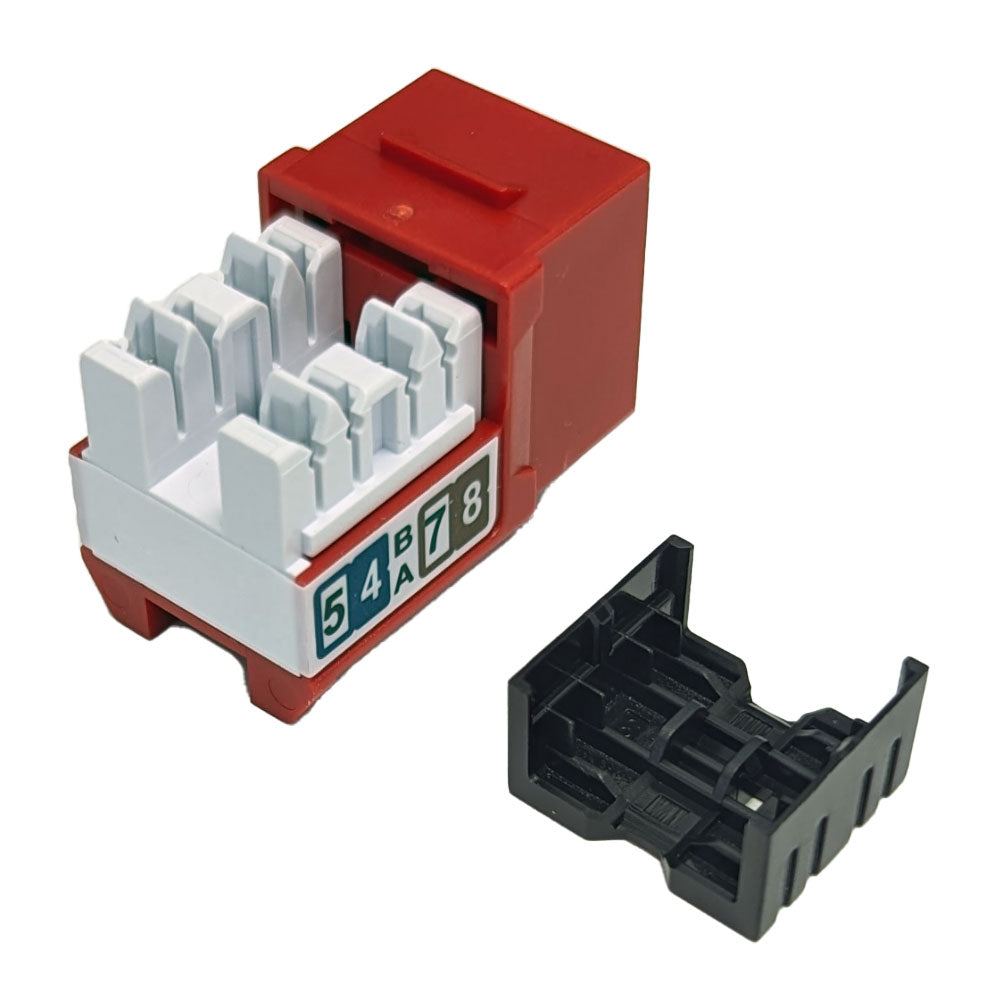

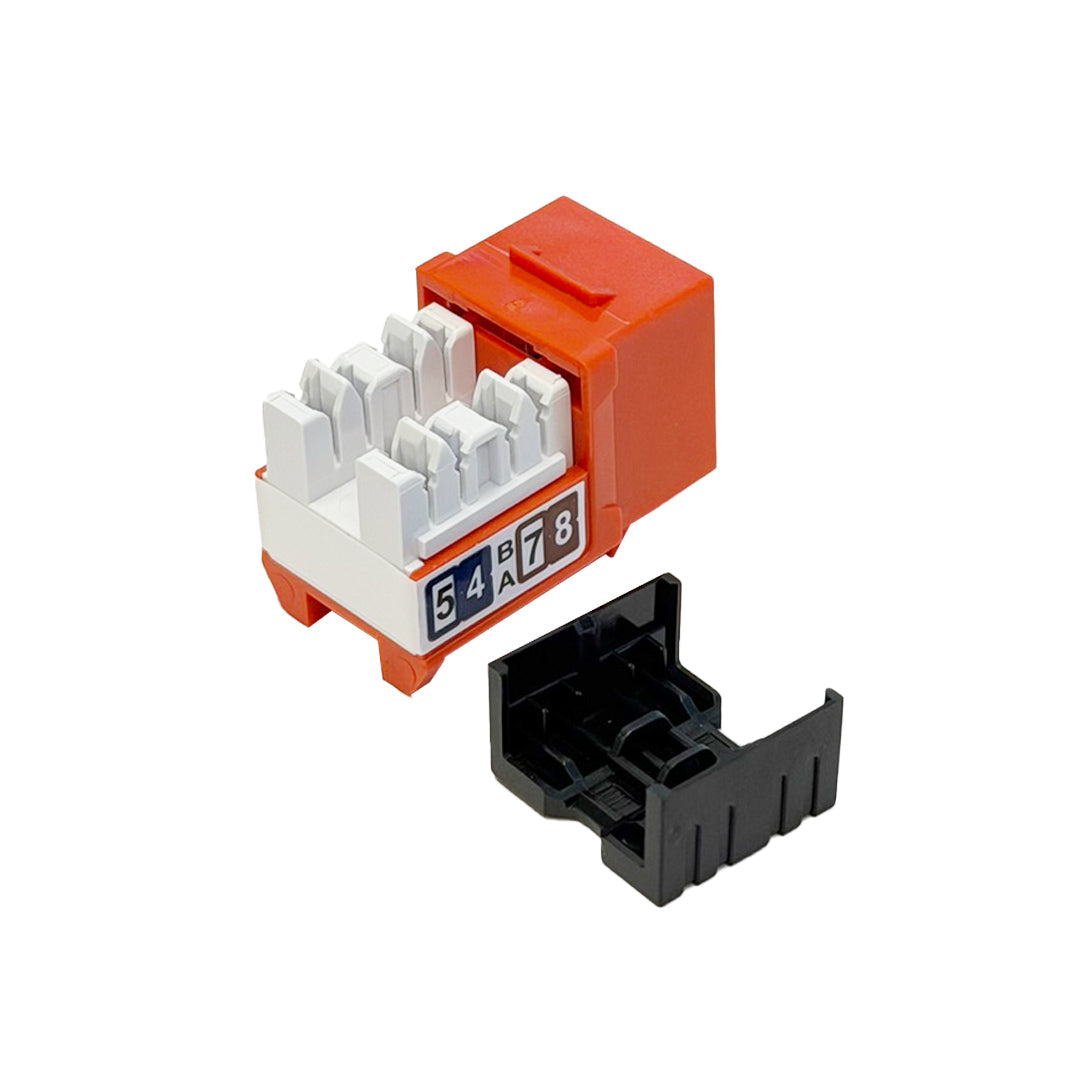

| Included in Package | 1- Jack 1- Cap |
