Description
Overview

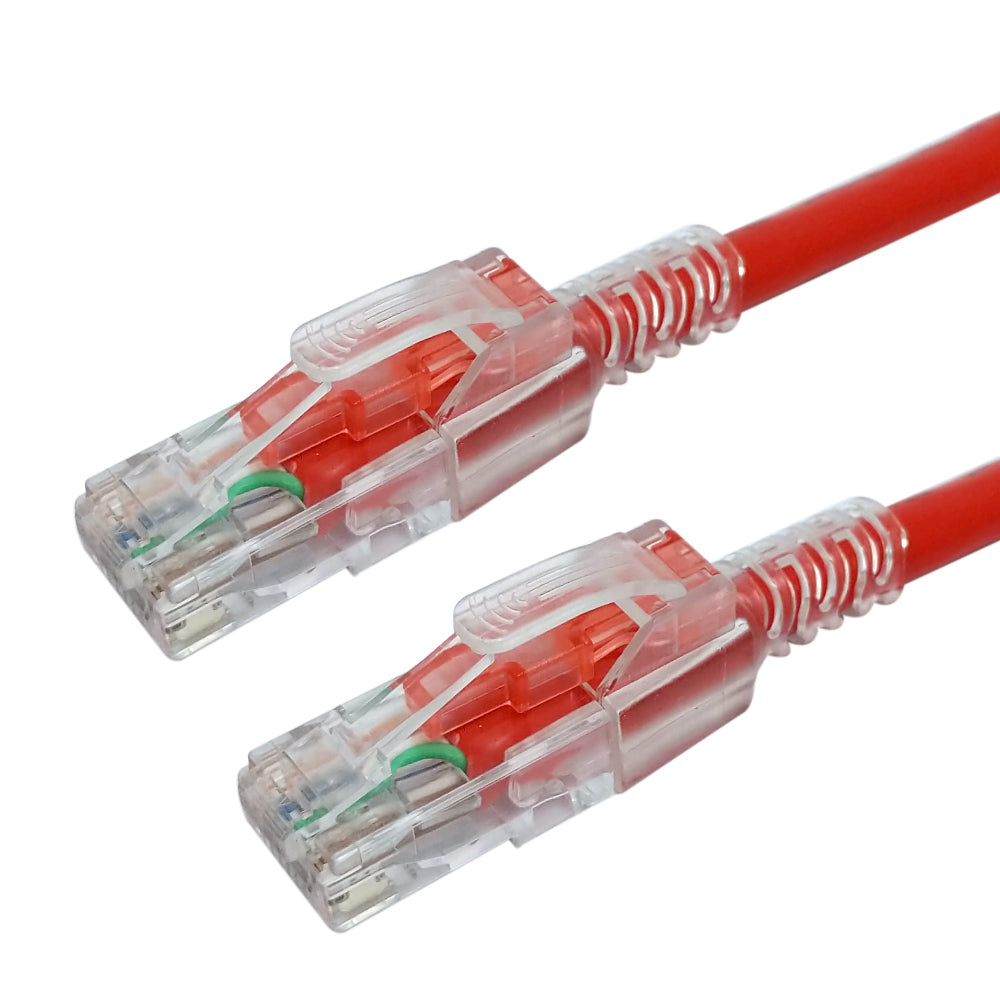

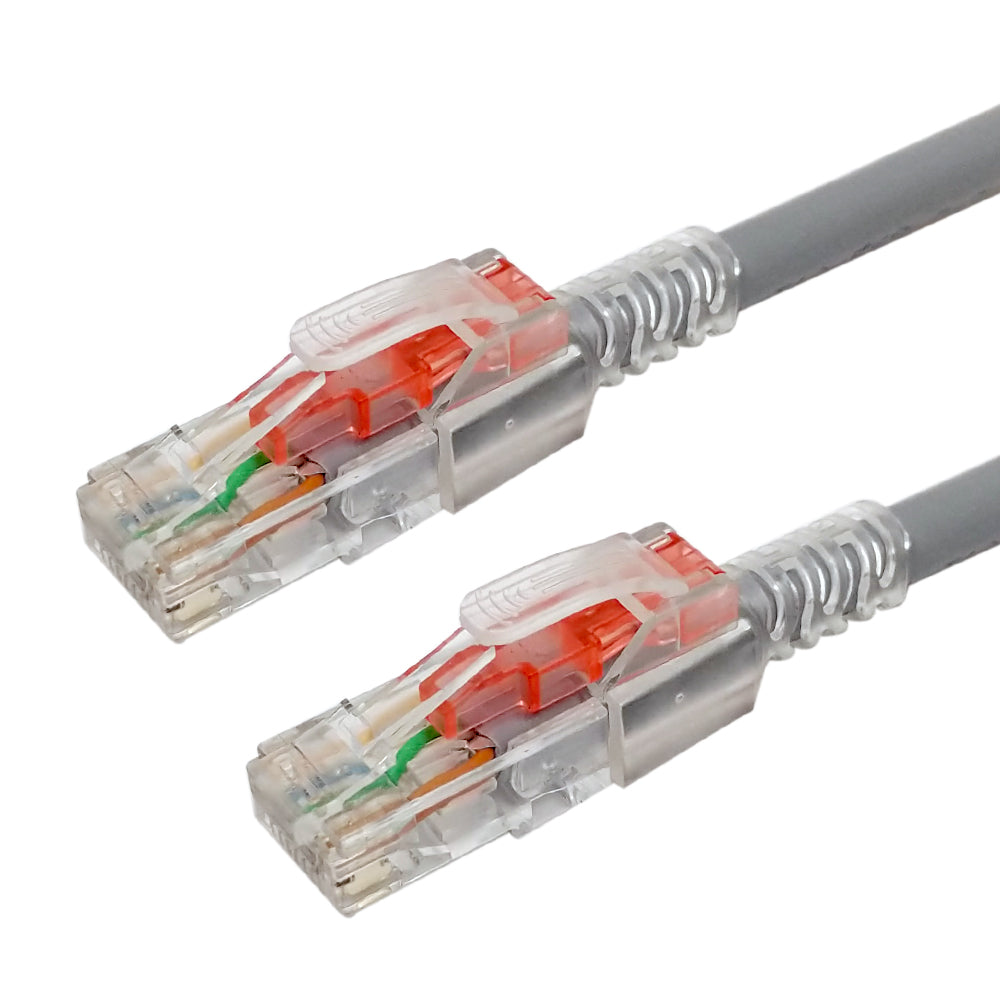

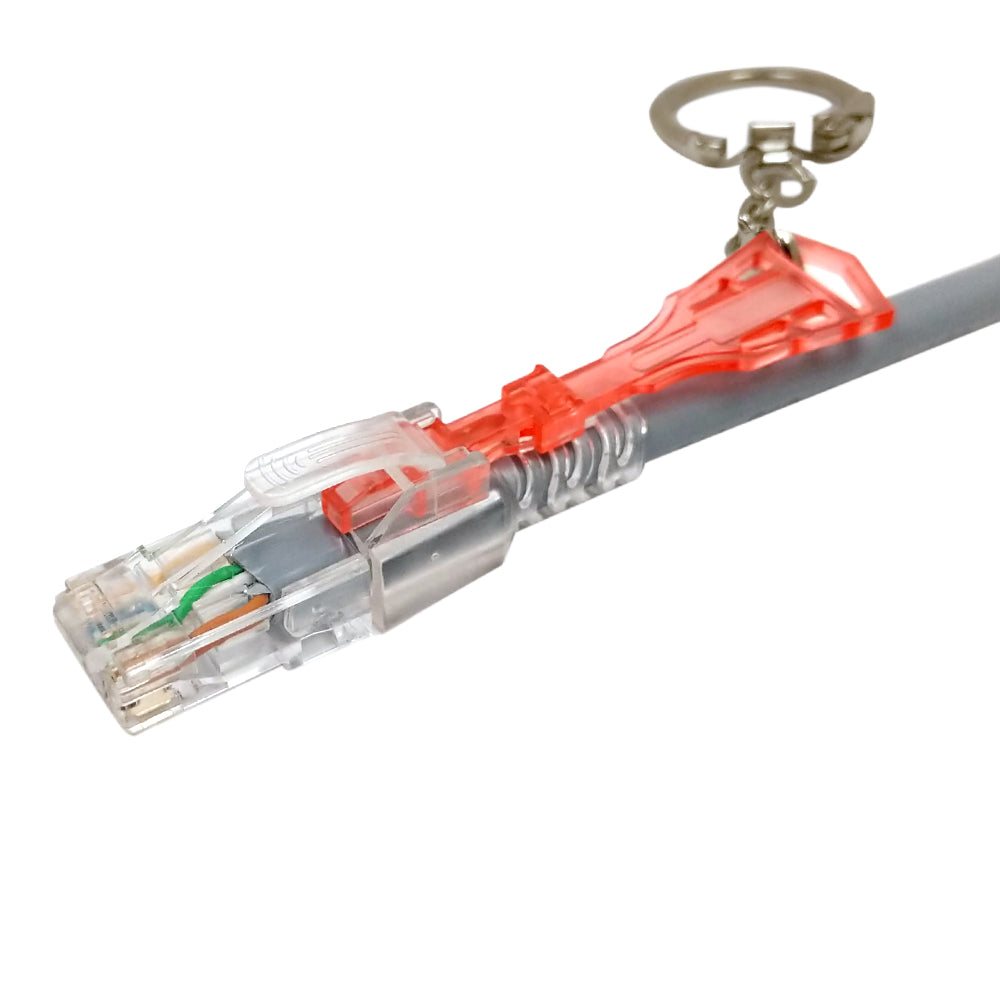

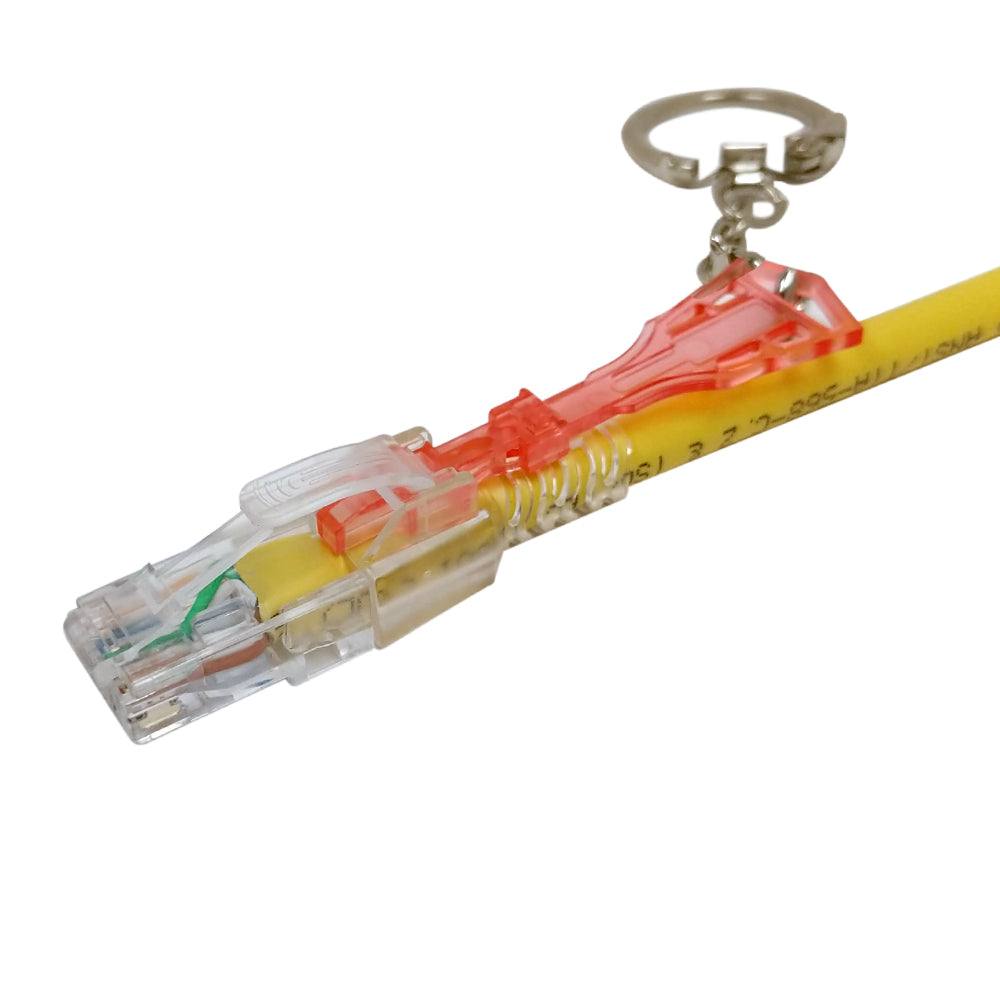

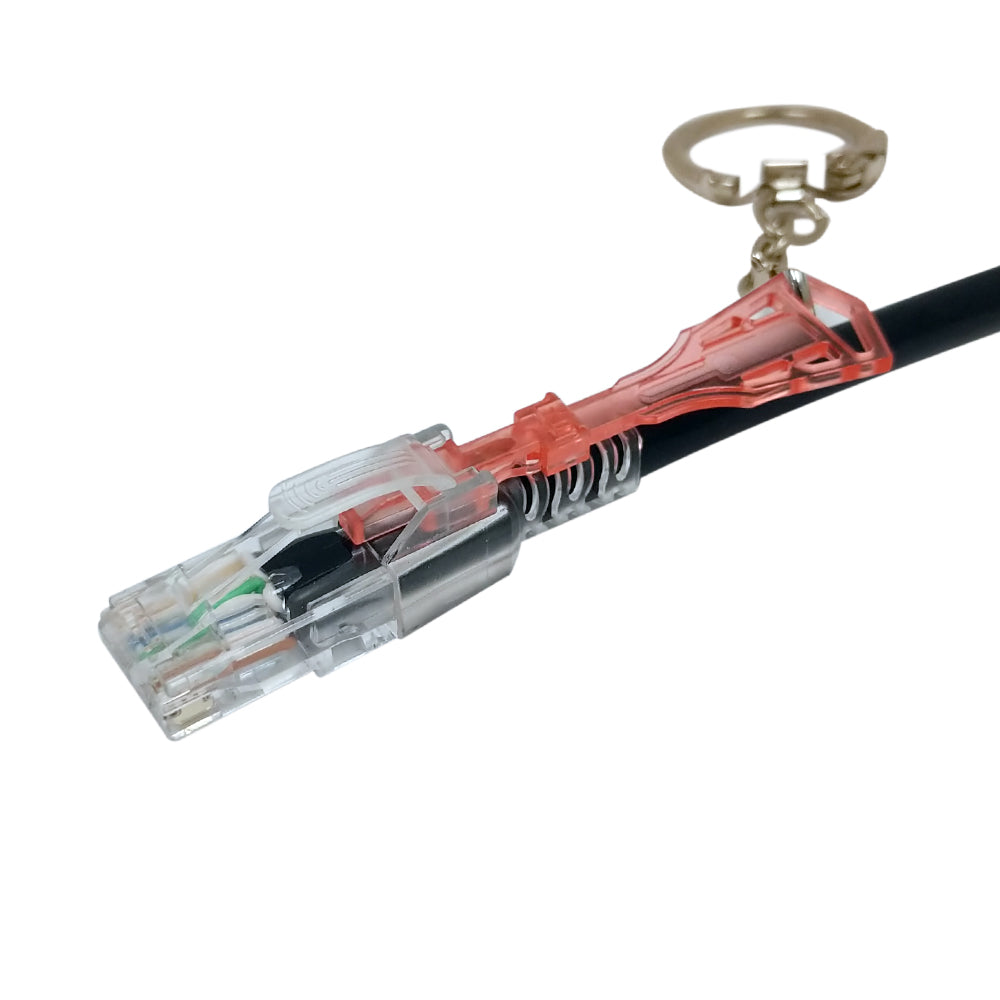

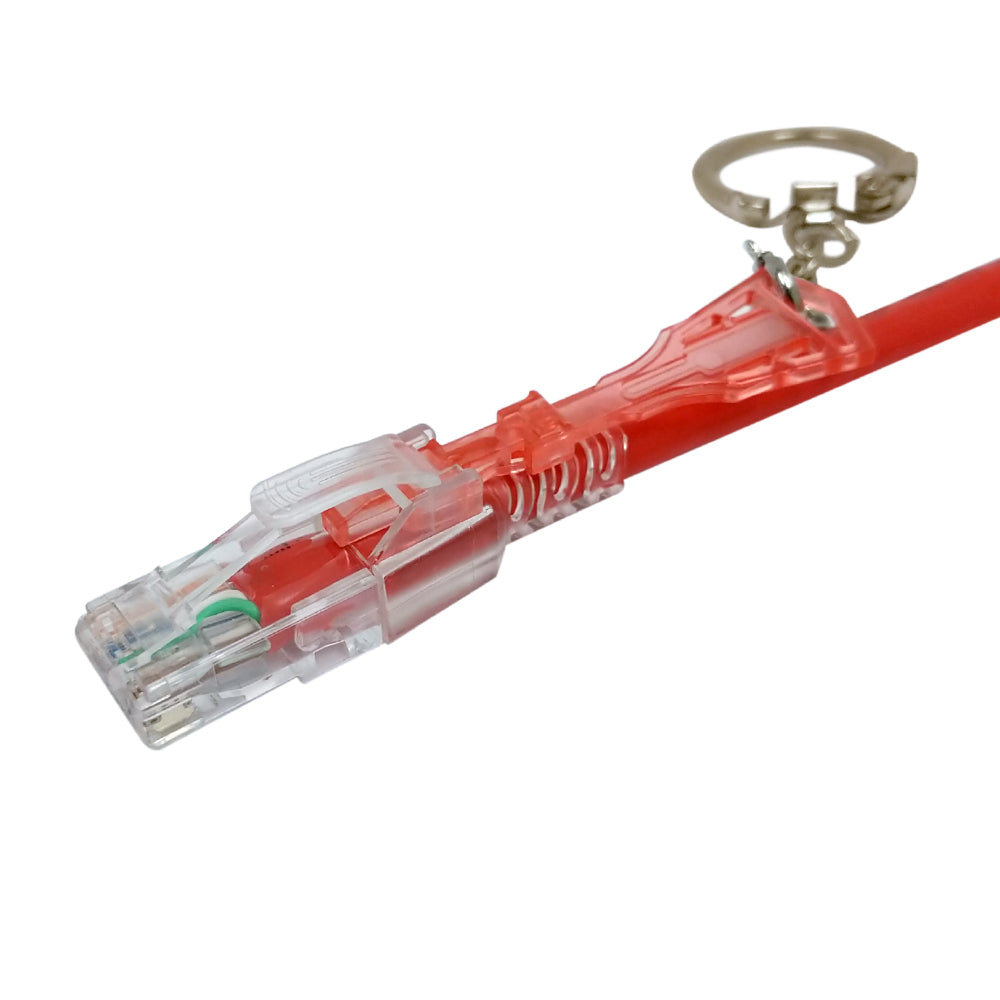

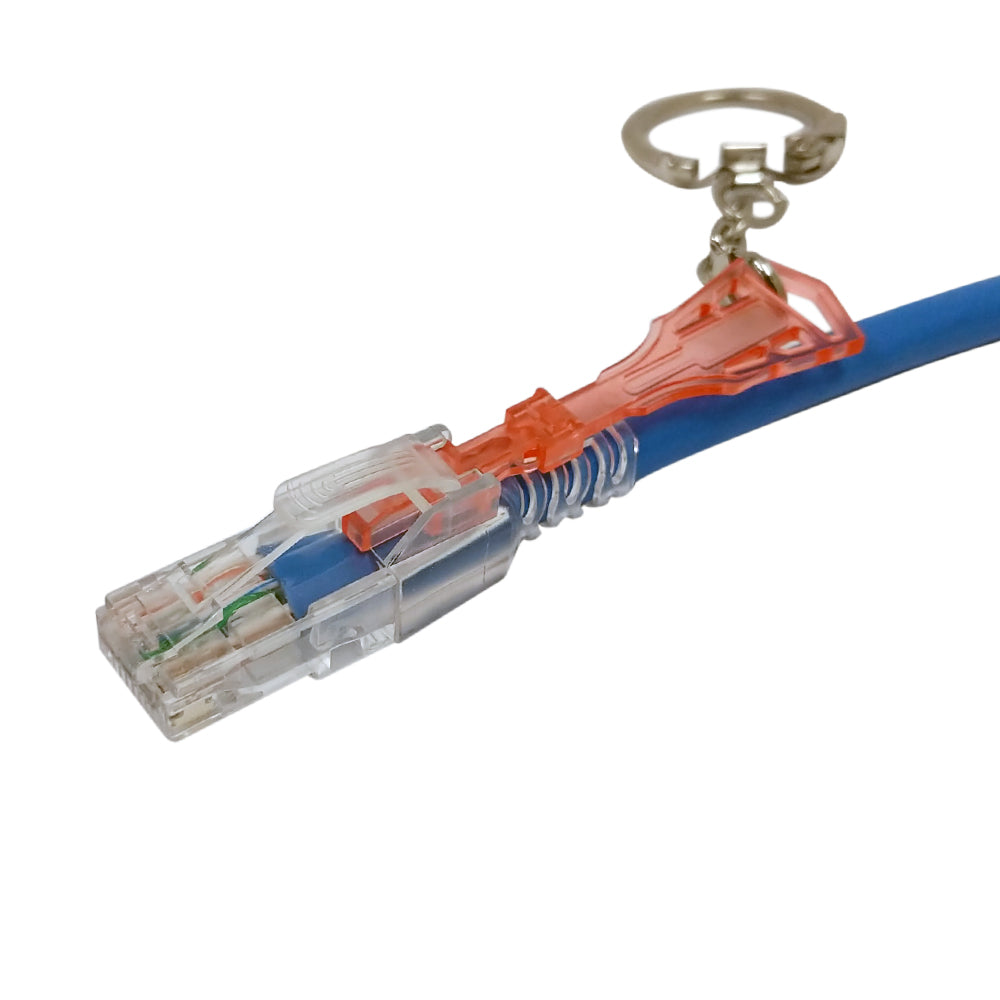

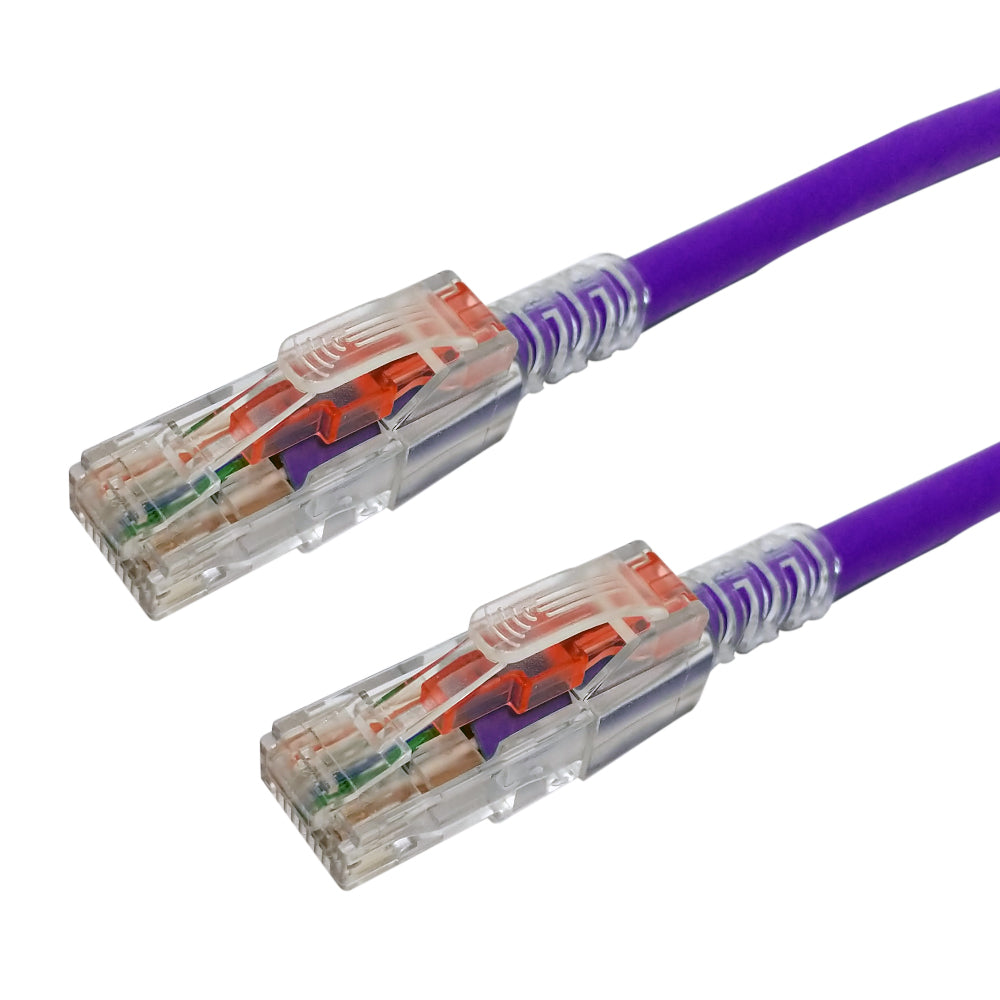

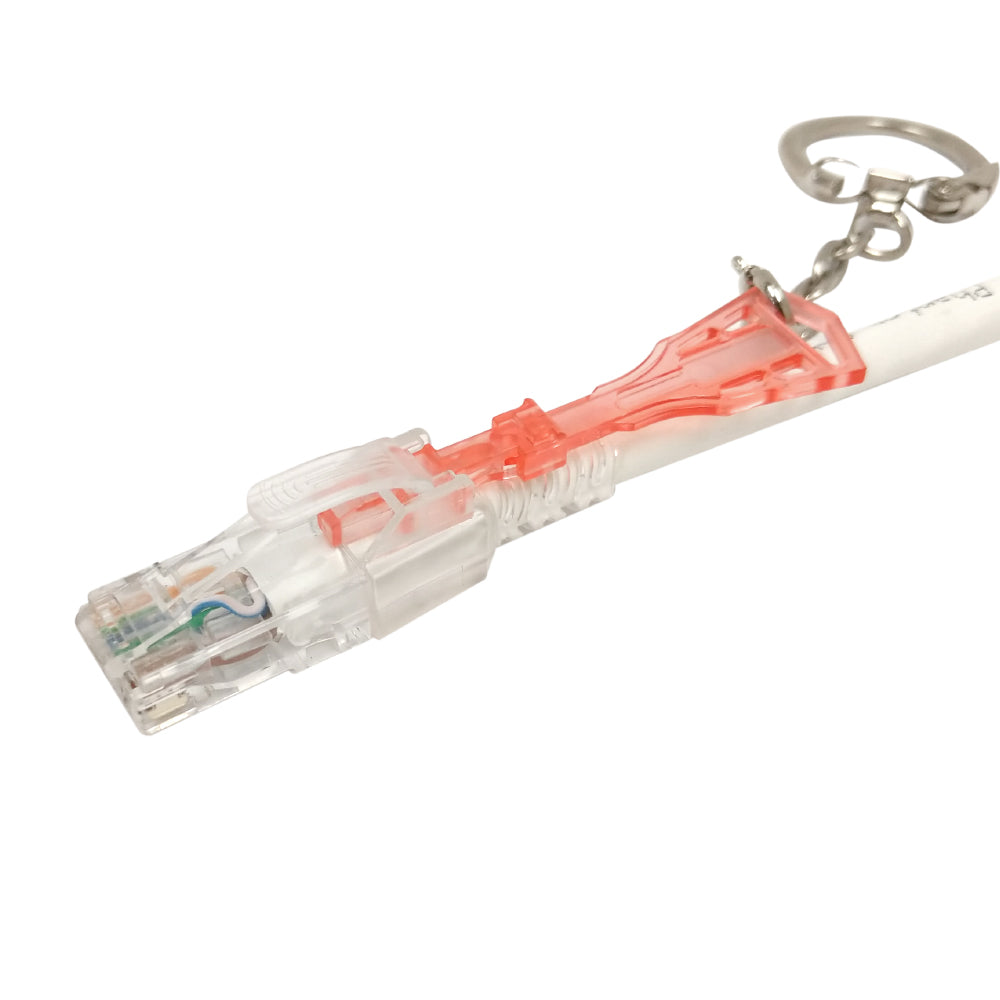

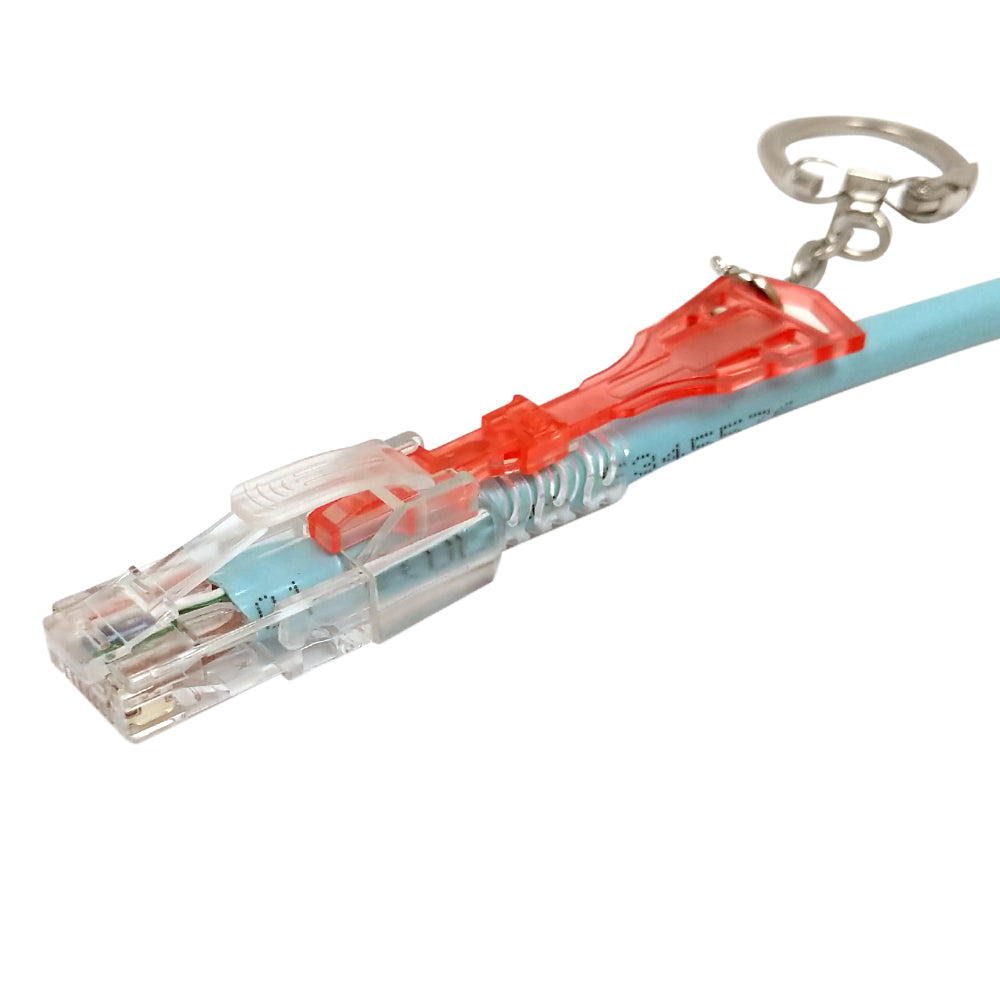

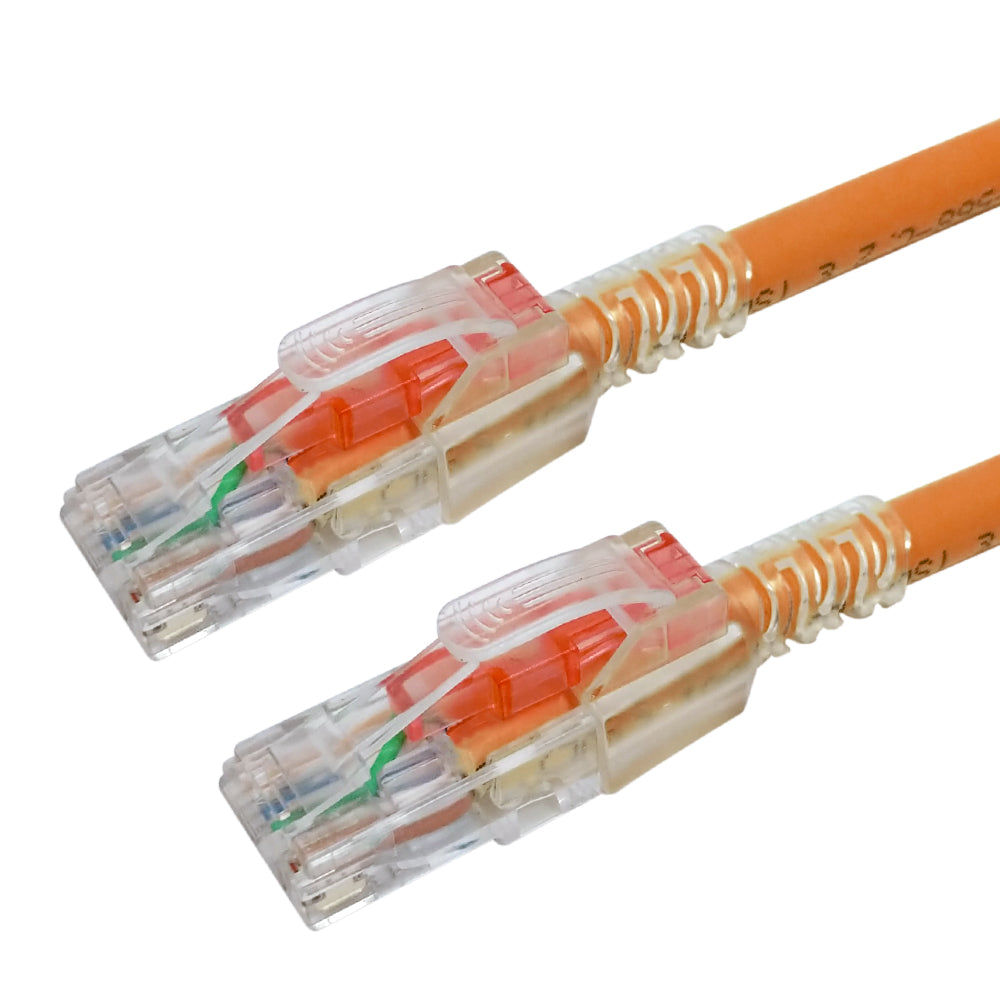

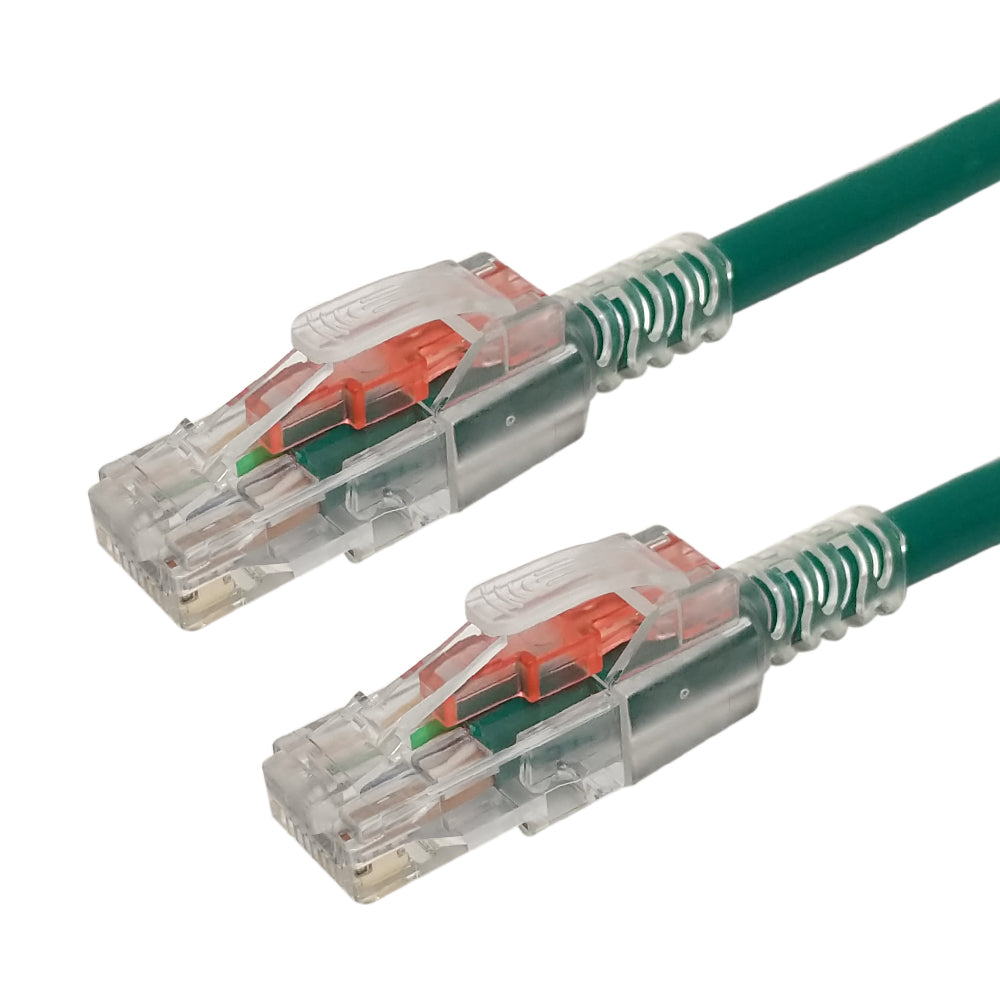

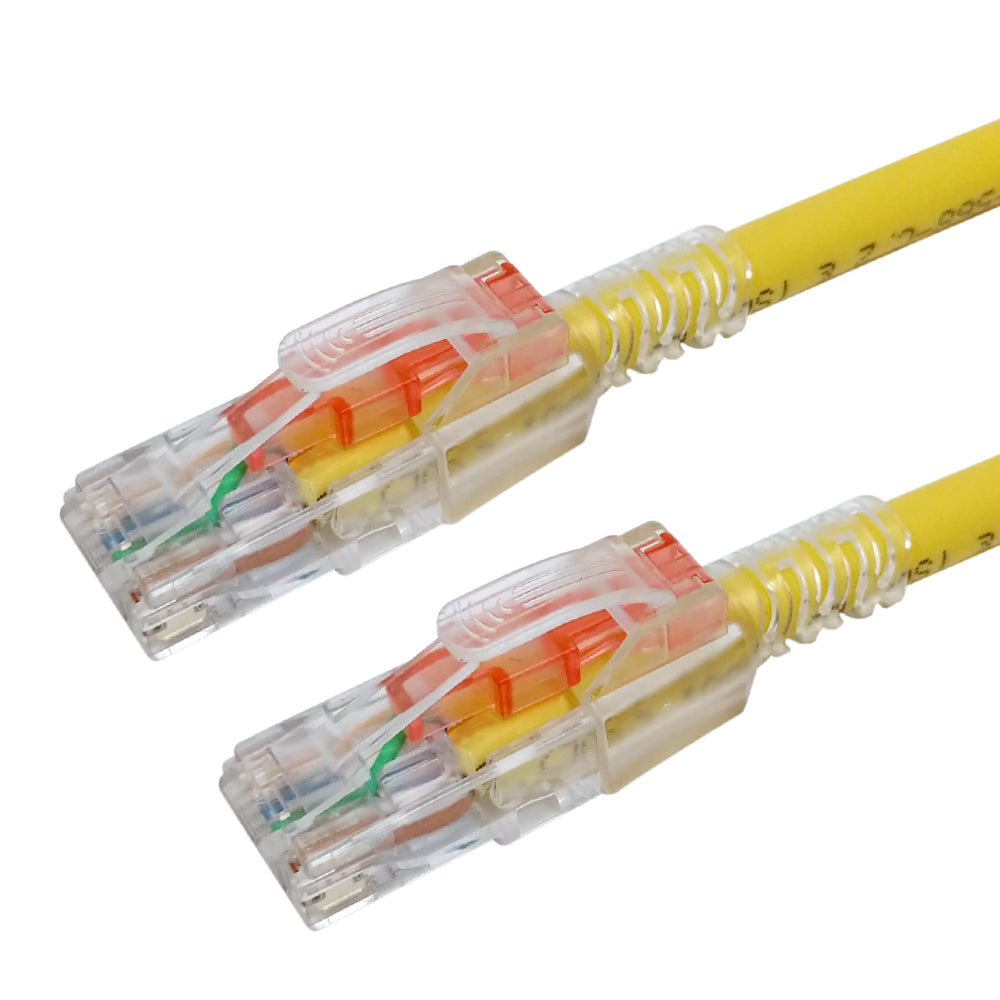

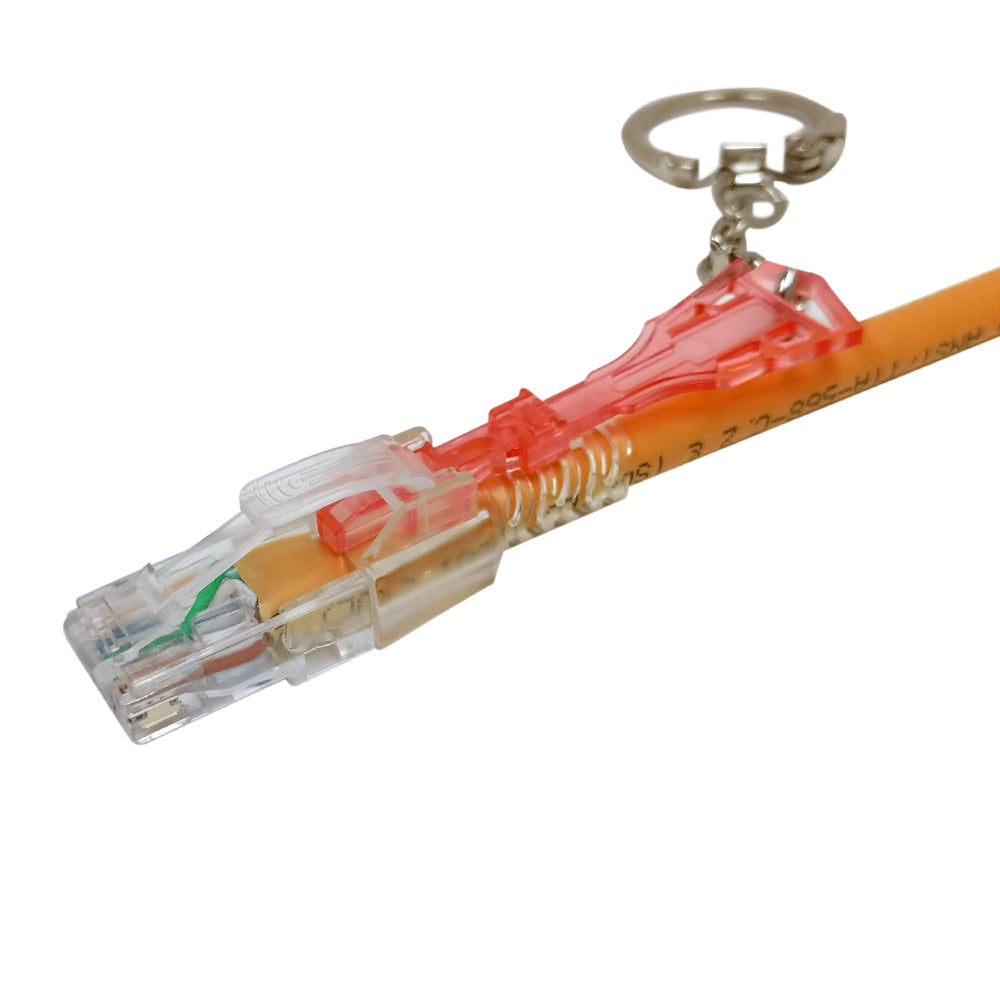

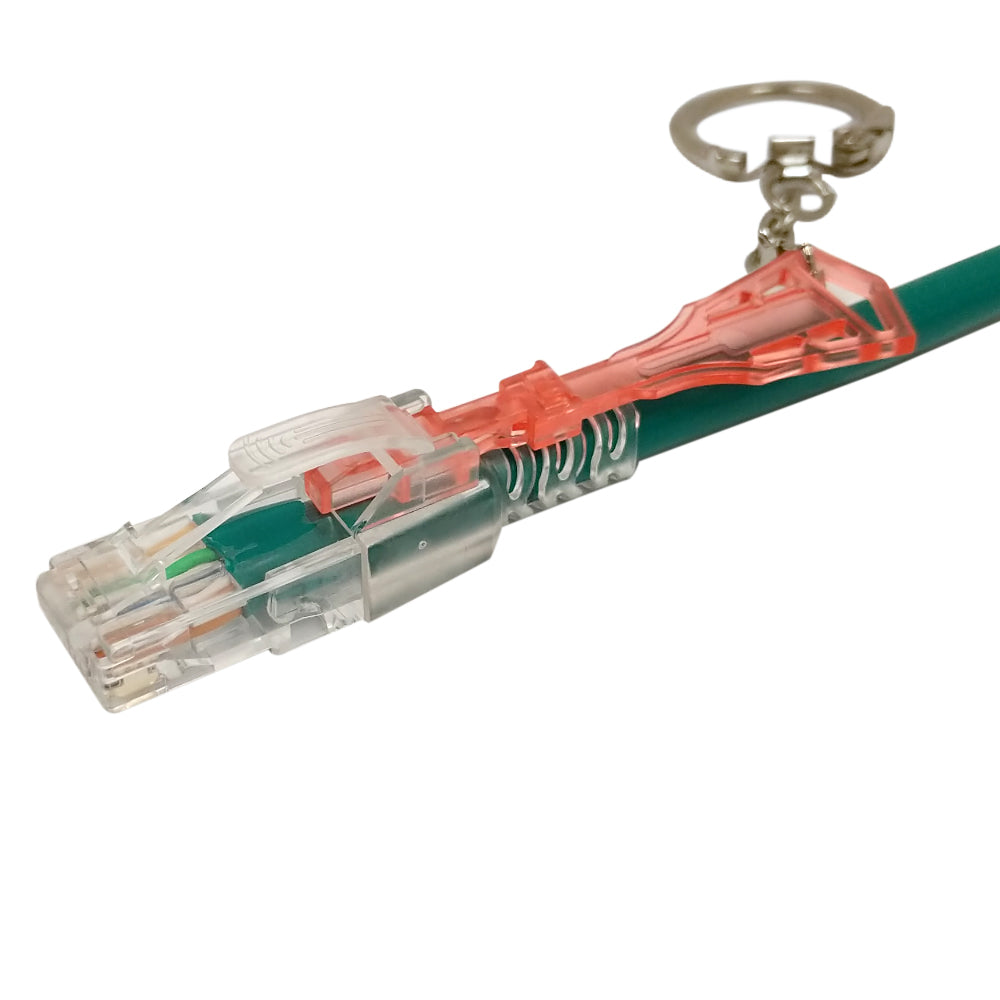

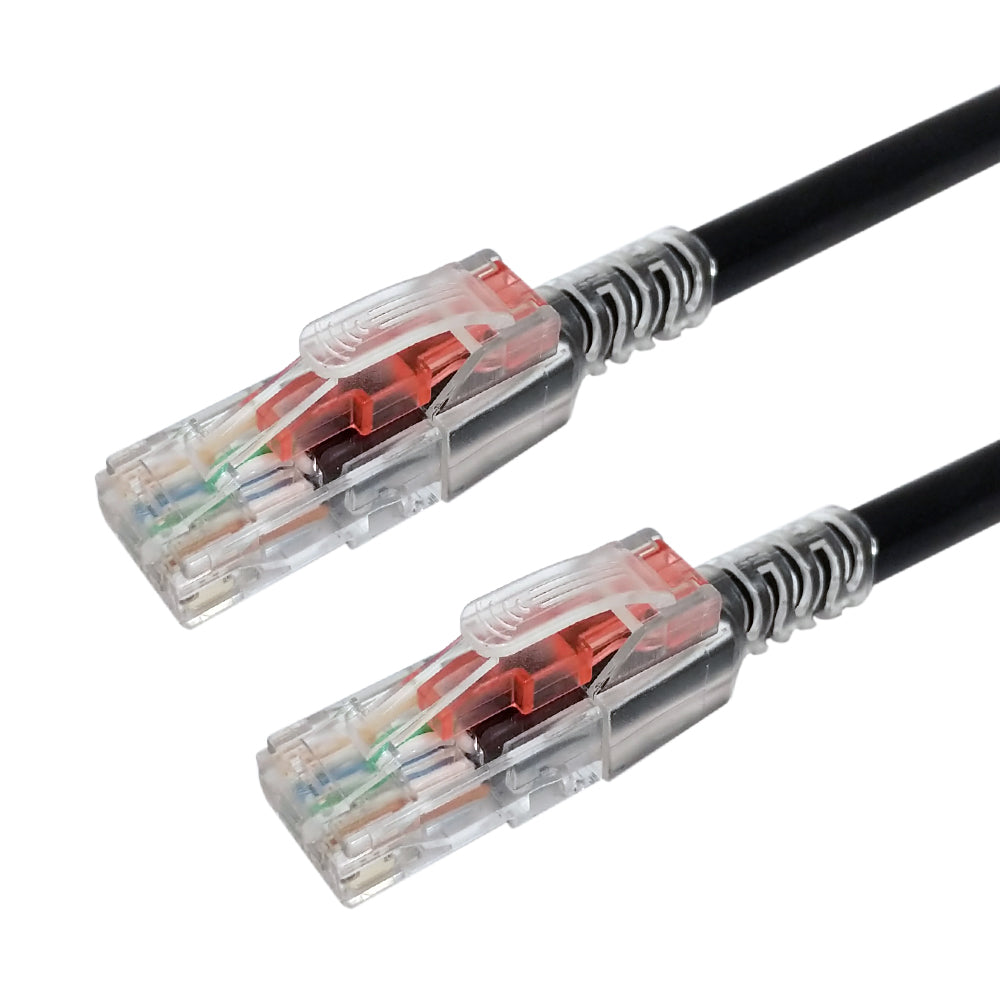

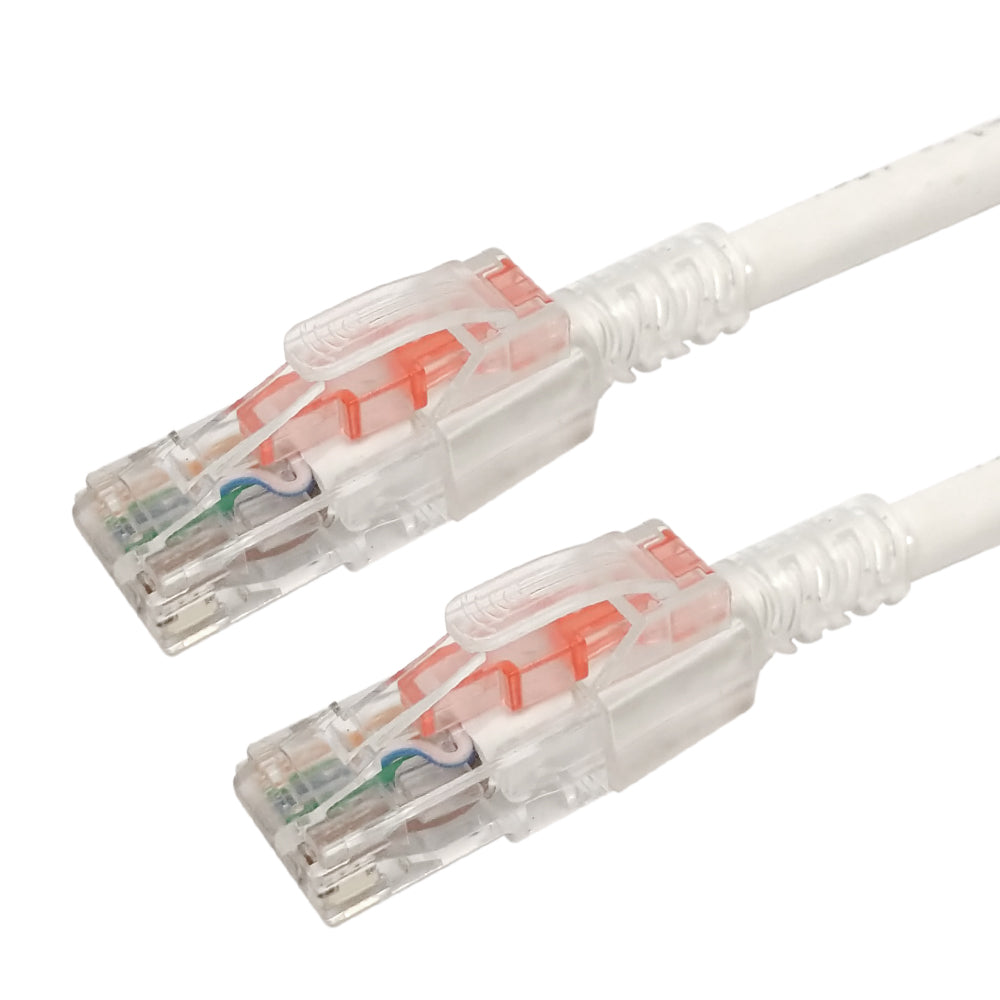

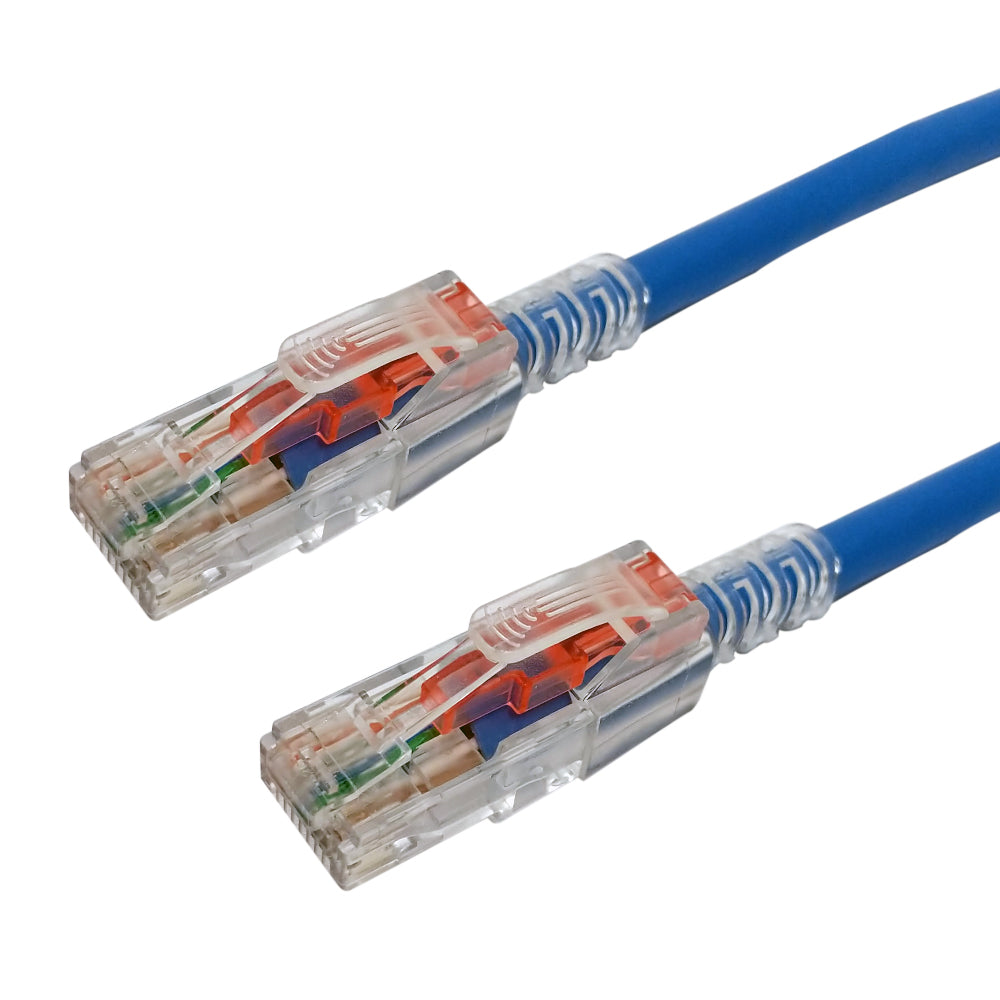

This custom Cat6a ethernet cable consists of a locking style RJ45 male on both ends. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The plug has a push-in locking tab which helps prevent accidental disconnects for critical networking applications. Each cable comes with a key which is required to easily unlock the connector.
TERMS: non-cancelable & non-returnable
Application
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.2mm |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Temperature Rating | 75 Deg C |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male (Locking Style) |
| Connector B | RJ45 Long Body Male (Locking Style) |
| Performance | |
| Frequency | 550 MHz |
| Speed | 10Gb |
| Approvals | |
| c(UL)us | Compliant - Cable |
| ETL Verified | Compliant |
| ANSI/TIA - 568 - C.2 | Compliant |
| ISO/IEC 11801 | Compliant |
| EN 50173-1 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 0.8ft | 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 9ft | 10ft | 11ft | 12ft | 13ft | 14ft | 15ft | 16ft | 17ft | 18ft | 19ft | 20ft | 21ft | 22ft | 23ft | 24ft | 25ft | 30ft | 35ft | 40ft | 45ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.04 lbs | 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.13 lbs | 0.15 lbs | 0.17 lbs | 0.20 lbs | 0.22 lbs | 0.24 lbs | 0.25 lbs | 0.30 lbs | 0.35 lbs | 0.37 lbs | 0.40 lbs | 0.43 lbs | 0.45 lbs | 0.47 lbs | 0.49 lbs | 0.51 lbs | 0.53 lbs | 0.55 lbs | 0.57 lbs | 0.58 lbs | 0.59 lbs | 0.60 lbs | 0.70 lbs | 0.80 lbs | 0.90 lbs | 1.00 lbs | 1.10 lbs | 1.90 lbs | 2.15 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| CAT6ACL-0.8AQ | 8 inch / Aqua | 0.05 lb |
| CAT6ACL-0.8BK | 8 inch / Black | 0.05 lb |
| CAT6ACL-0.8BL | 8 inch / Blue | 0.05 lb |
| CAT6ACL-0.8WH | 8 inch / White | 0.05 lb |
| CAT6ACL-01AQ | 1ft / Aqua | 0.07 lb |
| CAT6ACL-01BK | 1ft / Black | 0.07 lb |
| CAT6ACL-01BL | 1ft / Blue | 0.07 lb |
| CAT6ACL-01WH | 1ft / White | 0.07 lb |
| CAT6ACL-02AQ | 2ft / Aqua | 0.1 lb |
| CAT6ACL-02BK | 2ft / Black | 0.1 lb |
| CAT6ACL-02BL | 2ft / Blue | 0.1 lb |
| CAT6ACL-02WH | 2ft / White | 0.1 lb |
| CAT6ACL-03AQ | 3ft / Aqua | 0.15 lb |
| CAT6ACL-03BK | 3ft / Black | 0.15 lb |
| CAT6ACL-03BL | 3ft / Blue | 0.15 lb |
| CAT6ACL-03WH | 3ft / White | 0.15 lb |
| CAT6ACL-04AQ | 4ft / Aqua | 0.17 lb |
| CAT6ACL-04BK | 4ft / Black | 0.17 lb |
| CAT6ACL-04BL | 4ft / Blue | 0.17 lb |
| CAT6ACL-04WH | 4ft / White | 0.17 lb |
| CAT6ACL-05AQ | 5ft / Aqua | 0.2 lb |
| CAT6ACL-05BK | 5ft / Black | 0.2 lb |
| CAT6ACL-05BL | 5ft / Blue | 0.2 lb |
| CAT6ACL-05WH | 5ft / White | 0.2 lb |
| CAT6ACL-06AQ | 6ft / Aqua | 0.21 lb |
| CAT6ACL-06BK | 6ft / Black | 0.21 lb |
| CAT6ACL-06BL | 6ft / Blue | 0.21 lb |
| CAT6ACL-06WH | 6ft / White | 0.21 lb |
| CAT6ACL-07AQ | 7ft / Aqua | 0.24 lb |
| CAT6ACL-07BK | 7ft / Black | 0.24 lb |
| CAT6ACL-07BL | 7ft / Blue | 0.24 lb |
| CAT6ACL-07WH | 7ft / White | 0.24 lb |
| CAT6ACL-08AQ | 8ft / Aqua | 0.26 lb |
| CAT6ACL-08BK | 8ft / Black | 0.26 lb |
| CAT6ACL-08BL | 8ft / Blue | 0.26 lb |
| CAT6ACL-08WH | 8ft / White | 0.26 lb |
| CAT6ACL-09AQ | 9ft / Aqua | 0.24 lb |
| CAT6ACL-09BK | 9ft / Black | 0.24 lb |
| CAT6ACL-09BL | 9ft / Blue | 0.24 lb |
| CAT6ACL-09WH | 9ft / White | 0.24 lb |
| CAT6ACL-100AQ | 100ft / Aqua | 3.0 lb |
| CAT6ACL-100BK | 100ft / Black | 3.0 lb |
| CAT6ACL-100BL | 100ft / Blue | 3.0 lb |
| CAT6ACL-100WH | 100ft / White | 3.0 lb |
| CAT6ACL-10AQ | 10ft / Aqua | 0.33 lb |
| CAT6ACL-10BK | 10ft / Black | 0.33 lb |
| CAT6ACL-10BL | 10ft / Blue | 0.33 lb |
| CAT6ACL-10WH | 10ft / White | 0.33 lb |
| CAT6ACL-11AQ | 11ft / Aqua | 0.32 lb |
| CAT6ACL-11BK | 11ft / Black | 0.32 lb |
| CAT6ACL-11BL | 11ft / Blue | 0.32 lb |
| CAT6ACL-11WH | 11ft / White | 0.32 lb |
| CAT6ACL-12AQ | 12ft / Aqua | 0.38 lb |
| CAT6ACL-12BK | 12ft / Black | 0.38 lb |
| CAT6ACL-12BL | 12ft / Blue | 0.38 lb |
| CAT6ACL-12WH | 12ft / White | 0.38 lb |
| CAT6ACL-13AQ | 13ft / Aqua | 0.44 lb |
| CAT6ACL-13BK | 13ft / Black | 0.44 lb |
| CAT6ACL-13BL | 13ft / Blue | 0.44 lb |
| CAT6ACL-13WH | 13ft / White | 0.44 lb |
| CAT6ACL-14AQ | 14ft / Aqua | 0.46 lb |
| CAT6ACL-14BK | 14ft / Black | 0.46 lb |
| CAT6ACL-14BL | 14ft / Blue | 0.46 lb |
| CAT6ACL-14WH | 14ft / White | 0.46 lb |
| CAT6ACL-15AQ | 15ft / Aqua | 0.5 lb |
| CAT6ACL-15BK | 15ft / Black | 0.5 lb |
| CAT6ACL-15BL | 15ft / Blue | 0.5 lb |
| CAT6ACL-15WH | 15ft / White | 0.5 lb |
| CAT6ACL-16AQ | 16ft / Aqua | 0.57 lb |
| CAT6ACL-16BK | 16ft / Black | 0.57 lb |
| CAT6ACL-16BL | 16ft / Blue | 0.57 lb |
| CAT6ACL-16WH | 16ft / White | 0.57 lb |
| CAT6ACL-17AQ | 17ft / Aqua | 0.64 lb |
| CAT6ACL-17BK | 17ft / Black | 0.64 lb |
| CAT6ACL-17BL | 17ft / Blue | 0.64 lb |
| CAT6ACL-17WH | 17ft / White | 0.64 lb |
| CAT6ACL-18AQ | 18ft / Aqua | 0.71 lb |
| CAT6ACL-18BK | 18ft / Black | 0.71 lb |
| CAT6ACL-18BL | 18ft / Blue | 0.71 lb |
| CAT6ACL-18WH | 18ft / White | 0.71 lb |
| CAT6ACL-19AQ | 19ft / Aqua | 0.78 lb |
| CAT6ACL-19BK | 19ft / Black | 0.78 lb |
| CAT6ACL-19BL | 19ft / Blue | 0.78 lb |
| CAT6ACL-19WH | 19ft / White | 0.78 lb |
| CAT6ACL-20AQ | 20ft / Aqua | 0.63 lb |
| CAT6ACL-20BK | 20ft / Black | 0.63 lb |
| CAT6ACL-20BL | 20ft / Blue | 0.63 lb |
| CAT6ACL-20WH | 20ft / White | 0.63 lb |
| CAT6ACL-21AQ | 21ft / Aqua | 0.7 lb |
| CAT6ACL-21BK | 21ft / Black | 0.7 lb |
| CAT6ACL-21BL | 21ft / Blue | 0.7 lb |
| CAT6ACL-21WH | 21ft / White | 0.7 lb |
| CAT6ACL-22AQ | 22ft / Aqua | 0.71 lb |
| CAT6ACL-22BK | 22ft / Black | 0.71 lb |
| CAT6ACL-22BL | 22ft / Blue | 0.71 lb |
| CAT6ACL-22WH | 22ft / White | 0.71 lb |
| CAT6ACL-23AQ | 23ft / Aqua | 0.72 lb |
| CAT6ACL-23BK | 23ft / Black | 0.72 lb |
| CAT6ACL-23BL | 23ft / Blue | 0.72 lb |
| CAT6ACL-23WH | 23ft / White | 0.72 lb |
| CAT6ACL-24AQ | 24ft / Aqua | 0.74 lb |
| CAT6ACL-24BK | 24ft / Black | 0.74 lb |
| CAT6ACL-24BL | 24ft / Blue | 0.74 lb |
| CAT6ACL-24WH | 24ft / White | 0.74 lb |
| CAT6ACL-25AQ | 25ft / Aqua | 0.77 lb |
| CAT6ACL-25BK | 25ft / Black | 0.77 lb |
| CAT6ACL-25BL | 25ft / Blue | 0.77 lb |
| CAT6ACL-25WH | 25ft / White | 0.77 lb |
| CAT6ACL-30AQ | 30ft / Aqua | 0.95 lb |
| CAT6ACL-30BK | 30ft / Black | 0.95 lb |
| CAT6ACL-30BL | 30ft / Blue | 0.95 lb |
| CAT6ACL-30WH | 30ft / White | 0.95 lb |
| CAT6ACL-35AQ | 35ft / Aqua | 1.1 lb |
| CAT6ACL-35BK | 35ft / Black | 1.1 lb |
| CAT6ACL-35BL | 35ft / Blue | 1.1 lb |
| CAT6ACL-35WH | 35ft / White | 1.1 lb |
| CAT6ACL-40AQ | 40ft / Aqua | 1.33 lb |
| CAT6ACL-40BK | 40ft / Black | 1.33 lb |
| CAT6ACL-40BL | 40ft / Blue | 1.33 lb |
| CAT6ACL-40WH | 40ft / White | 1.33 lb |
| CAT6ACL-45AQ | 45ft / Aqua | 1.4 lb |
| CAT6ACL-45BK | 45ft / Black | 1.4 lb |
| CAT6ACL-45BL | 45ft / Blue | 1.4 lb |
| CAT6ACL-45WH | 45ft / White | 1.4 lb |
| CAT6ACL-50AQ | 50ft / Aqua | 1.55 lb |
| CAT6ACL-50BK | 50ft / Black | 1.55 lb |
| CAT6ACL-50BL | 50ft / Blue | 1.55 lb |
| CAT6ACL-50WH | 50ft / White | 1.55 lb |
| CAT6ACL-75AQ | 75ft / Aqua | 2.26 lb |
| CAT6ACL-75BK | 75ft / Black | 2.26 lb |
| CAT6ACL-75BL | 75ft / Blue | 2.26 lb |
| CAT6ACL-75WH | 75ft / White | 2.26 lb |
