Description
Overview

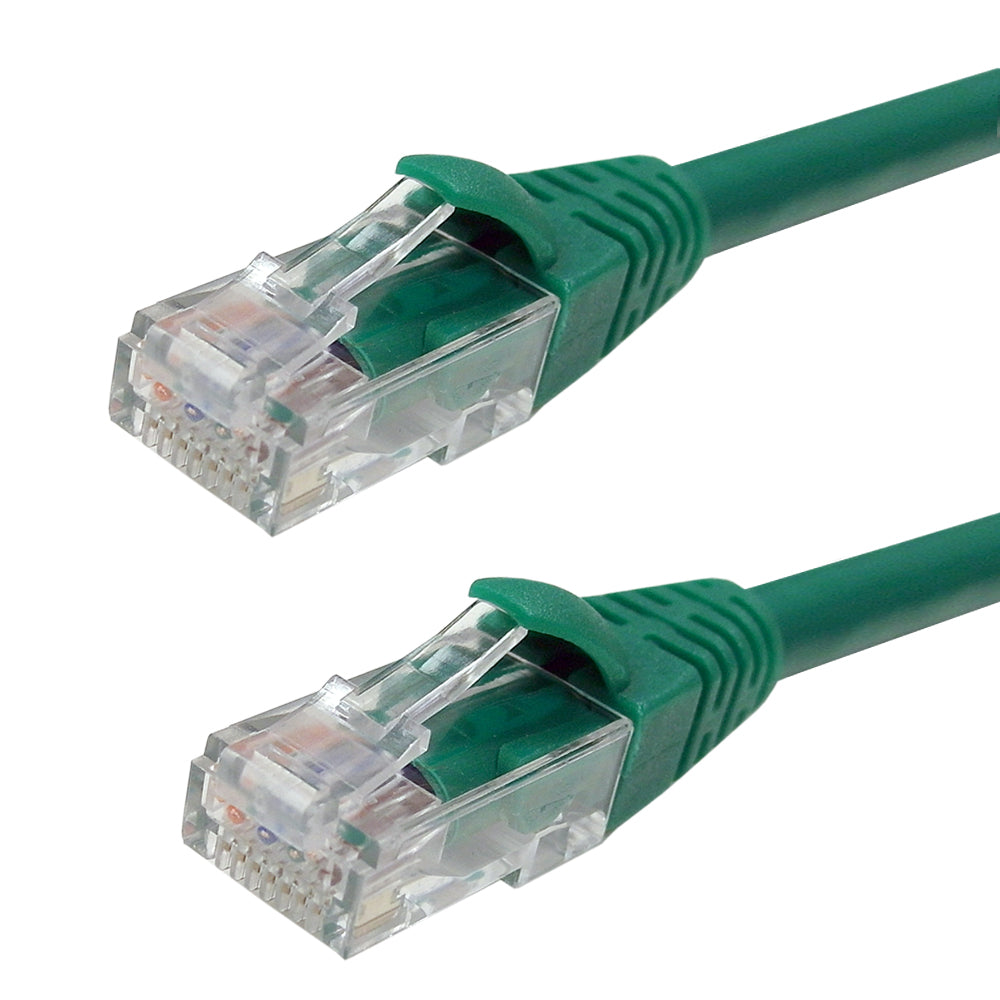

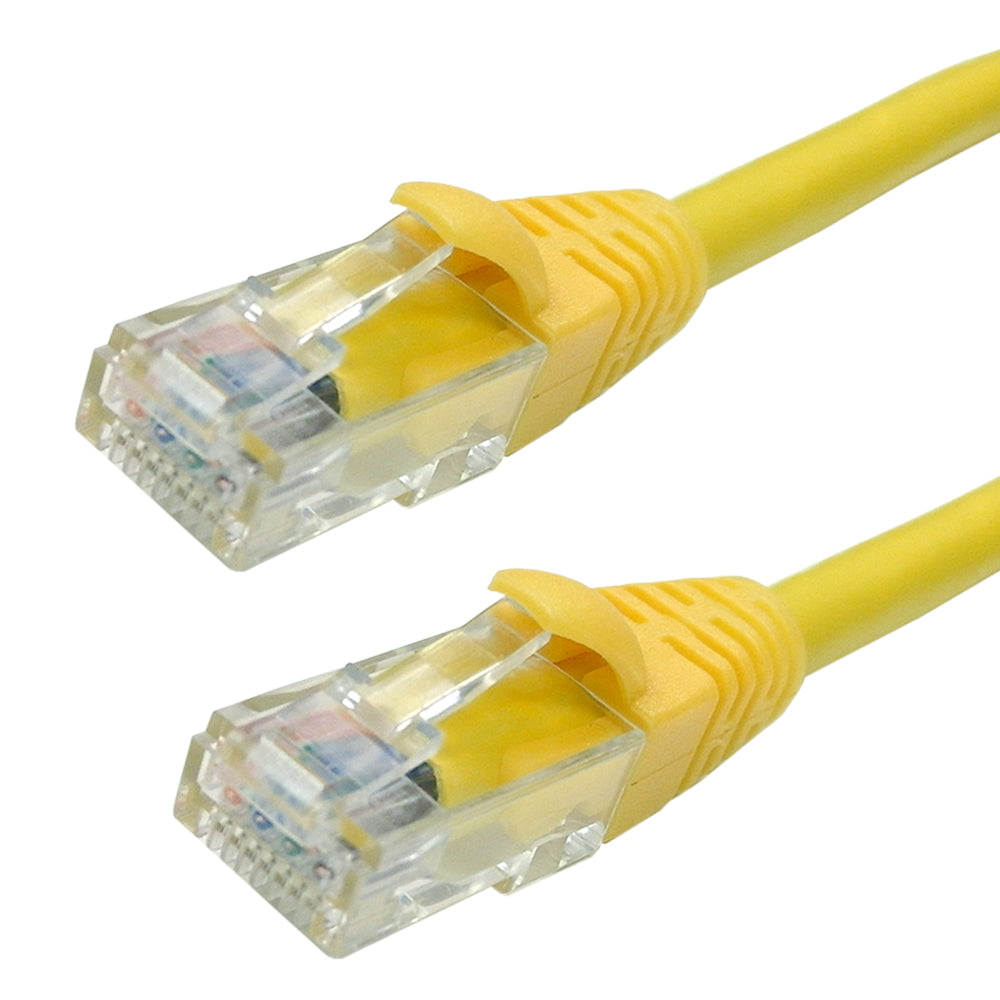

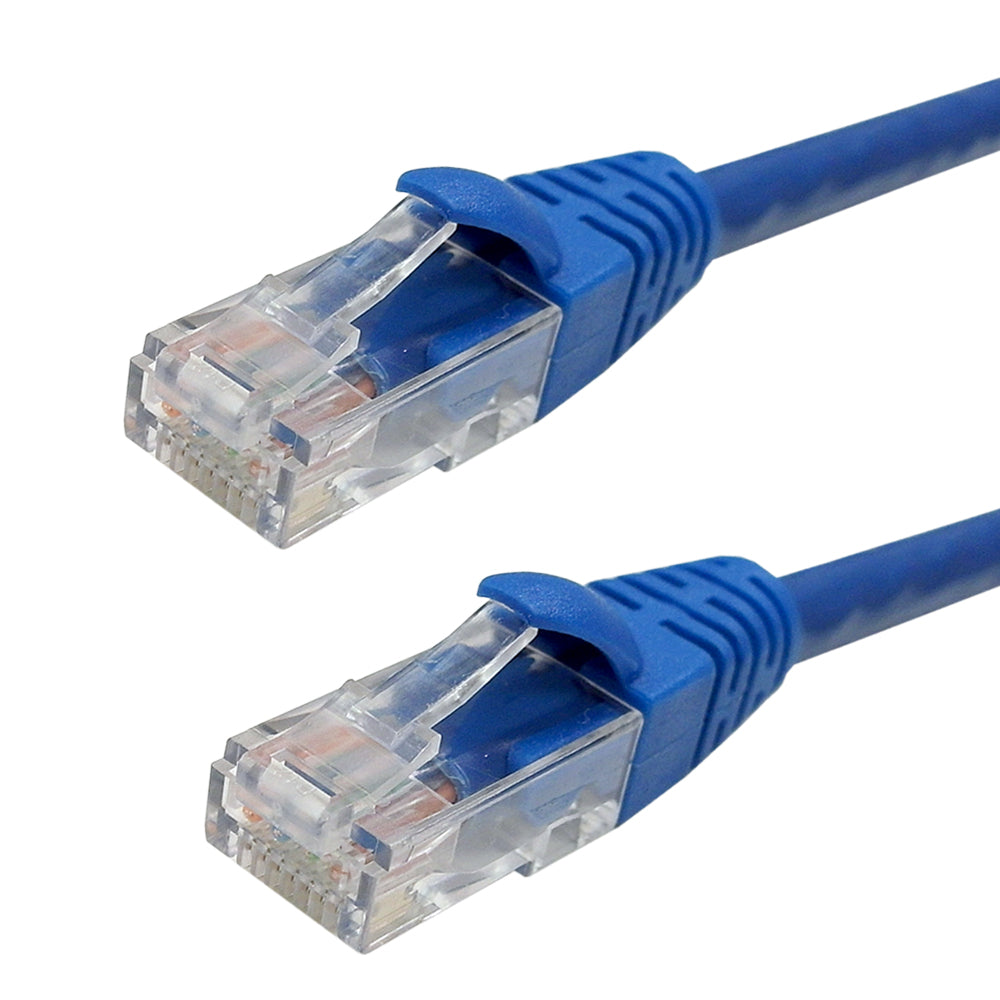

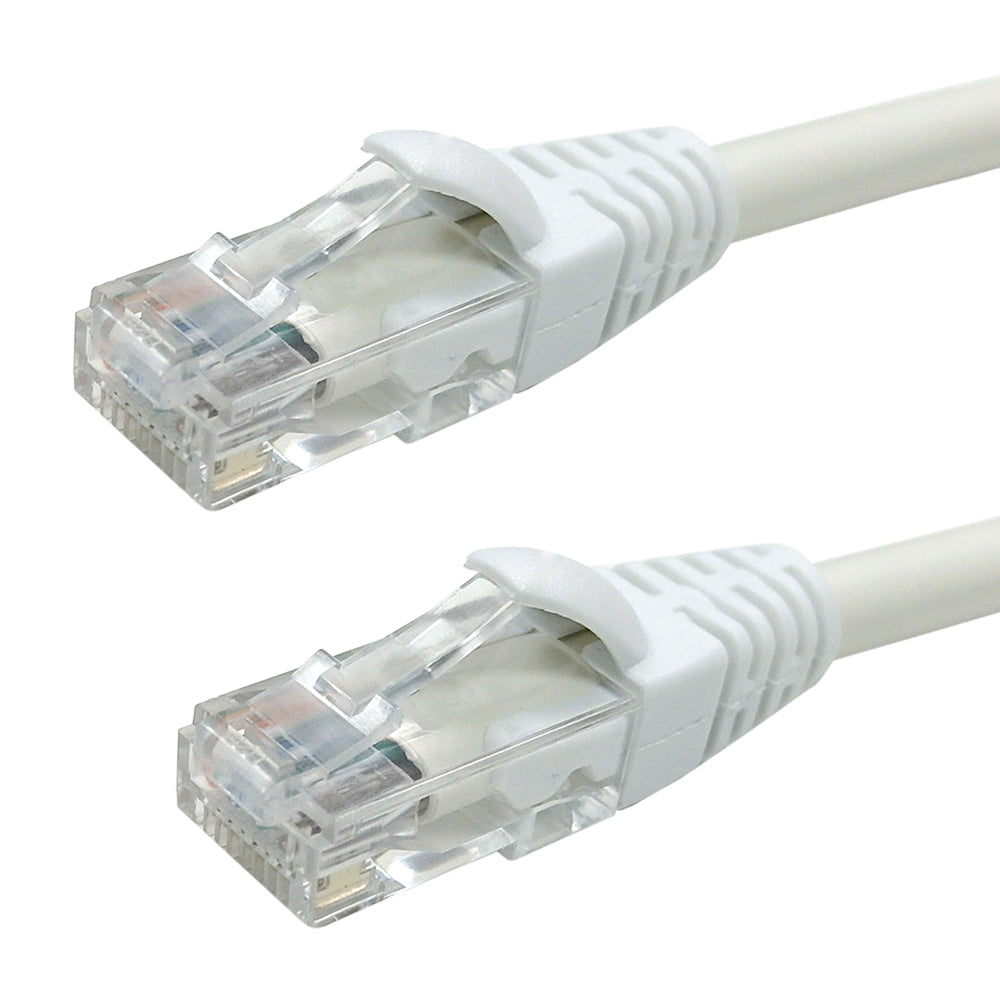

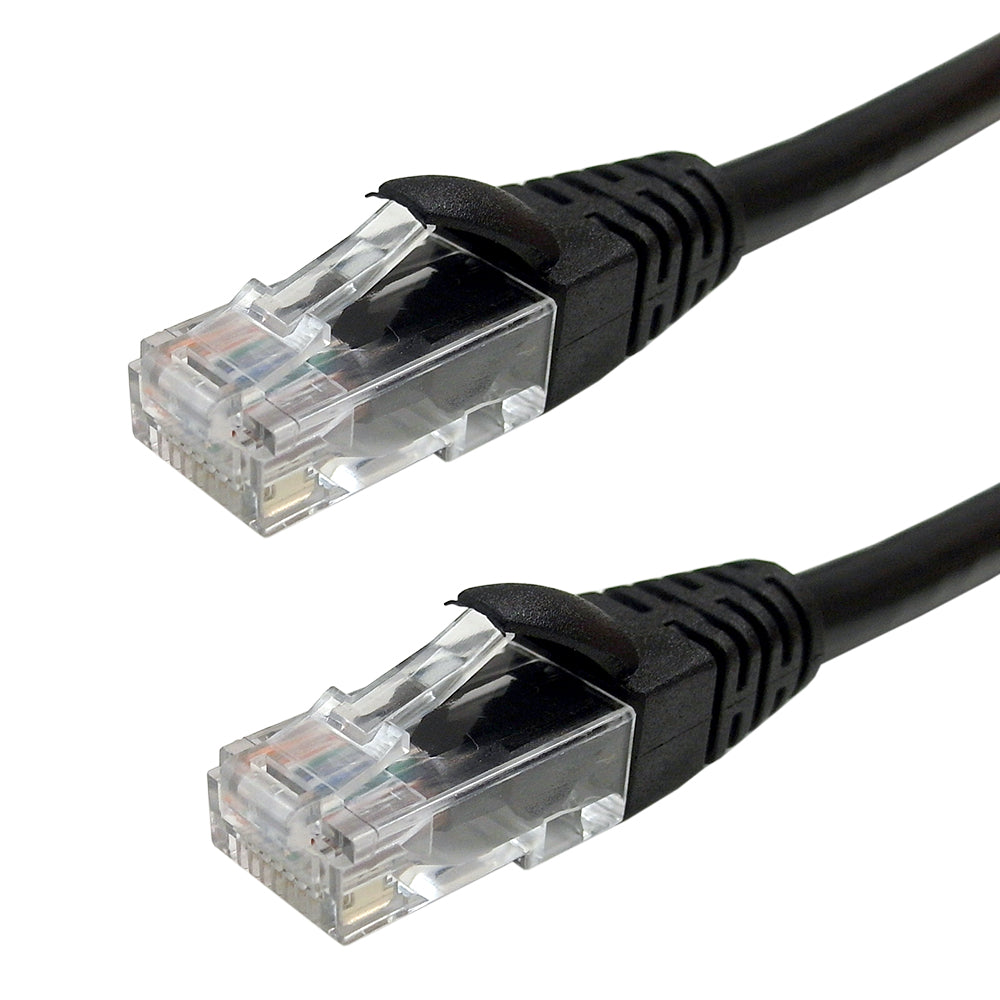

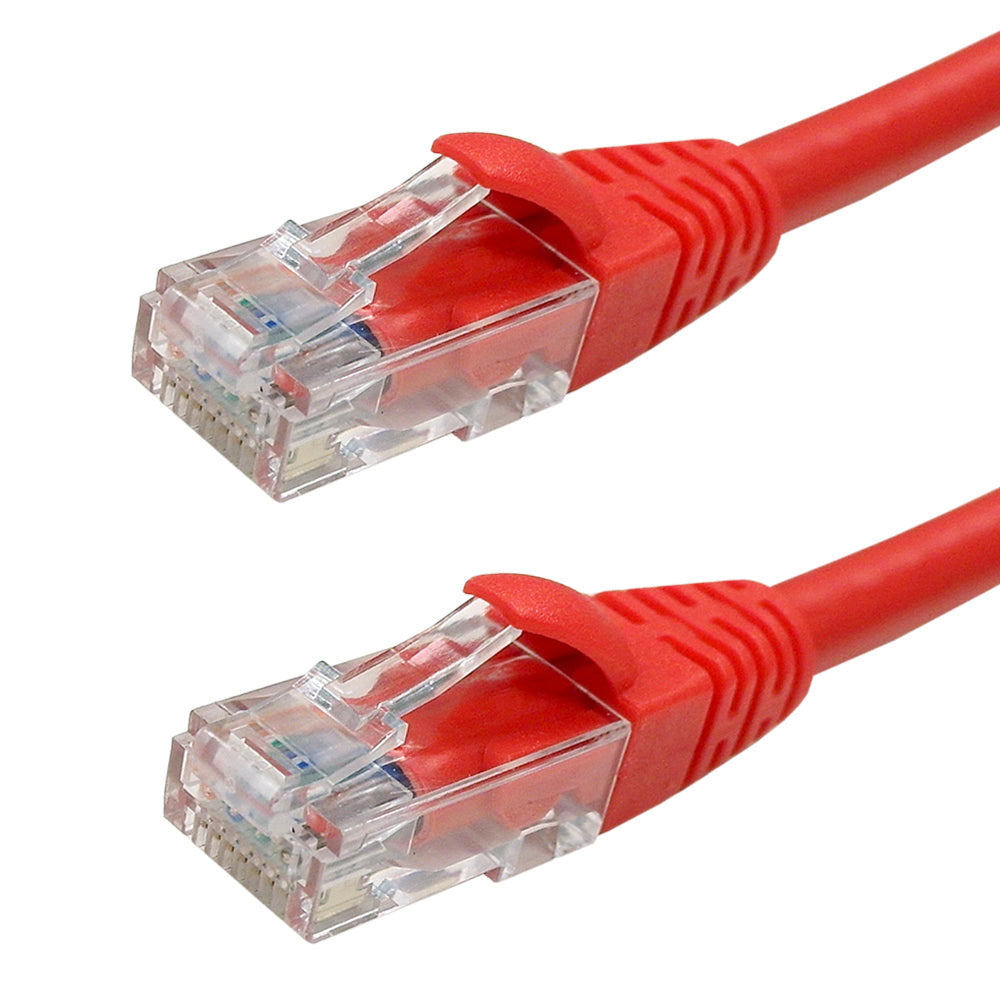

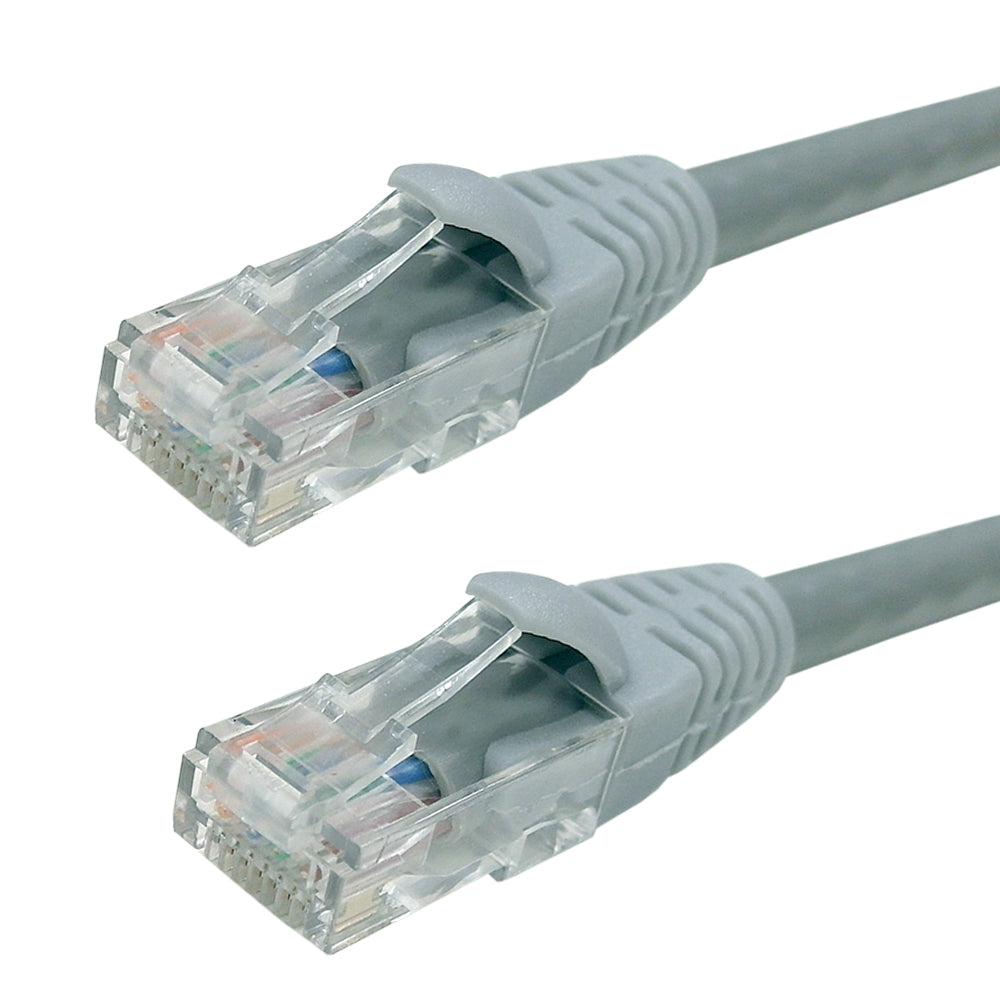

This CMP plenum rated Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45
male on the other. It is typically used for ethernet network connections such
as patch panels, switches and computers to routers.
These
cables are made to order. Most orders ship out same day or next day depending
on the quantity. Please
contact us for more
details.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Plenum Rated CableIdeal for use in cable runs that
are located within a plenum air space or partially travel through a plenum air
space.
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Conductor Material | 100% Bare Copper |
| Cable Diameter | 4.70 mm |
| Wire Gauge | 24AWG Solid |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMP/FT6 [Plenum Rated] |
| Color Code | 568B |
| Strain
Relief
|
Molded Tab Style Strain Relief |
| Jacket Temperature Rating | -10℃ to +75℃ |
| Jacket Type | PVC - Polyvinyl Chloride |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Frequency | 350 MHz |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 5ft | 7ft | 10ft | 14ft | 20ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.15 lbs | 0.20 lbs | 0.25 lbs | 0.40 lbs | 0.50 lbs | 0.60 lbs | 0.70 lbs | 0.80 lbs | 1.10 lbs | 1.90 lbs | 2.15 lbs | 2.30 lbs | 2.60 lbs |
