Overview

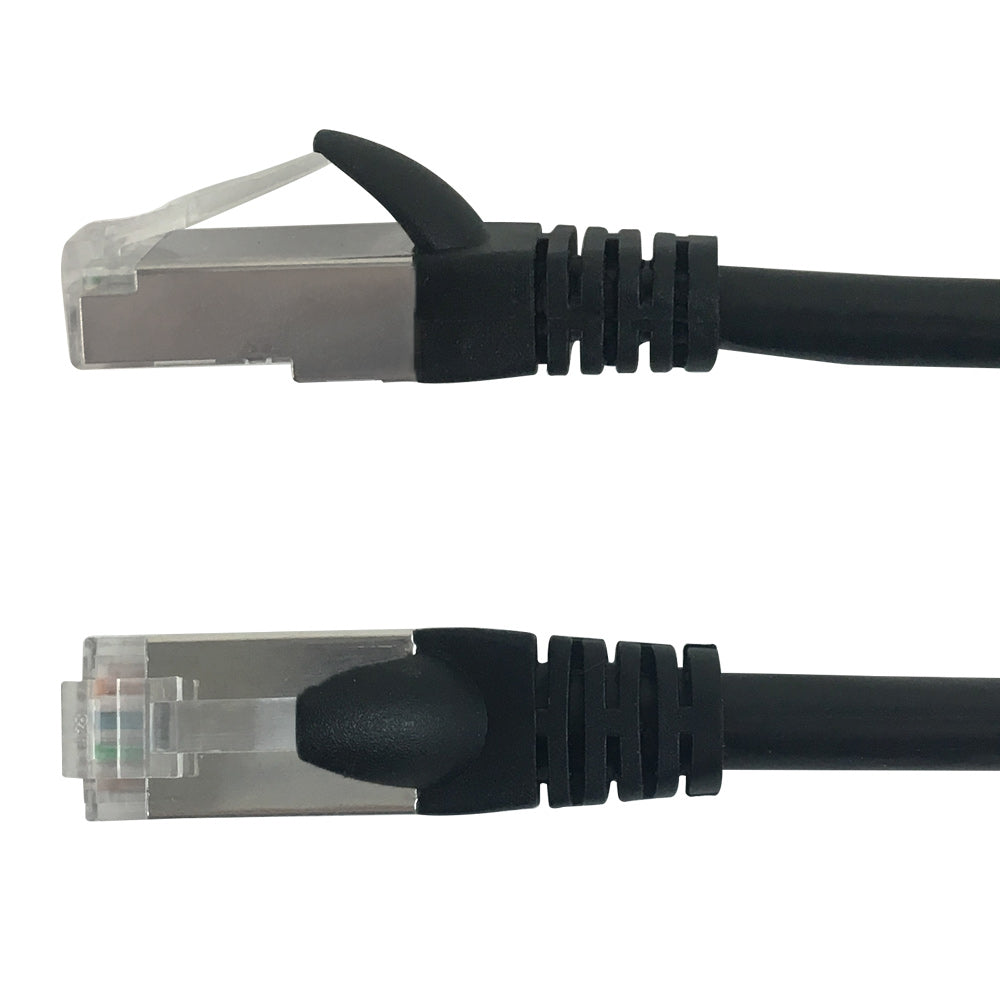

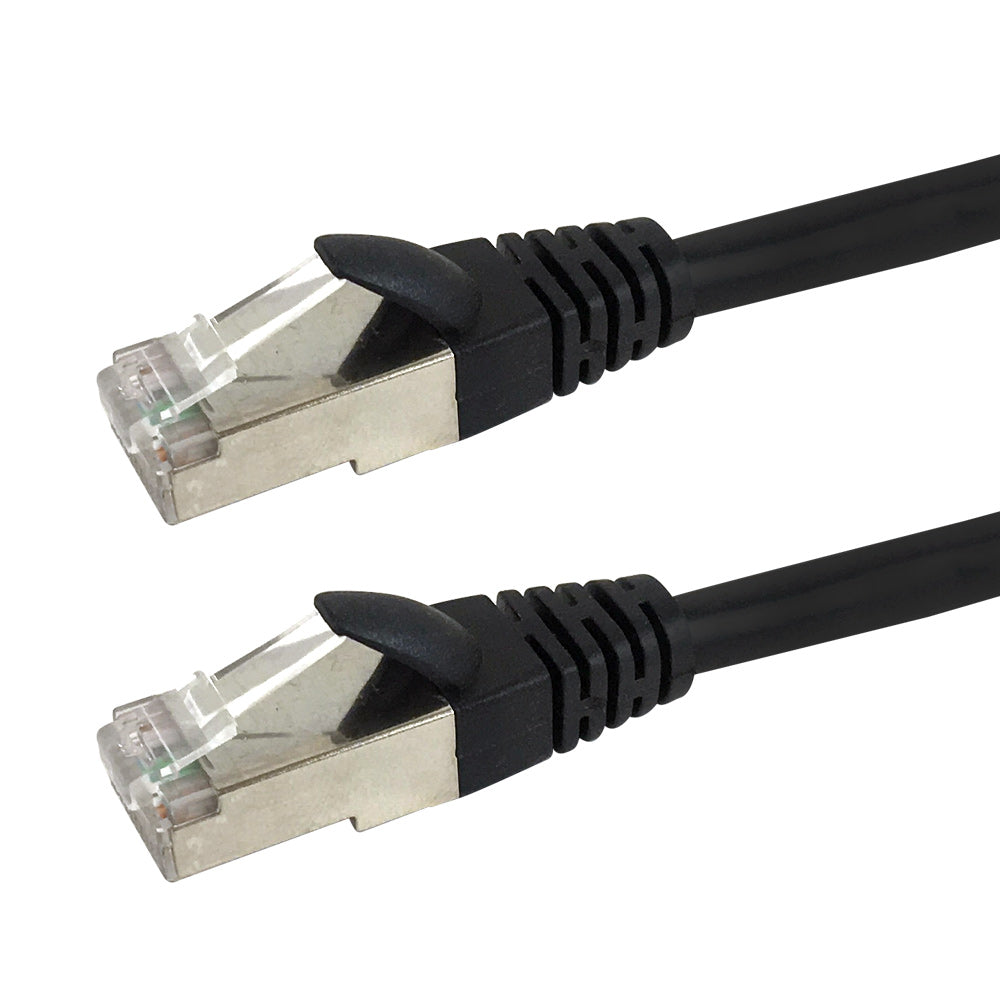

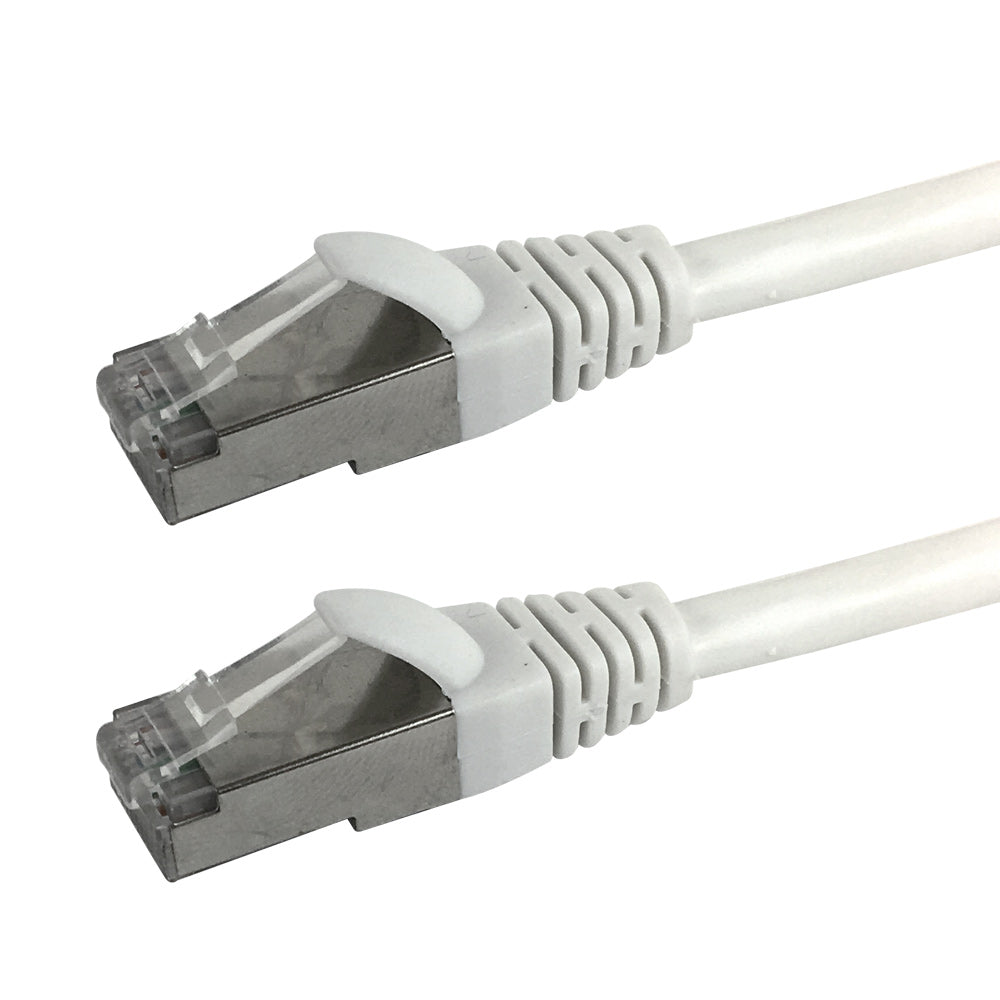

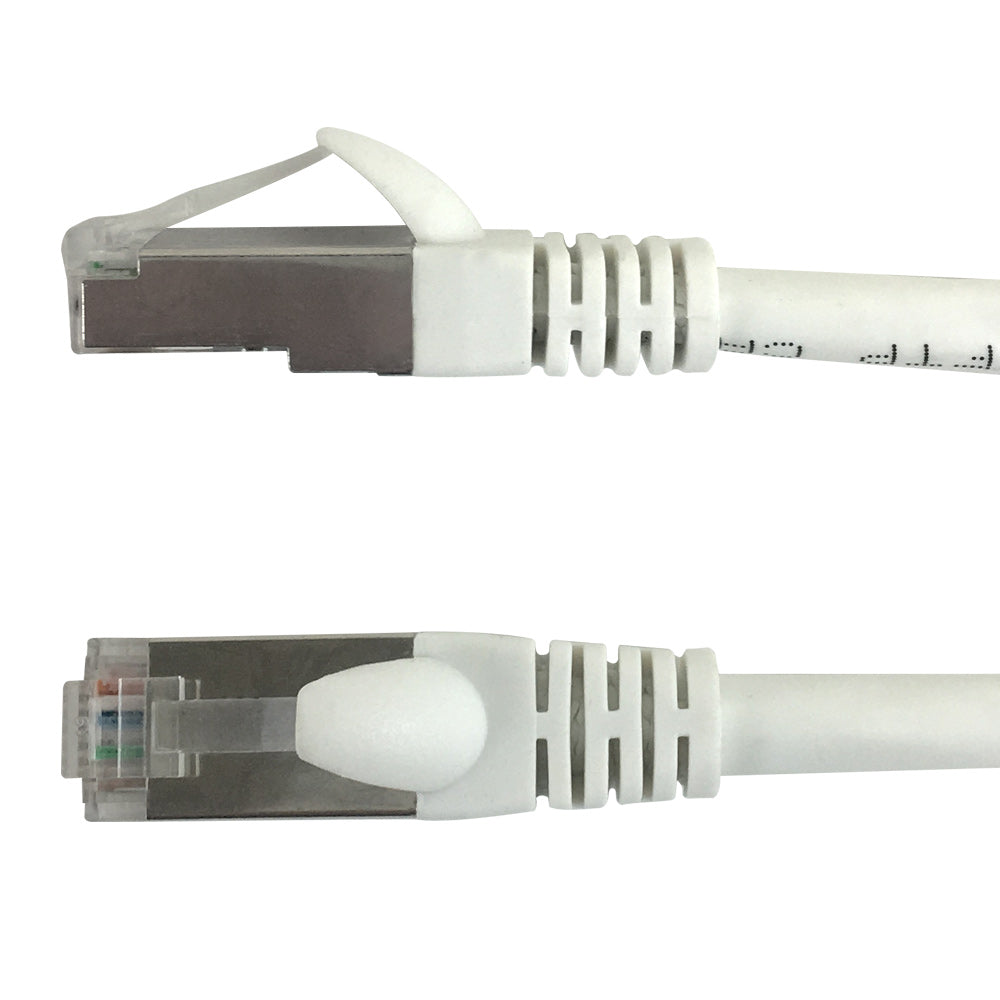

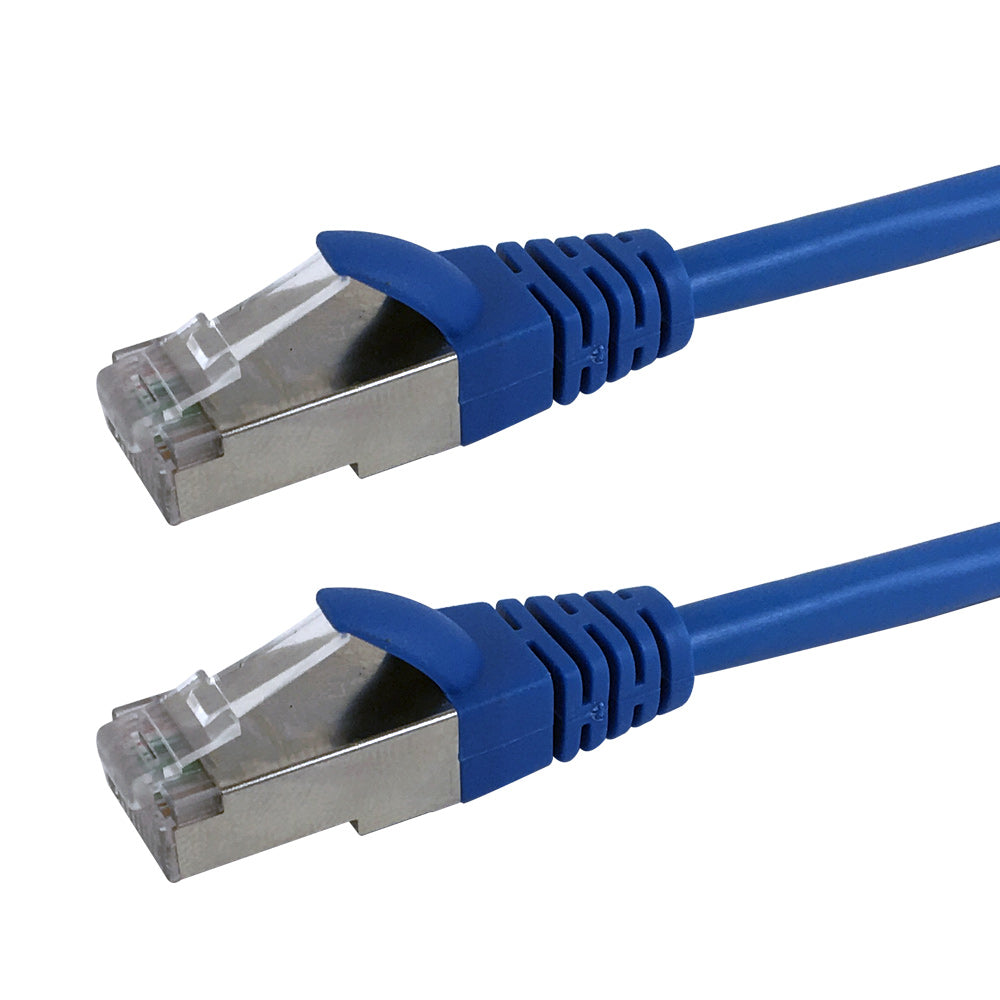

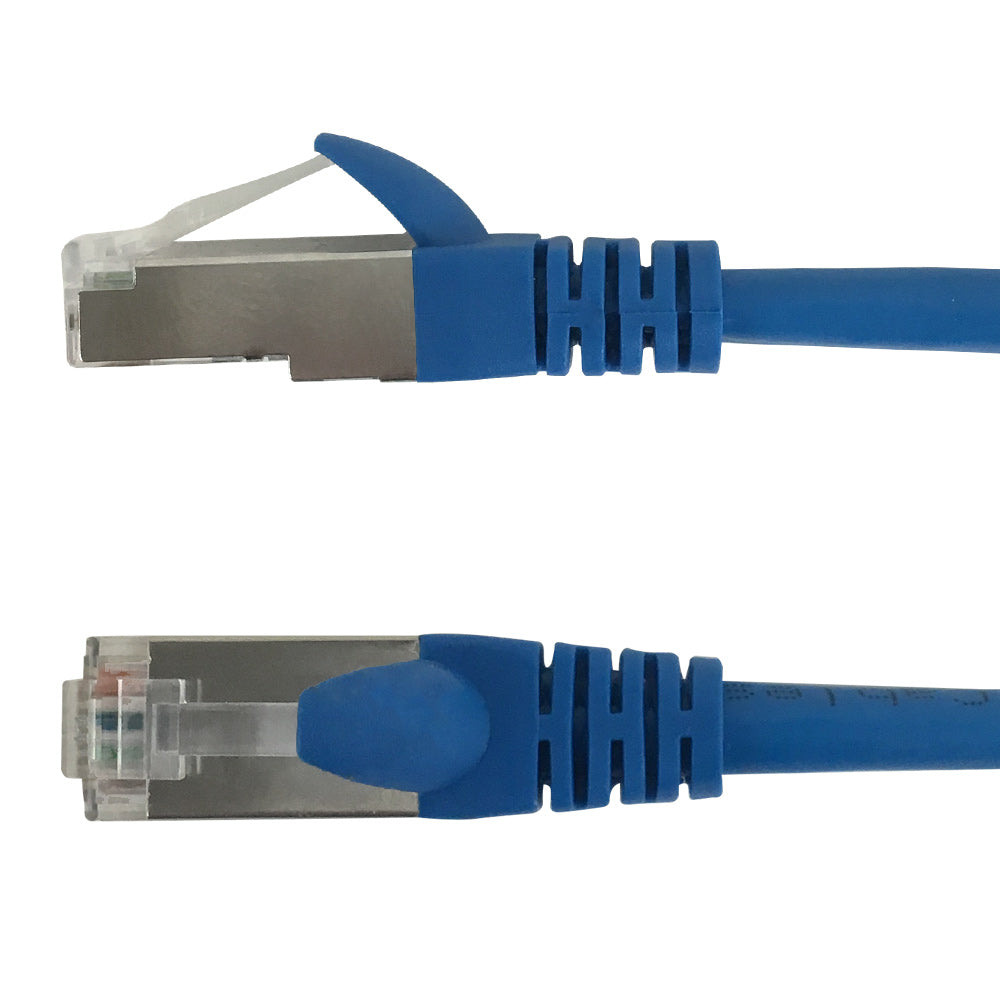

This Cat5e shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI). The cable jacket is also CMP (plenum) fire rated.
TERMS: non-cancelable & non-returnable
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. FOIL SHIELDED100% mylar foil shielded pairs is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black/Blue/White |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.30 mm |
| Wire Gauge | 23AWG Solid |
| Shielding | F/UTP (100% Aluminum Foil Shield) |
| Pairs | 4 |
| Insulation | 0.0378 inches [0.96±0.05mm] |
| Jacket Nominal Thickness | 0.0197" (0.50mm) |
| Insulation Outer Diameter | 0.0378 inches [0.96±0.05mm] |
| Fire Rating | CMP/FT6[Plenum Rated] |
| Temperature Rating | -20 deg C to +80 deg C |
| Jacket Type | PVC |
| Electrical Characteristics | |
| Voltage | 30V |
| Capacitance | 5.6nF/100m .Nom |
| Velocity of Propagation | ≥65% |
| DCR Conductor | 9.38 Ohms/100m.Nom |
| D-C Resistance Unbalance | ≦5% |
| Connectors | |
| Connector A | RJ45 Shielded Long Body Male |
| Connector B | RJ45 Shielded Long Body Male |
| Approvals | |
| c(UL)us | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 15ft | 20ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft | 175ft | 200ft | 225ft | 250ft | 275ft | 300ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.45 lbs | 0.45 lbs | 0.75 lbs | 0.45 lbs | 1.05 lbs | 1.50 lbs | 2.25 lbs | 3.00 lbs | 3.75 lbs | 4.50 lbs | 5.25 lbs | 6.00 lbs | 6.75 lbs | 7.50 lbs | 8.25 lbs | 9.00 lbs |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
| SKU | Options | Weight |
| CAT5ESP-15BK | 15ft / Black | 0.5 lb |
| CAT5ESP-20BK | 20ft / Black | 0.63 lb |
| CAT5ESP-25BK | 25ft / Black | 0.77 lb |
| CAT5ESP-30BK | 30ft / Black | 0.95 lb |
| CAT5ESP-35BK | 35ft / Black | 1.1 lb |
| CAT5ESP-50BK | 50ft / Black | 1.55 lb |
| CAT5ESP-75BK | 75ft / Black | 2.26 lb |
| CAT5ESP-100BK | 100ft / Black | 3.0 lb |
| CAT5ESP-125BK | 125ft / Black | 5.0 lb |
| CAT5ESP-150BK | 150ft / Black | 6.2 lb |
| CAT5ESP-175BK | 175ft / Black | 6.45 lb |
| CAT5ESP-200BK | 200ft / Black | 7.28 lb |
| CAT5ESP-225BK | 225ft / Black | 7.4 lb |
| CAT5ESP-250BK | 250ft / Black | 12.5 lb |
| CAT5ESP-275BK | 275ft / Black | 0.77 lb |
| CAT5ESP-300BK | 300ft / Black | 15.0 lb |
| CAT5ESP-15BL | 15ft / Blue | 0.5 lb |
| CAT5ESP-20BL | 20ft / Blue | 0.63 lb |
| CAT5ESP-25BL | 25ft / Blue | 0.77 lb |
| CAT5ESP-30BL | 30ft / Blue | 0.95 lb |
| CAT5ESP-35BL | 35ft / Blue | 1.1 lb |
| CAT5ESP-50BL | 50ft / Blue | 1.55 lb |
| CAT5ESP-75BL | 75ft / Blue | 2.26 lb |
| CAT5ESP-100BL | 100ft / Blue | 3.0 lb |
| CAT5ESP-125BL | 125ft / Blue | 5.0 lb |
| CAT5ESP-150BL | 150ft / Blue | 6.2 lb |
| CAT5ESP-175BL | 175ft / Blue | 6.45 lb |
| CAT5ESP-200BL | 200ft / Blue | 7.28 lb |
| CAT5ESP-225BL | 225ft / Blue | 7.4 lb |
| CAT5ESP-250BL | 250ft / Blue | 12.5 lb |
| CAT5ESP-275BL | 275ft / Blue | 0.77 lb |
| CAT5ESP-300BL | 300ft / Blue | 15.0 lb |
| CAT5ESP-15WH | 15ft / White | 0.5 lb |
| CAT5ESP-20WH | 20ft / White | 0.63 lb |
| CAT5ESP-25WH | 25ft / White | 0.77 lb |
| CAT5ESP-30WH | 30ft / White | 0.95 lb |
| CAT5ESP-35WH | 35ft / White | 1.1 lb |
| CAT5ESP-50WH | 50ft / White | 1.55 lb |
| CAT5ESP-75WH | 75ft / White | 2.26 lb |
| CAT5ESP-100WH | 100ft / White | 3.0 lb |
| CAT5ESP-125WH | 125ft / White | 5.0 lb |
| CAT5ESP-150WH | 150ft / White | 6.2 lb |
| CAT5ESP-175WH | 175ft / White | 6.45 lb |
| CAT5ESP-200WH | 200ft / White | 7.28 lb |
| CAT5ESP-225WH | 225ft / White | 7.4 lb |
| CAT5ESP-250WH | 250ft / White | 12.5 lb |
| CAT5ESP-275WH | 275ft / White | 0.77 lb |
| CAT5ESP-300WH | 300ft / White | 15.0 lb |
