Description

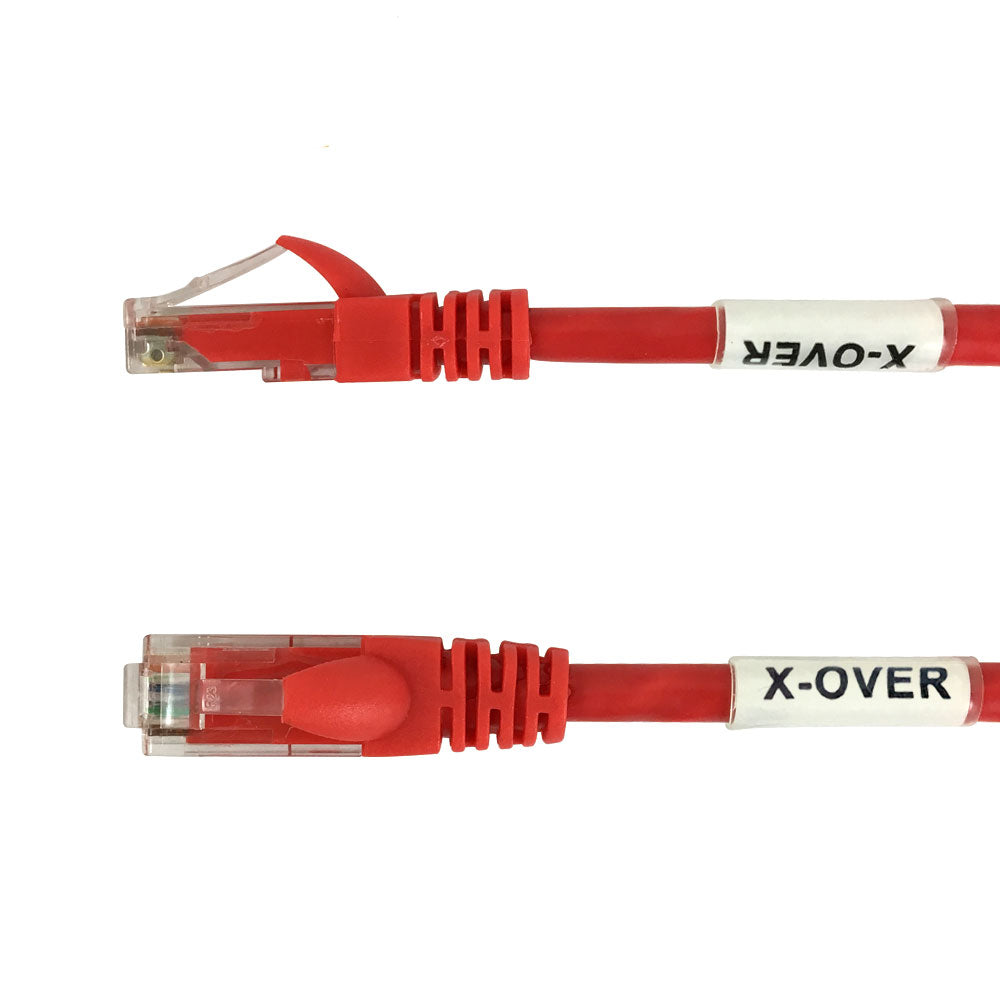

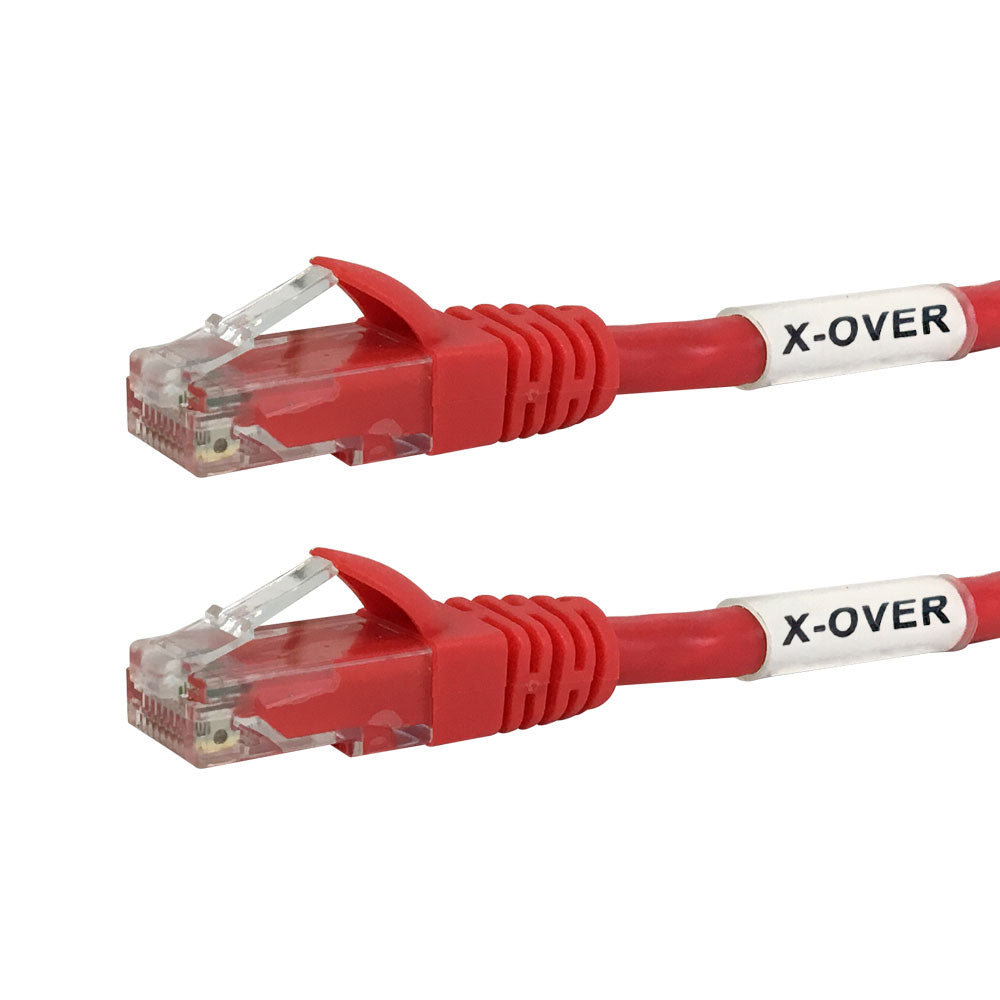

This Cat5e cross-over ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used to directly connect PCs without the use of a switch or a hub.
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 5.5mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Molding | Molded Tab Style Strain Relief |
| Temperature Rating | 75 C |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Frequency | 350 MHz |
| Approvals | |
| c(UL)us |
Compliant - Cable |
| ETL Verified | Compliant |
| ANSI/TIA - 568 - C.2 | Compliant |
| ISO/IEC 11801 | Compliant |
| EN 50173-1 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 5ft | 7ft | 10ft | 25ft | 50ft |
|---|---|---|---|---|---|
| 0.10 lbs | 0.15 lbs | 0.20 lbs | 0.25 lbs | 0.60 lbs | 1.10 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| CAT5EX-03RD | 3ft | 0.15 lb |
| CAT5EX-05RD | 5ft | 0.2 lb |
| CAT5EX-07RD | 7ft | 0.24 lb |
| CAT5EX-10RD | 10ft | 0.33 lb |
| CAT5EX-25RD | 25ft | 0.77 lb |
| CAT5EX-50RD | 50ft | 1.55 lb |
