Description
Overview

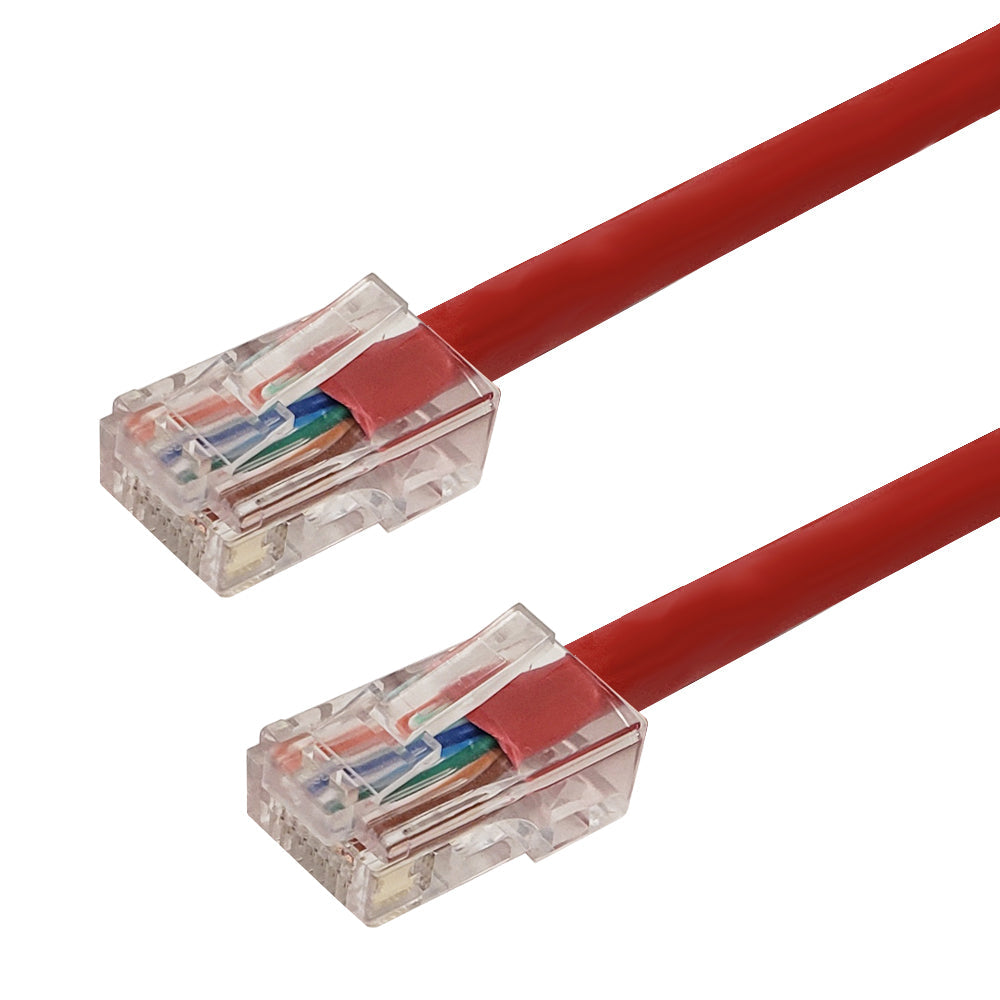

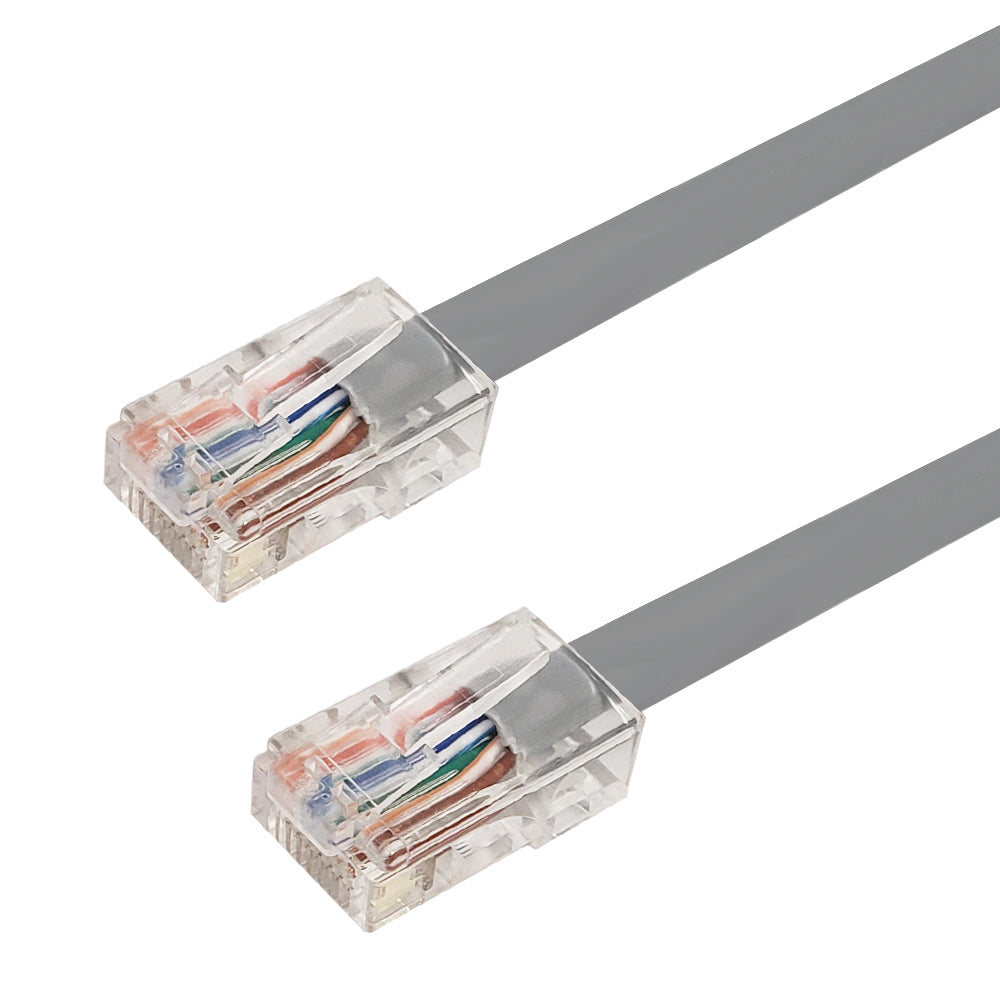

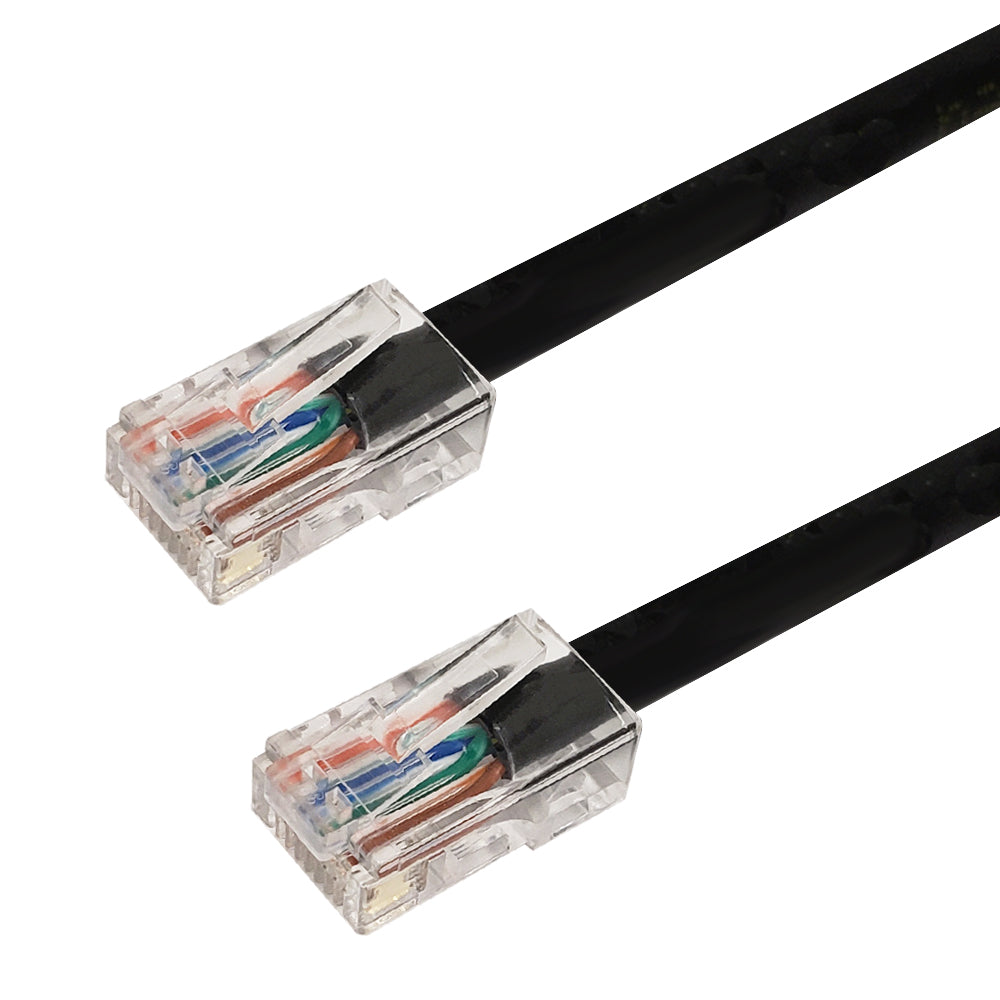

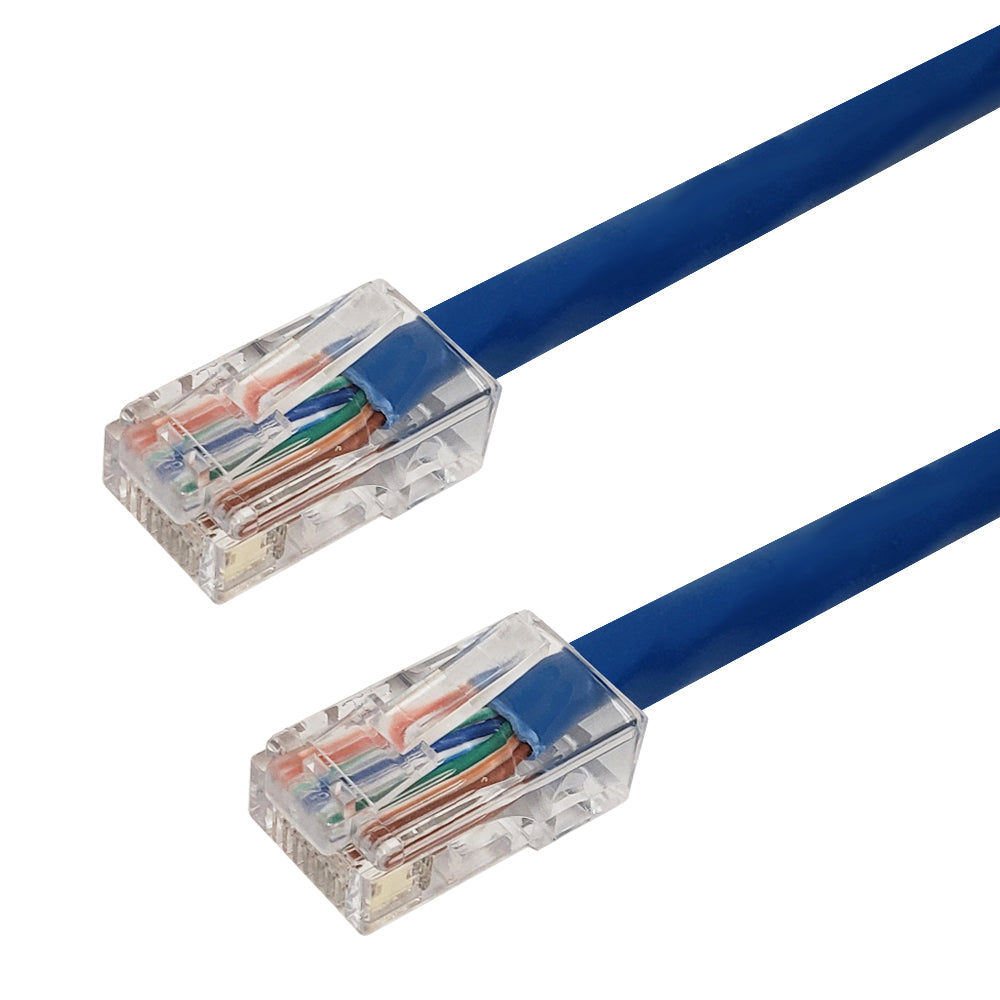

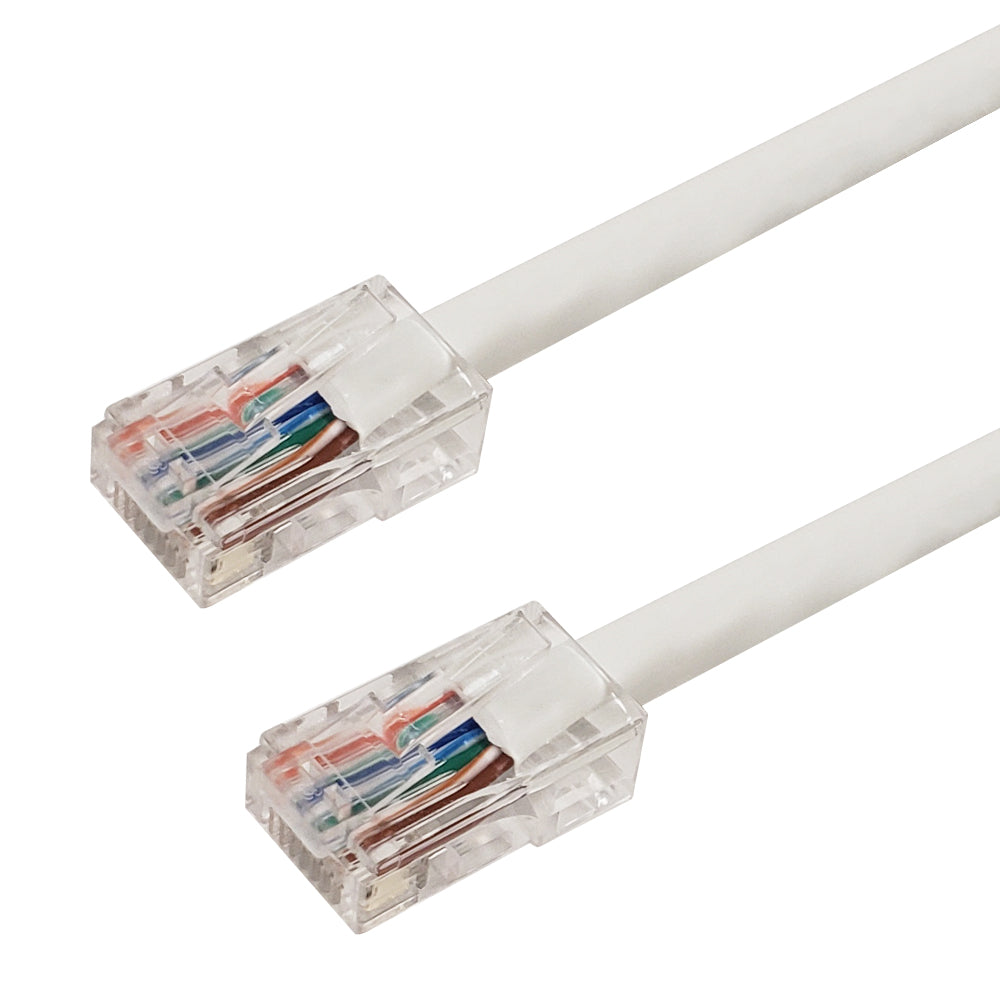

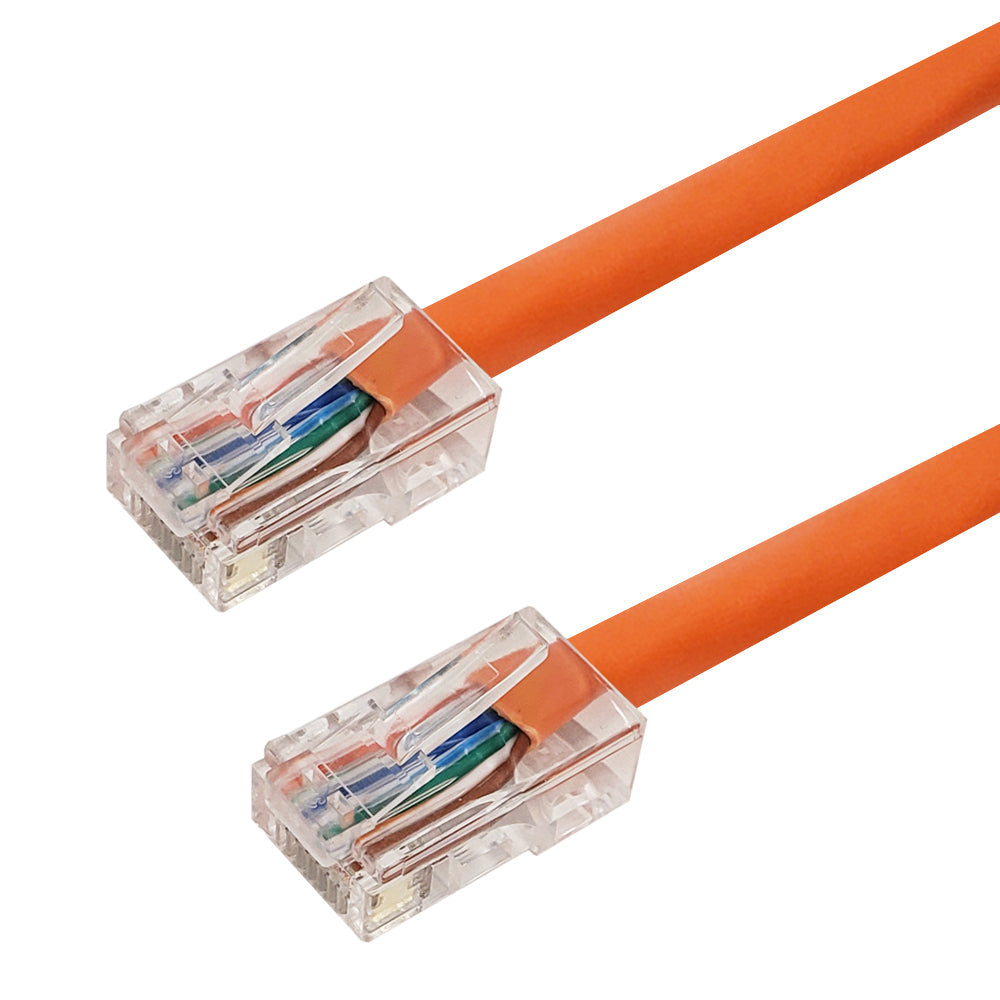

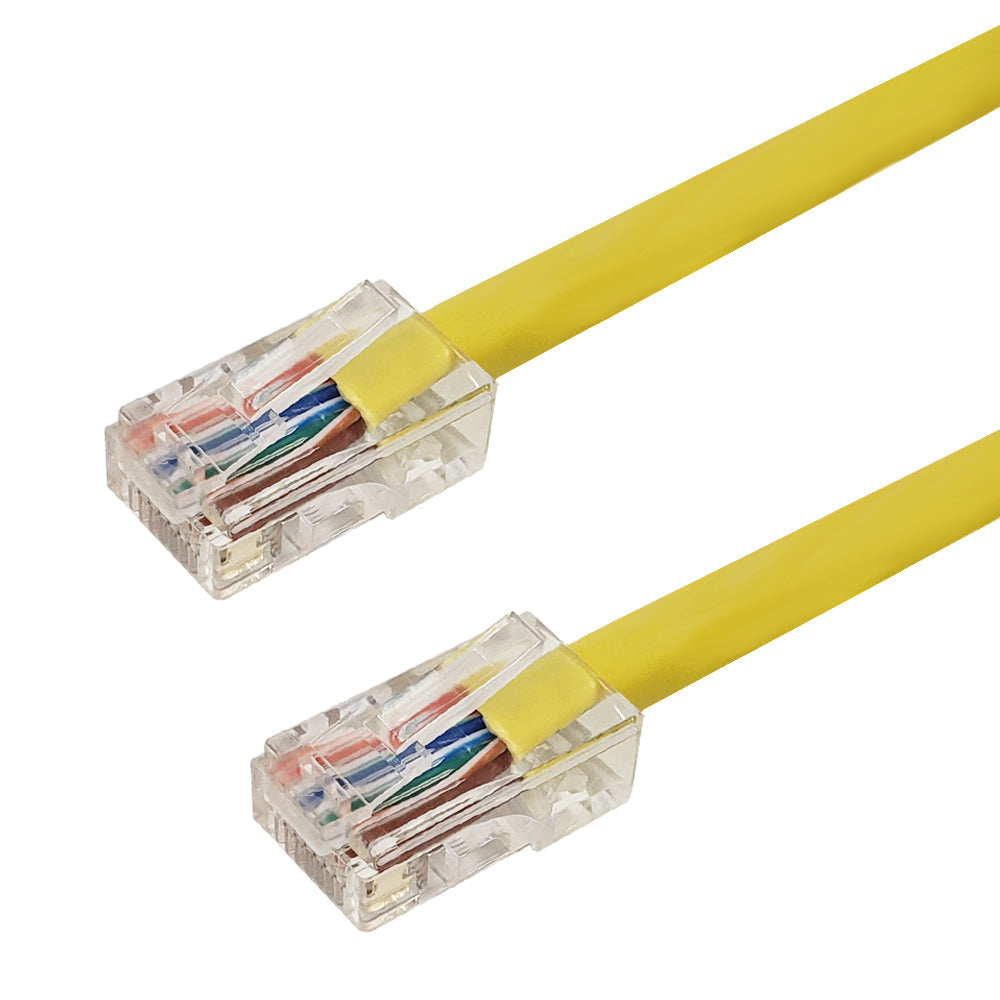

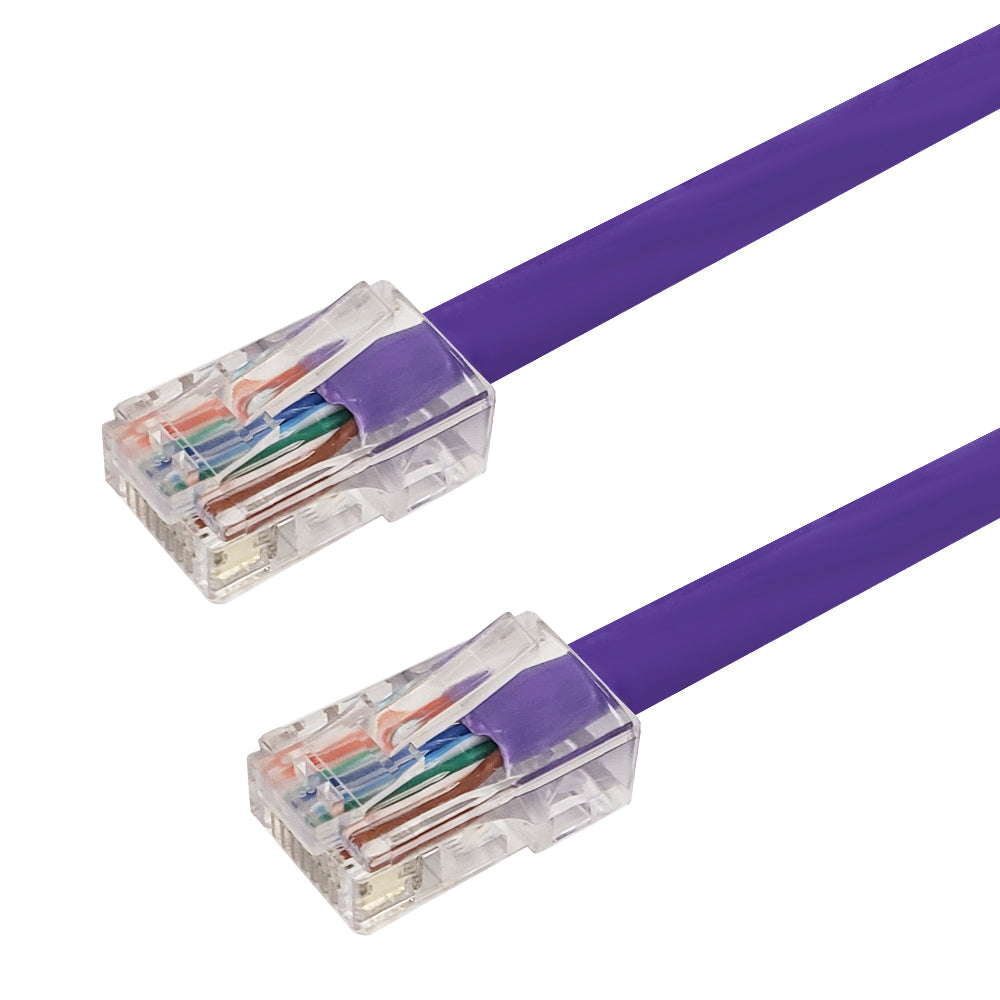

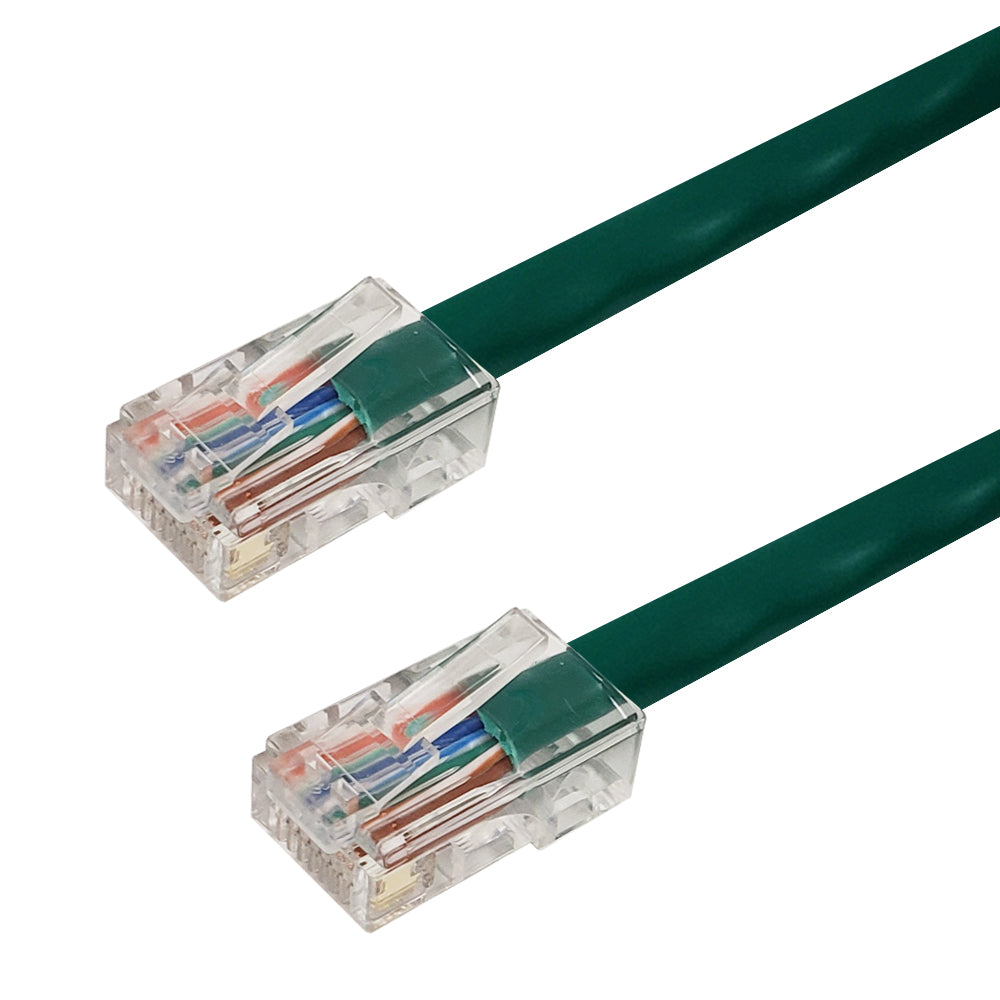

This Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Our cables are 100% continuity tested and batch tested to pass a CAT5e Fluke channel test.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 5.3mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CM |
| Color Code | 568B |
| Molding | Molded Tab Style Strain Relief |
| Jacket Temperature Rating | +75 deg C |
| Jacket Type | PVC |
|
Connectors
|
|
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| CAT5e FlukeĀ® Channel Test | Yes |
| Frequency | 350 MHz |
| Approvals | |
| c(UL)us | Yes - Cable |
| ETL Verified | Yes |
| TIA/EIA - 568 - C.2 | Yes |
| Product Support | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Country of Origin | Vietnam |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 5ft | 7ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.15 lbs | 0.20 lbs | 0.25 lbs | 0.43 lbs | 0.60 lbs | 0.80 lbs | 1.10 lbs |
