Description

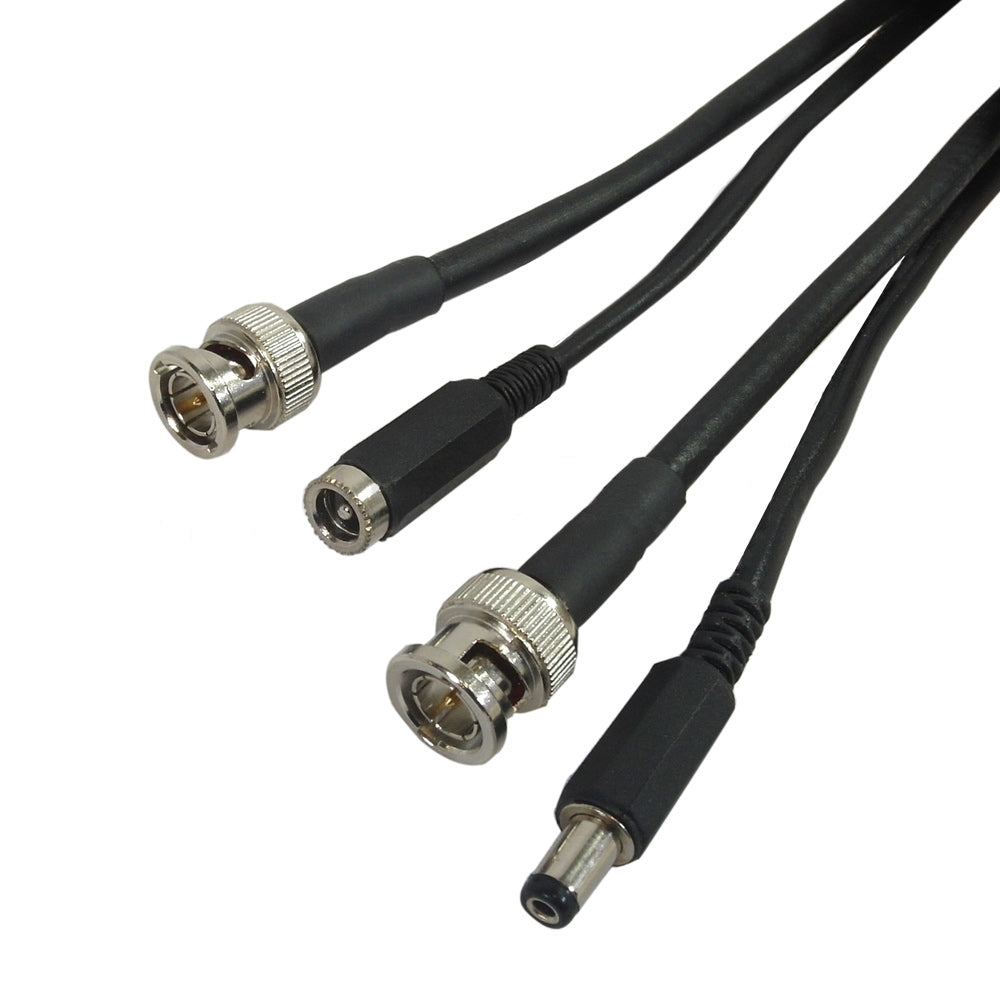

This cable consists of a BNC male plus a DC power plug (2.1mm) on one end and a BNC male plus a DC power receptacle (2.1mm) on the other end. It is typically used to connect a security camera to a DVR.
Physical Characteristics
| |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Cable Type | RG59 + 2C 18AWG Power |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 |
| Cable Shielding | 95% Braid |
Connector(s)
| |
| Connector A | BNC Male |
| Connector B | DC Power Plug Male (2.1mm) |
| Connector C | BNC Male |
| Connector D | DC Power Plug Female (2.1mm) |
Performance
| |
| Impedance | 75 Ohm |
Packaging Information
| |
| Package Quantity | 1 - Cable |
Warranty Information
| |
| Warranty | Limited Lifetime |
| 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft | 175ft | 200ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.60 lbs | 0.96 lbs | 1.33 lbs | 1.88 lbs | 2.79 lbs | 3.71 lbs | 4.62 lbs | 5.54 lbs | 6.45 lbs | 7.36 lbs |
