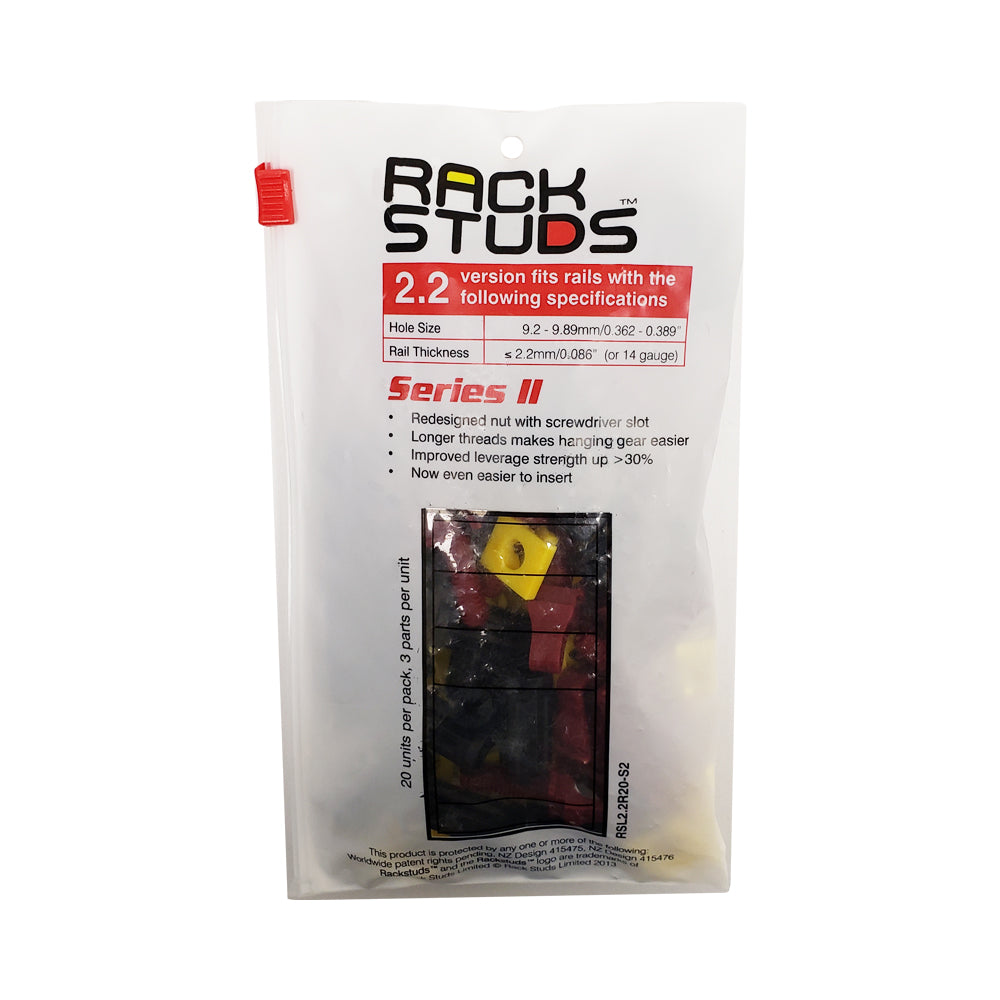

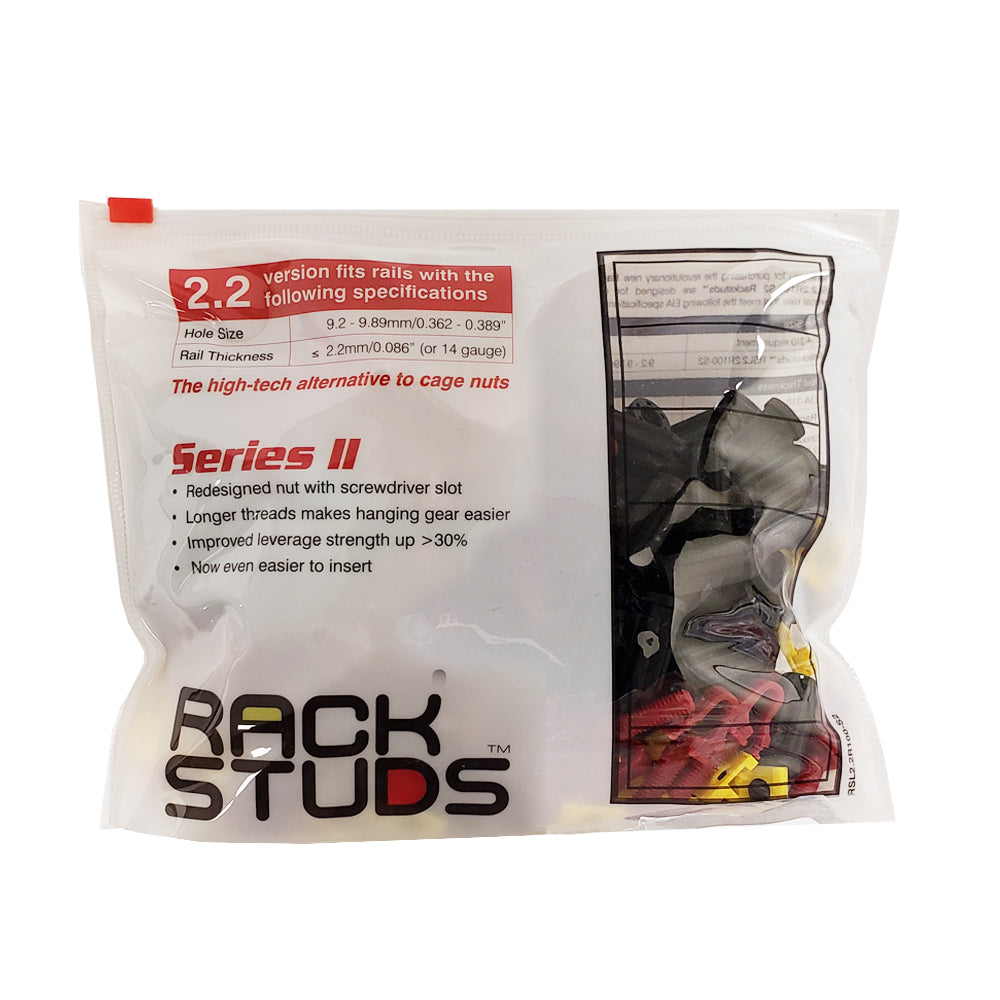

Rack Studs Series II - Maroon (Rail Thickness up to 2.2mm)

Screws, Cage Nuts & AccessoriesSKU: RM-RSL2.2R100-S2

Packging: 100/Pack
Price:
Sale price$70.60 CAD
Stock:
In stock

Description

This Rackstud is designed to fit 14AWG square hole server rails. The stud is installed from the front of the rail which simplifies the installation in tight spaces. Once the stud and lock washer is installed, equipment can be easily be hung while you secure it in place with the nut.

Features:

  • Redesigned nut with screwdriver slot
  • Longer threads makes hanging gear easier
  • Improved leverage strength up >30%
  • Now even easier to insert

Physical Characteristics
Color Maroon Stud, Yellow Lock Washer, Black Nut
Stud Material Grivory
Washer Material PP
Nut Material Glass Filled Nylon
Vertical Rail Hole 9.2 to 9.89mm (0.362" to 0.389")
Vertical Rail Thickness ? 2.2mm/0.086" (or 14 Gauge)
Maximum Equipment Weight 20kg (44lbs)
Push-In Force 46kgs/101lbs
Pull-Out Force 92kgs/202lbs
Shear Strength 156kg/343lbs
Rack Compatibility
Manufacturer APC
B & R Enclosures
Compaq
Dynamix
Eaton
Hallam
Hoffman
Minkels
Modem Pak
Over IP NetArc
Panduit R4PCN
Rack Technologies IQ rack
Rittal
StarTech (DuraRak)
Approvals
SGS Labs Yes
RoHS
Yes
Reach
Yes
Packaging Information
Package Quantity 20, 100
Product Weight 20 pack - 0.16 lbs [0.07 kg]
100 pack - 0.78 lbs [0.36 kg]
